#include "ObjectStructure.h"#include "HandleManagement.h"#include "../../sparse/includes/spConfig.h"#include "bcg.h"#include "PloEch.h"#include "Vect2Matrix.h"#include "StringMatrix.h"Include dependency graph for DrawObjects.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Defines | |
| #define | spINSIDE_SPARSE |
Functions | |
| void wininfo | __PARAMS ((char *fmt,...)) |
| int | get_cf_type (void) |
| void | GPopupResize (struct BCG *ScilabXgc, int *width, int *height) |
| void | set_cf_type (int val) |
| char ** | FreeUserLabels (char **u_xlabels, int *u_nxgrads) |
| double * | AllocUserGrads (double *u_xgrads, int nb) |
| int | CopyUserGrads (double *u_xgrad_SRC, double *u_xgrad_DEST, int dim) |
| char ** | AllocAndSetUserLabelsFromMdl (char **u_xlabels, char **u_xlabels_MDL, int u_nxgrads) |
| void | sciRedrawFigure (void) |
| void | sciRedrawF (int *num) |
| void | sciXbasc (void) |
| void | sciXclear (void) |
| void | SetEch3d1 (double *xbox, double *ybox, double *zbox, double *bbox, double *teta, double *alpha, integer flag) |
| void | Convex_Box (double *xbox, double *ybox, integer *InsideU, integer *InsideD, char *legend, integer *flag, double *bbox) |
| void | Nextind (integer ind1, integer *ind2, integer *ind3) |
| int | GradLog (double _min, double _max, double *_grads, int *n_grads, int compNgrads) |
| BOOL | Ishidden (sciPointObj *pobj) |
| BOOL | IsDownAxes (sciPointObj *pobj) |
| void | sciGetDisplayedBounds (sciPointObj *pSubWin, double *xmin, double *xmax, double *ymin, double *ymax, double *zmin, double *zmax) |
| void | updateScale3d (sciPointObj *pobj, double dbox[6], double xbox[8], double ybox[8], double zbox[8]) |
| BOOL | sci_update_frame_bounds_3d (sciPointObj *pobj) |
| BOOL | sci_update_frame_bounds_2d (sciPointObj *pobj) |
| int | ComputeNbSubTics (sciPointObj *pobj, int nbtics, char logflag, double *grads, int nbsubtics_input) |
| int | ComputeNbSubTicsFor3dUse (sciPointObj *pobj, int nbtics, char logflag, double *grads, int nbsubtics_input) |
| int | ComputeCorrectXindAndInsideUD (double Teta, double Alpha, double *dbox, integer *xind, integer *InsideU, integer *InsideD) |
| int | Axes3dStrings2 (integer *ixbox, integer *iybox, integer *xind) |
| int | AdaptGraduationsOnZ (int x, int y, int size, integer *Ticsdir, int *fontid, sciPointObj *psubwin, double zminval, double zmaxval, double fx, double fy, double fz) |
| int | AdaptGraduationsOnXBottomRight (int iof, int x, int y, int size, integer *Ticsdir, int *fontid, sciPointObj *psubwin, double xminval, double xmaxval, double fx, double fy, double fz) |
| int | AdaptGraduationsOnYBottomRight (int iof, int x, int y, int size, integer *Ticsdir, int *fontid, sciPointObj *psubwin, double yminval, double ymaxval, double fx, double fy, double fz) |
| int | AdaptGraduationsOnXBottomLeft (int iof, int x, int y, int size, integer *Ticsdir, int *fontid, sciPointObj *psubwin, double xminval, double xmaxval, double fx, double fy, double fz) |
| int | AdaptGraduationsOnYBottomLeft (int iof, int x, int y, int size, integer *Ticsdir, int *fontid, sciPointObj *psubwin, double yminval, double ymaxval, double fx, double fy, double fz) |
| int | CheckDisplay (double fact_h, double fact_w, char logflag, char *foo, int *posi, int *fontid, int *old_rect) |
| int | IsInsideRectangle (int *rect, int *point) |
| int | ComputeGoodTrans3d (sciPointObj *psubwin, int n, int *xm, int *ym, double *fx, double *fy, double *fz) |
| void | DrawAxesIfRequired (sciPointObj *) |
| void | DrawAxes (sciPointObj *) |
| void | UpdateSubwinScale (sciPointObj *pobj) |
| int | sciDrawObj (sciPointObj *pobj) |
| int | sciDrawObjIfRequired (sciPointObj *pobj) |
| int | sciRefreshObj (sciPointObj *pobj) |
| int | ComputeXIntervals (sciPointObj *pobj, char xy_type, double **vector, int *N, int checkdim) |
| int | Gen3DPoints (integer type, integer *polyx, integer *polyy, integer *fill, integer whiteid, double zmin, double zmax, double *, double *, double *, integer i, integer j, integer jj1, integer *p, integer dc, integer fg, sciPointObj *psurface) |
| void | Merge3d (sciPointObj *psubwin) |
| void | Merge3dBuildTable (sciPointObj *pparent, int *index_in_entity, long *from_entity, int *pos) |
| int | Merge3dDimension (sciPointObj *pparent) |
| int | CheckPixelStatus (void) |
| int | GetDPIFromDriver (int *DPI) |
| int | ChooseFormatForOneGrad (char *c_format, double *grad) |
| int | ChildrenCounter (sciPointObj *pparent) |
| int | GetBarNumber (sciPointObj *pobj) |
| double | FindWidth (sciPointObj *pobj, int n1, int bar_number, double *x) |
| void | sciGetAxisBox (double limits[6], double xbox[8], double ybox[8], double zbox[8]) |
| void | sciUpdateScaleAngles (double theta, double alpha) |
| void | sciAxesVerticesIndices (integer insideU[4], integer insideD[4], double xbox[8], double ybox[8], integer xind[8]) |
| void | matrixLine2String (char **matrix, int matrixSize[2], int numLine, char *dest) |
| void | computeLabelAutoPos (sciPointObj *pLabel, int axisStart[2], int axisEnd[2], int offsets[2]) |
| void | sciDrawFigure (int numFigure) |
| int | computeRealArrowSize (sciPointObj *pSegs, int nbSegs, int xCoord[], int yCoord[]) |
Variables | |
| int | cf_type |
| #define spINSIDE_SPARSE |
Definition at line 20 of file DrawObjects.h.
| void wininfo __PARAMS | ( | (char *fmt,...) | ) |
| int AdaptGraduationsOnXBottomLeft | ( | int | iof, | |
| int | x, | |||
| int | y, | |||
| int | size, | |||
| integer * | Ticsdir, | |||
| int * | fontid, | |||
| sciPointObj * | psubwin, | |||
| double | xminval, | |||
| double | xmaxval, | |||
| double | fx, | |||
| double | fy, | |||
| double | fz | |||
| ) |
Definition at line 1790 of file DrawObjects.c.
References sciSubWindow::axes, C2F, CheckDisplay(), ChoixFormatE(), ChooseFormatForOneGrad(), ComputeGoodTrans3d(), dr(), foo(), sciSubWindow::FRect, i, inint, int, InvAxis(), IsDownAxes(), sciSubWindow::logflags, AXES::nbsubtics, AXES::nxgrads, pas, pSUBWIN_FEATURE, AXES::reverse, TRUE, and AXES::xgrads.
01791 { 01792 int i; 01793 int nbtics, nbsubtics; 01794 int lastxindex; 01795 int old_rect[4]; 01796 int nb_grads_max = 0; 01797 int vx[2], vy[2]; 01798 int xm, ym; 01799 double grads_tmp[20]; 01800 char c_format[5]; 01801 integer barlengthx = 0,barlengthy = 0; 01802 integer rect[4],posi[2]; 01803 integer textcolor = -1; 01804 int logrect[4],XX,YY; 01805 int pas; 01806 double fact_h = 1.5, fact_w = 1.5; 01807 int compteur = 0; 01808 01809 int possible_pas, possible_compteur; 01810 01811 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 01812 01813 for(i=0;i<4;i++) old_rect[i] = 0; /* Init. old_rect to force first grad. to be displayed */ 01814 01815 lastxindex = ppsubwin->axes.nxgrads - 1; 01816 01817 if(lastxindex == 0) 01818 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.xgrads[0])); 01819 else 01820 ChoixFormatE(c_format, 01821 ppsubwin->axes.xgrads[0], 01822 ppsubwin->axes.xgrads[lastxindex], 01823 ((ppsubwin->axes.xgrads[lastxindex])-(ppsubwin->axes.xgrads[0]))/(lastxindex)); 01824 01825 nbtics = ppsubwin->axes.nxgrads; 01826 nbsubtics = ppsubwin->axes.nbsubtics[0]; 01827 01828 01829 for(i=0;i<nbtics;i++) grads_tmp[i] = ppsubwin->axes.xgrads[i]; 01830 01831 for(i=0;i<nbtics;i++) 01832 { 01833 char foo[256]; 01834 double xtmp = ppsubwin->axes.xgrads[i]; 01835 01836 sprintf(foo,c_format,xtmp); 01837 01838 /***************************************************************/ 01839 /************************* COMMON PART *************************/ 01840 /***************************************************************/ 01841 if(ppsubwin->axes.reverse[0] == TRUE) 01842 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 01843 01844 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 01845 01846 vx[0]=xm;vy[0]=ym; 01847 01848 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 01849 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 01850 01851 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 01852 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01853 01854 01855 if (IsDownAxes(psubwin)){ 01856 vx[1]=vx[0]; 01857 vy[1]=vy[0]+iof/2; 01858 posi[0] = inint(xm-rect[2]/2); 01859 posi[1]=inint( vy[0] + iof + rect[3]);} 01860 else{ 01861 vx[1]=vx[0]+barlengthx; 01862 vy[1]=vy[0]+barlengthy; 01863 posi[0] = inint( xm+2*barlengthx-rect[2]); 01864 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 01865 01866 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 01867 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01868 01869 01870 if(CheckDisplay(fact_h, fact_w, ppsubwin->logflags[0],foo,posi,fontid,old_rect) == 0) 01871 continue; /* graduation too close, DO NOT display the graduation ! */ 01872 01873 01874 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01875 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01876 if ( ppsubwin->logflags[0] == 'l' ) 01877 { 01878 int smallersize = fontid[1]-2; 01879 int old_rect10[4]; 01880 int posi10[2]; 01881 01882 posi10[0] = posi[0] - logrect[2]; 01883 posi10[1] = posi[1] + logrect[3]; 01884 01885 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01886 01887 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01888 01889 posi[0] = old_rect10[0] + old_rect10[2]; 01890 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 01891 01892 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01893 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01894 01895 /* update old_rect */ 01896 old_rect[2] = (int)(fact_w*(old_rect[2] + old_rect10[2])); 01897 old_rect[3] = (int)(fact_h*(old_rect[3] + old_rect10[3] + (int) (old_rect10[3]*.1))); 01898 old_rect[0] = old_rect10[0]; 01899 old_rect[1] = old_rect[1]; 01900 01901 nb_grads_max++; 01902 01903 /* put back the current fontid */ 01904 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01905 } 01906 else{ 01907 /* update old_rect */ 01908 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01909 old_rect[3] = (int)(fact_h* old_rect[3]); 01910 old_rect[2] = (int)(fact_w* old_rect[2]); 01911 nb_grads_max++; 01912 } 01913 } 01914 01915 if(ppsubwin->logflags[0] != 'l') 01916 if(nb_grads_max == 1) /* only one grad. can be displayed : we choose to display the average value (max+min)/2 */ 01917 { 01918 ppsubwin->axes.xgrads[0] = (grads_tmp[0]+grads_tmp[lastxindex])/2.; 01919 ppsubwin->axes.nxgrads = 1; 01920 if ( !ppsubwin->flagNax ) 01921 { 01922 ppsubwin->axes.nbsubtics[0] = 1; 01923 } 01924 return 0; 01925 } 01926 01927 01928 pas = nbtics - 2; /* pas == grads number - 2 */ 01929 01930 possible_pas = -99; 01931 possible_compteur = -99; 01932 01933 while(pas > 0) 01934 { 01935 int tmp = 0; 01936 compteur = 0; 01937 for(;;) 01938 { 01939 tmp = tmp + pas; 01940 compteur++; 01941 01942 if((tmp == (nbtics - 1)) && (compteur < nb_grads_max)){ 01943 possible_pas = pas; 01944 possible_compteur = ++compteur; 01945 break; 01946 } 01947 01948 if(tmp > (nbtics - 1)) 01949 break; 01950 } 01951 01952 pas--; 01953 } 01954 01955 01956 if(possible_compteur != -99){ 01957 compteur = possible_compteur; 01958 pas = possible_pas; 01959 01960 for(i=0;i<compteur;i++) 01961 ppsubwin->axes.xgrads[i] = grads_tmp[i*pas]; 01962 01963 ppsubwin->axes.nxgrads = compteur; 01964 01965 /* Nb of subtics computation and storage */ 01966 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 01967 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTicsFor3dUse(psubwin, 01968 ppsubwin->axes.nxgrads, 01969 ppsubwin->logflags[0], 01970 ppsubwin->axes.xgrads, 01971 ppsubwin->axes.nbsubtics[0]); 01972 } 01973 else{ 01974 ppsubwin->axes.xgrads[0] = grads_tmp[0]; 01975 ppsubwin->axes.xgrads[1] = grads_tmp[lastxindex]; 01976 ppsubwin->axes.nxgrads = 2; 01977 /* Nb of subtics computation and storage */ 01978 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 01979 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTicsFor3dUse(psubwin, 01980 ppsubwin->axes.nxgrads, 01981 ppsubwin->logflags[0], 01982 ppsubwin->axes.xgrads, 01983 ppsubwin->axes.nbsubtics[0]); 01984 01985 if(ppsubwin->logflags[0] == 'n'){ 01986 if(nb_grads_max > 4) { 01987 /* we could display at least 4 graduations but we did not find a proper interval... */ 01988 /* To avoid to display only the min and max (see above), we add 2 newly created grads by interpolating between min and max */ 01989 double pas_ = (grads_tmp[lastxindex]-grads_tmp[0])/3; 01990 for(i=0;i<3;i++){ 01991 ppsubwin->axes.xgrads[i] = grads_tmp[0] + i*pas_; 01992 } 01993 01994 ppsubwin->axes.xgrads[3] = grads_tmp[lastxindex]; /* exact max */ 01995 ppsubwin->axes.nxgrads = 4; 01996 01997 /* Nb of subtics computation and storage */ 01998 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 01999 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTicsFor3dUse(psubwin, 02000 ppsubwin->axes.nxgrads, 02001 'n', 02002 ppsubwin->axes.xgrads, 02003 ppsubwin->axes.nbsubtics[0]); 02004 } 02005 } 02006 } 02007 02008 return 0; 02009 }

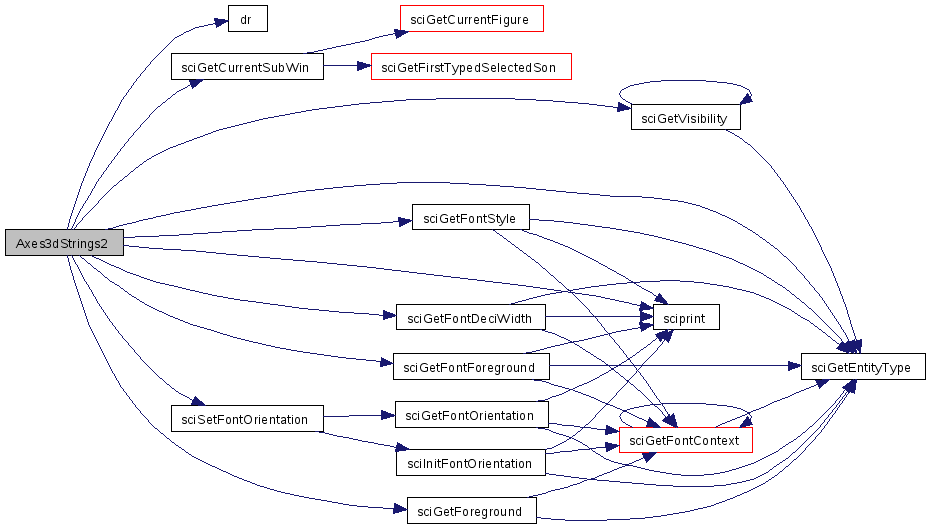

Here is the call graph for this function:
| int AdaptGraduationsOnXBottomRight | ( | int | iof, | |
| int | x, | |||
| int | y, | |||
| int | size, | |||
| integer * | Ticsdir, | |||
| int * | fontid, | |||
| sciPointObj * | psubwin, | |||
| double | xminval, | |||
| double | xmaxval, | |||
| double | fx, | |||
| double | fy, | |||
| double | fz | |||
| ) |
Definition at line 2238 of file DrawObjects.c.
References sciSubWindow::axes, C2F, CheckDisplay(), ChoixFormatE(), ChooseFormatForOneGrad(), ComputeGoodTrans3d(), dr(), foo(), sciSubWindow::FRect, i, inint, int, InvAxis(), IsDownAxes(), sciSubWindow::logflags, AXES::nbsubtics, AXES::nxgrads, pas, pSUBWIN_FEATURE, AXES::reverse, TRUE, and AXES::xgrads.
02239 { 02240 int i; 02241 int nbtics, nbsubtics; 02242 int lastxindex; 02243 int old_rect[4]; 02244 int nb_grads_max = 0; 02245 int vx[2], vy[2]; 02246 int xm, ym; 02247 double grads_tmp[20]; 02248 char c_format[5]; 02249 integer barlengthx = 0,barlengthy = 0; 02250 integer rect[4],posi[2]; 02251 integer textcolor = -1; 02252 int logrect[4] ; 02253 int XX = 0; 02254 int YY = 0 ; 02255 int pas; 02256 double fact_h = 1.5, fact_w = 1.5; 02257 int compteur = 0; 02258 02259 int possible_pas, possible_compteur; 02260 02261 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 02262 02263 for(i=0;i<4;i++) old_rect[i] = 0; /* Init. old_rect to force first grad. to be displayed */ 02264 02265 lastxindex = ppsubwin->axes.nxgrads - 1; 02266 02267 if(lastxindex == 0) 02268 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.xgrads[0])); 02269 else 02270 ChoixFormatE(c_format, 02271 ppsubwin->axes.xgrads[0], 02272 ppsubwin->axes.xgrads[lastxindex], 02273 ((ppsubwin->axes.xgrads[lastxindex])-(ppsubwin->axes.xgrads[0]))/(lastxindex)); 02274 02275 nbtics = ppsubwin->axes.nxgrads; 02276 nbsubtics = ppsubwin->axes.nbsubtics[0]; 02277 02278 02279 for(i=0;i<nbtics;i++) grads_tmp[i] = ppsubwin->axes.xgrads[i]; 02280 02281 for(i=0;i<nbtics;i++) 02282 { 02283 char foo[256]; 02284 double xtmp = ppsubwin->axes.xgrads[i]; 02285 02286 sprintf(foo,c_format,xtmp); 02287 02288 /***************************************************************/ 02289 /************************* COMMON PART *************************/ 02290 /***************************************************************/ 02291 if(ppsubwin->axes.reverse[0] == TRUE) 02292 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 02293 02294 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 02295 02296 vx[0]=xm;vy[0]=ym; 02297 02298 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 02299 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 02300 02301 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 02302 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02303 02304 02305 if (IsDownAxes(psubwin)){ 02306 vx[1]=vx[0]; 02307 vy[1]=vy[0]+iof/2; 02308 posi[0] = inint(xm-rect[2]/2); 02309 posi[1]=inint( vy[0] + iof + rect[3]);} 02310 else{ 02311 vx[1]=vx[0]+barlengthx; 02312 vy[1]=vy[0]+barlengthy; 02313 posi[0] = inint( xm+2*barlengthx); 02314 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 02315 02316 02317 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 02318 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02319 02320 02321 if(CheckDisplay(fact_h, fact_w, ppsubwin->logflags[0],foo,posi,fontid,old_rect) == 0) 02322 continue; /* graduation too close, DO NOT display the graduation ! */ 02323 02324 02325 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02326 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02327 if ( ppsubwin->logflags[0] == 'l' ) 02328 { 02329 int smallersize = fontid[1]-2; 02330 int old_rect10[4]; 02331 int posi10[2]; 02332 02333 posi10[0] = posi[0] - logrect[2]; 02334 posi10[1] = posi[1] + logrect[3]; 02335 02336 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02337 02338 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02339 02340 posi[0] = old_rect10[0] + old_rect10[2]; 02341 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 02342 02343 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02344 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02345 02346 /* update old_rect */ 02347 old_rect[2] = (int)(fact_w*(old_rect[2] + old_rect10[2])); 02348 old_rect[3] = (int)(fact_h*(old_rect[3] + old_rect10[3] + (int) (old_rect10[3]*.1))); 02349 old_rect[0] = old_rect10[0]; 02350 old_rect[1] = old_rect[1]; 02351 02352 nb_grads_max++; 02353 02354 /* put back the current fontid */ 02355 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02356 } 02357 else{ 02358 /* update old_rect */ 02359 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02360 old_rect[3] = (int)(fact_h* old_rect[3]); 02361 old_rect[2] = (int)(fact_w* old_rect[2]); 02362 nb_grads_max++; 02363 } 02364 } 02365 02366 if(ppsubwin->logflags[0] != 'l') 02367 if(nb_grads_max == 1) /* only one grad. can be displayed : we choose to display the average value (max+min)/2 */ 02368 { 02369 ppsubwin->axes.xgrads[0] = (grads_tmp[0]+grads_tmp[lastxindex])/2.; 02370 ppsubwin->axes.nxgrads = 1; 02371 if ( !ppsubwin->flagNax ) 02372 { 02373 ppsubwin->axes.nbsubtics[0] = 1; 02374 } 02375 return 0; 02376 } 02377 02378 02379 pas = nbtics - 2; /* pas == grads number - 2 */ 02380 02381 possible_pas = -99; 02382 possible_compteur = -99; 02383 02384 while(pas > 0) 02385 { 02386 int tmp = 0; 02387 compteur = 0; 02388 for(;;) 02389 { 02390 tmp = tmp + pas; 02391 compteur++; 02392 02393 if((tmp == (nbtics - 1)) && (compteur < nb_grads_max)){ 02394 possible_pas = pas; 02395 possible_compteur = ++compteur; 02396 break; 02397 } 02398 02399 if(tmp > (nbtics - 1)) 02400 break; 02401 } 02402 02403 pas--; 02404 } 02405 02406 02407 if(possible_compteur != -99){ 02408 compteur = possible_compteur; 02409 pas = possible_pas; 02410 02411 for(i=0;i<compteur;i++) 02412 ppsubwin->axes.xgrads[i] = grads_tmp[i*pas]; 02413 02414 ppsubwin->axes.nxgrads = compteur; 02415 02416 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTicsFor3dUse(psubwin, 02417 ppsubwin->axes.nxgrads, 02418 ppsubwin->logflags[0], 02419 ppsubwin->axes.xgrads, 02420 ppsubwin->axes.nbsubtics[0]); 02421 } 02422 else{ 02423 ppsubwin->axes.xgrads[0] = grads_tmp[0]; 02424 ppsubwin->axes.xgrads[1] = grads_tmp[lastxindex]; 02425 ppsubwin->axes.nxgrads = 2; 02426 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTicsFor3dUse(psubwin, 02427 ppsubwin->axes.nxgrads, 02428 ppsubwin->logflags[0], 02429 ppsubwin->axes.xgrads, 02430 ppsubwin->axes.nbsubtics[0]); 02431 if(ppsubwin->logflags[0] == 'n'){ 02432 if(nb_grads_max > 4) { 02433 /* we could display at least 4 graduations but we did not find a proper interval... */ 02434 /* To avoid to display only the min and max (see above), we add 2 newly created grads by interpolating between min and max */ 02435 double pas_ = (grads_tmp[lastxindex]-grads_tmp[0])/3; 02436 for(i=0;i<3;i++){ 02437 ppsubwin->axes.xgrads[i] = grads_tmp[0] + i*pas_; 02438 } 02439 02440 ppsubwin->axes.xgrads[3] = grads_tmp[lastxindex]; /* exact max */ 02441 ppsubwin->axes.nxgrads = 4; 02442 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTicsFor3dUse(psubwin, 02443 ppsubwin->axes.nxgrads, 02444 'n', 02445 ppsubwin->axes.xgrads, 02446 ppsubwin->axes.nbsubtics[0] ); 02447 } 02448 } 02449 } 02450 02451 return 0; 02452 }
Here is the call graph for this function:
| int AdaptGraduationsOnYBottomLeft | ( | int | iof, | |
| int | x, | |||
| int | y, | |||
| int | size, | |||
| integer * | Ticsdir, | |||
| int * | fontid, | |||
| sciPointObj * | psubwin, | |||
| double | yminval, | |||
| double | ymaxval, | |||
| double | fx, | |||
| double | fy, | |||
| double | fz | |||
| ) |
Definition at line 1565 of file DrawObjects.c.
References sciSubWindow::axes, C2F, CheckDisplay(), ChoixFormatE(), ChooseFormatForOneGrad(), ComputeGoodTrans3d(), dr(), foo(), sciSubWindow::FRect, i, inint, int, InvAxis(), IsDownAxes(), sciSubWindow::logflags, AXES::nbsubtics, AXES::nygrads, pas, pSUBWIN_FEATURE, AXES::reverse, TRUE, and AXES::ygrads.
01566 { 01567 int i; 01568 int nbtics, nbsubtics; 01569 int lastyindex; 01570 int old_rect[4]; 01571 int nb_grads_max = 0; 01572 int vx[2], vy[2]; 01573 int xm, ym; 01574 double grads_tmp[20]; 01575 char c_format[5]; 01576 integer barlengthx = 0,barlengthy = 0; 01577 integer rect[4],posi[2]; 01578 integer textcolor = -1; 01579 int logrect[4] ; 01580 int XX = 0 ; 01581 int YY = 0 ; 01582 int pas; 01583 double fact_h = 1.5, fact_w = 1.5; 01584 int compteur = 0; 01585 01586 int possible_pas, possible_compteur; 01587 01588 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 01589 01590 for(i=0;i<4;i++) { old_rect[i] = 0 ; } /* Init. old_rect to force first grad. to be displayed */ 01591 01592 lastyindex = ppsubwin->axes.nygrads - 1; 01593 01594 if(lastyindex == 0) 01595 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.ygrads[0])); 01596 else 01597 ChoixFormatE(c_format, 01598 ppsubwin->axes.ygrads[0], 01599 ppsubwin->axes.ygrads[lastyindex], 01600 ((ppsubwin->axes.ygrads[lastyindex])-(ppsubwin->axes.ygrads[0]))/(lastyindex)); 01601 01602 nbtics = ppsubwin->axes.nygrads; 01603 nbsubtics = ppsubwin->axes.nbsubtics[1]; 01604 01605 01606 for(i=0;i<nbtics;i++) grads_tmp[i] = ppsubwin->axes.ygrads[i]; 01607 01608 for(i=0;i<nbtics;i++) 01609 { 01610 char foo[256]; 01611 double ytmp = ppsubwin->axes.ygrads[i]; 01612 01613 01614 sprintf(foo,c_format,ytmp); 01615 01616 /***************************************************************/ 01617 /************************* COMMON PART *************************/ 01618 /***************************************************************/ 01619 if(ppsubwin->axes.reverse[1] == TRUE) 01620 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 01621 01622 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 01623 01624 vx[0]=xm;vy[0]=ym; 01625 01626 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 01627 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 01628 01629 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 01630 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01631 01632 01633 if (IsDownAxes(psubwin)){ 01634 vx[1]=vx[0]; 01635 vy[1]=vy[0]+iof/2; 01636 posi[0] = inint(xm-rect[2]/2); 01637 posi[1]=inint( vy[0] + iof + rect[3]);} 01638 else{ 01639 vx[1]=vx[0]+barlengthx; 01640 vy[1]=vy[0]+barlengthy; 01641 posi[0] = inint( xm+2*barlengthx-rect[2]); 01642 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 01643 01644 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 01645 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01646 01647 01648 if(CheckDisplay(fact_h, fact_w, ppsubwin->logflags[1],foo,posi,fontid,old_rect) == 0) 01649 continue; /* graduation too close, DO NOT display the graduation ! */ 01650 01651 01652 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01653 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01654 if ( ppsubwin->logflags[1] == 'l' ) 01655 { 01656 int smallersize = fontid[1]-2; 01657 int old_rect10[4]; 01658 int posi10[2]; 01659 01660 posi10[0] = posi[0] - logrect[2]; 01661 posi10[1] = posi[1] + logrect[3]; 01662 01663 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01664 01665 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01666 01667 posi[0] = old_rect10[0] + old_rect10[2]; 01668 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 01669 01670 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01671 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01672 01673 /* update old_rect */ 01674 old_rect[2] = (int)(fact_w*(old_rect[2] + (double)old_rect10[2])); 01675 old_rect[3] = (int)(fact_h*(old_rect[3] + old_rect10[3] + (int) (old_rect10[3]*.1))); 01676 old_rect[0] = old_rect10[0]; 01677 old_rect[1] = old_rect[1]; 01678 01679 nb_grads_max++; 01680 01681 /* put back the current fontid */ 01682 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01683 } 01684 else{ 01685 /* update old_rect */ 01686 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01687 old_rect[3] = (int)(fact_h* old_rect[3]); 01688 old_rect[2] = (int)(fact_w* old_rect[2]); 01689 nb_grads_max++; 01690 } 01691 } 01692 01693 if(ppsubwin->logflags[1] != 'l') 01694 if(nb_grads_max == 1) /* only one grad. can be displayed : we choose to display the average value (max+min)/2 */ 01695 { 01696 ppsubwin->axes.ygrads[0] = (grads_tmp[0]+grads_tmp[lastyindex])/2.; 01697 ppsubwin->axes.nygrads = 1; 01698 01699 if ( !ppsubwin->flagNax ) 01700 { 01701 /* don't change the number if it aldready has been specified */ 01702 ppsubwin->axes.nbsubtics[1] = 1 ; 01703 } 01704 return 0; 01705 } 01706 01707 01708 pas = nbtics - 2; /* pas == grads number - 2 */ 01709 01710 possible_pas = -99; 01711 possible_compteur = -99; 01712 01713 while(pas > 0) 01714 { 01715 int tmp = 0; 01716 compteur = 0; 01717 for(;;) 01718 { 01719 tmp = tmp + pas; 01720 compteur++; 01721 01722 if((tmp == (nbtics - 1)) && (compteur < nb_grads_max)){ 01723 possible_pas = pas; 01724 possible_compteur = ++compteur; 01725 break; 01726 } 01727 01728 if(tmp > (nbtics - 1)) 01729 break; 01730 } 01731 01732 pas--; 01733 } 01734 01735 01736 if(possible_compteur != -99){ 01737 compteur = possible_compteur; 01738 pas = possible_pas; 01739 01740 for(i=0;i<compteur;i++) 01741 ppsubwin->axes.ygrads[i] = grads_tmp[i*pas]; 01742 01743 ppsubwin->axes.nygrads = compteur; 01744 01745 /* Nb of subtics computation and storage */ 01746 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 01747 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTicsFor3dUse(psubwin, 01748 ppsubwin->axes.nygrads, 01749 ppsubwin->logflags[1], 01750 ppsubwin->axes.ygrads, 01751 ppsubwin->axes.nbsubtics[1]); 01752 } 01753 else{ 01754 ppsubwin->axes.ygrads[0] = grads_tmp[0]; 01755 ppsubwin->axes.ygrads[1] = grads_tmp[lastyindex]; 01756 ppsubwin->axes.nygrads = 2; 01757 /* Nb of subtics computation and storage */ 01758 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 01759 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTicsFor3dUse(psubwin, 01760 ppsubwin->axes.nygrads, 01761 ppsubwin->logflags[1], 01762 ppsubwin->axes.ygrads, 01763 ppsubwin->axes.nbsubtics[1]); 01764 01765 if(ppsubwin->logflags[1] == 'n'){ 01766 if(nb_grads_max > 4) { 01767 /* we could display at least 4 graduations but we did not find a proper interval... */ 01768 /* To avoid to display only the min and max (see above), we add 2 newly created grads by interpolating between min and max */ 01769 double pas_ = (grads_tmp[lastyindex]-grads_tmp[0])/3; 01770 for(i=0;i<3;i++){ 01771 ppsubwin->axes.ygrads[i] = grads_tmp[0] + i*pas_; 01772 } 01773 01774 ppsubwin->axes.ygrads[3] = grads_tmp[lastyindex]; /* exact max */ 01775 ppsubwin->axes.nygrads = 4; 01776 /* Nb of subtics computation and storage */ 01777 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTicsFor3dUse(psubwin, 01778 ppsubwin->axes.nygrads, 01779 'n', 01780 ppsubwin->axes.ygrads, 01781 ppsubwin->axes.nbsubtics[1]); 01782 } 01783 } 01784 } 01785 01786 return 0; 01787 }
Here is the call graph for this function:
| int AdaptGraduationsOnYBottomRight | ( | int | iof, | |
| int | x, | |||
| int | y, | |||
| int | size, | |||
| integer * | Ticsdir, | |||
| int * | fontid, | |||
| sciPointObj * | psubwin, | |||
| double | yminval, | |||
| double | ymaxval, | |||
| double | fx, | |||
| double | fy, | |||
| double | fz | |||
| ) |
Definition at line 2013 of file DrawObjects.c.
References sciSubWindow::axes, C2F, CheckDisplay(), ChoixFormatE(), ChooseFormatForOneGrad(), ComputeGoodTrans3d(), dr(), foo(), sciSubWindow::FRect, i, inint, int, InvAxis(), IsDownAxes(), sciSubWindow::logflags, AXES::nbsubtics, AXES::nygrads, pas, pSUBWIN_FEATURE, AXES::reverse, TRUE, and AXES::ygrads.
02014 { 02015 int i; 02016 int nbtics, nbsubtics; 02017 int lastyindex; 02018 int old_rect[4]; 02019 int nb_grads_max = 0; 02020 int vx[2], vy[2]; 02021 int xm, ym; 02022 double grads_tmp[20]; 02023 char c_format[5]; 02024 integer barlengthx = 0,barlengthy = 0; 02025 integer rect[4],posi[2]; 02026 integer textcolor = -1; 02027 int logrect[4] ; 02028 int XX = 0 ; 02029 int YY = 0 ; 02030 int pas; 02031 double fact_h = 1.5, fact_w = 1.5; 02032 int compteur = 0; 02033 02034 int possible_pas, possible_compteur; 02035 02036 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 02037 02038 for(i=0;i<4;i++) old_rect[i] = 0; /* Init. old_rect to force first grad. to be displayed */ 02039 02040 lastyindex = ppsubwin->axes.nygrads - 1; 02041 02042 if(lastyindex == 0) 02043 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.ygrads[0])); 02044 else 02045 ChoixFormatE(c_format, 02046 ppsubwin->axes.ygrads[0], 02047 ppsubwin->axes.ygrads[lastyindex], 02048 ((ppsubwin->axes.ygrads[lastyindex])-(ppsubwin->axes.ygrads[0]))/(lastyindex)); 02049 02050 nbtics = ppsubwin->axes.nygrads; 02051 nbsubtics = ppsubwin->axes.nbsubtics[1]; 02052 02053 02054 for(i=0;i<nbtics;i++) grads_tmp[i] = ppsubwin->axes.ygrads[i]; 02055 02056 for(i=0;i<nbtics;i++) 02057 { 02058 char foo[256]; 02059 double ytmp = ppsubwin->axes.ygrads[i]; 02060 02061 sprintf(foo,c_format,ytmp); 02062 02063 /***************************************************************/ 02064 /************************* COMMON PART *************************/ 02065 /***************************************************************/ 02066 if(ppsubwin->axes.reverse[1] == TRUE) 02067 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 02068 02069 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 02070 02071 vx[0]=xm;vy[0]=ym; 02072 02073 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 02074 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 02075 02076 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 02077 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02078 02079 02080 if (IsDownAxes(psubwin)){ 02081 vx[1]=vx[0]; 02082 vy[1]=vy[0]+iof/2; 02083 posi[0] = inint(xm-rect[2]/2); 02084 posi[1]=inint( vy[0] + iof + rect[3]);} 02085 else{ 02086 vx[1]=vx[0]+barlengthx; 02087 vy[1]=vy[0]+barlengthy; 02088 posi[0] = inint( xm+2*barlengthx); 02089 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 02090 02091 02092 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 02093 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02094 02095 02096 if(CheckDisplay(fact_h, fact_w, ppsubwin->logflags[1],foo,posi,fontid,old_rect) == 0) 02097 continue; /* graduation too close, DO NOT display the graduation ! */ 02098 02099 02100 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02101 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02102 if ( ppsubwin->logflags[1] == 'l' ) 02103 { 02104 int smallersize = fontid[1]-2; 02105 int old_rect10[4]; 02106 int posi10[2]; 02107 02108 posi10[0] = posi[0] - logrect[2]; 02109 posi10[1] = posi[1] + logrect[3]; 02110 02111 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02112 02113 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02114 02115 posi[0] = old_rect10[0] + old_rect10[2]; 02116 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 02117 02118 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02119 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02120 02121 /* update old_rect */ 02122 old_rect[2] = (int)(fact_w*(old_rect[2] + old_rect10[2])); 02123 old_rect[3] = (int)(fact_h*(old_rect[3] + old_rect10[3] + (int) (old_rect10[3]*.1))); 02124 old_rect[0] = old_rect10[0]; 02125 old_rect[1] = old_rect[1]; 02126 02127 nb_grads_max++; 02128 02129 /* put back the current fontid */ 02130 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02131 } 02132 else{ 02133 /* update old_rect */ 02134 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02135 old_rect[3] = (int)(fact_h* old_rect[3]); 02136 old_rect[2] = (int)(fact_w* old_rect[2]); 02137 nb_grads_max++; 02138 } 02139 } 02140 02141 if(ppsubwin->logflags[1] != 'l') 02142 if(nb_grads_max == 1) /* only one grad. can be displayed : we choose to display the average value (max+min)/2 */ 02143 { 02144 ppsubwin->axes.ygrads[0] = (grads_tmp[0]+grads_tmp[lastyindex])/2.; 02145 ppsubwin->axes.nygrads = 1; 02146 if ( !ppsubwin->flagNax ) 02147 { 02148 ppsubwin->axes.nbsubtics[1] = 1; 02149 } 02150 return 0; 02151 } 02152 02153 02154 pas = nbtics - 2; /* pas == grads number - 2 */ 02155 02156 possible_pas = -99; 02157 possible_compteur = -99; 02158 02159 while(pas > 0) 02160 { 02161 int tmp = 0; 02162 compteur = 0; 02163 for(;;) 02164 { 02165 tmp = tmp + pas; 02166 compteur++; 02167 02168 if((tmp == (nbtics - 1)) && (compteur < nb_grads_max)){ 02169 possible_pas = pas; 02170 possible_compteur = ++compteur; 02171 break; 02172 } 02173 02174 if(tmp > (nbtics - 1)) 02175 break; 02176 } 02177 02178 pas--; 02179 } 02180 02181 02182 if(possible_compteur != -99){ 02183 compteur = possible_compteur; 02184 pas = possible_pas; 02185 02186 for(i=0;i<compteur;i++) 02187 ppsubwin->axes.ygrads[i] = grads_tmp[i*pas]; 02188 02189 ppsubwin->axes.nygrads = compteur; 02190 02191 /* Nb of subtics computation and storage */ 02192 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 02193 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTicsFor3dUse(psubwin, 02194 ppsubwin->axes.nygrads, 02195 ppsubwin->logflags[1], 02196 ppsubwin->axes.ygrads, 02197 ppsubwin->axes.nbsubtics[1]); 02198 } 02199 else{ 02200 ppsubwin->axes.ygrads[0] = grads_tmp[0]; 02201 ppsubwin->axes.ygrads[1] = grads_tmp[lastyindex]; 02202 ppsubwin->axes.nygrads = 2; 02203 02204 /* Nb of subtics computation and storage */ 02205 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 02206 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTicsFor3dUse(psubwin, 02207 ppsubwin->axes.nygrads, 02208 ppsubwin->logflags[1], 02209 ppsubwin->axes.ygrads, 02210 ppsubwin->axes.nbsubtics[1]); 02211 02212 if(ppsubwin->logflags[1] == 'n'){ 02213 if(nb_grads_max > 4) { 02214 /* we could display at least 4 graduations but we did not find a proper interval... */ 02215 /* To avoid to display only the min and max (see above), we add 2 newly created grads by interpolating between min and max */ 02216 double pas_ = (grads_tmp[lastyindex]-grads_tmp[0])/3; 02217 for(i=0;i<3;i++){ 02218 ppsubwin->axes.ygrads[i] = grads_tmp[0] + i*pas_; 02219 } 02220 02221 ppsubwin->axes.ygrads[3] = grads_tmp[lastyindex]; /* exact max */ 02222 ppsubwin->axes.nygrads = 4; 02223 /* Nb of subtics computation and storage */ 02224 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 02225 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTicsFor3dUse(psubwin, 02226 ppsubwin->axes.nygrads, 02227 'n', 02228 ppsubwin->axes.ygrads, 02229 ppsubwin->axes.nbsubtics[1]); 02230 } 02231 } 02232 } 02233 02234 return 0; 02235 }
Here is the call graph for this function:
| int AdaptGraduationsOnZ | ( | int | x, | |
| int | y, | |||
| int | size, | |||
| integer * | Ticsdir, | |||
| int * | fontid, | |||
| sciPointObj * | psubwin, | |||
| double | zminval, | |||
| double | zmaxval, | |||
| double | fx, | |||
| double | fy, | |||
| double | fz | |||
| ) |
Definition at line 2454 of file DrawObjects.c.
References sciSubWindow::axes, C2F, CheckDisplay(), ChoixFormatE(), ChooseFormatForOneGrad(), ComputeGoodTrans3d(), dr(), foo(), sciSubWindow::FRect, i, inint, int, InvAxis(), sciSubWindow::logflags, AXES::nbsubtics, AXES::nzgrads, pas, pSUBWIN_FEATURE, AXES::reverse, TRUE, and AXES::zgrads.
02455 { 02456 int i; 02457 int nbtics, nbsubtics; 02458 int lastzindex; 02459 int old_rect[4]; 02460 int nb_grads_max = 0; 02461 int vx[2], vy[2]; 02462 int xm, ym; 02463 double grads_tmp[20]; 02464 char c_format[5]; 02465 integer barlengthx = 0,barlengthy = 0; 02466 integer rect[4],posi[2]; 02467 integer textcolor = -1; 02468 int logrect[4] ; 02469 int XX = 0 ; 02470 int YY = 0 ; 02471 int pas; 02472 double fact_h = 1.5, fact_w = 1.; 02473 int compteur; 02474 02475 int possible_pas, possible_compteur; 02476 02477 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 02478 02479 for(i=0;i<4;i++) old_rect[i] = 0; /* Init. old_rect to force first grad. to be displayed */ 02480 02481 02482 02483 lastzindex = ppsubwin->axes.nzgrads - 1; 02484 02485 if(lastzindex == 0) 02486 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.zgrads[0])); 02487 else 02488 ChoixFormatE(c_format, 02489 ppsubwin->axes.zgrads[0], 02490 ppsubwin->axes.zgrads[lastzindex], 02491 ((ppsubwin->axes.zgrads[lastzindex])-(ppsubwin->axes.zgrads[0]))/(lastzindex)); 02492 02493 nbtics = ppsubwin->axes.nzgrads; 02494 nbsubtics = ppsubwin->axes.nbsubtics[2]; 02495 02496 02497 for(i=0;i<nbtics;i++) grads_tmp[i] = ppsubwin->axes.zgrads[i]; 02498 02499 for(i=0;i<nbtics;i++) 02500 { 02501 char foo[256]; 02502 double ztmp = ppsubwin->axes.zgrads[i]; 02503 02504 sprintf(foo,c_format,ztmp); 02505 02506 /***************************************************************/ 02507 /************************* COMMON PART *************************/ 02508 /***************************************************************/ 02509 if(ppsubwin->axes.reverse[2] == TRUE) 02510 ztmp = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],ztmp); 02511 02512 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&ztmp); 02513 02514 02515 vx[0]=xm;vy[0]=ym; 02516 02517 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 02518 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 02519 vx[1]=vx[0]+barlengthx; 02520 vy[1]=vy[0]+barlengthy; 02521 02522 /* foo is set above with sprintf(foo,c_format,xtmp); */ 02523 02524 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 02525 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02526 posi[0] = inint( xm+2*barlengthx - rect[2]); 02527 posi[1]=inint( ym + 2*barlengthy + rect[3]/2); 02528 02529 02530 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 02531 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02532 02533 02534 if(CheckDisplay(fact_h, fact_w, ppsubwin->logflags[2],foo,posi,fontid,old_rect) == 0) 02535 continue; /* graduation too close, DO NOT display the graduation ! */ 02536 02537 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02538 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02539 if ( ppsubwin->logflags[2] == 'l' ) 02540 { 02541 int smallersize = fontid[1]-2; 02542 int old_rect10[4]; 02543 int posi10[2]; 02544 02545 posi10[0] = posi[0] - logrect[2]; 02546 posi10[1] = posi[1] + logrect[3]; 02547 02548 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02549 02550 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02551 02552 posi[0] = old_rect10[0] + old_rect10[2]; 02553 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 02554 02555 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02556 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02557 02558 /* update old_rect */ 02559 old_rect[2] = (int)(fact_w*(old_rect[2] + old_rect10[2])); 02560 old_rect[3] = (int)(fact_h*(old_rect[3] + old_rect10[3] + (int) (old_rect10[3]*.1))); 02561 old_rect[0] = old_rect10[0]; 02562 old_rect[1] = old_rect[1]; 02563 02564 nb_grads_max++; 02565 02566 02567 /* put back the current fontid */ 02568 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02569 } 02570 else{ 02571 /* update old_rect */ 02572 C2F(dr)("xstringl",foo,(&posi[0]),(&posi[1]),old_rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02573 old_rect[3] = (int)(fact_h* old_rect[3]); 02574 old_rect[2] = (int)(fact_w* old_rect[2]); 02575 nb_grads_max++; 02576 } 02577 } 02578 02579 02580 if(ppsubwin->logflags[2] != 'l') 02581 if(nb_grads_max == 1) /* only one grad. can be displayed : we choose to display the average value (max+min)/2 */ 02582 { 02583 ppsubwin->axes.zgrads[0] = (grads_tmp[0]+grads_tmp[lastzindex])/2.; 02584 ppsubwin->axes.nzgrads = 1; 02585 if ( !ppsubwin->flagNax ) 02586 { 02587 ppsubwin->axes.nbsubtics[2] = 1; 02588 } 02589 return 0; 02590 } 02591 02592 pas = nbtics - 2; /* pas == grads number - 2 */ 02593 02594 possible_pas = -99; 02595 possible_compteur = -99; 02596 02597 while(pas > 0) 02598 { 02599 int tmp = 0; 02600 compteur = 0; 02601 for(;;) 02602 { 02603 tmp = tmp + pas; 02604 compteur++; 02605 02606 if((tmp == (nbtics - 1)) && (compteur < nb_grads_max)){ 02607 possible_pas = pas; 02608 possible_compteur = ++compteur; 02609 break; 02610 } 02611 02612 if(tmp > (nbtics - 1)) 02613 break; 02614 } 02615 02616 pas--; 02617 } 02618 02619 if(possible_compteur != -99){ 02620 compteur = possible_compteur; 02621 pas = possible_pas; 02622 02623 for(i=0;i<compteur;i++) 02624 ppsubwin->axes.zgrads[i] = grads_tmp[i*pas]; 02625 02626 ppsubwin->axes.nzgrads = compteur; 02627 02628 /* Nb of subtics computation and storage */ 02629 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 02630 ppsubwin->axes.nbsubtics[2] = ComputeNbSubTicsFor3dUse(psubwin, 02631 ppsubwin->axes.nzgrads, 02632 ppsubwin->logflags[2], 02633 ppsubwin->axes.zgrads, 02634 ppsubwin->axes.nbsubtics[2]); 02635 } 02636 else{ 02637 ppsubwin->axes.zgrads[0] = grads_tmp[0]; 02638 ppsubwin->axes.zgrads[1] = grads_tmp[lastzindex]; 02639 ppsubwin->axes.nzgrads = 2; 02640 /* Nb of subtics computation and storage */ 02641 /* jb Silvy 01/2006 : default value was Max((int) abs((13-compteur)/2),2) */ 02642 ppsubwin->axes.nbsubtics[2] = ComputeNbSubTicsFor3dUse(psubwin, 02643 ppsubwin->axes.nzgrads, 02644 ppsubwin->logflags[2], 02645 ppsubwin->axes.zgrads, 02646 ppsubwin->axes.nbsubtics[2]); 02647 } 02648 02649 return 0; 02650 }
Here is the call graph for this function:
| char ** AllocAndSetUserLabelsFromMdl | ( | char ** | u_xlabels, | |
| char ** | u_xlabels_MDL, | |||
| int | u_nxgrads | |||
| ) |
Definition at line 774 of file Plo2dn.c.
References i, MALLOC, NULL, and sciprint().
Referenced by ConstructSubWin().
00775 { 00776 int i; 00777 int nbtics = u_nxgrads; 00778 00779 if(u_nxgrads == 0) 00780 return (char **) NULL; 00781 00782 if(u_xlabels != NULL) 00783 { 00784 sciprint("Impossible: u_xlabels must be freed before re-allocating"); 00785 return (char **) NULL; 00786 } 00787 00788 if((u_xlabels=(char **)MALLOC(u_nxgrads*sizeof(char *)))==NULL){ 00789 sciprint("No more place for allocating user labels using Nax"); 00790 return (char **) NULL; 00791 } 00792 00793 00794 for(i=0;i<nbtics;i++) 00795 { 00796 if((u_xlabels[i]=(char *)MALLOC((strlen(u_xlabels_MDL[i])+1)*sizeof(char )))==NULL){ 00797 sciprint("No more place for allocating u_xlabels"); 00798 return (char **) NULL; 00799 } 00800 00801 strcpy(u_xlabels[i],u_xlabels_MDL[i]); 00802 } 00803 00804 return u_xlabels; 00805 }
Here is the call graph for this function:
Here is the caller graph for this function:
| double * AllocUserGrads | ( | double * | u_xgrads, | |
| int | nb | |||
| ) |
Definition at line 696 of file Plo2dn.c.
References MALLOC, NULL, and sciprint().
Referenced by ConstructSubWin(), and CreatePrettyGradsFromNax().
00697 { 00698 00699 if(nb == 0) 00700 return (double *) NULL; 00701 00702 if(u_xgrads != NULL) 00703 { 00704 sciprint("Impossible: u_xgrads must be freed before re-allocating"); 00705 return (double *) NULL; 00706 } 00707 00708 if((u_xgrads=(double *)MALLOC(nb*sizeof(double)))==NULL){ 00709 sciprint("No more place for allocating user grads using Nax"); 00710 return (double *) NULL; 00711 } 00712 00713 return u_xgrads; 00714 00715 }
Here is the call graph for this function:
Here is the caller graph for this function:
le cot\'e gauche ( c'est tjrs un axe des Z
bottom right side
bottom left side
Definition at line 3202 of file Axes.c.
References C2F, Cscale, dr(), i, iflag, j, L, sciSubWindow::mon_title, NULL, PD0, PI0, pLABEL_FEATURE, pSUBWIN_FEATURE, SCI_SUBWIN, sciGetCurrentSubWin(), sciGetEntityType(), sciGetFontDeciWidth(), sciGetFontForeground(), sciGetFontStyle(), sciGetForeground(), sciGetVisibility(), sciprint(), sciSetFontOrientation(), size, wcscalelist::WIRect1, x, and y.
03203 { 03204 integer verbose=0,narg,xz[2],fontid[2],fontsize_kp,color_kp,size; 03205 integer iof,barlengthx = 0,barlengthy = 0, posi[2]; 03206 integer rect[4],flag=0,x=0,y=0; 03207 double ang=0.0, bbox[6]; 03208 int fontsize=-1,textcolor=-1,ticscolor=-1; 03209 int fontstyle=0; /* F.Leray 08.04.04 */ 03210 sciPointObj *psubwin = NULL; 03211 sciSubWindow * ppsubwin = NULL; 03212 int ns=2,iflag=0,gstyle,gridStyle=2,dash[6]; 03213 double xx[4],yy[4],zz[4],vxx1,vyy1,vzz1; 03214 integer i,xm,ym,vx[2],vy[2],xg[2],yg[2],j; 03215 integer fontid_old[2], textcolor_old; 03216 03217 int lastzindex = 0, lastxindex = 0, lastyindex = 0; 03218 double xminval, yminval, zminval, xmaxval, ymaxval, zmaxval; 03219 int nbtics = 0; 03220 int nbsubtics = 0; 03221 03222 int logrect[4], XX = 0, YY = 0; /* see below */ /* ah ouais ou ca ? */ 03223 double angle=0.0; 03224 03225 int constOffset[2] ; /* displacment of labels from the axes segments. */ 03226 int maxTicksLabelSize[2] ; /* for each axis the maximum size of ticks label */ 03227 03228 03229 psubwin= sciGetCurrentSubWin(); 03230 ppsubwin = pSUBWIN_FEATURE (psubwin); 03231 03233 xz[0] = Cscale.WIRect1[2] ; 03234 xz[1] = Cscale.WIRect1[2] ; 03235 iof = (xz[0]+xz[1])/50; 03236 03237 ticscolor = sciGetForeground(psubwin); 03238 textcolor=sciGetFontForeground(psubwin); 03239 03240 fontsize=sciGetFontDeciWidth(psubwin)/100; 03241 fontstyle=sciGetFontStyle(psubwin); 03242 03243 if(sciGetEntityType (psubwin) != SCI_SUBWIN) { 03244 sciprint("Impossible case\n"); 03245 return 0; 03246 } 03247 03248 03249 bbox[0] = xminval = pSUBWIN_FEATURE (psubwin)->FRect[0]; /*xmin*/ 03250 bbox[1] = xmaxval = pSUBWIN_FEATURE (psubwin)->FRect[2]; /*xmax*/ 03251 bbox[2] = yminval = pSUBWIN_FEATURE (psubwin)->FRect[1]; /*ymin*/ 03252 bbox[3] = ymaxval = pSUBWIN_FEATURE (psubwin)->FRect[3]; /*ymax*/ 03253 bbox[4] = zminval = pSUBWIN_FEATURE (psubwin)->FRect[4]; /*zmin*/ 03254 bbox[5] = zmaxval = pSUBWIN_FEATURE (psubwin)->FRect[5]; /*zmax*/ 03255 03256 C2F(dr)("xget","font",&verbose,fontid,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03257 03258 fontid[0]= fontstyle; 03259 fontsize_kp = fontid[1] ; 03260 if( fontsize == -1 ){ 03261 fontid[1]= 1; 03262 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03263 } 03264 else { 03265 fontid[1] = fontsize ; 03266 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03267 } 03268 if ( textcolor != -1 || ticscolor != -1 ) 03269 C2F(dr)("xget","pattern",&verbose,&color_kp,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03270 03271 for (i=0; i<3 ; i++) { 03272 xx[i]=pSUBWIN_FEATURE (psubwin)->axes.xlim[i]; 03273 yy[i]=pSUBWIN_FEATURE (psubwin)->axes.ylim[i]; 03274 zz[i]=pSUBWIN_FEATURE (psubwin)->axes.zlim[i]; 03275 } 03276 03277 /* main title */ /* We fix the title always at the top */ 03278 rect[0]= Cscale.WIRect1[0] ; 03279 rect[1]= Cscale.WIRect1[1] ; 03280 rect[2]= Cscale.WIRect1[2] ; 03281 rect[3]= Cscale.WIRect1[3]/6 ; 03282 textcolor_old = textcolor; 03283 fontid_old[0] = fontid[0]; 03284 fontid_old[1] = fontid[1]; 03285 03286 constOffset[0] = Cscale.WIRect1[2] / 50 + 1 ; 03287 constOffset[1] = Cscale.WIRect1[3] / 25 + 1 ; 03288 03289 if( sciGetVisibility(ppsubwin->mon_title) ) 03290 { 03291 /* get the pointer on the title */ 03292 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_title ) ; 03293 03294 /* get position and orientation of the title */ 03295 if ( ppLabel->auto_rotation ) 03296 { 03297 sciSetFontOrientation( ppsubwin->mon_title, 0 ) ; 03298 } 03299 03300 if ( ppLabel->auto_position ) 03301 { 03302 /* same as in 2d */ 03303 int segmentStart[2] = { rect[0] + rect[2], rect[1] } ; 03304 int segmentEnd[2] = { rect[0] , rect[1] } ; 03305 computeLabelAutoPos( ppsubwin->mon_title, segmentStart, segmentEnd, constOffset ) ; 03306 } 03307 /* draw the label */ 03308 drawTextEntity( ppLabel->text ) ; 03309 } 03310 03311 textcolor = textcolor_old; 03312 fontid[0] = fontid_old[0]; 03313 fontid[1] = fontid_old[1]; 03314 03315 size = xz[0]>=xz[1] ? (integer) (xz[1]/50.0) : (integer) (xz[0]/50.0); 03316 03317 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 03318 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03319 03320 /********************************************/ 03321 /* draw the axis line if axes_visible is on */ 03322 /********************************************/ 03323 { 03324 int x2[5] ; 03325 int two = 2 ; 03326 int one = 1 ; 03327 int verbose2 = 0 ; 03328 int dash2[6] ; 03329 int pat ; 03330 int narg2 ; 03331 x2[0] = sciGetForeground (psubwin); 03332 x2[2] = sciGetLineWidth (psubwin) ; 03333 x2[3] = sciGetLineStyle (psubwin); 03334 x2[4] = 0; 03335 C2F(dr)("xget","line style",&verbose2,dash2,&narg2,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03336 C2F(dr)("xget","pattern",&verbose2,&pat,&narg2,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03337 C2F (dr) ("xset", "dashes", x2, x2, x2+4, x2+4, x2+4,PI0,PD0,PD0,PD0,PD0, 5L, 6L); 03338 C2F (dr) ("xset","foreground",x2,x2,x2+4,x2+4,x2+4,PI0,PD0,PD0,PD0,PD0,5L,4096); /* F.Leray 05.03.04 Useless too*/ 03339 C2F (dr) ("xset","thickness",x2+2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03340 C2F (dr) ("xset", "line style", x2+3,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03341 if ( ppsubwin->axes.axes_visible[2] ) 03342 { 03343 /* draw the line of the axis like in 2d */ 03344 /* the two bounds are (ixbox[2],iybox[2]) and (ixbox[2],iybox[2]) */ 03345 C2F(dr)("xpolys","v",&(ixbox[2]),&(iybox[2]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03346 } 03347 if ( ( xind[4]+xind[5] == 3) || ( xind[4]+xind[5] == 11 ) ) 03348 { 03349 /* i copy this test but I don't know what it mean... jb Silvy 03/2006 */ 03350 if ( ppsubwin->axes.axes_visible[1] ) 03351 { 03352 /* draw the line of the axis like in 2d */ 03353 /* the two bounds are (ixbox[3],iybox[3]) and (ixbox[3],iybox[3]) */ 03354 C2F(dr)("xpolys","v",&(ixbox[3]),&(iybox[3]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03355 } 03356 if ( ppsubwin->axes.axes_visible[0] ) 03357 { 03358 /* draw the line of the axis like in 2d */ 03359 /* the two bounds are (ixbox[4],iybox[4]) and (ixbox[4],iybox[4]) */ 03360 C2F(dr)("xpolys","v",&(ixbox[4]),&(iybox[4]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03361 } 03362 } 03363 else 03364 { 03365 if ( ppsubwin->axes.axes_visible[1] ) 03366 { 03367 /* draw the line of the axis like in 2d */ 03368 /* the two bounds are (ixbox[3],iybox[3]) and (ixbox[3],iybox[3]) */ 03369 C2F(dr)("xpolys","v",&(ixbox[4]),&(iybox[4]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03370 } 03371 if ( ppsubwin->axes.axes_visible[0] ) 03372 { 03373 /* draw the line of the axis like in 2d */ 03374 /* the two bounds are (ixbox[4],iybox[4]) and (ixbox[4],iybox[4]) */ 03375 C2F(dr)("xpolys","v",&(ixbox[3]),&(iybox[3]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03376 } 03377 } 03378 C2F(dr)("xset","pattern",&pat,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03379 C2F(dr)("xset","line style",dash2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03380 } 03381 03382 /********************/ 03383 /*** le z scaling ***/ /* DISPLAY Z graduations */ 03384 /********************/ 03385 03386 03387 if (pSUBWIN_FEATURE (psubwin)->project[2]==1) 03388 { 03389 double fx,fy,fz; 03390 char c_format[5] ; 03391 03392 integer Ticsdir[2]; 03393 Ticsdir[0]=ixbox[3]-ixbox[4]; /* <=> en pixel direction/vecteur non norme(e)s des tics en x */ 03394 Ticsdir[1]=iybox[3]-iybox[4]; /* <=> idem pour y */ 03395 /* NB: for a default plot3d (simply calling plot3d in siclab console) */ 03396 /* Ticsdir[0] & Ticsdir[1] are negative : we do min - max here... */ 03397 03398 BBoxToval(&fx,&fy,&fz,xind[3],bbox); /* xind[3] <=> en bas a gauche <=> zmin */ 03399 x=ixbox[2]-(xz[0]+xz[1])/20; 03400 y=(iybox[3]+iybox[2])/2; 03401 03402 /* NumberFormat(str,((integer) zz[0]),((integer) zz[2])); */ 03403 03404 03405 if( !ppsubwin->axes.auto_ticks[2] ) 03406 { 03407 /* we display the z tics specified by the user*/ 03408 nbtics = ppsubwin->axes.u_nzgrads; 03409 nbsubtics = ppsubwin->axes.nbsubtics[2]; 03410 03411 maxTicksLabelSize[0] = 0 ; 03412 maxTicksLabelSize[1] = 0 ; 03413 03414 for(i=0;i<nbtics;i++) 03415 { 03416 char *foo = ppsubwin->axes.u_zlabels[i]; 03417 double ztmp = ppsubwin->axes.u_zgrads[i]; 03418 03419 if(ztmp<zminval || ztmp>zmaxval) 03420 { 03421 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 03422 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 03423 /* donc autant ne pas aller plus loin dans l'algo... */ 03424 } 03425 03426 03427 /***************************************************************/ 03428 /************************* COMMON PART *************************/ 03429 /***************************************************************/ 03430 03431 if( ppsubwin->axes.reverse[2] ) 03432 { 03433 ztmp = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],ztmp); 03434 } 03435 03436 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&ztmp); 03437 03438 03439 vx[0]=xm;vy[0]=ym; 03440 03441 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03442 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03443 vx[1]=vx[0]+barlengthx; 03444 vy[1]=vy[0]+barlengthy; 03445 03446 /* foo is set above with sprintf(foo,c_format,xtmp); */ 03447 03448 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 03449 03450 /* get the size of ticks label */ 03451 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03452 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 03453 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 03454 03455 03456 posi[0] = inint( xm+2*barlengthx - rect[2]); 03457 posi[1]=inint( ym + 2*barlengthy + rect[3]/2); 03458 03459 03460 if(ppsubwin->axes.axes_visible[2] == TRUE){ 03461 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03462 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03463 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03464 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03465 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03466 } 03467 /* grid to put here */ 03468 if ( ppsubwin->grid[2] > -1 && ppsubwin->axes.axes_visible[2] ) 03469 { 03470 gstyle = pSUBWIN_FEATURE (psubwin)->grid[2]; 03471 03472 if((ppsubwin->logflags[2] =='l') && (i != nbtics-1)) 03473 { 03474 double tmp[2]; 03475 double pas=0; 03476 double * tmp_log_grads = (double *) NULL; 03477 03478 03479 double * grads = ppsubwin->axes.u_zgrads; 03480 03481 tmp[0] = exp10(grads[i]); 03482 tmp[1] = exp10(grads[i+1]); 03483 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03484 03485 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03486 sciprint("Error allocating tmp_log_grads\n"); 03487 return -1; 03488 } 03489 03490 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03491 03492 for(j=0;j<nbsubtics;j++) 03493 { 03494 vzz1 = tmp_log_grads[j]; 03495 03496 if(vzz1<=zminval || vzz1>=zmaxval) continue; 03497 03498 if(ppsubwin->axes.reverse[2] == TRUE) 03499 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03500 03501 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03502 03503 /* if ((ym != iybox[3]) && (ym != iybox[2])) */ 03504 /* { */ 03505 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03506 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03507 xg[0]= ixbox[3];yg[0]= ym; 03508 if (Ishidden(psubwin)) 03509 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03510 else 03511 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03512 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03513 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03514 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03515 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03516 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03517 /* } */ 03518 } 03519 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03520 } 03521 else 03522 { 03523 if(ztmp>zminval && ztmp<zmaxval) 03524 { 03525 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03526 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03527 xg[0]= ixbox[3];yg[0]= ym; 03528 if (Ishidden(psubwin)) 03529 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03530 else 03531 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03532 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03533 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03534 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03535 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03536 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03537 } 03538 } 03539 } 03540 03541 /* and subtics */ 03542 if(i != nbtics-1) 03543 { 03544 if(ppsubwin->logflags[2] =='l') 03545 { 03546 double tmp[2]; 03547 double pas=0; 03548 double * tmp_log_grads = (double *) NULL; 03549 03550 03551 double * grads = ppsubwin->axes.u_zgrads; 03552 03553 tmp[0] = exp10(grads[i]); 03554 tmp[1] = exp10(grads[i+1]); 03555 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03556 03557 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03558 sciprint("Error allocating tmp_log_grads\n"); 03559 return -1; 03560 } 03561 03562 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03563 03564 for(j=0;j<nbsubtics;j++) 03565 { 03566 vzz1 = tmp_log_grads[j]; 03567 03568 if(vzz1<zminval || vzz1>zmaxval) continue; 03569 03570 if(ppsubwin->axes.reverse[2] == TRUE) 03571 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03572 03573 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03574 03575 vx[0]=xm;vy[0]=ym; 03576 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03577 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03578 03579 if(ppsubwin->axes.axes_visible[2] == TRUE) 03580 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03581 } 03582 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03583 } /* end NEW */ 03584 else 03585 { 03586 double xtmp = ppsubwin->axes.u_zgrads[i]; 03587 double dx = (ppsubwin->axes.u_zgrads[i+1] - ppsubwin->axes.u_zgrads[i]) / nbsubtics; 03588 for(j=0;j<nbsubtics;j++) 03589 { 03590 vzz1=xtmp+dx*j; 03591 03592 if(vzz1<zminval || vzz1>zmaxval) continue; 03593 03594 if(ppsubwin->axes.reverse[2] == TRUE) 03595 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03596 03597 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03598 /* trans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); */ 03599 03600 03601 vx[0]=xm;vy[0]=ym; 03602 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03603 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03604 03605 if(ppsubwin->axes.axes_visible[2] == TRUE) 03606 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03607 } 03608 } 03609 } 03610 03611 /***************************************************************/ 03612 /************************* END OF COMMON PART ******************/ 03613 /***************************************************************/ 03614 } 03615 } 03616 else /* we display the computed tics */ 03617 { 03618 AdaptGraduationsOnZ(x,y,size,Ticsdir,fontid,psubwin,zminval,zmaxval,fx,fy,0.); 03619 03620 lastzindex = ppsubwin->axes.nzgrads - 1; 03621 03622 if(lastzindex == 0) 03623 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.zgrads[0])); 03624 else 03625 ChoixFormatE(c_format, 03626 ppsubwin->axes.zgrads[0], 03627 ppsubwin->axes.zgrads[lastzindex], 03628 ((ppsubwin->axes.zgrads[lastzindex])-(ppsubwin->axes.zgrads[0]))/(lastzindex)); 03629 03630 nbtics = ppsubwin->axes.nzgrads; 03631 nbsubtics = ppsubwin->axes.nbsubtics[2]; 03632 03633 maxTicksLabelSize[0] = 0 ; 03634 maxTicksLabelSize[1] = 0 ; 03635 03636 for(i=0;i<nbtics;i++) 03637 { 03638 char foo[256]; 03639 double ztmp = ppsubwin->axes.zgrads[i]; 03640 03641 if(ztmp<zminval || ztmp>zmaxval) 03642 { 03643 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 03644 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 03645 /* donc autant ne pas aller plus loin dans l'algo... */ 03646 } 03647 03648 sprintf(foo,c_format,ztmp); 03649 03650 /***************************************************************/ 03651 /************************* COMMON PART *************************/ 03652 /***************************************************************/ 03653 if(ppsubwin->axes.reverse[2] == TRUE) 03654 ztmp = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],ztmp); 03655 03656 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&ztmp); 03657 03658 /* trans3d(psubwin,1,&xm,&ym,&fx,&fy,&ztmp); */ 03659 03660 03661 vx[0]=xm;vy[0]=ym; 03662 03663 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03664 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03665 vx[1]=vx[0]+barlengthx; 03666 vy[1]=vy[0]+barlengthy; 03667 03668 /* foo is set above with sprintf(foo,c_format,xtmp); */ 03669 03670 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 03671 03672 /* get the size of ticks label */ 03673 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03674 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 03675 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 03676 03677 posi[0] = inint( xm+2*barlengthx - rect[2]); 03678 posi[1]=inint( ym + 2*barlengthy + rect[3]/2); 03679 03680 if(ppsubwin->axes.axes_visible[2] == TRUE){ 03681 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03682 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03683 if ( ppsubwin->logflags[2] == 'l' ) 03684 { 03685 int smallersize = fontid[1]-2; 03686 int old_rect10[4]; 03687 /* char str[2] = "xv"; */ 03688 int posi10[2]; 03689 03690 posi10[0] = posi[0] - logrect[2]; 03691 posi10[1] = posi[1] + logrect[3]; 03692 03693 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03694 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 03695 03696 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03697 03698 posi[0] = old_rect10[0] + old_rect10[2]; 03699 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 03700 03701 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03702 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03703 03704 /* put back the current fontid */ 03705 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03706 } 03707 else{ 03708 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03709 } 03710 03711 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03712 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03713 } 03714 /* grid to put here */ 03715 if ( ppsubwin->grid[2] > -1 && ppsubwin->axes.axes_visible[2] ) 03716 { 03717 gstyle = pSUBWIN_FEATURE (psubwin)->grid[2]; 03718 03719 if((ppsubwin->logflags[2] =='l') && (i != nbtics-1)) 03720 { 03721 double tmp[2]; 03722 double pas=0; 03723 double * tmp_log_grads = (double *) NULL; 03724 03725 03726 double * grads = ppsubwin->axes.zgrads; 03727 03728 tmp[0] = exp10(grads[i]); 03729 tmp[1] = exp10(grads[i+1]); 03730 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03731 03732 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03733 sciprint("Error allocating tmp_log_grads\n"); 03734 return -1; 03735 } 03736 03737 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03738 03739 for(j=0;j<nbsubtics;j++) 03740 { 03741 vzz1 = tmp_log_grads[j]; 03742 03743 if(vzz1<=zminval || vzz1>=zmaxval) continue; 03744 03745 if(ppsubwin->axes.reverse[2] == TRUE) 03746 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03747 03748 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03749 03750 /* if ((ym != iybox[3]) && (ym != iybox[2])) */ 03751 /* { */ 03752 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03753 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03754 xg[0]= ixbox[3];yg[0]= ym; 03755 if (Ishidden(psubwin)) 03756 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03757 else 03758 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03759 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03760 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03761 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03762 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03763 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03764 /* } */ 03765 } 03766 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03767 } 03768 else 03769 { 03770 if(ztmp>zminval && ztmp<zmaxval) 03771 { 03772 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03773 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03774 xg[0]= ixbox[3];yg[0]= ym; 03775 if (Ishidden(psubwin)) 03776 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03777 else 03778 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03779 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03780 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03781 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03782 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03783 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03784 } 03785 } 03786 } 03787 03788 /* and subtics */ 03789 if(i != nbtics-1) 03790 { 03791 if(ppsubwin->logflags[2] =='l') 03792 { 03793 double tmp[2]; 03794 double pas=0; 03795 double * tmp_log_grads = (double *) NULL; 03796 03797 03798 double * grads = ppsubwin->axes.zgrads; 03799 03800 tmp[0] = exp10(grads[i]); 03801 tmp[1] = exp10(grads[i+1]); 03802 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03803 03804 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03805 sciprint("Error allocating tmp_log_grads\n"); 03806 return -1; 03807 } 03808 03809 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03810 03811 for(j=0;j<nbsubtics;j++) 03812 { 03813 vzz1 = tmp_log_grads[j]; 03814 03815 if(vzz1<zminval || vzz1>zmaxval) continue; 03816 03817 if(ppsubwin->axes.reverse[2] == TRUE) 03818 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03819 03820 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03821 03822 vx[0]=xm;vy[0]=ym; 03823 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03824 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03825 03826 if(ppsubwin->axes.axes_visible[2] == TRUE) 03827 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03828 } 03829 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03830 } /* end NEW */ 03831 else 03832 { 03833 double ztmp2 = ppsubwin->axes.zgrads[i]; 03834 double dz = (ppsubwin->axes.zgrads[i+1] - ppsubwin->axes.zgrads[i]) / nbsubtics; 03835 for(j=0;j<nbsubtics;j++) 03836 { 03837 vzz1=ztmp2+dz*j; 03838 03839 if(vzz1<zminval || vzz1>zmaxval) continue; 03840 03841 if(ppsubwin->axes.reverse[2] == TRUE) 03842 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03843 03844 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03845 /* trans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); */ 03846 03847 03848 vx[0]=xm;vy[0]=ym; 03849 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03850 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03851 03852 if(ppsubwin->axes.axes_visible[2] == TRUE) 03853 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03854 } 03855 } 03856 } 03857 /***************************************************************/ 03858 /************************* END OF COMMON PART ******************/ 03859 /***************************************************************/ 03860 03861 } 03862 } 03863 } 03864 03865 if ( sciGetVisibility(ppsubwin->mon_z_label) ) 03866 { 03867 /* draw z label */ 03868 sciLabel * ppLabel = pLABEL_FEATURE(ppsubwin->mon_z_label) ; 03869 03870 if ( ppLabel->auto_rotation ) 03871 { 03872 /* mult by 10 because */ 03873 sciSetFontOrientation(ppsubwin->mon_z_label, 270 * 10 ) ; 03874 } 03875 03876 if( ppLabel->auto_position ) 03877 { 03878 03879 int segmentStart[2] = { ixbox[2], iybox[2] } ; 03880 int segmentEnd[2] = { ixbox[3], iybox[3] } ; 03881 03882 /* add the bar size and ticks label size to the offset */ 03883 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 03884 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 03885 computeLabelAutoPos( ppsubwin->mon_z_label, segmentStart, segmentEnd, offset ) ; 03886 } 03887 /* a trick to force the display with 2d scale */ 03888 drawTextEntity( ppLabel->text ) ; 03889 03890 } 03891 03892 03893 /***********************/ 03894 /*** le x-y scaling ***/ /* DISPLAY x or y graduations */ 03895 /***********************/ 03896 03897 03898 if (( xind[4]+xind[5] == 3) || ( xind[4]+xind[5] == 11)) 03899 { 03900 if (pSUBWIN_FEATURE (psubwin)->project[0]==1) /* x HERE */ 03901 { 03902 double fx,fy,fz; 03903 char c_format[5]; 03904 03905 integer Ticsdir[2]; 03906 Ticsdir[0]=ixbox[4]-ixbox[3]; 03907 Ticsdir[1]=iybox[4]-iybox[3]; 03908 BBoxToval(&fx,&fy,&fz,xind[4],bbox); 03909 x=inint((ixbox[4]+ixbox[5])/2+1.5*rect[2] +iof); 03910 y=inint(((2/3.0)*iybox[4]+(1/3.0)*iybox[5])+1.5*rect[3]+iof); 03911 03912 if( !ppsubwin->axes.auto_ticks[0] ) 03913 { 03914 /* we display the x tics specified by the user*/ 03915 nbtics = ppsubwin->axes.u_nxgrads; 03916 nbsubtics = ppsubwin->axes.nbsubtics[0]; 03917 03918 maxTicksLabelSize[0] = 0 ; 03919 maxTicksLabelSize[1] = 0 ; 03920 03921 for(i=0;i<nbtics;i++) 03922 { 03923 char *foo = ppsubwin->axes.u_xlabels[i]; 03924 double xtmp = ppsubwin->axes.u_xgrads[i]; 03925 03926 if(xtmp<xminval || xtmp>xmaxval) 03927 { 03928 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 03929 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 03930 /* donc autant ne pas aller plus loin dans l'algo... */ 03931 } 03932 03933 /***************************************************************/ 03934 /************************* COMMON PART *************************/ 03935 /***************************************************************/ 03936 03937 if(ppsubwin->axes.reverse[0] == TRUE) 03938 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 03939 03940 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 03941 /* trans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); */ 03942 03943 03944 vx[0]=xm;vy[0]=ym; 03945 03946 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03947 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03948 03949 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 03950 03951 /* get the size of the icks label */ 03952 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03953 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 03954 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 03955 03956 03957 if (IsDownAxes(psubwin)){ 03958 vx[1]=vx[0]; 03959 vy[1]=vy[0]+iof/2; 03960 posi[0] = inint(xm-rect[2]/2); 03961 posi[1]=inint( vy[0] + iof + rect[3]);} 03962 else{ 03963 vx[1]=vx[0]+barlengthx; 03964 vy[1]=vy[0]+barlengthy; 03965 posi[0] = inint( xm+2*barlengthx); 03966 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 03967 03968 if( ppsubwin->axes.axes_visible[0] ) 03969 { 03970 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03971 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03972 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03973 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03974 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03975 } 03976 /* grid to put here */ 03977 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 03978 { 03979 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 03980 03981 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 03982 { 03983 double tmp[2]; 03984 double pas=0; 03985 double * tmp_log_grads = (double *) NULL; 03986 03987 03988 double * grads = ppsubwin->axes.u_xgrads; 03989 03990 tmp[0] = exp10(grads[i]); 03991 tmp[1] = exp10(grads[i+1]); 03992 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03993 03994 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03995 sciprint("Error allocating tmp_log_grads\n"); 03996 return -1; 03997 } 03998 03999 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04000 04001 for(j=0;j<nbsubtics;j++) 04002 { 04003 vxx1 = tmp_log_grads[j]; 04004 04005 if(vxx1<=xminval || vxx1>=xmaxval) continue; 04006 04007 if(ppsubwin->axes.reverse[0] == TRUE) 04008 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04009 04010 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04011 04012 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04013 /* { */ 04014 xg[0]= xm; yg[0]= ym; 04015 if (Ishidden(psubwin)) 04016 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04017 else 04018 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04019 04020 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04021 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04022 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04023 xg[0]= xg[1]; yg[0]= yg[1]; 04024 xg[1] = ixbox[3] - ixbox[4] +xm; 04025 yg[1]= iybox[2] - iybox[4] +ym; 04026 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04027 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04028 /* } */ 04029 } 04030 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04031 } 04032 else 04033 { 04034 if(xtmp>xminval && xtmp<xmaxval) 04035 { 04036 xg[0]= xm; yg[0]= ym; 04037 if (Ishidden(psubwin)) 04038 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04039 else 04040 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04041 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04042 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04043 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04044 xg[0]= xg[1]; yg[0]= yg[1]; 04045 xg[1] = ixbox[3] - ixbox[4] +xm; 04046 yg[1]= iybox[2] - iybox[4] +ym; 04047 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04048 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04049 } 04050 } 04051 } 04052 04053 /* and subtics */ 04054 if(i != nbtics-1) 04055 { 04056 if(ppsubwin->logflags[0] =='l') 04057 { 04058 double tmp[2]; 04059 double pas=0; 04060 double * tmp_log_grads = (double *) NULL; 04061 04062 04063 double * grads = ppsubwin->axes.u_xgrads; 04064 04065 tmp[0] = exp10(grads[i]); 04066 tmp[1] = exp10(grads[i+1]); 04067 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04068 04069 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04070 sciprint("Error allocating tmp_log_grads\n"); 04071 return -1; 04072 } 04073 04074 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04075 04076 for(j=0;j<nbsubtics;j++) 04077 { 04078 vxx1 = tmp_log_grads[j]; 04079 04080 if(vxx1<xminval || vxx1>xmaxval) continue; 04081 04082 if(ppsubwin->axes.reverse[0] == TRUE) 04083 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04084 04085 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04086 04087 if (IsDownAxes(psubwin)) 04088 { 04089 vx[1]=vx[0]=xm; 04090 vy[0]=ym; 04091 vy[1]=vy[0]+iof/4; 04092 } 04093 else 04094 { 04095 vx[0]=xm;vy[0]=ym; 04096 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04097 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04098 } 04099 04100 if(ppsubwin->axes.axes_visible[0] == TRUE) 04101 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04102 } 04103 04104 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04105 } /* end NEW */ 04106 else 04107 { 04108 double xtmp2 = ppsubwin->axes.u_xgrads[i]; 04109 double dx = (ppsubwin->axes.u_xgrads[i+1] - ppsubwin->axes.u_xgrads[i]) / nbsubtics; 04110 04111 for (j=1;j<nbsubtics;j++) 04112 { 04113 vxx1=xtmp2+dx*j; 04114 04115 if(vxx1<xminval || vxx1>xmaxval) continue; 04116 04117 if(ppsubwin->axes.reverse[0] == TRUE) 04118 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04119 04120 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04121 /* trans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); */ 04122 04123 04124 if (IsDownAxes(psubwin)) 04125 { 04126 vx[1]=vx[0]=xm; 04127 vy[0]=ym; 04128 vy[1]=vy[0]+iof/4; 04129 } 04130 else 04131 { 04132 vx[0]=xm;vy[0]=ym; 04133 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04134 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04135 } 04136 04137 if(ppsubwin->axes.axes_visible[0] == TRUE) 04138 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04139 } 04140 } 04141 } 04142 /***************************************************************/ 04143 /************************* END OF COMMON PART ******************/ 04144 /***************************************************************/ 04145 04146 } 04147 } 04148 else /* we display the computed tics */ 04149 { 04150 AdaptGraduationsOnXBottomRight(iof,x,y,size,Ticsdir,fontid,psubwin,xminval,xmaxval,0.,fy,fz); 04151 04152 lastxindex = ppsubwin->axes.nxgrads - 1; 04153 04154 if(lastxindex == 0) 04155 { 04156 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.xgrads[0])); 04157 } 04158 else 04159 { 04160 ChoixFormatE(c_format, 04161 ppsubwin->axes.xgrads[0], 04162 ppsubwin->axes.xgrads[lastxindex], 04163 ((ppsubwin->axes.xgrads[lastxindex])-(ppsubwin->axes.xgrads[0]))/(lastxindex)); 04164 } 04165 04166 nbtics = ppsubwin->axes.nxgrads; 04167 nbsubtics = ppsubwin->axes.nbsubtics[0]; 04168 04169 maxTicksLabelSize[0] = 0 ; 04170 maxTicksLabelSize[1] = 0 ; 04171 04172 for(i=0;i<nbtics;i++) 04173 { 04174 char foo[256]; 04175 double xtmp = ppsubwin->axes.xgrads[i]; 04176 04177 if(xtmp<xminval || xtmp>xmaxval) 04178 { 04179 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 04180 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 04181 /* donc autant ne pas aller plus loin dans l'algo... */ 04182 } 04183 04184 sprintf(foo,c_format,xtmp); 04185 04186 /***************************************************************/ 04187 /************************* COMMON PART *************************/ 04188 /***************************************************************/ 04189 04190 04191 /* F.Leray 03.11.04 Test if log scale to perform a : exp10(x) because trans3d will */ 04192 /* re-do a log10() (that is needed for data computations) */ 04193 04194 if( ppsubwin->axes.reverse[0] ) 04195 { 04196 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 04197 } 04198 04199 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 04200 04201 vx[0]=xm;vy[0]=ym; 04202 04203 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04204 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04205 04206 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 04207 04208 /* get the size of ticks label */ 04209 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04210 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 04211 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 04212 04213 if (IsDownAxes(psubwin)){ 04214 vx[1]=vx[0]; 04215 vy[1]=vy[0]+iof/2; 04216 posi[0] = inint(xm-rect[2]/2); 04217 posi[1]=inint( vy[0] + iof + rect[3]);} 04218 else{ 04219 vx[1]=vx[0]+barlengthx; 04220 vy[1]=vy[0]+barlengthy; 04221 posi[0] = inint( xm+2*barlengthx); 04222 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 04223 04224 if( ppsubwin->axes.axes_visible[0] ) 04225 { 04226 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04227 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04228 if ( ppsubwin->logflags[0] == 'l' ) 04229 { 04230 int smallersize = fontid[1]-2; 04231 int old_rect10[4]; 04232 int posi10[2]; 04233 04234 posi10[0] = posi[0] - logrect[2]; 04235 posi10[1] = posi[1] + logrect[3]; 04236 04237 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04238 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 04239 04240 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04241 04242 posi[0] = old_rect10[0] + old_rect10[2]; 04243 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 04244 04245 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04246 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04247 04248 /* put back the current fontid */ 04249 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04250 } 04251 else 04252 { 04253 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04254 } 04255 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04256 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04257 } 04258 /* grid to put here */ 04259 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 04260 { 04261 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 04262 04263 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 04264 { 04265 double tmp[2]; 04266 double pas=0; 04267 double * tmp_log_grads = (double *) NULL; 04268 04269 04270 double * grads = ppsubwin->axes.xgrads; 04271 04272 tmp[0] = exp10(grads[i]); 04273 tmp[1] = exp10(grads[i+1]); 04274 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04275 04276 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04277 sciprint("Error allocating tmp_log_grads\n"); 04278 return -1; 04279 } 04280 04281 for(j=0;j<nbsubtics;j++) 04282 { 04283 tmp_log_grads[j] = log10( tmp[0] + (j) * pas ) ; 04284 } 04285 04286 for(j=0;j<nbsubtics;j++) 04287 { 04288 vxx1 = tmp_log_grads[j]; 04289 04290 if(vxx1<=xminval || vxx1>=xmaxval) continue; 04291 04292 if(ppsubwin->axes.reverse[0] == TRUE) 04293 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04294 04295 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04296 04297 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04298 /* { */ 04299 xg[0]= xm; yg[0]= ym; 04300 if (Ishidden(psubwin)) 04301 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04302 else 04303 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04304 04305 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04306 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04307 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04308 xg[0]= xg[1]; yg[0]= yg[1]; 04309 xg[1] = ixbox[3] - ixbox[4] +xm; 04310 yg[1]= iybox[2] - iybox[4] +ym; 04311 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04312 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04313 /* } */ 04314 } 04315 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04316 } 04317 else 04318 { 04319 if(xtmp>xminval && xtmp<xmaxval) 04320 { 04321 xg[0]= xm; yg[0]= ym; 04322 if (Ishidden(psubwin)) 04323 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04324 else 04325 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04326 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04327 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04328 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04329 xg[0]= xg[1]; yg[0]= yg[1]; 04330 xg[1] = ixbox[3] - ixbox[4] +xm; 04331 yg[1]= iybox[2] - iybox[4] +ym; 04332 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04333 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04334 } 04335 } 04336 } 04337 04338 /* and subtics */ 04339 if(i != nbtics-1) /* F.Leray NEW 03.11.04 */ 04340 { 04341 04342 if(ppsubwin->logflags[0] =='l') 04343 { 04344 double tmp[2]; 04345 double pas=0; 04346 double * tmp_log_grads = (double *) NULL; 04347 04348 04349 double * grads = ppsubwin->axes.xgrads; 04350 04351 tmp[0] = exp10(grads[i]); 04352 tmp[1] = exp10(grads[i+1]); 04353 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04354 04355 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04356 sciprint("Error allocating tmp_log_grads\n"); 04357 return -1; 04358 } 04359 04360 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04361 04362 for(j=0;j<nbsubtics;j++) 04363 { 04364 vxx1 = tmp_log_grads[j]; 04365 04366 if(vxx1<xminval || vxx1>xmaxval) continue; 04367 04368 if(ppsubwin->axes.reverse[0] == TRUE) 04369 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04370 04371 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04372 04373 if (IsDownAxes(psubwin)) 04374 { 04375 vx[1]=vx[0]=xm; 04376 vy[0]=ym; 04377 vy[1]=vy[0]+iof/4; 04378 } 04379 else 04380 { 04381 vx[0]=xm;vy[0]=ym; 04382 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04383 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04384 } 04385 04386 if( ppsubwin->axes.axes_visible[0] ) 04387 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04388 } 04389 04390 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04391 } /* end NEW */ 04392 else 04393 { 04394 double xtmp2 = ppsubwin->axes.xgrads[i]; 04395 double dx = (ppsubwin->axes.xgrads[i+1] - ppsubwin->axes.xgrads[i]) / nbsubtics; 04396 04397 for (j=1;j<nbsubtics;j++) 04398 { 04399 vxx1=xtmp2+dx*j; 04400 04401 if(vxx1<xminval || vxx1>xmaxval) continue; 04402 04403 if(ppsubwin->axes.reverse[0] == TRUE) 04404 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04405 04406 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04407 04408 if (IsDownAxes(psubwin)) 04409 { 04410 vx[1]=vx[0]=xm; 04411 vy[0]=ym; 04412 vy[1]=vy[0]+iof/4; 04413 } 04414 else 04415 { 04416 vx[0]=xm;vy[0]=ym; 04417 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04418 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04419 } 04420 04421 if(ppsubwin->axes.axes_visible[0] == TRUE) 04422 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04423 } 04424 } 04425 } 04426 04427 /***************************************************************/ 04428 /************************* END OF COMMON PART ******************/ 04429 /***************************************************************/ 04430 04431 } 04432 } 04433 } 04434 if ( sciGetVisibility(ppsubwin->mon_x_label) ) 04435 { 04436 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_x_label ) ; 04437 if( ppLabel->auto_rotation ) 04438 { 04439 sciSetFontOrientation(ppsubwin->mon_x_label, 0) ; 04440 } 04441 04442 04443 if( ppLabel->auto_position ) 04444 { 04445 04446 int segmentStart[2] = { ixbox[4], iybox[4] } ; 04447 int segmentEnd[2] = { ixbox[5], iybox[5] } ; 04448 04449 /* add the bar size and ticks label size to the offset */ 04450 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 04451 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 04452 computeLabelAutoPos( ppsubwin->mon_x_label, segmentStart, segmentEnd, offset ) ; 04453 } 04454 /* a trick to force the display with 2d scale */ 04455 drawTextEntity( ppLabel->text ) ; 04456 04457 } 04458 } 04459 else 04460 { 04461 04462 if ( pSUBWIN_FEATURE (psubwin)->project[1]==1) /* y is HERE */ 04463 { 04464 double fx,fy,fz; 04465 char c_format[5]; 04466 04467 integer Ticsdir[2]; 04468 Ticsdir[0]=ixbox[4]-ixbox[3]; 04469 Ticsdir[1]=iybox[4]-iybox[3]; 04470 BBoxToval(&fx,&fy,&fz,xind[4],bbox); 04471 04472 x=inint((ixbox[4]+ixbox[5])/2+1.5*rect[2] +iof); 04473 y=inint(((2/3.0)*iybox[4]+(1/3.0)*iybox[5])+1.5*rect[3]+iof); 04474 04475 if(ppsubwin->axes.auto_ticks[1] == FALSE) 04476 { 04477 /* we display the y tics specified by the user*/ 04478 nbtics = ppsubwin->axes.u_nygrads; 04479 nbsubtics = ppsubwin->axes.nbsubtics[1]; 04480 04481 maxTicksLabelSize[0] = 0 ; 04482 maxTicksLabelSize[1] = 0 ; 04483 04484 for(i=0;i<nbtics;i++) 04485 { 04486 char *foo = ppsubwin->axes.u_ylabels[i]; 04487 double ytmp = ppsubwin->axes.u_ygrads[i]; 04488 04489 if(ytmp<yminval || ytmp>ymaxval) 04490 { 04491 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 04492 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 04493 /* donc autant ne pas aller plus loin dans l'algo... */ 04494 } 04495 04496 04497 /***************************************************************/ 04498 /************************* COMMON PART *************************/ 04499 /***************************************************************/ 04500 04501 if(ppsubwin->axes.reverse[1] == TRUE) 04502 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 04503 04504 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 04505 /* trans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); */ 04506 04507 04508 04509 vx[0]=xm;vy[0]=ym; 04510 04511 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04512 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04513 /* NumberFormat(foo,((integer) (yy[0] + i*ceil((yy[1]-yy[0])/yy[3]))), */ 04514 /* ((integer) yy[2])); */ 04515 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 04516 04517 /* get the size of the ticks */ 04518 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04519 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 04520 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 04521 04522 04523 if (IsDownAxes(psubwin)){ 04524 vx[1]=vx[0]; 04525 vy[1]=vy[0]+iof/2; 04526 posi[0] = inint(xm-rect[2]/2); 04527 posi[1]=inint( vy[0] + iof + rect[3]);} 04528 else{ 04529 vx[1]=vx[0]+barlengthx; 04530 vy[1]=vy[0]+barlengthy; 04531 /* posi[0] = inint( xm+2*barlengthx - rect[2]/2); */ 04532 /* posi[0] = inint( xm+2*barlengthx - rect[2]); */ 04533 posi[0] = inint( xm+2*barlengthx); 04534 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 04535 04536 if(ppsubwin->axes.axes_visible[1] == TRUE){ 04537 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04538 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04539 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04540 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04541 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04542 } 04543 /* grid to put here */ 04544 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 04545 { 04546 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 04547 04548 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 04549 { 04550 double tmp[2]; 04551 double pas=0; 04552 double * tmp_log_grads = (double *) NULL; 04553 04554 04555 double * grads = ppsubwin->axes.u_ygrads; 04556 04557 tmp[0] = exp10(grads[i]); 04558 tmp[1] = exp10(grads[i+1]); 04559 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04560 04561 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04562 sciprint("Error allocating tmp_log_grads\n"); 04563 return -1; 04564 } 04565 04566 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04567 04568 for(j=0;j<nbsubtics;j++) 04569 { 04570 vyy1 = tmp_log_grads[j]; 04571 04572 if(vyy1<=yminval || vyy1>=ymaxval) continue; 04573 04574 if(ppsubwin->axes.reverse[1] == TRUE) 04575 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04576 04577 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04578 04579 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04580 /* { */ 04581 xg[0]= xm; yg[0]= ym; 04582 if (Ishidden(psubwin)) 04583 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04584 else 04585 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04586 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04587 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04588 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04589 xg[0]= xg[1]; yg[0]= yg[1]; 04590 xg[1] = ixbox[3] - ixbox[4] +xm; 04591 yg[1]= iybox[2] - iybox[4] +ym; 04592 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04593 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04594 /* } */ 04595 } 04596 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04597 } 04598 else 04599 { 04600 if(ytmp>yminval && ytmp<ymaxval) 04601 { 04602 xg[0]= xm; yg[0]= ym; 04603 if (Ishidden(psubwin)) 04604 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04605 else 04606 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04607 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04608 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04609 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04610 xg[0]= xg[1]; yg[0]= yg[1]; 04611 xg[1] = ixbox[3] - ixbox[4] +xm; 04612 yg[1]= iybox[2] - iybox[4] +ym; 04613 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04614 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04615 } 04616 } 04617 } 04618 04619 /* and subtics */ 04620 if(i != nbtics-1) 04621 { 04622 if(ppsubwin->logflags[1] =='l') 04623 { 04624 double tmp[2]; 04625 double pas=0; 04626 double * tmp_log_grads = (double *) NULL; 04627 04628 04629 double * grads = ppsubwin->axes.u_ygrads; 04630 04631 tmp[0] = exp10(grads[i]); 04632 tmp[1] = exp10(grads[i+1]); 04633 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04634 04635 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04636 sciprint("Error allocating tmp_log_grads\n"); 04637 return -1; 04638 } 04639 04640 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04641 04642 for(j=0;j<nbsubtics;j++) 04643 { 04644 vyy1 = tmp_log_grads[j]; 04645 04646 if(vyy1<yminval || vyy1>ymaxval) continue; 04647 04648 if(ppsubwin->axes.reverse[1] == TRUE) 04649 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04650 04651 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04652 04653 if (IsDownAxes(psubwin)) 04654 { 04655 vx[1]=vx[0]=xm; 04656 vy[0]=ym; 04657 vy[1]=vy[0]+iof/4; 04658 } 04659 else 04660 { 04661 vx[0]=xm;vy[0]=ym; 04662 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04663 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04664 } 04665 04666 if(ppsubwin->axes.axes_visible[1] == TRUE) 04667 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04668 } 04669 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04670 04671 } /* end NEW */ 04672 else 04673 { 04674 double ytmp2 = ppsubwin->axes.u_ygrads[i]; 04675 double dy = (ppsubwin->axes.u_ygrads[i+1] - ppsubwin->axes.u_ygrads[i]) / nbsubtics; 04676 for(j=0;j<nbsubtics;j++) 04677 { 04678 vyy1=ytmp2+dy*j; 04679 04680 if(vyy1<yminval || vyy1>ymaxval) continue; 04681 04682 if(ppsubwin->axes.reverse[1] == TRUE) 04683 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04684 04685 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04686 04687 if (IsDownAxes(psubwin)) 04688 { 04689 vx[1]=vx[0]=xm; 04690 vy[0]=ym; 04691 vy[1]=vy[0]+iof/4; 04692 } 04693 else 04694 { 04695 vx[0]=xm;vy[0]=ym; 04696 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04697 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04698 } 04699 04700 if(ppsubwin->axes.axes_visible[1] == TRUE) 04701 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04702 } 04703 } 04704 } 04705 04706 /***************************************************************/ 04707 /************************* END OF COMMON PART ******************/ 04708 /***************************************************************/ 04709 } 04710 } 04711 else /* we display the computed tics */ 04712 { 04713 AdaptGraduationsOnYBottomRight(iof,x,y,size,Ticsdir,fontid,psubwin,yminval,ymaxval,fx,0.,fz); 04714 04715 lastyindex = ppsubwin->axes.nygrads - 1; 04716 04717 if(lastyindex == 0) 04718 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.ygrads[0])); 04719 else 04720 ChoixFormatE(c_format, 04721 ppsubwin->axes.ygrads[0], 04722 ppsubwin->axes.ygrads[lastyindex], 04723 ((ppsubwin->axes.ygrads[lastyindex])-(ppsubwin->axes.ygrads[0]))/(lastyindex)); 04724 04725 nbtics = ppsubwin->axes.nygrads; 04726 nbsubtics = ppsubwin->axes.nbsubtics[1]; 04727 04728 maxTicksLabelSize[0] = 0 ; 04729 maxTicksLabelSize[1] = 0 ; 04730 04731 for(i=0;i<nbtics;i++) 04732 { 04733 char foo[256]; 04734 double ytmp2 = ppsubwin->axes.ygrads[i]; 04735 04736 if(ytmp2<yminval || ytmp2>ymaxval) 04737 { 04738 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 04739 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 04740 /* donc autant ne pas aller plus loin dans l'algo... */ 04741 } 04742 04743 sprintf(foo,c_format,ytmp2); 04744 04745 /***************************************************************/ 04746 /************************* COMMON PART *************************/ 04747 /***************************************************************/ 04748 04749 /* F.Leray 03.11.04 Test if log scale to perform a : exp10(x) because trans3d will */ 04750 /* re-do a log10() (that is needed for data computations) */ 04751 04752 04753 if(ppsubwin->axes.reverse[1] == TRUE) 04754 ytmp2 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp2); 04755 04756 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp2,&fz); 04757 04758 04759 vx[0]=xm;vy[0]=ym; 04760 04761 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04762 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04763 04764 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 04765 04766 04767 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04768 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 04769 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 04770 04771 if (IsDownAxes(psubwin)){ 04772 vx[1]=vx[0]; 04773 vy[1]=vy[0]+iof/2; 04774 posi[0] = inint(xm-rect[2]/2); 04775 posi[1]=inint( vy[0] + iof + rect[3]);} 04776 else{ 04777 vx[1]=vx[0]+barlengthx; 04778 vy[1]=vy[0]+barlengthy; 04779 /* posi[0] = inint( xm+2*barlengthx - rect[2]/2); */ 04780 /* posi[0] = inint( xm+2*barlengthx - rect[2]); */ 04781 posi[0] = inint( xm+2*barlengthx); 04782 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 04783 04784 if(ppsubwin->axes.axes_visible[1] == TRUE){ 04785 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04786 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04787 if ( ppsubwin->logflags[1] == 'l' ) 04788 { 04789 int smallersize = fontid[1]-2; 04790 int old_rect10[4]; 04791 /* char str[2] = "xv"; */ 04792 int posi10[2]; 04793 04794 posi10[0] = posi[0] - logrect[2]; 04795 posi10[1] = posi[1] + logrect[3]; 04796 04797 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04798 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 04799 04800 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04801 04802 posi[0] = old_rect10[0] + old_rect10[2]; 04803 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 04804 04805 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04806 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04807 04808 /* put back the current fontid */ 04809 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04810 } 04811 else 04812 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04813 04814 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04815 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04816 } 04817 04818 /* grid to put here */ 04819 04820 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 04821 { 04822 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 04823 04824 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 04825 { 04826 double tmp[2]; 04827 double pas=0; 04828 double * tmp_log_grads = (double *) NULL; 04829 04830 04831 double * grads = ppsubwin->axes.ygrads; 04832 04833 tmp[0] = exp10(grads[i]); 04834 tmp[1] = exp10(grads[i+1]); 04835 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04836 04837 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04838 sciprint("Error allocating tmp_log_grads\n"); 04839 return -1; 04840 } 04841 04842 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04843 04844 for(j=0;j<nbsubtics;j++) 04845 { 04846 vyy1 = tmp_log_grads[j]; 04847 04848 if(vyy1<=yminval || vyy1>=ymaxval) continue; 04849 04850 if(ppsubwin->axes.reverse[1] == TRUE) 04851 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04852 04853 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04854 04855 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04856 /* { */ 04857 xg[0]= xm; yg[0]= ym; 04858 if (Ishidden(psubwin)) 04859 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04860 else 04861 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04862 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04863 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04864 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04865 xg[0]= xg[1]; yg[0]= yg[1]; 04866 xg[1] = ixbox[3] - ixbox[4] +xm; 04867 yg[1]= iybox[2] - iybox[4] +ym; 04868 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04869 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04870 /* } */ 04871 } 04872 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04873 } 04874 else 04875 { 04876 if(ytmp2>yminval && ytmp2<ymaxval) 04877 { 04878 xg[0]= xm; yg[0]= ym; 04879 if (Ishidden(psubwin)) 04880 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04881 else 04882 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04883 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04884 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04885 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04886 xg[0]= xg[1]; yg[0]= yg[1]; 04887 xg[1] = ixbox[3] - ixbox[4] +xm; 04888 yg[1]= iybox[2] - iybox[4] +ym; 04889 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04890 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04891 } 04892 } 04893 } 04894 04895 /* and subtics */ 04896 if(i != nbtics-1) 04897 { 04898 if(ppsubwin->logflags[1] =='l') 04899 { 04900 double tmp[2]; 04901 double pas=0; 04902 double * tmp_log_grads = (double *) NULL; 04903 04904 04905 double * grads = ppsubwin->axes.ygrads; 04906 04907 tmp[0] = exp10(grads[i]); 04908 tmp[1] = exp10(grads[i+1]); 04909 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04910 04911 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04912 sciprint("Error allocating tmp_log_grads\n"); 04913 return -1; 04914 } 04915 04916 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04917 04918 for(j=0;j<nbsubtics;j++) 04919 { 04920 vyy1 = tmp_log_grads[j]; 04921 04922 if(vyy1<yminval || vyy1>ymaxval) continue; 04923 04924 if(ppsubwin->axes.reverse[1] == TRUE) 04925 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04926 04927 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04928 04929 if (IsDownAxes(psubwin)) 04930 { 04931 vx[1]=vx[0]=xm; 04932 vy[0]=ym; 04933 vy[1]=vy[0]+iof/4; 04934 } 04935 else 04936 { 04937 vx[0]=xm;vy[0]=ym; 04938 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04939 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04940 } 04941 04942 if(ppsubwin->axes.axes_visible[1] == TRUE) 04943 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04944 } 04945 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04946 04947 } /* end NEW */ 04948 else 04949 { 04950 double ytmp3 = ppsubwin->axes.ygrads[i]; 04951 double dy = (ppsubwin->axes.ygrads[i+1] - ppsubwin->axes.ygrads[i]) / nbsubtics; 04952 for(j=0;j<nbsubtics;j++) 04953 { 04954 vyy1=ytmp3+dy*j; 04955 04956 if(vyy1<yminval || vyy1>ymaxval) continue; 04957 04958 if(ppsubwin->axes.reverse[1] == TRUE) 04959 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04960 04961 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04962 /* trans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); */ 04963 04964 if (IsDownAxes(psubwin)) 04965 { 04966 vx[1]=vx[0]=xm; 04967 vy[0]=ym; 04968 vy[1]=vy[0]+iof/4; 04969 } 04970 else 04971 { 04972 vx[0]=xm;vy[0]=ym; 04973 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04974 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04975 } 04976 04977 if(ppsubwin->axes.axes_visible[1] == TRUE) 04978 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04979 } 04980 } 04981 } 04982 /***************************************************************/ 04983 /************************* END OF COMMON PART ******************/ 04984 /***************************************************************/ 04985 04986 } 04987 } 04988 } 04989 if ( sciGetVisibility(ppsubwin->mon_y_label) ) 04990 { 04991 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_y_label ) ; 04992 if( ppLabel->auto_rotation ) 04993 { 04994 sciSetFontOrientation( ppsubwin->mon_y_label, 0 ) ; 04995 } 04996 04997 if( ppLabel->auto_position ) 04998 { 04999 05000 int segmentStart[2] = { ixbox[4], iybox[4] } ; 05001 int segmentEnd[2] = { ixbox[5], iybox[5] } ; 05002 05003 /* add the bar size and ticks label size to the offset */ 05004 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 05005 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 05006 computeLabelAutoPos( ppsubwin->mon_y_label, segmentStart, segmentEnd, offset ) ; 05007 } 05008 /* a trick to force the display with 2d scale */ 05009 drawTextEntity( ppLabel->text ) ; 05010 05011 } 05012 } 05013 05014 05015 05016 /***********************/ 05017 /*** le x-y scaling ***/ /* DISPLAY x or y graduations */ 05018 /***********************/ 05019 05020 if (( xind[3]+xind[4] == 3) || ( xind[3]+xind[4] == 11)) 05021 { 05022 if (pSUBWIN_FEATURE (psubwin)->project[0]==1) /* x HERE */ 05023 { 05024 double fx,fy,fz; 05025 char c_format[5]; 05026 05027 05028 integer Ticsdir[2]; 05029 Ticsdir[0]=ixbox[4]-ixbox[5]; 05030 Ticsdir[1]=iybox[4]-iybox[5]; 05031 BBoxToval(&fx,&fy,&fz,xind[3],bbox); 05032 05033 x=inint((ixbox[3]+ixbox[4])/2.0 -rect[2] -iof); 05034 y=inint((1/3.0)*iybox[3]+(2/3.0)*iybox[4]+ iof+ 1.5*rect[3]); 05035 05036 if(ppsubwin->axes.auto_ticks[0] == FALSE) 05037 { 05038 /* we display the x tics specified by the user*/ 05039 nbtics = ppsubwin->axes.u_nxgrads; 05040 nbsubtics = ppsubwin->axes.nbsubtics[0]; 05041 05042 maxTicksLabelSize[0] = 0 ; 05043 maxTicksLabelSize[1] = 0 ; 05044 05045 for(i=0;i<nbtics;i++) 05046 { 05047 char *foo = ppsubwin->axes.u_xlabels[i]; 05048 double xtmp = ppsubwin->axes.u_xgrads[i]; 05049 05050 if(xtmp<xminval || xtmp>xmaxval) 05051 { 05052 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05053 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05054 /* donc autant ne pas aller plus loin dans l'algo... */ 05055 } 05056 05057 /***************************************************************/ 05058 /************************* COMMON PART *************************/ 05059 /***************************************************************/ 05060 05061 if(ppsubwin->axes.reverse[0] == TRUE) 05062 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 05063 05064 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 05065 /* trans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); */ 05066 05067 05068 vx[0]=xm;vy[0]=ym; 05069 05070 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05071 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05072 05073 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05074 05075 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05076 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05077 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05078 05079 05080 if (IsDownAxes(psubwin)){ 05081 vx[1]=vx[0]; 05082 vy[1]=vy[0]+iof/2; 05083 posi[0] = inint(xm-rect[2]/2); 05084 posi[1]=inint( vy[0] + iof + rect[3]);} 05085 else{ 05086 vx[1]=vx[0]+barlengthx; 05087 vy[1]=vy[0]+barlengthy; 05088 posi[0] = inint( xm+2*barlengthx-rect[2]); 05089 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05090 05091 if(ppsubwin->axes.axes_visible[0] == TRUE){ 05092 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05093 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05094 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05095 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05096 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05097 } 05098 /* grid to put here */ 05099 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 05100 { 05101 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 05102 05103 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 05104 { 05105 double tmp[2]; 05106 double pas=0; 05107 double * tmp_log_grads = (double *) NULL; 05108 05109 05110 double * grads = ppsubwin->axes.u_xgrads; 05111 05112 tmp[0] = exp10(grads[i]); 05113 tmp[1] = exp10(grads[i+1]); 05114 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05115 05116 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05117 sciprint("Error allocating tmp_log_grads\n"); 05118 return -1; 05119 } 05120 05121 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05122 05123 for(j=0;j<nbsubtics;j++) 05124 { 05125 vxx1 = tmp_log_grads[j]; 05126 05127 if(vxx1<=xminval || vxx1>=xmaxval) continue; 05128 05129 if(ppsubwin->axes.reverse[0] == TRUE) 05130 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05131 05132 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05133 05134 /* if ((xm != ixbox[3]) && (xm != ixbox[4])) */ 05135 /* { */ 05136 xg[0]= xm; yg[0]= ym; 05137 if (Ishidden(psubwin)) 05138 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05139 else 05140 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05141 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05142 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05143 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05144 xg[0]= xg[1]; yg[0]= yg[1]; 05145 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05146 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05147 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05148 /* } */ 05149 } 05150 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05151 } 05152 else 05153 { 05154 if(xtmp>xminval && xtmp<xmaxval) 05155 { 05156 xg[0]= xm; yg[0]= ym; 05157 if (Ishidden(psubwin)) 05158 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05159 else 05160 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05161 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05162 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05163 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05164 xg[0]= xg[1]; yg[0]= yg[1]; 05165 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05166 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05167 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05168 } 05169 } 05170 } 05171 05172 /* and subtics */ 05173 if(i != nbtics-1) 05174 { 05175 if(ppsubwin->logflags[0] =='l') 05176 { 05177 double tmp[2]; 05178 double pas=0; 05179 double * tmp_log_grads = (double *) NULL; 05180 05181 05182 double * grads = ppsubwin->axes.u_xgrads; 05183 05184 tmp[0] = exp10(grads[i]); 05185 tmp[1] = exp10(grads[i+1]); 05186 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05187 05188 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05189 sciprint("Error allocating tmp_log_grads\n"); 05190 return -1; 05191 } 05192 05193 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05194 05195 for(j=0;j<nbsubtics;j++) 05196 { 05197 vxx1 = tmp_log_grads[j]; 05198 05199 if(vxx1<xminval || vxx1>xmaxval) continue; 05200 05201 if(ppsubwin->axes.reverse[0] == TRUE) 05202 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05203 05204 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05205 05206 if (IsDownAxes(psubwin)) 05207 { 05208 vx[1]=vx[0]=xm; 05209 vy[0]=ym; 05210 vy[1]=vy[0]+iof/4; 05211 } 05212 else 05213 { 05214 vx[0]=xm;vy[0]=ym; 05215 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05216 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05217 } 05218 05219 if(ppsubwin->axes.axes_visible[0] == TRUE) 05220 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05221 } 05222 05223 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05224 } /* end NEW */ 05225 else 05226 { 05227 double xtmp2 = ppsubwin->axes.u_xgrads[i]; 05228 double dx = (ppsubwin->axes.u_xgrads[i+1] - ppsubwin->axes.u_xgrads[i]) / nbsubtics; 05229 05230 for (j=1;j<nbsubtics;j++) 05231 { 05232 vxx1=xtmp2+dx*j; 05233 05234 if(vxx1<xminval || vxx1>xmaxval) continue; 05235 05236 if(ppsubwin->axes.reverse[0] == TRUE) 05237 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05238 05239 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05240 /* trans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); */ 05241 05242 05243 if (IsDownAxes(psubwin)) 05244 { 05245 vx[1]=vx[0]=xm; 05246 vy[0]=ym; 05247 vy[1]=vy[0]+iof/4; 05248 } 05249 else 05250 { 05251 vx[0]=xm;vy[0]=ym; 05252 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05253 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05254 } 05255 05256 if(ppsubwin->axes.axes_visible[0] == TRUE) 05257 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05258 } 05259 } 05260 } 05261 /***************************************************************/ 05262 /************************* COMMON PART *************************/ 05263 /***************************************************************/ 05264 05265 05266 } 05267 05268 } 05269 else /* we display the computed tics */ 05270 { 05271 AdaptGraduationsOnXBottomLeft(iof,x,y,size,Ticsdir,fontid,psubwin,xminval,xmaxval,0.,fy,fz); 05272 05273 lastxindex = ppsubwin->axes.nxgrads - 1; 05274 05275 if(lastxindex == 0) 05276 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.xgrads[0])); 05277 else 05278 ChoixFormatE(c_format, 05279 ppsubwin->axes.xgrads[0], 05280 ppsubwin->axes.xgrads[lastxindex], 05281 ((ppsubwin->axes.xgrads[lastxindex])-(ppsubwin->axes.xgrads[0]))/(lastxindex)); 05282 05283 nbtics = ppsubwin->axes.nxgrads; 05284 nbsubtics = ppsubwin->axes.nbsubtics[0]; 05285 05286 maxTicksLabelSize[0] = 0 ; 05287 maxTicksLabelSize[1] = 0 ; 05288 05289 for(i=0;i<nbtics;i++) 05290 { 05291 char foo[256]; 05292 double xtmp = ppsubwin->axes.xgrads[i]; 05293 05294 if(xtmp<xminval || xtmp>xmaxval) 05295 { 05296 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05297 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05298 /* donc autant ne pas aller plus loin dans l'algo... */ 05299 } 05300 05301 sprintf(foo,c_format,xtmp); 05302 05303 /***************************************************************/ 05304 /************************* COMMON PART *************************/ 05305 /***************************************************************/ 05306 05307 if(ppsubwin->axes.reverse[0] == TRUE) 05308 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 05309 05310 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 05311 05312 vx[0]=xm;vy[0]=ym; 05313 05314 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05315 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05316 05317 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05318 05319 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05320 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05321 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05322 05323 if (IsDownAxes(psubwin)){ 05324 vx[1]=vx[0]; 05325 vy[1]=vy[0]+iof/2; 05326 posi[0] = inint(xm-rect[2]/2); 05327 posi[1]=inint( vy[0] + iof + rect[3]);} 05328 else{ 05329 vx[1]=vx[0]+barlengthx; 05330 vy[1]=vy[0]+barlengthy; 05331 posi[0] = inint( xm+2*barlengthx-rect[2]); 05332 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05333 05334 if(ppsubwin->axes.axes_visible[0] == TRUE){ 05335 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05336 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05337 if ( ppsubwin->logflags[0] == 'l' ) 05338 { 05339 int smallersize = fontid[1]-2; 05340 int old_rect10[4]; 05341 int posi10[2]; 05342 05343 posi10[0] = posi[0] - logrect[2]; 05344 posi10[1] = posi[1] + logrect[3]; 05345 05346 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05347 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 05348 05349 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05350 05351 posi[0] = old_rect10[0] + old_rect10[2]; 05352 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 05353 05354 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05355 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05356 05357 /* put back the current fontid */ 05358 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05359 } 05360 else 05361 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05362 05363 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05364 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05365 } 05366 /* grid to put here */ 05367 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 05368 { 05369 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 05370 05371 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 05372 { 05373 double tmp[2]; 05374 double pas=0; 05375 double * tmp_log_grads = (double *) NULL; 05376 05377 05378 double * grads = ppsubwin->axes.xgrads; 05379 05380 tmp[0] = exp10(grads[i]); 05381 tmp[1] = exp10(grads[i+1]); 05382 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05383 05384 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05385 sciprint("Error allocating tmp_log_grads\n"); 05386 return -1; 05387 } 05388 05389 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05390 05391 for(j=0;j<nbsubtics;j++) 05392 { 05393 vxx1 = tmp_log_grads[j]; 05394 05395 if(vxx1<=xminval || vxx1>=xmaxval) continue; 05396 05397 if(ppsubwin->axes.reverse[0] == TRUE) 05398 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05399 05400 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05401 05402 05403 xg[0]= xm; yg[0]= ym; 05404 if (Ishidden(psubwin)) 05405 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05406 else 05407 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05408 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05409 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05410 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05411 xg[0]= xg[1]; yg[0]= yg[1]; 05412 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05413 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05414 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05415 05416 } 05417 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05418 } 05419 else 05420 { 05421 if(xtmp>xminval && xtmp<xmaxval) 05422 { 05423 xg[0]= xm; yg[0]= ym; 05424 if (Ishidden(psubwin)) 05425 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05426 else 05427 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05428 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05429 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05430 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05431 xg[0]= xg[1]; yg[0]= yg[1]; 05432 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05433 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05434 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05435 } 05436 } 05437 } 05438 05439 /* and subtics */ 05440 if(i != nbtics-1) 05441 { 05442 if(ppsubwin->logflags[0] =='l') 05443 { 05444 double tmp[2]; 05445 double pas=0; 05446 double * tmp_log_grads = (double *) NULL; 05447 05448 05449 double * grads = ppsubwin->axes.xgrads; 05450 05451 tmp[0] = exp10(grads[i]); 05452 tmp[1] = exp10(grads[i+1]); 05453 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05454 05455 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05456 sciprint("Error allocating tmp_log_grads\n"); 05457 return -1; 05458 } 05459 05460 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05461 05462 for(j=0;j<nbsubtics;j++) 05463 { 05464 vxx1 = tmp_log_grads[j]; 05465 05466 if(vxx1<xminval || vxx1>xmaxval) continue; 05467 05468 if(ppsubwin->axes.reverse[0] == TRUE) 05469 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05470 05471 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05472 05473 if (IsDownAxes(psubwin)) 05474 { 05475 vx[1]=vx[0]=xm; 05476 vy[0]=ym; 05477 vy[1]=vy[0]+iof/4; 05478 } 05479 else 05480 { 05481 vx[0]=xm;vy[0]=ym; 05482 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05483 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05484 } 05485 05486 if(ppsubwin->axes.axes_visible[0] == TRUE) 05487 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05488 } 05489 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05490 } /* end NEW */ 05491 else 05492 { 05493 double xtmp2 = ppsubwin->axes.xgrads[i]; 05494 double dx = (ppsubwin->axes.xgrads[i+1] - ppsubwin->axes.xgrads[i]) / nbsubtics; 05495 05496 for (j=1;j<nbsubtics;j++) 05497 { 05498 vxx1=xtmp2+dx*j; 05499 05500 if(vxx1<xminval || vxx1>xmaxval) continue; 05501 05502 if(ppsubwin->axes.reverse[0] == TRUE) 05503 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05504 05505 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05506 /* trans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); */ 05507 05508 05509 if (IsDownAxes(psubwin)) 05510 { 05511 vx[1]=vx[0]=xm; 05512 vy[0]=ym; 05513 vy[1]=vy[0]+iof/4; 05514 } 05515 else 05516 { 05517 vx[0]=xm;vy[0]=ym; 05518 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05519 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05520 } 05521 05522 if(ppsubwin->axes.axes_visible[0] == TRUE) 05523 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05524 } 05525 } 05526 } 05527 /***************************************************************/ 05528 /************************* COMMON PART *************************/ 05529 /***************************************************************/ 05530 05531 } 05532 } 05533 } 05534 05535 if ( sciGetVisibility(ppsubwin->mon_x_label) ) 05536 { 05537 05538 sciLabel * ppLabel = pLABEL_FEATURE(ppsubwin->mon_x_label) ; 05539 if( ppLabel->auto_rotation ) 05540 { 05541 sciSetFontOrientation(ppsubwin->mon_x_label, 0 ) ; 05542 } 05543 05544 05545 if( ppLabel->auto_position ) 05546 { 05547 05548 int segmentStart[2] = { ixbox[3], iybox[3] } ; 05549 int segmentEnd[2] = { ixbox[4], iybox[4] } ; 05550 05551 /* add the bar size and ticks label size to the offset */ 05552 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 05553 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 05554 computeLabelAutoPos( ppsubwin->mon_x_label, segmentStart, segmentEnd, offset ) ; 05555 } 05556 /* a trick to force the display with 2d scale */ 05557 drawTextEntity( ppLabel->text ) ; 05558 05559 } 05560 } 05561 else 05562 { 05563 if (pSUBWIN_FEATURE (psubwin)->project[1]==1) /* y is HERE */ 05564 { 05565 double fx,fy,fz; 05566 char c_format[5]; 05567 05568 integer Ticsdir[2]; 05569 Ticsdir[0]=ixbox[4]-ixbox[5]; 05570 Ticsdir[1]=iybox[4]-iybox[5]; 05571 BBoxToval(&fx,&fy,&fz,xind[3],bbox); 05572 05573 x=inint((ixbox[3]+ixbox[4])/2.0 -rect[2] -iof); 05574 y=inint((1/3.0)*iybox[3]+(2/3.0)*iybox[4]+ iof + 1.5*rect[3]); 05575 05576 if(ppsubwin->axes.auto_ticks[1] == FALSE) 05577 { 05578 /* we display the y tics specified by the user*/ 05579 nbtics = ppsubwin->axes.u_nygrads; 05580 nbsubtics = ppsubwin->axes.nbsubtics[1]; 05581 05582 maxTicksLabelSize[0] = 0 ; 05583 maxTicksLabelSize[1] = 0 ; 05584 05585 for(i=0;i<nbtics;i++) 05586 { 05587 char *foo = ppsubwin->axes.u_ylabels[i]; 05588 double ytmp = ppsubwin->axes.u_ygrads[i]; 05589 05590 if(ytmp<yminval || ytmp>ymaxval) 05591 { 05592 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05593 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05594 /* donc autant ne pas aller plus loin dans l'algo... */ 05595 } 05596 05597 /***************************************************************/ 05598 /************************* COMMON PART *************************/ 05599 /***************************************************************/ 05600 05601 if(ppsubwin->axes.reverse[1] == TRUE) 05602 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 05603 05604 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 05605 /* trans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); */ 05606 05607 05608 vx[0]=xm;vy[0]=ym; 05609 05610 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05611 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05612 05613 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05614 05615 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05616 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05617 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05618 05619 if (IsDownAxes(psubwin)){ 05620 vx[1]=vx[0]; 05621 vy[1]=vy[0]+iof/2; 05622 posi[0] = inint(xm-rect[2]/2); 05623 posi[1]=inint( vy[0] + iof + rect[3]);} 05624 else{ 05625 vx[1]=vx[0]+barlengthx; 05626 vy[1]=vy[0]+barlengthy; 05627 /* posi[0] = inint( xm+2*barlengthx-rect[2]/2); */ 05628 posi[0] = inint( xm+2*barlengthx-rect[2]); 05629 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05630 05631 05632 if(ppsubwin->axes.axes_visible[1] == TRUE){ 05633 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05634 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05635 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05636 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05637 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05638 } 05639 /* grid to put here */ 05640 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 05641 { 05642 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 05643 05644 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 05645 { 05646 double tmp[2]; 05647 double pas=0; 05648 double * tmp_log_grads = (double *) NULL; 05649 05650 05651 double * grads = ppsubwin->axes.u_ygrads; 05652 05653 tmp[0] = exp10(grads[i]); 05654 tmp[1] = exp10(grads[i+1]); 05655 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05656 05657 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05658 sciprint("Error allocating tmp_log_grads\n"); 05659 return -1; 05660 } 05661 05662 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05663 05664 for(j=0;j<nbsubtics;j++) 05665 { 05666 vyy1 = tmp_log_grads[j]; 05667 05668 if(vyy1<=yminval || vyy1>=ymaxval) continue; 05669 05670 if(ppsubwin->axes.reverse[1] == TRUE) 05671 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05672 05673 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05674 05675 /* if ((xm != ixbox[3]) && (xm != ixbox[4])) */ 05676 /* { */ 05677 xg[0]= xm; yg[0]= ym; 05678 if (Ishidden(psubwin)) 05679 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05680 else 05681 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05682 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05683 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05684 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05685 xg[0]= xg[1]; yg[0]= yg[1]; 05686 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05687 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05688 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05689 /* } */ 05690 } 05691 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05692 } 05693 else 05694 { 05695 if(ytmp>yminval && ytmp<ymaxval) 05696 { 05697 xg[0]= xm; yg[0]= ym; 05698 if (Ishidden(psubwin)) 05699 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05700 else 05701 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05702 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05703 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05704 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05705 xg[0]= xg[1]; yg[0]= yg[1]; 05706 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05707 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05708 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05709 } 05710 } 05711 } 05712 05713 /* and subtics */ 05714 if(i != nbtics-1) 05715 { 05716 if(ppsubwin->logflags[1] =='l') 05717 { 05718 double tmp[2]; 05719 double pas=0; 05720 double * tmp_log_grads = (double *) NULL; 05721 05722 05723 double * grads = ppsubwin->axes.u_ygrads; 05724 05725 tmp[0] = exp10(grads[i]); 05726 tmp[1] = exp10(grads[i+1]); 05727 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05728 05729 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05730 sciprint("Error allocating tmp_log_grads\n"); 05731 return -1; 05732 } 05733 05734 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05735 05736 for(j=0;j<nbsubtics;j++) 05737 { 05738 vyy1 = tmp_log_grads[j]; 05739 05740 if(vyy1<yminval || vyy1>ymaxval) continue; 05741 05742 if(ppsubwin->axes.reverse[1] == TRUE) 05743 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05744 05745 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05746 05747 if (IsDownAxes(psubwin)) 05748 { 05749 vx[1]=vx[0]=xm; 05750 vy[0]=ym; 05751 vy[1]=vy[0]+iof/4; 05752 } 05753 else 05754 { 05755 vx[0]=xm;vy[0]=ym; 05756 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05757 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05758 } 05759 05760 if(ppsubwin->axes.axes_visible[1] == TRUE) 05761 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05762 } 05763 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05764 05765 } /* end NEW */ 05766 else 05767 { 05768 05769 double ytmp2 = ppsubwin->axes.u_ygrads[i]; 05770 double dy = (ppsubwin->axes.u_ygrads[i+1] - ppsubwin->axes.u_ygrads[i]) / nbsubtics; 05771 for(j=0;j<nbsubtics;j++) 05772 { 05773 vyy1=ytmp2+dy*j; 05774 05775 if(vyy1<yminval || vyy1>ymaxval) continue; 05776 05777 if(ppsubwin->axes.reverse[1] == TRUE) 05778 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05779 05780 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05781 /* trans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); */ 05782 05783 05784 if (IsDownAxes(psubwin)) 05785 { 05786 vx[1]=vx[0]=xm; 05787 vy[0]=ym; 05788 vy[1]=vy[0]+iof/4; 05789 } 05790 else 05791 { 05792 vx[0]=xm;vy[0]=ym; 05793 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05794 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05795 } 05796 05797 if(ppsubwin->axes.axes_visible[1] == TRUE) 05798 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05799 } 05800 } 05801 } 05802 /***************************************************************/ 05803 /************************* COMMON PART *************************/ 05804 /***************************************************************/ 05805 05806 } 05807 } 05808 else /* we display the computed tics */ 05809 { 05810 AdaptGraduationsOnYBottomLeft(iof,x,y,size,Ticsdir,fontid,psubwin,yminval,ymaxval,fx,0.,fz); 05811 05812 lastyindex = ppsubwin->axes.nygrads - 1; 05813 05814 if(lastyindex == 0) 05815 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.ygrads[0])); 05816 else 05817 ChoixFormatE(c_format, 05818 ppsubwin->axes.ygrads[0], 05819 ppsubwin->axes.ygrads[lastyindex], 05820 ((ppsubwin->axes.ygrads[lastyindex])-(ppsubwin->axes.ygrads[0]))/(lastyindex)); 05821 05822 nbtics = ppsubwin->axes.nygrads; 05823 nbsubtics = ppsubwin->axes.nbsubtics[1]; 05824 05825 maxTicksLabelSize[0] = 0 ; 05826 maxTicksLabelSize[1] = 0 ; 05827 05828 for(i=0;i<nbtics;i++) 05829 { 05830 char foo[256]; 05831 double ytmp = ppsubwin->axes.ygrads[i]; 05832 05833 if(ytmp<yminval || ytmp>ymaxval) 05834 { 05835 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05836 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05837 /* donc autant ne pas aller plus loin dans l'algo... */ 05838 } 05839 05840 sprintf(foo,c_format,ytmp); 05841 05842 /***************************************************************/ 05843 /************************* COMMON PART *************************/ 05844 /***************************************************************/ 05845 05846 if(ppsubwin->axes.reverse[1] == TRUE) 05847 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 05848 05849 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 05850 /* trans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); */ 05851 05852 05853 vx[0]=xm;vy[0]=ym; 05854 05855 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05856 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05857 05858 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05859 05860 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05861 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05862 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05863 05864 if (IsDownAxes(psubwin)){ 05865 vx[1]=vx[0]; 05866 vy[1]=vy[0]+iof/2; 05867 posi[0] = inint(xm-rect[2]/2); 05868 posi[1]=inint( vy[0] + iof + rect[3]);} 05869 else{ 05870 vx[1]=vx[0]+barlengthx; 05871 vy[1]=vy[0]+barlengthy; 05872 /* posi[0] = inint( xm+2*barlengthx-rect[2]/2); */ 05873 posi[0] = inint( xm+2*barlengthx-rect[2]); 05874 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05875 05876 if(ppsubwin->axes.axes_visible[1] == TRUE){ 05877 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05878 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05879 if ( ppsubwin->logflags[1] == 'l' ) 05880 { 05881 int smallersize = fontid[1]-2; 05882 int old_rect10[4]; 05883 /* char str[2] = "xv"; */ 05884 int posi10[2]; 05885 05886 posi10[0] = posi[0] - logrect[2]; 05887 posi10[1] = posi[1] + logrect[3]; 05888 05889 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05890 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 05891 05892 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05893 05894 posi[0] = old_rect10[0] + old_rect10[2]; 05895 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 05896 05897 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05898 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05899 05900 /* put back the current fontid */ 05901 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05902 } 05903 else 05904 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05905 05906 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05907 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05908 } 05909 /* grid to put here */ 05910 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 05911 { 05912 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 05913 05914 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 05915 { 05916 double tmp[2]; 05917 double pas=0; 05918 double * tmp_log_grads = (double *) NULL; 05919 05920 05921 double * grads = ppsubwin->axes.ygrads; 05922 05923 tmp[0] = exp10(grads[i]); 05924 tmp[1] = exp10(grads[i+1]); 05925 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05926 05927 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05928 sciprint("Error allocating tmp_log_grads\n"); 05929 return -1; 05930 } 05931 05932 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05933 05934 for(j=0;j<nbsubtics;j++) 05935 { 05936 vyy1 = tmp_log_grads[j]; 05937 05938 if(vyy1<=yminval || vyy1>=ymaxval) continue; 05939 05940 if(ppsubwin->axes.reverse[1] == TRUE) 05941 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05942 05943 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05944 05945 /* if ((xm != ixbox[3]) && (xm != ixbox[4])) */ 05946 /* { */ 05947 xg[0]= xm; yg[0]= ym; 05948 if (Ishidden(psubwin)) 05949 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05950 else 05951 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05952 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05953 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05954 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05955 xg[0]= xg[1]; yg[0]= yg[1]; 05956 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05957 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05958 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05959 /* } */ 05960 } 05961 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05962 } 05963 else 05964 { 05965 if(ytmp>yminval && ytmp<ymaxval) 05966 { 05967 xg[0]= xm; yg[0]= ym; 05968 if (Ishidden(psubwin)) 05969 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05970 else 05971 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05972 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05973 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05974 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05975 xg[0]= xg[1]; yg[0]= yg[1]; 05976 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05977 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05978 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05979 } 05980 } 05981 } 05982 05983 /* and subtics */ 05984 if(i != nbtics-1) 05985 { 05986 if(ppsubwin->logflags[1] =='l') 05987 { 05988 double tmp[2]; 05989 double pas=0; 05990 double * tmp_log_grads = (double *) NULL; 05991 05992 05993 double * grads = ppsubwin->axes.ygrads; 05994 05995 tmp[0] = exp10(grads[i]); 05996 tmp[1] = exp10(grads[i+1]); 05997 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05998 05999 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 06000 sciprint("Error allocating tmp_log_grads\n"); 06001 return -1; 06002 } 06003 06004 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 06005 06006 for(j=0;j<nbsubtics;j++) 06007 { 06008 vyy1 = tmp_log_grads[j]; 06009 06010 if(vyy1<yminval || vyy1>ymaxval) continue; 06011 06012 if(ppsubwin->axes.reverse[1] == TRUE) 06013 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 06014 06015 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 06016 06017 if (IsDownAxes(psubwin)) 06018 { 06019 vx[1]=vx[0]=xm; 06020 vy[0]=ym; 06021 vy[1]=vy[0]+iof/4; 06022 } 06023 else 06024 { 06025 vx[0]=xm;vy[0]=ym; 06026 vx[1]= (integer) (vx[0]+barlengthx/2.0); 06027 vy[1]= (integer) (vy[0]+barlengthy/2.0); 06028 } 06029 06030 if(ppsubwin->axes.axes_visible[1] == TRUE) 06031 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 06032 } 06033 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 06034 06035 } /* end NEW */ 06036 else 06037 { 06038 06039 double ytmp2 = ppsubwin->axes.ygrads[i]; 06040 double dy = (ppsubwin->axes.ygrads[i+1] - ppsubwin->axes.ygrads[i]) / nbsubtics; 06041 for(j=0;j<nbsubtics;j++) 06042 { 06043 vyy1=ytmp2+dy*j; 06044 06045 if(vyy1<yminval || vyy1>ymaxval) continue; 06046 06047 if(ppsubwin->axes.reverse[1] == TRUE) 06048 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 06049 06050 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 06051 06052 if (IsDownAxes(psubwin)) 06053 { 06054 vx[1]=vx[0]=xm; 06055 vy[0]=ym; 06056 vy[1]=vy[0]+iof/4; 06057 } 06058 else 06059 { 06060 vx[0]=xm;vy[0]=ym; 06061 vx[1]= (integer) (vx[0]+barlengthx/2.0); 06062 vy[1]= (integer) (vy[0]+barlengthy/2.0); 06063 } 06064 06065 if(ppsubwin->axes.axes_visible[1] == TRUE) 06066 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 06067 } 06068 } 06069 } 06070 06071 /***************************************************************/ 06072 /************************* COMMON PART *************************/ 06073 /***************************************************************/ 06074 } 06075 } 06076 } 06077 06078 if ( sciGetVisibility(ppsubwin->mon_y_label) ) 06079 { 06080 sciLabel * ppLabel = pLABEL_FEATURE(ppsubwin->mon_y_label) ; 06081 if( ppLabel->auto_rotation ) 06082 { 06083 sciSetFontOrientation(ppsubwin->mon_y_label, 0 ) ; 06084 } 06085 06086 if( ppLabel->auto_position ) 06087 { 06088 06089 int segmentStart[2] = { ixbox[3], iybox[3] } ; 06090 int segmentEnd[2] = { ixbox[4], iybox[4] } ; 06091 06092 /* add the bar size and ticks label size to the offset */ 06093 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 06094 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 06095 computeLabelAutoPos( ppsubwin->mon_y_label, segmentStart, segmentEnd, offset ) ; 06096 } 06097 /* a trick to force the display with 2d scale */ 06098 drawTextEntity( ppLabel->text ) ; 06099 06100 } 06101 } 06102 /* reset font to its current size & to current color*/ 06103 if ( fontsize != -1 ){ 06104 fontid[1] = fontsize_kp; 06105 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 06106 } 06107 if ( textcolor != -1 || ticscolor != -1 ) 06108 C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 06109 /***/ 06110 /* FREE(loc); */ 06111 06112 06113 return 0; 06114 }
Here is the call graph for this function:
| int CheckDisplay | ( | double | fact_h, | |
| double | fact_w, | |||
| char | logflag, | |||
| char * | foo, | |||
| int * | posi, | |||
| int * | fontid, | |||
| int * | old_rect | |||
| ) |
Definition at line 2266 of file Axes.c.
References C2F, dr(), FALSE, getTicksLabelBox(), i, IsInsideRectangle(), L, PD0, PI0, and TRUE.
02267 { 02268 int rect[4],i; 02269 int point[4][2]; 02270 int logrect[4] ; 02271 int XX = 0 ; 02272 int YY = 0 ; 02273 02274 if(old_rect[0] == 0 && old_rect[1] == 0 && old_rect[2] == 0 && old_rect[3] == 0) 02275 { 02276 return TRUE ; 02277 } 02278 02279 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 02280 02281 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 02282 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02283 02284 getTicksLabelBox( 1.0, 1.0, foo, posi, fontid, logflag, rect, TRUE ) ; 02285 02286 point[0][0] = rect[0]; /* upper left point */ 02287 point[0][1] = rect[1]; 02288 02289 point[1][0] = rect[0]; /* lower left point */ 02290 point[1][1] = rect[1]+rect[3]; 02291 02292 point[2][0] = rect[0]+rect[2]; /* lower right point */ 02293 point[2][1] = rect[1]+rect[3]; 02294 02295 point[3][0] = rect[0]+rect[2]; /* upper right point */ 02296 point[3][1] = rect[1]; 02297 02298 for(i=0;i<4;i++) 02299 { 02300 if( !IsInsideRectangle(old_rect,point[i]) ) 02301 { 02302 return FALSE; /* If one inside the old_rect, DO NOT display the graduation ! */ 02303 } 02304 } 02305 02306 return TRUE; 02307 }
Here is the call graph for this function:
| int CheckPixelStatus | ( | void | ) |
Definition at line 713 of file drawMarks.c.
Referenced by DrawNewMarks().
00714 { 00715 if( GetDriverId() == 0 ) /* X11 or Win32 driver */ 00716 { 00717 return 1 ; 00718 } 00719 else 00720 { 00721 return 0 ; 00722 } 00723 }
Here is the caller graph for this function:
| int ChildrenCounter | ( | sciPointObj * | pparent | ) |
Definition at line 1246 of file DrawObjects.c.
References ChildrenCounter(), N, NULL, tagSons::pnext, tagSons::pointobj, SCI_AGREG, SCI_POLYLINE, SCI_RECTANGLE, SCI_SEGS, SCI_SURFACE, sciGetEntityType(), and sciGetSons().
Referenced by ChildrenCounter(), and Objplot3d().
01247 { 01248 int N,q=0; 01249 sciSons * psonstmp = sciGetSons (pparent); 01250 01251 while (psonstmp != (sciSons *) NULL) { 01252 switch (sciGetEntityType (psonstmp->pointobj)) { 01253 case SCI_SURFACE: 01254 N=1; 01255 break; 01256 case SCI_POLYLINE: 01257 N = 1; 01258 break; 01259 case SCI_SEGS: 01260 N=1; 01261 break; 01262 case SCI_RECTANGLE: 01263 N = 1; 01264 break; 01265 case SCI_AGREG: 01266 N = ChildrenCounter(psonstmp->pointobj); 01267 break; 01268 default: 01269 N=0; 01270 } 01271 q+=N; 01272 psonstmp = psonstmp->pnext; 01273 } 01274 01275 return q; 01276 }
Here is the call graph for this function:
Here is the caller graph for this function:
| int ChooseFormatForOneGrad | ( | char * | c_format, | |
| double * | grad | |||
| ) |
Definition at line 2694 of file DrawObjects.c.
References abs.
Referenced by AdaptGraduationsOnXBottomLeft(), AdaptGraduationsOnXBottomRight(), AdaptGraduationsOnYBottomLeft(), AdaptGraduationsOnYBottomRight(), and AdaptGraduationsOnZ().
02695 { 02696 int compteur = 0; 02697 double epsilon = 1e-16; 02698 02699 if((double)(abs((int)*grad)) < epsilon){ /* case where grad is strictly equal to 0. */ 02700 *grad = 0.; 02701 strcpy(c_format,"%d"); 02702 return 0; 02703 } 02704 02705 while((int) (*grad) == 0){ 02706 compteur++; 02707 *grad = 10*(*grad); 02708 02709 if(compteur > 100){ 02710 Scierror(999,"Error in function ChooseFormatForOneGrad\n"); 02711 return -1; 02712 } 02713 } 02714 02715 sprintf(c_format,"%%.%df",compteur); 02716 02717 return 0; 02718 }
Here is the caller graph for this function:
| int ComputeCorrectXindAndInsideUD | ( | double | Teta, | |
| double | Alpha, | |||
| double * | dbox, | |||
| integer * | xind, | |||
| integer * | InsideU, | |||
| integer * | InsideD | |||
| ) |
Definition at line 938 of file DrawObjects.c.
References sciAxesVerticesIndices(), sciGetAxisBox(), and sciUpdateScaleAngles().
Referenced by axis_3ddraw().
00939 { 00940 double xbox[8], ybox[8], zbox[8]; 00941 00942 Teta = 0.1; /* Little offset to compute correct values for xind, InsideU and InsideD */ 00943 00944 /* update Cscale.m from the new viewing angles */ 00945 sciUpdateScaleAngles( Teta, Alpha ) ; 00946 00947 sciGetAxisBox( dbox, xbox, ybox, zbox ) ; 00948 00949 sciAxesVerticesIndices( InsideU, InsideD, xbox, ybox, xind ) ; 00950 00951 return 0; 00952 }
Here is the call graph for this function:
Here is the caller graph for this function:
| int ComputeGoodTrans3d | ( | sciPointObj * | psubwin, | |
| int | n, | |||
| int * | xm, | |||
| int * | ym, | |||
| double * | fx, | |||
| double * | fy, | |||
| double * | fz | |||
| ) |
Definition at line 956 of file DrawObjects.c.
References sciSubWindow::logflags, pSUBWIN_FEATURE, and trans3d().
Referenced by AdaptGraduationsOnXBottomLeft(), AdaptGraduationsOnXBottomRight(), AdaptGraduationsOnYBottomLeft(), AdaptGraduationsOnYBottomRight(), and AdaptGraduationsOnZ().
00957 { 00958 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 00959 00960 00961 double tmp_fx = *fx; 00962 double tmp_fy = *fy; 00963 double tmp_fz = *fz; 00964 00965 if(ppsubwin->logflags[0] == 'l') 00966 tmp_fx = exp10(tmp_fx); 00967 00968 if(ppsubwin->logflags[1] == 'l') 00969 tmp_fy = exp10(tmp_fy); 00970 00971 if(ppsubwin->logflags[2] == 'l') 00972 tmp_fz = exp10(tmp_fz); 00973 00974 trans3d(psubwin, n, xm, ym, &tmp_fx, &tmp_fy, &tmp_fz); 00975 00976 return 0; 00977 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void computeLabelAutoPos | ( | sciPointObj * | pLabel, | |
| int | axisStart[2], | |||
| int | axisEnd[2], | |||
| int | offsets[2] | |||
| ) |
Update the coordinates of a label to put it in the middle of a segment (normally an axis) but with a little orthogonal offset. Let Ri i=0:3 be the four corners of the label boudinbg box. The algorithm will put the center of the bounding box C on the middle of the segment I. Then we compute for each corner the needed translation to put them at a distance given by offset. The translation is done along an axis orthogonal to the segment. Finally we transalte the box from I with the longest translation, so each corner is at least at the wanted distance.
| pLabel | pointer to the label to place. | |
| axisStart | Starting point of the segment. | |
| axisEnd | The other end of the segment. The order of the two points determine the side in which the label will be placed. | |
| offsets | The label is not put exactly on the middle of the segment. It is moved from a little offset orthogonally from the segment. |
Definition at line 2900 of file DrawObjects.c.
References Abs, DOT_PROD_2D, getTextBoundingBox(), Max, normalize2d(), NULL, pLABEL_FEATURE, round, sciSetPosition(), XPixel2Double, and YPixel2Double.
Referenced by labels2D_draw().
02901 { 02902 /* computation are done in double to avoid loss of data */ 02903 double centerDir[2] ; /* give the direction of the line on which is the center. */ 02904 /* it is orthogonal with the axis direction */ 02905 double axisMiddle[2] ; /* middle of the axis = ( axisStart + axisEnd ) / 2 */ 02906 int bbox[4][2] ; /* real bounding box of the label */ 02907 double corners[4][2] ; /* the four corners of the boundign box */ 02908 double centerDist ; /* final distance between the center and the axis */ 02909 int wantedBlPoint[2] ; /* the position we want for the bottom left point of the axis */ 02910 double distance ; 02911 double rectCenter[2] ; 02912 02913 if ( axisStart[0] == axisEnd[0] && axisStart[1] == axisEnd[1] ) 02914 { 02915 /* the axis is invisible. Its label is not displayed also. */ 02916 return ; 02917 } 02918 02919 /* normalized vector orthogonal to the axe */ 02920 /* its direction (+ or -) determines on which side will be displayed the axis */ 02921 centerDir[0] = axisStart[1] - axisEnd[1] ; 02922 centerDir[1] = axisEnd[0] - axisStart[0] ; 02923 normalize2d( centerDir ) ; 02924 02925 /* the distance between the aabb and the axis is offsets[0] if the axis is vertical, */ 02926 /* offest[1] if horizontal and something in between otherwise */ 02927 distance = Abs( (double)offsets[0] * centerDir[0] ) + Abs( (double)offsets[1] * centerDir[1] ) ; 02928 02929 axisMiddle[0] = ( axisStart[0] + axisEnd[0] ) / 2.0 ; 02930 axisMiddle[1] = ( axisStart[1] + axisEnd[1] ) / 2.0 ; 02931 02932 /* get the size of the label axis aligned bouding box. */ 02933 getTextBoundingBox( pLABEL_FEATURE(pLabel)->text, bbox, NULL ) ; 02934 02935 /* get the center of the rectangle */ 02936 rectCenter[0] = ( bbox[0][0] + bbox[1][0] + bbox[2][0] + bbox[3][0] ) / 4.0 ; 02937 rectCenter[1] = ( bbox[0][1] + bbox[1][1] + bbox[2][1] + bbox[3][1] ) / 4.0 ; 02938 02939 /* We suppose the box is centered on I and we compute IRi, i=0:3 */ 02940 corners[0][0] = bbox[0][0] - rectCenter[0] ; 02941 corners[0][1] = bbox[0][1] - rectCenter[1] ; 02942 corners[1][0] = bbox[1][0] - rectCenter[0] ; 02943 corners[1][1] = bbox[1][1] - rectCenter[1] ; 02944 corners[2][0] = bbox[2][0] - rectCenter[0] ; 02945 corners[2][1] = bbox[2][1] - rectCenter[1] ; 02946 corners[3][0] = bbox[3][0] - rectCenter[0] ; 02947 corners[3][1] = bbox[3][1] - rectCenter[1] ; 02948 02949 /* compute IRi.v, i=0:3 to get the current distance between Ri and the axis. */ 02950 /* Then for each Ri we can compute the need displacment along the centerDir to push it */ 02951 /* at distance dist of the axis. Finally, the needed displacement is the maximum of the 4. */ 02952 centerDist = distance - DOT_PROD_2D( corners[0], centerDir ) ; 02953 centerDist = Max( centerDist, distance - DOT_PROD_2D( corners[1], centerDir ) ) ; 02954 centerDist = Max( centerDist, distance - DOT_PROD_2D( corners[2], centerDir ) ) ; 02955 centerDist = Max( centerDist, distance - DOT_PROD_2D( corners[3], centerDir ) ) ; 02956 02957 /* the wanted center is C = I + a.v */ 02958 wantedBlPoint[0] = round( axisMiddle[0] + centerDist * centerDir[0] + corners[0][0] ) ; 02959 wantedBlPoint[1] = round( axisMiddle[1] + centerDist * centerDir[1] + corners[0][1] ) ; 02960 02961 sciSetPosition( pLabel, 02962 XPixel2Double( wantedBlPoint[0] ), 02963 YPixel2Double( wantedBlPoint[1] ) ) ; 02964 02965 }
Here is the call graph for this function:
Here is the caller graph for this function:
| int ComputeNbSubTics | ( | sciPointObj * | pobj, | |
| int | nbtics, | |||
| char | logflag, | |||
| double * | grads, | |||
| int | nbsubtics_input | |||
| ) |
Definition at line 890 of file DrawObjects.c.
References FALSE, sciSubWindow::flagNax, i, and pSUBWIN_FEATURE.
Referenced by sci_update_frame_bounds_2d(), sci_update_frame_bounds_3d(), set_x_ticks_property(), set_y_ticks_property(), and set_z_ticks_property().
00891 { 00892 int ticsval[] = {2 ,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20}; 00893 int subticsval[] = {10,7,5,5,4,4,3,2,2 ,2 ,1 ,1 ,1 ,1 ,1 ,1 ,1 ,1 ,1 }; 00894 int i; 00895 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (pobj); 00896 00897 00898 if(logflag =='l'){ 00899 if((grads[1]-grads[0])==1) /* intervalle de type ...10^n 10^(n+1)...*/ 00900 { 00901 return 9; /* 9 subtics to have a pretty tics/grid in log.*/ 00902 } 00903 else 00904 { 00905 return 1; /* no subtics at all (1 but draw on a tics place) */ 00906 } 00907 } 00908 else{ 00909 if(ppsubwin->flagNax == FALSE) /* if auto subtics mode == ON */ 00910 { 00911 for(i=0;i<19;i++) 00912 if(nbtics == ticsval[i]) 00913 { 00914 return subticsval[i]; 00915 } 00916 } 00917 else /* if auto subtics mode == OFF already computed in Plo2dn.c, Champ.c routines... */ 00918 { /* or given via a.subtics=[nbsubtics_on_x, nbsubtics_on_y, nbsubtics_on_z] command */ 00919 return nbsubtics_input; 00920 } 00921 } 00922 00923 return -1; 00924 }
Here is the caller graph for this function:
| int ComputeNbSubTicsFor3dUse | ( | sciPointObj * | pobj, | |
| int | nbtics, | |||
| char | logflag, | |||
| double * | grads, | |||
| int | nbsubtics_input | |||
| ) |
Definition at line 2654 of file DrawObjects.c.
References FALSE, sciSubWindow::flagNax, i, and pSUBWIN_FEATURE.
02655 { 02656 int ticsval[] = {2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20}; 02657 int subticsval[] = {6,4,4,3,3,3,2,2,2 ,2 ,1 ,1 ,1 ,1 ,1 ,1 ,1 ,1 ,1}; 02658 int i; 02659 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (pobj); 02660 02661 02662 if(logflag =='l'){ 02663 if( (grads[1]-grads[0]) == 1 ) /* intervalle de type ...10^n 10^(n+1)...*/ 02664 { 02665 return 9; /* 9 subtics to have a pretty tics/grid in log.*/ 02666 } 02667 else 02668 { 02669 return 1; /* no subtics at all (1 but draw on a tics place) */ 02670 } 02671 } 02672 else 02673 { 02674 if(ppsubwin->flagNax == FALSE) /* if auto subtics mode == ON */ 02675 { 02676 for(i=0;i<19;i++) 02677 { 02678 if(nbtics == ticsval[i]) 02679 { 02680 return subticsval[i]; 02681 } 02682 } 02683 } 02684 else /* if auto subtics mode == OFF already computed in Plo2dn.c, Champ.c routines... */ 02685 { /* or given via a.subtics=[nbsubtics_on_x, nbsubtics_on_y, nbsubtics_on_z] command */ 02686 return nbsubtics_input; 02687 } 02688 } 02689 02690 return -1; 02691 }
| int computeRealArrowSize | ( | sciPointObj * | pSegs, | |
| int | nbSegs, | |||
| int | xCoord[], | |||
| int | yCoord[] | |||
| ) |
Compute the arrow size which must be used in (dr)(xarrows).
| [in] | pSegs | object of which we are displaying arrows. |
| [in] | X | coordinates in pixels of the segments |
| [in] | Y | coordinates in pixels of the segments |
Definition at line 381 of file drawSegsEntity.c.
Referenced by DrawMerge3d(), and drawSegsEntity().
00382 { 00383 sciSegs * ppSegs = pSEGS_FEATURE( pSegs ) ; 00384 double arrowSize = ppSegs->arrowsize ; 00385 int one = 1 ; 00386 00387 if ( ppSegs->ptype == 0 ) 00388 { 00389 if ( arrowSize > 0 ) 00390 { 00391 int iAs2 = 0 ; 00392 int iAs = 0 ; 00393 C2F(echelle2dl)( &arrowSize, &arrowSize, &iAs, &iAs2, &one, &one, "f2i" ) ; 00394 return iAs / 2 ; 00395 } 00396 else 00397 { 00398 /* taken from Xcall1.c */ 00399 int i ; 00400 double length = 0.0 ; 00401 for ( i = 0 ; i < nbSegs / 2 ; i++ ) 00402 { 00403 double dx ; 00404 double dy ; 00405 dx=( xCoord[2*i+1] - xCoord[2*i] ) ; 00406 dy=( yCoord[2*i+1] - yCoord[2*i] ) ; 00407 length += sqrt( dx * dx + dy * dy ) ; 00408 } 00409 if ( nbSegs != 0 ) 00410 { 00411 length /= nbSegs / 2 ; 00412 } 00413 return round( -arrowSize * length ) ; 00414 } 00415 } 00416 else 00417 { 00418 if ( ppSegs->arrowsize >= 0 ) 00419 { 00420 double arsize1 = ((double) Cscale.WIRect1[2])/(5*( ppSegs->Nbr1)); 00421 double arsize2 = ((double) Cscale.WIRect1[3])/(5*( ppSegs->Nbr2)); 00422 double arsize = (arsize1 < arsize2) ? inint(arsize1*10.0) : inint(arsize2*10.0) ; 00423 return (int)((arsize)*(ppSegs->arrowsize)); 00424 } 00425 } 00426 00427 return 0 ; 00428 00429 }
Here is the caller graph for this function:
| int ComputeXIntervals | ( | sciPointObj * | pobj, | |
| char | xy_type, | |||
| double ** | vector, | |||
| int * | N, | |||
| int | checkdim | |||
| ) |
Definition at line 1036 of file Format.c.
Referenced by computeDefaultTicsLabels(), set_tics_style_property(), set_xtics_coord_property(), and set_ytics_coord_property().
01037 { 01038 int i; 01039 sciAxes * ppaxes = pAXES_FEATURE (pobj); 01040 double * val = NULL; /* reprensents ppaxes->x or ppaxes->y */ 01041 int nval; 01042 01043 int n; 01044 01045 /* draw an horizontal axis : YES (horizontal axis) or NO (vertical axis) */ 01046 BOOL ishoriz = (ppaxes->nx > ppaxes->ny)? TRUE : FALSE; 01047 01048 if(ishoriz == TRUE){ 01049 val = ppaxes->vx; 01050 nval = ppaxes->nx; 01051 } 01052 else{ 01053 val = ppaxes->vy; 01054 nval = ppaxes->ny; 01055 } 01056 01057 if(xy_type == 'v') 01058 { 01059 *N = n = nval; 01060 01061 if((*vector = (double *) MALLOC(n*sizeof(double ))) == NULL){ 01062 sciprint("No memory left for allocating temporary tics_labels\n"); 01063 return -1; 01064 } 01065 01066 for(i=0;i<n;i++) 01067 (*vector)[i] = val[i]; 01068 } 01069 else if(xy_type == 'r') 01070 { 01071 double step = 0; 01072 01073 *N = n = (int)val[2]+1; /* intervals number is given by ppaxes->x or ppaxes->y */ 01074 01075 if(checkdim){ 01076 if(nval != 3) 01077 sciprint("Warning: tics_coord must be changed, xy_type is 'r' and tics_coord dimension is not 3\n"); 01078 01079 if(nval < 3){ 01080 sciprint("Error: tics_coord must be changed FIRST, xy_type is 'r' and tics_coord dimension < 3\n"); 01081 *vector = (double *) NULL; 01082 return -1; 01083 } 01084 } 01085 01086 if((*vector = (double *) MALLOC(n*sizeof(double ))) == NULL){ 01087 sciprint("No memory left for allocating temporary tics_labels"); 01088 return -1; 01089 } 01090 01091 step = (val[1] - val[0])/(n-1); 01092 01093 for(i=0;i<n-1;i++) 01094 (*vector)[i] = val[0] + i*step; 01095 01096 (*vector)[n-1] = val[1]; /* xmax */ 01097 01098 } 01099 else if(xy_type == 'i') 01100 { 01101 double step = 0; 01102 01103 *N = n = (int)val[3]+1; 01104 01105 if(checkdim){ 01106 if(nval != 4) 01107 sciprint("Warning: tics_coord must be changed, xy_type is 'i' and tics_coord dimension is not 4\n"); 01108 01109 if(nval < 4){ 01110 sciprint("Error: tics_coord must be changed FIRST, xy_type is 'i' and tics_coord dimension < 4\n"); 01111 *vector = (double *) NULL; 01112 return -1; 01113 } 01114 } 01115 01116 if((*vector =(double *) MALLOC(n*sizeof(double ))) == NULL){ 01117 sciprint("No memory left for allocating temporary tics_labels"); 01118 return -1; 01119 } 01120 01121 step = (val[1]*exp10(val[2]) - val[0]*exp10(val[2]))/val[3]; 01122 01123 01124 for(i=0;i<n-1;i++) 01125 (*vector)[i] = val[0]*exp10(val[2]) + i*step; 01126 01127 (*vector)[n-1] = val[1]*exp10(val[2]); /* xmax */ 01128 01129 } 01130 01131 return 0; 01132 }
Here is the caller graph for this function:
| void Convex_Box | ( | double * | xbox, | |
| double * | ybox, | |||
| integer * | InsideU, | |||
| integer * | InsideD, | |||
| char * | legend, | |||
| integer * | flag, | |||
| double * | bbox | |||
| ) |
Definition at line 275 of file Plo3d.c.
Referenced by box3d().
00276 { 00277 double xmaxi; 00278 integer ixbox[8],iybox[8]; 00279 integer xind[8]; 00280 integer ind2,ind3,ind; 00281 integer p,n,dvect[1],dash[6]; 00282 integer verbose=0,narg_,pat; 00283 integer i,j; 00290 /* 4 ----- 5 */ 00291 /* / /| */ 00292 /* 7----6 | */ 00293 /* | 0 | / 1 */ 00294 /* 3----- 2 */ 00298 xmaxi=((double) Maxi(xbox,8L)); 00299 ind= -1; 00300 for (i =0 ; i < 8 ; i++) 00301 { 00302 MaxiInd(xbox,8L,&ind,xmaxi); 00303 if ( ind > 3) 00304 { 00305 xind[0]=ind; 00306 break; 00307 } 00308 } 00309 if (ind < 0 || ind > 8) 00310 { 00311 sciprint("xind out of bounds"); 00312 xind[0]=0; 00313 } 00314 UpNext(xind[0],&ind2,&ind3); 00315 if (ybox[ind2] > ybox[ind3]) 00316 { 00317 xind[1]=ind2;InsideU[0]=ind3; 00318 } 00319 else 00320 { 00321 xind[1]=ind3;InsideU[0]=ind2; 00322 } 00323 UpNext(ind2,&ind2,&ind3); InsideU[1]=xind[0]; 00324 InsideU[2]=ind2; InsideU[3]=InsideU[0]-4; 00325 xind[2]=ind2; 00326 /* le pointeger en bas qui correspond */ 00327 xind[3]=ind2-4; 00328 DownNext(xind[3],&ind2,&ind3); 00329 if (ybox[ind2] < ybox[ind3]) 00330 { 00331 xind[4]=ind2;InsideD[0]=ind3; 00332 } 00333 else 00334 { 00335 xind[4]=ind3;InsideD[0]=ind2; 00336 } 00337 DownNext(ind2,&ind2,&ind3); 00338 InsideD[1]=xind[3]; 00339 InsideD[2]=ind2; 00340 InsideD[3]=InsideD[0]+4; 00341 xind[5]=ind2; 00342 for (i=0; i < 6 ; i++) 00343 { 00344 ixbox[i]=XScale(xbox[xind[i]]); 00345 iybox[i]=YScale(ybox[xind[i]]); 00346 } 00347 ixbox[6]=ixbox[0];iybox[6]=iybox[0]; 00348 p=7,n=1; 00351 dvect[0]=2; 00353 C2F(dr)("xget","line style",&verbose,dash,&narg_,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00354 C2F(dr)("xset","line style",(j=1,&j),PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00355 C2F (dr) ("xset","thickness",(j=1,&j),PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00356 if (flag[2]>=3){ 00357 C2F(dr)("xpolys","v",ixbox,iybox,dvect,&n,&p 00358 ,PI0,PD0,PD0,PD0,PD0,0L,0L); 00359 } 00360 C2F(dr)("xget","pattern",&verbose,&pat,&narg_,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00361 C2F(dr)("xset","pattern",dvect,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00362 if (flag[2]>=3) 00363 AxesStrings(flag[2],ixbox,iybox,xind,legend,bbox); 00364 C2F(dr)("xset","pattern",&pat,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00365 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00366 00367 }
Here is the caller graph for this function:
Definition at line 717 of file Plo2dn.c.
Referenced by ConstructSubWin().
00718 { 00719 int i; 00720 00721 if(u_xgrad_SRC == NULL) 00722 return 0; 00723 00724 for(i=0;i<dim;i++) 00725 u_xgrad_DEST[i] = u_xgrad_SRC[i]; 00726 00727 return 0; 00728 }
Here is the caller graph for this function:
| void DrawAxes | ( | sciPointObj * | ) |
Definition at line 1000 of file DrawObjects.c.
References axis_draw2(), C2F, dr(), NULL, pSUBWIN_FEATURE, rebuild_strflag(), sciGetForeground(), sciGetLineStyle(), sciGetLineWidth(), sciGetMarkStyle(), sciGetParentSubwin(), sciGetVisibility(), sciSetSelectedSubWin(), set_scale(), v, and x.
Referenced by DrawAxesIfRequired().
01001 { 01002 sciPointObj * psubwin = sciGetParentSubwin(pobj); 01003 /* sciPointObj * pfigure = sciGetParentFigure(pobj); */ 01004 char STRFLAG[4]; 01005 integer x[6], v, markidsizenew[2]; 01006 double dv; 01007 01008 if (!sciGetVisibility(pobj)) return; 01009 01010 x[0] = sciGetForeground (psubwin); 01011 x[2] = sciGetLineWidth (psubwin); 01012 x[3] = sciGetLineStyle (psubwin); 01013 markidsizenew[0] = sciGetMarkStyle(psubwin); 01014 markidsizenew[1] = sciGetLineWidth (psubwin); 01015 x[4] = 0; 01016 v = 0; 01017 dv = 0; 01018 01019 01020 sciSetSelectedSubWin(psubwin); 01021 01022 set_scale ("tttftt", pSUBWIN_FEATURE (psubwin)->WRect, pSUBWIN_FEATURE (psubwin)->FRect, 01023 NULL, pSUBWIN_FEATURE (psubwin)->logflags, 01024 pSUBWIN_FEATURE (psubwin)->ARect); 01025 01026 if (!pSUBWIN_FEATURE (psubwin)->is3d) /* we are in 2D mode...*/ 01027 { 01028 /* F.Leray 07.12.04 */ 01029 /* TO CORRECT the bug 1115 : Big object (grayplots) could cover axes*/ 01030 C2F (dr) ("xset","dashes",x,x,x+4,x+4,x+4,&v,&dv,&dv,&dv,&dv,5L,4096); 01031 C2F (dr) ("xset","foreground",x,x,x+4,x+4,x+4,&v,&dv,&dv,&dv,&dv,5L,4096); 01032 C2F (dr) ("xset","thickness",x+2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01033 C2F (dr) ("xset","mark",&markidsizenew[0],&markidsizenew[1],PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01034 01035 rebuild_strflag(psubwin,STRFLAG); 01036 axis_draw2 (STRFLAG); /* Axes is rebuilt here to avoid being covered by the new created object */ 01037 } 01038 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void DrawAxesIfRequired | ( | sciPointObj * | pobj | ) |
DrawAxesIfRequired Draws Axes (only the basic graphicobject under subwindows) in its SubWindow or figure if and only if pFIGURE_FEATURE(pobj)->auto_redraw == TRUE !! Only used inside High Level functions calls (sucha as plot2d, plot3d...)
| sciPointObj | * pobj: the pointer to the entity |
Definition at line 987 of file DrawObjects.c.
References DrawAxes(), pFIGURE_FEATURE, and sciGetParentFigure().
Referenced by champg(), fec(), plot2dn(), xgray(), xgray1(), and xgray2().
00988 { 00989 sciPointObj * pfigure = sciGetParentFigure(pobj); 00990 00991 if( pFIGURE_FEATURE(pfigure)->auto_redraw && pFIGURE_FEATURE(pfigure)->visible ) 00992 { 00993 DrawAxes(pobj); 00994 } 00995 00996 }
Here is the call graph for this function:
Here is the caller graph for this function:
| double FindWidth | ( | sciPointObj * | pobj, | |
| int | n1, | |||
| int | bar_number, | |||
| double * | x | |||
| ) |
| char ** FreeUserLabels | ( | char ** | u_xlabels, | |
| int * | u_nxgrads | |||
| ) |
Definition at line 673 of file Plo2dn.c.
Referenced by CreatePrettyGradsFromNax(), and DestroySubWin().
00674 { 00675 int i; 00676 00677 if(u_xlabels != NULL){ 00678 for(i=0;i<(*u_nxgrads);i++) 00679 {FREE(u_xlabels[i]); u_xlabels[i] = (char *) NULL;} 00680 } 00681 00682 u_xlabels = (char **) NULL; 00683 00684 *u_nxgrads = 0; 00685 00686 return u_xlabels; 00687 }
Here is the caller graph for this function:
| int Gen3DPoints | ( | integer | type, | |
| integer * | polyx, | |||
| integer * | polyy, | |||
| integer * | fill, | |||
| integer | whiteid, | |||
| double | zmin, | |||
| double | zmax, | |||
| double * | , | |||
| double * | , | |||
| double * | , | |||
| integer | i, | |||
| integer | j, | |||
| integer | jj1, | |||
| integer * | p, | |||
| integer | dc, | |||
| integer | fg, | |||
| sciPointObj * | psurface | |||
| ) |
DJ.Abdemouche 2003
Definition at line 1106 of file DrawObjects.c.
References sciSubWindow::axes, sciSurface::flag_x, sciSurface::flag_y, inint, pSUBWIN_FEATURE, pSURFACE_FEATURE, AXES::reverse, sciGetCurrentSubWin(), trans3d(), and TRUE.
Referenced by plot3dn().
01107 { 01108 sciPointObj *pobj; 01109 int facteur = 1; 01110 01111 sciPointObj *psubwin = sciGetCurrentSubWin(); 01112 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 01113 sciSurface * ppsurface = pSURFACE_FEATURE (psurface); 01114 01115 pobj = sciGetCurrentSubWin(); 01116 if (trans3d(pobj ,1, &(polyx[ 5*jj1]),&(polyy[ 5*jj1]),&(x[i]),&(y[j]),&(z[i+(*p)*j]))==0) return 0; 01117 if (trans3d(pobj ,1, &(polyx[1+ 5*jj1]),&(polyy[1+ 5*jj1]),&(x[i]),&(y[j+1]),&(z[i+(*p)*(j+1)]))==0) return 0; 01118 if (trans3d(pobj ,1, &(polyx[2+ 5*jj1]),&(polyy[2+ 5*jj1]),&(x[i+1]),&(y[j+1]),&(z[(i+1)+(*p)*(j+1)]))==0) return 0; 01119 if (trans3d(pobj ,1, &(polyx[3+ 5*jj1]),&(polyy[3+ 5*jj1]),&(x[i+1]),&(y[j]),&(z[(i+1)+(*p)*j]))==0) return 0; 01120 if (trans3d(pobj ,1, &(polyx[4+ 5*jj1]),&(polyy[4+ 5*jj1]),&(x[i]),&(y[j]),&(z[i+(*p)*j]))==0) return 0; 01121 01122 01123 if(ppsubwin->axes.reverse[0] == TRUE) facteur = -facteur; 01124 if(ppsubwin->axes.reverse[1] == TRUE) facteur = -facteur; 01125 if(ppsubwin->axes.reverse[2] == TRUE) facteur = -facteur; 01126 01127 /* try */ 01128 facteur = ppsurface->flag_x * ppsurface->flag_y * facteur; 01129 01130 /* type == flagcolor and dc == color_mode */ 01131 /* fg = hidden color */ 01132 01133 if ((((polyx[1+5*jj1]-polyx[0+5*jj1])*(polyy[2+5*jj1]-polyy[0+5*jj1])- 01134 (polyy[1+5*jj1]-polyy[0+5*jj1])*(polyx[2+5*jj1]-polyx[0+5*jj1]))*facteur < 0) && (fg >=0 )) 01135 { 01136 01137 /* ------------------- */ 01138 /* Beneath the surface */ 01139 /* ------------------- */ 01140 01141 if (type != 0) /* flagcolor = 1 case : special treatment compared to flagcolor = 0 */ 01142 /* don't know why... F.Leray */ 01143 fill[jj1]= (dc < 0 ) ? -fg : fg ; 01144 else /* flagcolor = 0 : No shading at all, fixed facecolor. */ 01145 fill[jj1]= (dc != 0 ) ? fg : dc ; 01146 } 01147 else 01148 { 01149 01150 /* ------------------- */ 01151 /* Above the surface */ 01152 /* ------------------- */ 01153 01154 if (type != 0) 01155 { /* flagcolor = 1 : Z-level flat shading. */ 01156 fill[jj1]=inint((whiteid-1)*((1/4.0*( z[i+(*p)*j]+ z[i+1+(*p)*j]+ 01157 z[i+(*p)*(j+1)]+ z[i+1+(*p)*(j+1)])-zmin) 01158 /(zmax-zmin)))+1; 01159 if ( dc < 0 ) fill[jj1]= -fill[jj1]; 01160 } 01161 else 01162 fill[jj1]= dc; 01163 } 01164 01165 return(1); 01166 01167 }
Here is the call graph for this function:
Here is the caller graph for this function:
| int get_cf_type | ( | void | ) |
To know if the current figure is a graphic one.
Definition at line 23 of file CurrentObjectsManagement.c.
References cf_type.
00024 { 00025 return cf_type ; 00026 }
| int GetBarNumber | ( | sciPointObj * | pobj | ) |
Referenced by drawMergeEntity(), drawPolylineEntity(), drawRectangleEntity(), drawSegsEntity(), and drawSurfaceEntity().
Here is the caller graph for this function:
used when we resize the popup at scilab level
Definition at line 154 of file wgraph.c.
Referenced by setpopupdim(), and xset_popupdim().
00155 { 00156 RECT rect, rect1; 00157 int xof, yof; 00158 SCROLLINFO vertsi; 00159 SCROLLINFO horzsi; 00160 int *x = width; /* F.Leray 01.07.04 copy the setwindowdim function philosohpy (see periwin.c)*/ 00161 int *y = height; 00162 00163 if ( (ScilabXgc->CWindow != NULL) && (ScilabXgc->hWndParent != NULL) ) 00164 { 00165 /* initialisation des variables SCROLLINFO*/ 00166 sciGetScrollInfo(ScilabXgc, SB_VERT, &vertsi); 00167 sciGetScrollInfo(ScilabXgc, SB_HORZ, &horzsi); 00168 00169 ScilabXgc->CWindowWidth = Max((int) *x,50); 00170 ScilabXgc->CWindowHeight =Max((int) *y,50); 00171 if ( sciGetwresize() == 1 ) { 00172 ScilabXgc->CWindowWidthView = ScilabXgc->CWindowWidth; 00173 ScilabXgc->CWindowHeightView = ScilabXgc->CWindowHeight; 00174 vertsi.nPos = 0; 00175 horzsi.nPos = 0; 00176 } 00177 00178 if ( ScilabXgc->CWindowWidthView > ScilabXgc->CWindowWidth) 00179 ScilabXgc->CWindowWidthView = ScilabXgc->CWindowWidth; 00180 00181 if (ScilabXgc->CWindowHeightView > ScilabXgc->CWindowHeight) 00182 ScilabXgc->CWindowHeightView = ScilabXgc->CWindowHeight; 00183 CPixmapResize1(); 00184 00185 GetWindowRect (ScilabXgc->hWndParent, &rect) ; 00186 GetWindowRect (ScilabXgc->CWindow, &rect1) ; 00187 xof = (rect.right-rect.left)- (rect1.right - rect1.left); 00188 yof = (rect.bottom-rect.top)- (rect1.bottom -rect1.top ); 00189 if (sciGetwresize () == 0) 00190 { 00191 SetWindowPos (ScilabXgc->hWndParent, HWND_TOP, 0, 0, 00192 ScilabXgc->CWindowWidthView + xof + 00193 GetSystemMetrics (SM_CXVSCROLL), 00194 ScilabXgc->CWindowHeightView + yof + 00195 GetSystemMetrics (SM_CYHSCROLL), 00196 SWP_NOMOVE | SWP_NOZORDER); 00197 } 00198 else 00199 { 00200 SetWindowPos(ScilabXgc->hWndParent,HWND_TOP,0,0, 00201 ScilabXgc->CWindowWidthView + xof, 00202 ScilabXgc->CWindowHeightView + yof, 00203 SWP_NOMOVE | SWP_NOZORDER ); 00204 } 00205 vertsi.nMax = ScilabXgc->CWindowHeight; 00206 vertsi.nPage = ScilabXgc->CWindowHeightView; 00207 horzsi.nMax = ScilabXgc->CWindowWidth; 00208 horzsi.nPage = ScilabXgc->CWindowWidthView; 00209 sciSetScrollInfo(ScilabXgc,SB_VERT, &(vertsi), TRUE); 00210 sciSetScrollInfo(ScilabXgc,SB_HORZ, &(horzsi), TRUE); 00211 if ( sciGetwresize() == 0 ) 00212 { 00213 /* need to force a rdraw in that case */ 00214 if ( ScilabXgc->horzsi.nPos + ScilabXgc->CWindowWidthView < 00215 ScilabXgc->CWindowWidth 00216 && ScilabXgc->vertsi.nPos + ScilabXgc->CWindowHeightView < 00217 ScilabXgc->CWindowHeight) 00218 InvalidateRect(ScilabXgc->CWindow,NULL,FALSE); 00219 } 00220 } 00221 00222 }
Here is the caller graph for this function:
Definition at line 437 of file DrawObjects.c.
References GradFixedlog(), i, int, j, pas, size, and val.
Referenced by GradFixedlog(), updateXaxesTics(), and updateYaxesTics().
00442 { 00443 int i; 00444 int log_min, log_max; 00445 int size; 00446 00447 if ( compNgrads ) 00448 { 00449 GradFixedlog( _min, _max, _grads, *n_grads ) ; 00450 return 0 ; 00451 } 00452 00453 log_max = (int) ceil(_max); 00454 log_min = (int) floor(_min); 00455 00456 00457 size = log_max - log_min +1; 00458 /* tab=(int *)MALLOC(size*sizeof(int)); */ 00459 00460 /* for(i=0;i<size;i++) tab[i]=log_min+i; */ 00461 00462 *n_grads = 0 ; 00463 00464 if(size<=7) { 00465 for(i=0;i<size;i++) 00466 { 00467 /* _grads[i] = exp10(tab[i]); */ 00468 _grads[i] = log_min+i; 00469 *n_grads = (*n_grads) + 1; 00470 /* sciprint("Juste en sortie, _grads[%d] = %lf\n",i, _grads[i]); */ 00471 } 00472 } 00473 else 00474 { 00475 int pas = 0, old_pas= 0,j; 00476 int val = size, passed = 0; 00477 00478 for(j=val-1;j>1;j--) 00479 if(val%j == 0){ 00480 old_pas = pas; 00481 pas=j; 00482 passed = 1; 00483 00484 if((7*pas)<=val){ 00485 if(old_pas != 0) {pas = old_pas; } 00486 break; 00487 } 00488 } 00489 00490 if(passed != 1 || (size/pas)>15 ) pas = size; 00491 00492 if(pas==size) 00493 { 00494 _grads[0] = log_min; 00495 _grads[1] = log_max; 00496 *n_grads =2; 00497 } 00498 else 00499 { 00500 for(i=0;i<=(int )(size/pas);i++) 00501 { 00502 _grads[i] = log_min+(i*pas); 00503 00504 *n_grads = (*n_grads) + 1; 00505 /* sciprint("Juste en sortie, _grads[%d] = %lf\n",i, _grads[i]); */ 00506 } 00507 } 00508 } 00509 00510 return 0; 00511 }
Here is the call graph for this function:
Here is the caller graph for this function:
| BOOL IsDownAxes | ( | sciPointObj * | pobj | ) |
Definition at line 369 of file DrawObjects.c.
References alpha, FALSE, pSUBWIN_FEATURE, SCI_SUBWIN, sciGetEntityType(), and TRUE.
Referenced by AdaptGraduationsOnXBottomLeft(), AdaptGraduationsOnXBottomRight(), AdaptGraduationsOnYBottomLeft(), and AdaptGraduationsOnYBottomRight().
00370 { 00371 double alpha,cof; 00372 00373 if (sciGetEntityType(pobj) == SCI_SUBWIN){ 00374 alpha = pSUBWIN_FEATURE (pobj)->alpha; 00375 if (!(pSUBWIN_FEATURE (pobj)->isoview)) 00376 cof=10.0; 00377 else 00378 cof = 5.0; /* F.Leray : hard fixed here */ 00379 if (cof == 0 ) cof =5; 00380 if ((alpha <=(-90.0+cof) ) && (alpha >= (-90.0-cof))) 00381 return TRUE; 00382 if ((alpha <=(-270.0+cof) ) && (alpha >= (-270.0-cof))) 00383 return TRUE; 00384 if ((alpha <=(90.0+cof) ) && (alpha >= (90.0-cof))) 00385 return TRUE; 00386 if ((alpha <=(270.0+cof) ) && (alpha >= (270.0-cof))) 00387 return TRUE; 00388 } 00389 return FALSE; 00390 }
Here is the call graph for this function:
Here is the caller graph for this function:
| BOOL Ishidden | ( | sciPointObj * | pobj | ) |
Definition at line 350 of file DrawObjects.c.
References alpha, FALSE, pSUBWIN_FEATURE, SCI_SUBWIN, sciGetEntityType(), and TRUE.
Referenced by axis_3ddraw().
00351 { 00352 double alpha; 00353 if (sciGetEntityType(pobj) == SCI_SUBWIN){ 00354 alpha = pSUBWIN_FEATURE (pobj)->alpha; 00355 if ((alpha <0.0 ) && (alpha > -90.0)) 00356 return TRUE; 00357 if ((alpha <360.0 ) && (alpha > 270.0)) /* missing case added to fix bug 839 F.Leray */ 00358 return TRUE; 00359 if ((alpha <-180.0 ) && (alpha > -270.0)) 00360 return TRUE; 00361 if ((alpha <180.0 ) && (alpha > 90.0)) 00362 return TRUE; 00363 } 00364 return FALSE; 00365 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void Merge3d | ( | sciPointObj * | psubwin | ) |
Definition at line 1346 of file DrawObjects.c.
References ConstructMerge(), DestroyMerge(), FREE, MALLOC, Merge3dBuildTable(), Merge3dDimension(), NULL, pSUBWIN_FEATURE, SCI_SUBWIN, sciGetEntityType(), sciGetMerge(), sciprint(), and TRUE.
Referenced by Objplot3d(), plot2dn(), sci_set(), sci_xfpoly(), sci_xfpolys(), sci_xpoly(), sci_xpolys(), sci_xrect(), sci_xrects(), sci_xsegs(), and updateMerge().
01347 { 01348 integer q,k; 01349 sciPointObj *pmerge; 01350 int *index_in_entity; 01351 long *from_entity; 01352 01353 if(sciGetEntityType (psubwin) != SCI_SUBWIN) return; 01354 if ((pmerge= sciGetMerge(psubwin)) != (sciPointObj *) NULL) 01355 DestroyMerge(pmerge); 01356 01357 /* ======================================================================== 01358 * Compute the number of facets, segments,... included in all the subwin 01359 * children 01360 * ========================================================================*/ 01361 01362 01363 q = Merge3dDimension(psubwin); 01364 01365 01366 /* ======================================================================== 01367 * allocate tables for index and handles 01368 * ========================================================================*/ 01369 01370 /* q now contains the total number of elements */ 01371 if ((index_in_entity = (int *) MALLOC (q * sizeof (int))) == (int *)NULL) { 01372 sciprint("Merge3d : not enough memory to allocate \n"); 01373 return; 01374 } 01375 if ((from_entity = (long *) MALLOC (q * sizeof (long))) == (long *) NULL) { 01376 sciprint("Merge3d : not enough memory to allocate \n"); 01377 FREE(index_in_entity); 01378 } 01379 01380 /* ======================================================================== 01381 * fill the index and handles tables 01382 * ========================================================================*/ 01383 k=0; 01384 Merge3dBuildTable(psubwin, index_in_entity, from_entity, &k); 01385 01386 /* ======================================================================== 01387 * create the Merge data structure 01388 * ========================================================================*/ 01389 01390 if ((pmerge=ConstructMerge ((sciPointObj *) psubwin,q,index_in_entity,from_entity)) == (sciPointObj *) NULL) { 01391 FREE(index_in_entity); 01392 FREE(from_entity); 01393 sciprint ("\r\n No merge supported");} 01394 else /* inform the subwindow to display Merge instead of individual children */ 01395 pSUBWIN_FEATURE (psubwin)->facetmerge = TRUE; 01396 01397 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void Merge3dBuildTable | ( | sciPointObj * | pparent, | |
| int * | index_in_entity, | |||
| long * | from_entity, | |||
| int * | pos | |||
| ) |
Definition at line 1279 of file DrawObjects.c.
References i, long, Merge3dBuildTable(), N, sciSegs::Nbr1, sciSegs::Nbr2, NULL, tagSons::pnext, tagSons::pointobj, pPOLYLINE_FEATURE, pSEGS_FEATURE, pSURFACE_FEATURE, sciSegs::ptype, SCI_AGREG, SCI_PLOT3D, SCI_POLYLINE, SCI_RECTANGLE, SCI_SEGS, SCI_SURFACE, sciGetEntityType(), sciGetHandle(), sciGetIsMark(), and sciGetSons().
Referenced by Merge3d(), and Merge3dBuildTable().
01280 { 01281 sciSons *psonstmp; 01282 int i,N; 01283 01284 psonstmp = sciGetSons (pparent); 01285 01286 while (psonstmp != (sciSons *) NULL) { 01287 switch (sciGetEntityType (psonstmp->pointobj)) { 01288 case SCI_SURFACE: 01289 if (pSURFACE_FEATURE (psonstmp->pointobj)->typeof3d == SCI_PLOT3D) 01290 N=(pSURFACE_FEATURE (psonstmp->pointobj)->dimzx-1)*(pSURFACE_FEATURE (psonstmp->pointobj)->dimzy-1); 01291 else 01292 N = pSURFACE_FEATURE (psonstmp->pointobj)->dimzy; 01293 break; 01294 case SCI_POLYLINE: 01295 if ( pPOLYLINE_FEATURE(psonstmp->pointobj)->n1 == 0 ) 01296 { 01297 N = 0 ; 01298 } 01299 else if (pPOLYLINE_FEATURE (psonstmp->pointobj)->plot != 5) 01300 {/*polyline*/ 01301 N = pPOLYLINE_FEATURE (psonstmp->pointobj)->n1-1; 01302 if ((pPOLYLINE_FEATURE (psonstmp->pointobj)->plot != 2) && 01303 (sciGetIsMark((sciPointObj *)psonstmp->pointobj) == 1)) 01304 { 01305 N = N + 1 ; 01306 } 01307 } 01308 else /* patch */ 01309 { 01310 N = 1 ; 01311 } 01312 break; 01313 case SCI_SEGS: 01314 { 01315 sciSegs * ppSegs = pSEGS_FEATURE(psonstmp->pointobj) ; 01316 if ( ppSegs->ptype == 0 ) 01317 { 01318 N = ppSegs->Nbr1 / 2 ; 01319 } 01320 else 01321 { 01322 N = ppSegs->Nbr1 * ppSegs->Nbr2 ; 01323 } 01324 } 01325 break; 01326 case SCI_RECTANGLE: 01327 N = 4; 01328 break; 01329 case SCI_AGREG: 01330 Merge3dBuildTable(psonstmp->pointobj, index_in_entity, from_entity, pos); 01331 break; 01332 default: 01333 N = 0; 01334 } 01335 if (sciGetEntityType (psonstmp->pointobj) != SCI_AGREG) 01336 for (i=0 ; i<N; i++) { 01337 index_in_entity[*pos]=i; 01338 from_entity[*pos]=(long) sciGetHandle (psonstmp->pointobj); 01339 *pos=*pos+1; 01340 } 01341 psonstmp = psonstmp->pnext; 01342 } 01343 }
Here is the call graph for this function:
Here is the caller graph for this function:
| int Merge3dDimension | ( | sciPointObj * | pparent | ) |
Definition at line 1171 of file DrawObjects.c.
References Merge3dDimension(), N, sciSegs::Nbr1, sciSegs::Nbr2, NULL, tagSons::pnext, tagSons::pointobj, pPOLYLINE_FEATURE, pSEGS_FEATURE, pSURFACE_FEATURE, sciSegs::ptype, SCI_AGREG, SCI_PLOT3D, SCI_POLYLINE, SCI_RECTANGLE, SCI_SEGS, SCI_SURFACE, sciGetEntityType(), sciGetIsMark(), and sciGetSons().
Referenced by Merge3d(), and Merge3dDimension().
01172 { 01173 integer N,q; 01174 sciSons *psonstmp; 01175 01176 /* ======================================================================== 01177 * Compute the number of facets, segments,... included in all the subwin 01178 * children 01179 * Each entities to merge; is decomposed in a set of basic elements 01180 * (facet, segment, point,...) 01181 * Each basic element is represented in the Merge structure by the handle of its entity and an 01182 * index within this entity 01183 * ========================================================================*/ 01184 01185 q=0; 01186 psonstmp = sciGetSons (pparent); 01187 while (psonstmp != (sciSons *) NULL) { 01188 switch (sciGetEntityType (psonstmp->pointobj)) { 01189 case SCI_SURFACE: 01190 if (pSURFACE_FEATURE (psonstmp->pointobj)->typeof3d == SCI_PLOT3D) 01191 N=(pSURFACE_FEATURE (psonstmp->pointobj)->dimzx-1)*(pSURFACE_FEATURE (psonstmp->pointobj)->dimzy-1); 01192 else 01193 N = pSURFACE_FEATURE (psonstmp->pointobj)->dimzy; 01194 break; 01195 01196 case SCI_POLYLINE: 01197 { 01198 if ( pPOLYLINE_FEATURE(psonstmp->pointobj)->n1 == 0 ) 01199 { 01200 N = 0 ; 01201 } 01202 else if (pPOLYLINE_FEATURE (psonstmp->pointobj)->plot != 5) 01203 {/*polyline*/ 01204 N = pPOLYLINE_FEATURE (psonstmp->pointobj)->n1-1; 01205 if ((pPOLYLINE_FEATURE (psonstmp->pointobj)->plot != 2) && 01206 (sciGetIsMark((sciPointObj *)psonstmp->pointobj) == 1)) 01207 { 01208 N = N + 1 ; 01209 } 01210 } 01211 else /* patch */ 01212 { 01213 N = 1 ; 01214 } 01215 } 01216 break; 01217 case SCI_SEGS: 01218 { 01219 sciSegs * ppSegs = pSEGS_FEATURE(psonstmp->pointobj) ; 01220 if ( ppSegs->ptype == 0 ) 01221 { 01222 N = ppSegs->Nbr1 / 2 ; 01223 } 01224 else 01225 { 01226 N = ppSegs->Nbr1 * ppSegs->Nbr2 ; 01227 } 01228 } 01229 break; 01230 case SCI_RECTANGLE: 01231 N = 4; 01232 break; 01233 case SCI_AGREG: 01234 N = Merge3dDimension(psonstmp->pointobj); 01235 break; 01236 default: 01237 N=0; 01238 } 01239 q+=N; 01240 psonstmp = psonstmp->pnext; 01241 } 01242 01243 return q; 01244 }
Here is the call graph for this function:
Here is the caller graph for this function:
Nextind
Definition at line 331 of file DrawObjects.c.
Referenced by sciAxesVerticesIndices().
00332 { 00333 *ind2 = ind1+1; 00334 *ind3 = ind1-1; 00335 if (ind1 > 3) 00336 { 00337 if (*ind2 == 8) *ind2 = 4; 00338 if (*ind3 == 3) *ind3 = 7; 00339 } 00340 else 00341 { 00342 if (*ind2 == 4) *ind2 = 0; 00343 if (*ind3 == -1) *ind3 = 3; 00344 } 00345 }
Here is the caller graph for this function:
| BOOL sci_update_frame_bounds_2d | ( | sciPointObj * | pobj | ) |
Definition at line 603 of file DrawObjects.c.
References sciSubWindow::axes, ComputeNbSubTics(), FALSE, sciSubWindow::FRect, i, sciSubWindow::logflags, AXES::nbsubtics, NULL, AXES::nxgrads, AXES::nygrads, pSUBWIN_FEATURE, sciGetDisplayedBounds(), TheTicks(), AXES::xgrads, and AXES::ygrads.
Referenced by drawSubWinEntity(), update_specification_bounds(), UpdateSubwinScale(), and updateSubWinScale().
00604 { 00605 double xmax, xmin, ymin, ymax, zmin, zmax ; 00606 double hx,hy,hx1,hy1; 00607 int i; 00608 00609 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (pobj); 00610 double FRect[4],WRect[4],ARect[4]; 00611 char logscale[2]; 00612 00613 /* Temp variables only used when called from update_specification_bounds */ 00614 /* to know if we have to redraw all the figure */ 00615 double ExistingFRect[4]; /* the Existing FRect at start to be compared at the end of this routine */ 00616 /* in order to determine wheter or not the bounds have changed... */ 00617 int nbsubtics[2]; 00618 int nbgrads[2]; 00619 /* End of Temp variables */ 00620 00621 for(i=0;i<4;i++) ExistingFRect[i] = ppsubwin->FRect[i]; /* store old initial bounds*/ 00622 00623 for(i=0;i<2;i++) nbsubtics[i] = ppsubwin->axes.nbsubtics[i]; 00624 nbgrads[0] = ppsubwin->axes.nxgrads; 00625 nbgrads[1] = ppsubwin->axes.nygrads; 00626 00627 /* nbtics on z put to 0 */ 00628 /* ppsubwin->axes.nzgrads = 0; */ 00629 00630 00631 sciGetDisplayedBounds( pobj, &xmin, &xmax, &ymin, &ymax, &zmin, &zmax ) ; 00632 00633 00634 /* _grad Init. to 0. */ 00635 for(i=0;i<20;i++) 00636 { 00637 ppsubwin->axes.xgrads[i] = 0.; 00638 ppsubwin->axes.ygrads[i] = 0.; 00639 } 00640 00641 00642 if ( ppsubwin->logflags[0]=='n') { /* x-axis */ 00643 TheTicks(&xmin, &xmax, &(ppsubwin->axes.xgrads[0]), &ppsubwin->axes.nxgrads, FALSE); 00644 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTics(pobj,ppsubwin->axes.nxgrads,'n',NULL,ppsubwin->axes.nbsubtics[0]); /* Nb of subtics computation and storage */ /* F.Leray 07.10.04 */ 00645 } 00646 else{ /* log. case */ 00647 GradLog(xmin,xmax,ppsubwin->axes.xgrads,&ppsubwin->axes.nxgrads, FALSE ); 00648 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTics(pobj,ppsubwin->axes.nxgrads,'l',ppsubwin->axes.xgrads,0); 00649 } 00650 00651 if ( ppsubwin->logflags[1]=='n') { /* y-axis */ 00652 TheTicks(&ymin, &ymax, &(ppsubwin->axes.ygrads[0]), &ppsubwin->axes.nygrads, FALSE); 00653 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTics(pobj,ppsubwin->axes.nygrads,'n',NULL, ppsubwin->axes.nbsubtics[1]); /* Nb of subtics computation and storage */ /* F.Leray 07.10.04 */ 00654 } 00655 else{ /* log. case */ 00656 GradLog(ymin,ymax,ppsubwin->axes.ygrads,&ppsubwin->axes.nygrads, FALSE ); 00657 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTics(pobj,ppsubwin->axes.nygrads,'l',ppsubwin->axes.ygrads,0); 00658 } 00659 00660 if(ppsubwin->tight_limits == FALSE ) 00661 { 00662 xmin = ppsubwin->axes.xgrads[0]; 00663 xmax = ppsubwin->axes.xgrads[ ppsubwin->axes.nxgrads - 1]; 00664 ymin = ppsubwin->axes.ygrads[0]; 00665 ymax = ppsubwin->axes.ygrads[ ppsubwin->axes.nygrads - 1]; 00666 } 00667 00668 /***************************************************************** 00669 * modify bounds if isoview requested 00670 *****************************************************************/ 00671 if ( ppsubwin->isoview == TRUE) { 00672 int verbose=0,wdim[2],narg; 00673 00674 C2F(dr)("xget","wdim",&verbose,wdim,&narg, PI0, PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00675 hx=xmax-xmin; 00676 hy=ymax-ymin; 00677 getscale2d(WRect,FRect,logscale,ARect); 00678 00679 wdim[0]=linint((double)wdim[0] *WRect[2]); 00680 wdim[1]=linint((double)wdim[1] *WRect[3]); 00681 00682 if ( hx/(double)wdim[0] <hy/(double) wdim[1] ) { 00683 hx1=wdim[0]*hy/wdim[1]; 00684 xmin=xmin-(hx1-hx)/2.0; 00685 xmax=xmax+(hx1-hx)/2.0; 00686 } 00687 else { 00688 hy1=wdim[1]*hx/wdim[0]; 00689 ymin=ymin-(hy1-hy)/2.0; 00690 ymax=ymax+(hy1-hy)/2.0; 00691 } 00692 00693 /* F.Leray 28.09.04 */ 00694 /* I need to recompute the correct xgrads and ygrads vector to have a good display */ 00695 00696 if ( ppsubwin->logflags[0]=='n') { /* x-axis */ 00697 TheTicks(&xmin, &xmax, &(ppsubwin->axes.xgrads[0]), &ppsubwin->axes.nxgrads, FALSE); 00698 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTics(pobj,ppsubwin->axes.nxgrads,'n',NULL, ppsubwin->axes.nbsubtics[0]); /* Nb of subtics computation and storage */ /* F.Leray 07.10.04 */ 00699 } 00700 else{ /* log. case */ 00701 GradLog(xmin,xmax,ppsubwin->axes.xgrads,&ppsubwin->axes.nxgrads, FALSE); 00702 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTics(pobj,ppsubwin->axes.nxgrads,'l',ppsubwin->axes.xgrads,0); 00703 } 00704 00705 00706 00707 if ( ppsubwin->logflags[1]=='n') { /* y-axis */ 00708 TheTicks(&ymin, &ymax, &(ppsubwin->axes.ygrads[0]), &ppsubwin->axes.nygrads, FALSE); 00709 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTics(pobj,ppsubwin->axes.nygrads,'n',NULL, ppsubwin->axes.nbsubtics[1]); /* Nb of subtics computation and storage */ /* F.Leray 07.10.04 */ 00710 } 00711 else{ /* log. case */ 00712 GradLog(ymin,ymax,ppsubwin->axes.ygrads,&ppsubwin->axes.nygrads, FALSE ); 00713 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTics(pobj,ppsubwin->axes.nygrads,'l',ppsubwin->axes.ygrads,0); 00714 } 00715 00716 00717 /* END ISO if */ 00718 } 00719 00720 /* Changement ci-dessous F.Leray 21.09.04 */ 00721 ppsubwin->axes.xlim[0]=xmin; 00722 ppsubwin->axes.xlim[1]=xmax; 00723 ppsubwin->axes.xlim[2]=0; 00724 ppsubwin->axes.ylim[0]=ymin; 00725 ppsubwin->axes.ylim[1]=ymax; 00726 ppsubwin->axes.ylim[2]=0; 00727 00728 00729 00730 /***************************************************************** 00731 * set the actual bounds in subwindow data structure 00732 *****************************************************************/ 00733 00734 00735 ppsubwin->FRect[0]=xmin; 00736 ppsubwin->FRect[2]=xmax; 00737 ppsubwin->FRect[1]=ymin; 00738 ppsubwin->FRect[3]=ymax; 00739 00740 ppsubwin->axes.xlim[3] = ppsubwin->axes.nxgrads; 00741 ppsubwin->axes.ylim[3] = ppsubwin->axes.nygrads; 00742 00743 /* ppsubwin->axes.reverse[0] = FALSE; /\*TRUE;*\/ /\* TEST en DUR F.Leray ICIIIIIIIIIIIII 12.10.04 *\/ */ 00744 /* ppsubwin->axes.reverse[1] = FALSE; /\*TRUE;*\/ */ 00745 00746 00747 set_scale("tftftf",NULL,ppsubwin->FRect,NULL,ppsubwin->logflags,NULL); 00748 00749 00750 for(i=0;i<4;i++) 00751 if(ppsubwin->FRect[i] != ExistingFRect[i]){ 00752 return TRUE; 00753 break; 00754 } 00755 00756 for(i=0;i<2;i++) 00757 if(nbsubtics[i] != ppsubwin->axes.nbsubtics[i]){ 00758 return TRUE; 00759 break; 00760 } 00761 00762 if(nbgrads[0] != ppsubwin->axes.nxgrads) return TRUE; 00763 if(nbgrads[1] != ppsubwin->axes.nygrads) return TRUE; 00764 00765 return FALSE; 00766 }
Here is the call graph for this function:
Here is the caller graph for this function:
| BOOL sci_update_frame_bounds_3d | ( | sciPointObj * | pobj | ) |
update_3dbounds -> renammed sci_update_frame_bounds_3d
Definition at line 772 of file DrawObjects.c.
References sciSubWindow::axes, ComputeNbSubTics(), FALSE, sciSubWindow::FRect, i, sciSubWindow::logflags, AXES::nbsubtics, NULL, AXES::nxgrads, AXES::nygrads, AXES::nzgrads, pSUBWIN_FEATURE, sciGetDisplayedBounds(), TheTicks(), AXES::xgrads, AXES::ygrads, and AXES::zgrads.
Referenced by update_specification_bounds(), and updateScale3d().
00773 { 00774 double xmin,xmax,ymin,ymax,zmin,zmax; 00775 int i; 00776 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (pobj); 00777 00778 /* Temp variables only used when called from update_specification_bounds */ 00779 /* to know if we have to redraw all the figure */ 00780 double ExistingFRect[6]; /* the Existing FRect at start to be compared at the end of this routine */ 00781 /* in order to determine wheter or not the bounds have changed... */ 00782 int nbsubtics[3]; 00783 int nbgrads[3]; 00784 /* End of Temp variables */ 00785 00786 for(i=0;i<6;i++) ExistingFRect[i] = ppsubwin->FRect[i]; /* store old initial bounds*/ 00787 00788 for(i=0;i<3;i++) nbsubtics[i] = ppsubwin->axes.nbsubtics[i]; 00789 nbgrads[0] = ppsubwin->axes.nxgrads; 00790 nbgrads[1] = ppsubwin->axes.nygrads; 00791 nbgrads[2] = ppsubwin->axes.nzgrads; 00792 00793 sciGetDisplayedBounds( pobj, &xmin, &xmax, &ymin, &ymax, &zmin, &zmax ) ; 00794 00795 00796 /* _grad Init. to 0. */ 00797 for(i=0;i<20;i++) 00798 { 00799 ppsubwin->axes.xgrads[i] = 0.; 00800 ppsubwin->axes.ygrads[i] = 0.; 00801 ppsubwin->axes.zgrads[i] = 0.; 00802 } 00803 00804 00805 if ( ppsubwin->logflags[0]=='n') { /* x-axis */ 00806 TheTicks(&xmin, &xmax, &(ppsubwin->axes.xgrads[0]), &ppsubwin->axes.nxgrads, FALSE); 00807 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTics(pobj,ppsubwin->axes.nxgrads,'n',NULL,ppsubwin->axes.nbsubtics[0]); /* Nb of subtics computation and storage */ 00808 } 00809 else{ /* log. case */ 00810 GradLog(xmin,xmax,ppsubwin->axes.xgrads,&ppsubwin->axes.nxgrads, FALSE ); 00811 ppsubwin->axes.nbsubtics[0] = ComputeNbSubTics(pobj,ppsubwin->axes.nxgrads,'l',ppsubwin->axes.xgrads,0); 00812 } 00813 00814 if ( ppsubwin->logflags[1]=='n') { /* y-axis */ 00815 TheTicks(&ymin, &ymax, &(ppsubwin->axes.ygrads[0]), &ppsubwin->axes.nygrads, FALSE); 00816 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTics(pobj,ppsubwin->axes.nygrads,'n',NULL, ppsubwin->axes.nbsubtics[1]); /* Nb of subtics computation and storage */ 00817 } 00818 else{ /* log. case */ 00819 GradLog(ymin,ymax,ppsubwin->axes.ygrads,&ppsubwin->axes.nygrads, FALSE ); 00820 ppsubwin->axes.nbsubtics[1] = ComputeNbSubTics(pobj,ppsubwin->axes.nygrads,'l',ppsubwin->axes.ygrads,0); 00821 } 00822 00823 if ( ppsubwin->logflags[2]=='n') { /* z-axis */ 00824 TheTicks(&zmin, &zmax, &(ppsubwin->axes.zgrads[0]), &ppsubwin->axes.nzgrads, FALSE); 00825 ppsubwin->axes.nbsubtics[2] = ComputeNbSubTics(pobj,ppsubwin->axes.nzgrads,'n',NULL, ppsubwin->axes.nbsubtics[2]); /* Nb of subtics computation and storage */ 00826 } 00827 else{ /* log. case */ 00828 GradLog(zmin,zmax,ppsubwin->axes.zgrads,&ppsubwin->axes.nzgrads, FALSE ); 00829 ppsubwin->axes.nbsubtics[2] = ComputeNbSubTics(pobj,ppsubwin->axes.nzgrads,'l',ppsubwin->axes.zgrads,0); 00830 } 00831 00832 if(ppsubwin->tight_limits == FALSE ) 00833 { 00834 xmin = ppsubwin->axes.xgrads[0]; 00835 xmax = ppsubwin->axes.xgrads[ ppsubwin->axes.nxgrads - 1]; 00836 ymin = ppsubwin->axes.ygrads[0]; 00837 ymax = ppsubwin->axes.ygrads[ ppsubwin->axes.nygrads - 1]; 00838 zmin = ppsubwin->axes.zgrads[0]; 00839 zmax = ppsubwin->axes.zgrads[ ppsubwin->axes.nzgrads - 1]; 00840 } 00841 00842 ppsubwin->axes.xlim[0]=xmin; 00843 ppsubwin->axes.xlim[1]=xmax; 00844 ppsubwin->axes.xlim[2]=0; 00845 ppsubwin->axes.ylim[0]=ymin; 00846 ppsubwin->axes.ylim[1]=ymax; 00847 ppsubwin->axes.ylim[2]=0; 00848 ppsubwin->axes.zlim[0]=zmin; /* rajout pour z */ 00849 ppsubwin->axes.zlim[1]=zmax; 00850 ppsubwin->axes.zlim[2]=0; 00851 00852 ppsubwin->FRect[0]=xmin; 00853 ppsubwin->FRect[2]=xmax; 00854 ppsubwin->FRect[1]=ymin; 00855 ppsubwin->FRect[3]=ymax; 00856 ppsubwin->FRect[4]=zmin; 00857 ppsubwin->FRect[5]=zmax; 00858 00859 ppsubwin->axes.xlim[3] = ppsubwin->axes.nxgrads; 00860 ppsubwin->axes.ylim[3] = ppsubwin->axes.nygrads; 00861 ppsubwin->axes.zlim[3] = ppsubwin->axes.nzgrads; 00862 00863 set_scale("tftftf",NULL,ppsubwin->FRect,NULL,ppsubwin->logflags,NULL); 00864 00865 for(i=0;i<6;i++) 00866 if(ppsubwin->FRect[i] != ExistingFRect[i]){ 00867 return TRUE; 00868 break; 00869 } 00870 00871 for(i=0;i<3;i++) 00872 if(nbsubtics[i] != ppsubwin->axes.nbsubtics[i]){ 00873 return TRUE; 00874 break; 00875 } 00876 00877 if(nbgrads[0] != ppsubwin->axes.nxgrads) return TRUE; 00878 if(nbgrads[1] != ppsubwin->axes.nygrads) return TRUE; 00879 if(nbgrads[2] != ppsubwin->axes.nzgrads) return TRUE; 00880 00881 return FALSE; 00882 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void sciAxesVerticesIndices | ( | integer | insideU[4], | |
| integer | insideD[4], | |||
| double | xbox[8], | |||
| double | ybox[8], | |||
| integer | xind[8] | |||
| ) |
Definition at line 2787 of file DrawObjects.c.
References i, ind, Maxi(), MaxiInd(), Nextind(), and sciprint().
Referenced by axis_3ddraw(), and ComputeCorrectXindAndInsideUD().
02792 { 02793 int i ; 02794 int ind ; 02795 int ind2 ; 02796 int ind3 ; 02797 double xmaxi ; 02798 int tmpind ; 02799 02800 /* F.Leray 23.02.04 Mise a 0 du tableau xind pour corriger bug*/ 02801 /* dans le cas ind < 3 ET ybox[tmpind] < ybox[tmpind]*/ 02802 for( i = 0 ; i < 8 ; i++ ) 02803 { 02804 xind[i] = 0 ; 02805 } 02806 02807 /* indices */ 02808 /* determine the indices for the 3d represention */ 02809 xmaxi = ( (double) Maxi(xbox,8L) ) ; 02810 ind = -1 ; 02811 MaxiInd( xbox, 8L, &ind, xmaxi ) ; 02812 if ( ind > 3 ) 02813 { 02814 xind[0]=ind; 02815 } 02816 tmpind = ind ; 02817 MaxiInd(xbox,8L,&ind,xmaxi); 02818 if ( ind > 3 ) 02819 { 02820 xind[0] = ind ; 02821 } 02822 if (ybox[tmpind] > ybox[ind] ) 02823 { 02824 xind[0] = tmpind ; 02825 } 02826 02827 if (ind < 0 || ind > 8) 02828 { 02829 sciprint("xind out of bounds"); 02830 xind[0]=0; 02831 } 02832 Nextind(xind[0],&ind2,&ind3); 02833 if (ybox[ind2] > ybox[ind3]) 02834 { 02835 xind[1]=ind2;insideU[0]=ind3; 02836 } 02837 else 02838 { 02839 xind[1]=ind3;insideU[0]=ind2; 02840 } 02841 Nextind(ind2,&ind2,&ind3); insideU[1]=xind[0]; 02842 insideU[2]=ind2; 02843 if ( insideU[0] > 3 ) 02844 { 02845 insideU[3] = insideU[0] - 4 ; 02846 } 02847 else 02848 { 02849 insideU[3] = insideU[0] + 4 ; 02850 } 02851 xind[2]=ind2; 02852 /* le pointeger en bas qui correspond */ 02853 if ( ind2 > 3 ) 02854 { 02855 xind[3] = ind2 - 4 ; 02856 } 02857 else 02858 { 02859 xind[3] = ind2 + 4 ; 02860 } 02861 Nextind(xind[3],&ind2,&ind3); 02862 if (ybox[ind2] < ybox[ind3]) 02863 { 02864 xind[4]=ind2;insideD[0]=ind3; 02865 } 02866 else 02867 { 02868 xind[4]=ind3;insideD[0]=ind2; 02869 } 02870 Nextind(ind2,&ind2,&ind3); 02871 insideD[1]=xind[3]; 02872 insideD[2]=ind2; 02873 if ( insideD[0] > 3 ) 02874 { 02875 insideD[3]=insideD[0] - 4 ; 02876 } 02877 else 02878 { 02879 insideD[3]=insideD[0] + 4 ; 02880 } 02881 xind[5]=ind2; 02882 02883 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void sciDrawFigure | ( | int | numFigure | ) |
draw the figure number numFigure.
Definition at line 1403 of file DrawObjects.c.
References sciDrawObj(), sciGetCurrentFigure(), sciGetNumFigure(), and sciSetUsedWindow().
01404 { 01405 int curFigure = sciGetNumFigure( sciGetCurrentFigure() ) ; 01406 sciSetUsedWindow( numFigure ) ; 01407 sciDrawObj( sciGetCurrentFigure() ) ; 01408 sciSetUsedWindow( curFigure ) ; 01409 }
Here is the call graph for this function:
| int sciDrawObj | ( | sciPointObj * | pobj | ) |
sciDrawObj Draws Object (only the basic graphicobject under subwindows) in its SubWindow or figure
| sciPointObj | * pobj: the pointer to the entity |
Definition at line 1475 of file DrawObjects.c.
References drawArcEntity(), drawAxesEntity(), drawCompoundEntity(), drawFecEntity(), drawFigureEntity(), drawGrayplotEntity(), drawLegendEntity(), drawMergeEntity(), drawPolylineEntity(), drawRectangleEntity(), drawSegsEntity(), drawSubWinEntity(), drawSurfaceEntity(), drawTextEntity(), GetDriverId(), isGraphicSessionOpened(), SCI_AGREG, SCI_ARC, SCI_AXES, SCI_FEC, SCI_FIGURE, SCI_GRAYPLOT, SCI_LEGEND, SCI_LIGHT, SCI_MENU, SCI_MENUCONTEXT, SCI_MERGE, SCI_PANNER, SCI_POLYLINE, SCI_RECTANGLE, SCI_SBH, SCI_SBV, SCI_SEGS, SCI_STATUSB, SCI_SUBWIN, SCI_SURFACE, SCI_TEXT, and sciGetEntityType().
Referenced by champg(), drawCompoundEntity(), drawFigureEntity(), drawSubWinEntity(), fec(), Objplot3d(), plot2dn(), sci_copy(), sci_delete(), sci_draw(), sci_drawnow(), sci_set(), sci_xend(), sci_xfpoly(), sci_xfpolys(), sci_xgrid(), sci_xpoly(), sci_xpolys(), sci_xrect(), sci_xrects(), sci_xsegs(), sciDrawFigure(), sciDrawObjIfRequired(), scig_toPs(), sciInitdrawmode(), sciRedrawF(), sciRedrawFigure(), sciRelocateHandles(), sciXbasc(), sciXclear(), swapHandles(), unzoom(), unzoom_one_axes(), xgray(), xgray1(), xgray2(), and zoom_box().
01476 { 01477 01478 01479 /* driver test */ 01480 if((GetDriverId() != 0) && ( isGraphicSessionOpened() )){ 01481 return -1; 01482 } 01483 01484 switch (sciGetEntityType (pobj)) 01485 { 01486 case SCI_FIGURE: 01487 return drawFigureEntity( pobj ) ; 01488 break; 01489 case SCI_SUBWIN: 01490 return drawSubWinEntity( pobj ) ; 01491 break ; 01492 case SCI_AGREG: 01493 return drawCompoundEntity( pobj ) ; 01494 break; 01495 case SCI_LEGEND: 01496 return drawLegendEntity( pobj ) ; 01497 break; 01498 case SCI_FEC: 01499 return drawFecEntity( pobj ) ; 01500 break; 01501 case SCI_SEGS: 01502 return drawSegsEntity( pobj ) ; 01503 break; 01504 case SCI_GRAYPLOT: 01505 return drawGrayplotEntity( pobj ) ; 01506 break; 01507 case SCI_POLYLINE: 01508 return drawPolylineEntity( pobj ) ; 01509 break; 01510 case SCI_ARC: 01511 return drawArcEntity( pobj ) ; 01512 break; 01513 case SCI_RECTANGLE: 01514 return drawRectangleEntity( pobj ) ; 01515 break; 01516 case SCI_TEXT: 01517 return drawTextEntity( pobj ) ; 01518 break; 01519 case SCI_AXES: 01520 return drawAxesEntity(pobj) ; 01521 break; 01522 case SCI_MERGE: 01523 return drawMergeEntity(pobj) ; 01524 break ; 01525 case SCI_SURFACE: 01526 return drawSurfaceEntity(pobj) ; 01527 break; 01528 case SCI_LIGHT: 01529 case SCI_PANNER: 01530 case SCI_SBH: 01531 case SCI_SBV: 01532 case SCI_MENU: 01533 case SCI_MENUCONTEXT: 01534 case SCI_STATUSB: 01535 default: 01536 return -1; 01537 break; 01538 } 01539 /*sciSetSelectedSubWin (curSubWin);*/ 01540 return -1; 01541 }
Here is the call graph for this function:
Here is the caller graph for this function:
| int sciDrawObjIfRequired | ( | sciPointObj * | pobj | ) |
sciDrawObjIfRequired Draws Object (only the basic graphicobject under subwindows) in its SubWindow or figure if and only if pFIGURE_FEATURE(pobj)->auto_redraw == TRUE !! Only used inside High Level functions calls (sucha as plot2d, plot3d...)
| sciPointObj | * pobj: the pointer to the entity |
Definition at line 1457 of file DrawObjects.c.
References pFIGURE_FEATURE, sciDrawObj(), and sciGetParentFigure().
Referenced by champg(), fec(), Objarc(), Objdrawaxis(), Objfpoly(), Objpoly(), Objrect(), Objsegs(), Objstring(), Objtitle(), plot2dn(), sci_xfpoly(), sci_xfpolys(), sci_xpoly(), sci_xpolys(), sci_xrect(), sci_xrects(), sci_xsegs(), sciRefreshObj(), xgray(), xgray1(), and xgray2().
01458 { 01459 sciPointObj * pfigure = sciGetParentFigure(pobj); 01460 01461 if( pFIGURE_FEATURE(pfigure)->auto_redraw && pFIGURE_FEATURE(pfigure)->visible ) 01462 { 01463 sciDrawObj(pobj); 01464 } 01465 01466 return 0; 01467 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void sciGetAxisBox | ( | double | limits[6], | |
| double | xbox[8], | |||
| double | ybox[8], | |||
| double | zbox[8] | |||
| ) |
Definition at line 2725 of file DrawObjects.c.
Referenced by ComputeCorrectXindAndInsideUD(), and updateScale3d().
02726 { 02727 xbox[0]=TRX(limits[0],limits[2],limits[4]); /* transfo. 3D of [xmin,ymin,zmin] */ 02728 ybox[0]=TRY(limits[0],limits[2],limits[4]); /* into [xbox[0],ybox[0],zbox[0] ] */ 02729 zbox[0]=TRZ(limits[0],limits[2],limits[4]); /* */ 02730 02731 xbox[1]=TRX(limits[0],limits[3],limits[4]); /* transfo. 3D of [xmin,ymax,zmin] */ 02732 ybox[1]=TRY(limits[0],limits[3],limits[4]); /* into [xbox[1],ybox[1],zbox[1] ] */ 02733 zbox[1]=TRZ(limits[0],limits[3],limits[4]); /* */ 02734 02735 xbox[2]=TRX(limits[1],limits[3],limits[4]); /* transfo. 3D of [xmax,ymax,zmin] */ 02736 ybox[2]=TRY(limits[1],limits[3],limits[4]); /* into [xbox[2],ybox[2],zbox[2] ] */ 02737 zbox[2]=TRZ(limits[1],limits[3],limits[4]); /* */ 02738 02739 xbox[3]=TRX(limits[1],limits[2],limits[4]); /* transfo. 3D of [xmax,ymin,zmin] */ 02740 ybox[3]=TRY(limits[1],limits[2],limits[4]); /* into [xbox[3],ybox[3],zbox[3] ] */ 02741 zbox[3]=TRZ(limits[1],limits[2],limits[4]); /* */ 02742 02743 xbox[4]=TRX(limits[0],limits[2],limits[5]); /* transfo. 3D of [xmin,ymin,zmax] */ 02744 ybox[4]=TRY(limits[0],limits[2],limits[5]); /* into [xbox[4],ybox[4],zbox[4] ] */ 02745 zbox[4]=TRZ(limits[0],limits[2],limits[5]); /* */ 02746 02747 xbox[5]=TRX(limits[0],limits[3],limits[5]); /* transfo. 3D of [xmin,ymax,zmax] */ 02748 ybox[5]=TRY(limits[0],limits[3],limits[5]); /* into [xbox[5],ybox[5],zbox[5] ] */ 02749 zbox[5]=TRZ(limits[0],limits[3],limits[5]); /* */ 02750 02751 xbox[6]=TRX(limits[1],limits[3],limits[5]); /* transfo. 3D of [xmax,ymax,zmax] */ 02752 ybox[6]=TRY(limits[1],limits[3],limits[5]); /* into [xbox[6],ybox[6],zbox[6] ] */ 02753 zbox[6]=TRZ(limits[1],limits[3],limits[5]); /* */ 02754 02755 xbox[7]=TRX(limits[1],limits[2],limits[5]); /* transfo. 3D of [xmax,ymin,zmax] */ 02756 ybox[7]=TRY(limits[1],limits[2],limits[5]); /* into [xbox[7],ybox[7],zbox[7] ] */ 02757 zbox[7]=TRZ(limits[1],limits[2],limits[5]); /* */ 02758 }
Here is the caller graph for this function:
| void sciGetDisplayedBounds | ( | sciPointObj * | pSubWin, | |
| double * | xmin, | |||
| double * | xmax, | |||
| double * | ymin, | |||
| double * | ymax, | |||
| double * | zmin, | |||
| double * | zmax | |||
| ) |
Definition at line 531 of file DrawObjects.c.
References sciSubWindow::logflags, pSUBWIN_FEATURE, sciGetLogExponent(), sciGetZooming(), sciprint(), sciSubWindow::SRect, and sciSubWindow::ZRect.
Referenced by sci_update_frame_bounds_2d(), sci_update_frame_bounds_3d(), updateXaxesTics(), and updateYaxesTics().
00538 { 00539 sciSubWindow * ppsubwin = pSUBWIN_FEATURE ( pSubWin ) ; 00540 /***************************************************************** 00541 * get initial bounds 00542 *****************************************************************/ 00543 if( sciGetZooming( pSubWin ) ) 00544 { 00545 *xmin = ppsubwin->ZRect[0] ; 00546 *ymin = ppsubwin->ZRect[1] ; 00547 *xmax = ppsubwin->ZRect[2] ; 00548 *ymax = ppsubwin->ZRect[3] ; 00549 *zmin = ppsubwin->ZRect[4] ; 00550 *zmax = ppsubwin->ZRect[5] ; 00551 } 00552 else 00553 { 00554 *xmin = ppsubwin->SRect[0] ; 00555 *ymin = ppsubwin->SRect[2] ; 00556 *xmax = ppsubwin->SRect[1] ; 00557 *ymax = ppsubwin->SRect[3] ; 00558 *zmin = ppsubwin->SRect[4] ; 00559 *zmax = ppsubwin->SRect[5] ; 00560 } 00561 00562 00563 00564 /***************************************************************** 00565 * modify bounds and aaint if using log scaling X axis 00566 *****************************************************************/ 00567 if ( ppsubwin->logflags[0] == 'l' ) 00568 { 00569 if ( sciGetLogExponent( *xmin, *xmax, xmin, xmax ) != 0 ) 00570 { 00571 sciprint("Warning: Can't use Log on X-axis xmin is negative. \n"); 00572 } 00573 } 00574 00575 /***************************************************************** 00576 * modify bounds and aaint if using log scaling Y axis 00577 *****************************************************************/ 00578 if ( ppsubwin->logflags[1] == 'l' ) 00579 { 00580 if ( sciGetLogExponent( *ymin, *ymax, ymin, ymax ) != 0 ) 00581 { 00582 sciprint("Warning: Can't use Log on Y-axis ymin is negative. \n"); 00583 } 00584 } 00585 00586 /***************************************************************** 00587 * modify bounds and aaint if using log scaling Z axis 00588 *****************************************************************/ 00589 if ( ppsubwin->logflags[2] == 'l' ) 00590 { 00591 if ( sciGetLogExponent( *zmin, *zmax, zmin, zmax ) != 0 ) 00592 { 00593 sciprint("Warning: Can't use Log on Z-axis zmin is negative. \n"); 00594 } 00595 } 00596 00597 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void sciRedrawF | ( | int * | num | ) |
Definition at line 120 of file DrawObjects.c.
References C2F, cur, dr(), L, na, NULL, PD0, PI0, sciDrawObj(), and sciIsExistingFigure().
Referenced by scig_replay_hdc().
00122 { 00123 sciPointObj *figure; 00124 integer cur,na,verb=0; 00125 figure= (sciPointObj *) sciIsExistingFigure(value); 00126 /* F.Leray 13.04.04 : Test if returned sciPointObj* is NULL (means Figure has been destroyed) */ 00127 00128 if(figure == (sciPointObj *) NULL) 00129 { 00130 /* Do nothing */ 00131 } 00132 else 00133 { 00134 C2F (dr) ("xget", "window",&verb,&cur,&na,PI0,PI0,PI0,PD0,PD0,PD0,PD0,4L,6L); 00135 C2F (dr) ("xset", "window",value,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,4L,6L); 00136 sciDrawObj (figure); 00137 C2F (dr) ("xset", "window",&cur,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,4L,6L); 00138 } 00139 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void sciRedrawFigure | ( | void | ) |
Definition at line 115 of file DrawObjects.c.
References sciDrawObj(), and sciGetCurrentFigure().
Referenced by I3dRotation(), sci_xset(), sci_xtitle(), scig_expose(), scig_replay(), and scig_resize().
00116 { 00117 sciDrawObj (sciGetCurrentFigure ()); 00118 }
Here is the call graph for this function:
Here is the caller graph for this function:
| int sciRefreshObj | ( | sciPointObj * | pobj | ) |
Definition at line 1416 of file DrawObjects.c.
References C2F, dr(), sciDrawObjIfRequired(), sciGetNum(), and sciGetParentFigure().
Referenced by Objmove().
01417 { 01418 01419 int parentId = sciGetNum( sciGetParentFigure( pobj ) ) ; 01420 int currentId ; 01421 int status ; 01422 int verboseGet = 0 ; 01423 int iDontKnowWhatItIs ; 01424 /* get current Id in ScilabXgc */ 01425 C2F (dr) ("xget", "window",&verboseGet,¤tId,&iDontKnowWhatItIs,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01426 01427 /* set the parent figure of the object as the current figure */ 01428 if ( parentId != currentId ) 01429 { 01430 C2F (dr) ("xset", "window",&parentId,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01431 } 01432 01433 /* draw the object */ 01434 status = sciDrawObjIfRequired( pobj ) ; 01435 01436 /* set back the values */ 01437 if ( parentId != currentId ) 01438 { 01439 C2F (dr) ("xset", "window",¤tId,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 01440 } 01441 01442 return status ; 01443 01444 01445 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void sciUpdateScaleAngles | ( | double | theta, | |
| double | alpha | |||
| ) |
Definition at line 2761 of file DrawObjects.c.
References cost, Cscale, DEG2RAD, wcscalelist::m, and sint.
Referenced by ComputeCorrectXindAndInsideUD(), drawSubWinEntity(), and updateScale3d().
02762 { 02763 double cost = 0.5 ; 02764 double sint = 0.5 ; 02765 double cosa = 0.5 ; 02766 double sina = 0.5 ; 02767 02768 cost = cos( DEG2RAD(theta) ) ; 02769 cosa = cos( DEG2RAD(alpha) ) ; 02770 sint = sin( DEG2RAD(theta) ) ; 02771 sina = sin( DEG2RAD(alpha) ) ; 02772 02773 Cscale.m[0][0]= -sint ; 02774 Cscale.m[0][1]= cost ; 02775 Cscale.m[0][2]= 0 ; 02776 Cscale.m[1][0]= -cost * cosa ; 02777 Cscale.m[1][1]= -sint * cosa ; 02778 Cscale.m[1][2]= sina ; 02779 Cscale.m[2][0]= cost * sina ; 02780 Cscale.m[2][1]= sint * sina ; 02781 Cscale.m[2][2]= cosa ; 02782 02783 }
Here is the caller graph for this function:
| void sciXbasc | ( | void | ) |
Definition at line 141 of file DrawObjects.c.
References ConstructSubWin(), DestroyAllGraphicsSons(), BCG::mafigure, NULL, sciDrawObj(), sciGetCurrentFigure(), sciSetCurrentObj(), and sciSetOriginalSubWin().
Referenced by sci_delete(), sci_xset(), sciDelGraphicObj(), and scig_erase().
00142 { 00143 static sciPointObj *mafigure; 00144 static sciPointObj *masousfen; 00145 00146 mafigure= (sciPointObj *) sciGetCurrentFigure(); 00147 DestroyAllGraphicsSons((sciPointObj *)mafigure); 00148 00149 00150 if ((masousfen = ConstructSubWin (mafigure, 'o')) != NULL){ 00151 sciSetCurrentObj(masousfen); 00152 sciSetOriginalSubWin (mafigure, masousfen);} 00153 sciDrawObj(sciGetCurrentFigure ()); 00154 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void sciXclear | ( | void | ) |
Definition at line 156 of file DrawObjects.c.
References FALSE, NULL, tagSons::pnext, tagSons::pointobj, SCI_SUBWIN, sciDrawObj(), sciGetCurrentFigure(), sciGetCurrentSubWin(), sciGetEntityType(), sciGetSons(), sciSetdrawmode(), and sciSetSelectedSubWin().
Referenced by sci_xclear().
00157 { 00158 static sciPointObj *masousfen, *tmpsousfen; 00159 sciSons *psonstmp; 00160 00161 tmpsousfen= sciGetCurrentSubWin(); 00162 psonstmp = sciGetSons (sciGetCurrentFigure()); 00163 00164 while (psonstmp != (sciSons *) NULL) 00165 { 00166 if(sciGetEntityType (psonstmp->pointobj) == SCI_SUBWIN) 00167 { 00168 masousfen= (sciPointObj *)psonstmp->pointobj; 00169 sciSetSelectedSubWin (masousfen); 00170 sciSetdrawmode (FALSE); 00171 } 00172 psonstmp = psonstmp->pnext; 00173 } 00174 sciSetSelectedSubWin (tmpsousfen); 00175 sciDrawObj(sciGetCurrentFigure ()); 00176 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void set_cf_type | ( | int | val | ) |
| void SetEch3d1 | ( | double * | xbox, | |
| double * | ybox, | |||
| double * | zbox, | |||
| double * | bbox, | |||
| double * | teta, | |||
| double * | alpha, | |||
| integer | flag | |||
| ) |
Definition at line 128 of file Plo3d.c.
References Alpha, wcscalelist::alpha, wcscalelist::bbox1, C2F, cost, Cscale, dr(), dx, dy, getscale2d(), hmax, ib, L, linint, wcscalelist::m, M_PI, Maxi(), wcscalelist::metric3d, Mini(), NULL, PD0, PI0, R, set_scale(), sint, wcscalelist::theta, TRX, TRY, and TRZ.
00129 { 00130 double xmmin,ymmax,xmmax,ymmin,FRect[4],WRect[4],ARect[4]; 00131 integer ib; 00132 static integer aaint[]={2,10,2,10}; 00133 int verbose=0,wdim[2],narg_; 00134 char logf_[2]; 00135 double R,xo,yo,zo,dx,dy,dz,hx,hy,hx1,hy1,Teta,Alpha; 00136 integer wmax,hmax; 00137 static double cost=0.5,sint=0.5,cosa=0.5,sina=0.5; 00138 Teta=*teta; 00139 Alpha=*alpha; 00140 /* if (flag==0) { 00141 Alpha=Cscale.alpha; 00142 Teta=Cscale.theta; 00143 } 00144 else { 00145 Cscale.alpha = Alpha; 00146 Cscale.theta = Teta; 00147 }*/ 00148 Cscale.alpha = Alpha; 00149 Cscale.theta = Teta; 00150 cost=cos((Teta)*M_PI/180.0); 00151 sint=sin((Teta)*M_PI/180.0); 00152 cosa=cos((Alpha)*M_PI/180.0); 00153 sina=sin((Alpha)*M_PI/180.0); 00154 Cscale.m[0][0]= -sint ; Cscale.m[0][1]= cost ; Cscale.m[0][2]= 0; 00155 Cscale.m[1][0]= -cost*cosa; Cscale.m[1][1]= -sint*cosa; Cscale.m[1][2]= sina; 00156 Cscale.m[2][0]= cost*sina; Cscale.m[2][1]= sint*sina; Cscale.m[2][2]= cosa; 00157 /* Coordonn\'ees apr\`es transformation g\'eometrique de la 00158 * boite qui entoure le plot3d 00159 * le plan de projection est defini par x et y 00160 */ 00161 for (ib=0;ib<6 ;ib++) 00162 { 00163 if (flag==0) 00164 bbox[ib]=Cscale.bbox1[ib]; 00165 else 00166 Cscale.bbox1[ib]=bbox[ib]; 00167 } 00168 xbox[0]=TRX(bbox[0],bbox[2],bbox[4]); 00169 ybox[0]=TRY(bbox[0],bbox[2],bbox[4]); 00170 zbox[0]=TRZ(bbox[0],bbox[2],bbox[4]); 00171 xbox[1]=TRX(bbox[0],bbox[3],bbox[4]); 00172 ybox[1]=TRY(bbox[0],bbox[3],bbox[4]); 00173 zbox[1]=TRZ(bbox[0],bbox[3],bbox[4]); 00174 xbox[2]=TRX(bbox[1],bbox[3],bbox[4]); 00175 ybox[2]=TRY(bbox[1],bbox[3],bbox[4]); 00176 zbox[2]=TRZ(bbox[1],bbox[3],bbox[4]); 00177 xbox[3]=TRX(bbox[1],bbox[2],bbox[4]); 00178 ybox[3]=TRY(bbox[1],bbox[2],bbox[4]); 00179 zbox[3]=TRZ(bbox[1],bbox[2],bbox[4]); 00180 xbox[4]=TRX(bbox[0],bbox[2],bbox[5]); 00181 ybox[4]=TRY(bbox[0],bbox[2],bbox[5]); 00182 zbox[4]=TRZ(bbox[0],bbox[2],bbox[5]); 00183 xbox[5]=TRX(bbox[0],bbox[3],bbox[5]); 00184 ybox[5]=TRY(bbox[0],bbox[3],bbox[5]); 00185 zbox[5]=TRZ(bbox[0],bbox[3],bbox[5]); 00186 xbox[6]=TRX(bbox[1],bbox[3],bbox[5]); 00187 ybox[6]=TRY(bbox[1],bbox[3],bbox[5]); 00188 zbox[6]=TRZ(bbox[1],bbox[3],bbox[5]); 00189 xbox[7]=TRX(bbox[1],bbox[2],bbox[5]); 00190 ybox[7]=TRY(bbox[1],bbox[2],bbox[5]); 00191 zbox[7]=TRZ(bbox[1],bbox[2],bbox[5]); 00193 if ( flag == 1 || flag == 3 ) 00194 { 00195 xmmin= (double) Mini(xbox,8L);xmmax= (double) Maxi(xbox,8L); 00196 ymmax= (double) - Mini(ybox,8L); 00197 ymmin= (double) - Maxi(ybox,8L); 00198 } 00199 /* code added by es: isoview scaling */ 00200 if ( flag == 2 || flag == 3 ) 00201 { 00202 /* get current window size */ 00203 C2F(dr)("xget","wdim",&verbose,wdim,&narg_, PI0,PI0,PI0, 00204 PD0,PD0,PD0,PD0,0L,0L); 00205 getscale2d(WRect,FRect,logf_,ARect); 00206 wmax=linint((double)wdim[0] * WRect[2]); 00207 hmax=linint((double)wdim[1] * WRect[3]); 00208 } 00209 if ( flag == 2 ) 00210 { 00211 /* radius and center of the sphere circumscribing the box */ 00212 dx=bbox[1]-bbox[0]; dy=bbox[3]-bbox[2]; dz=bbox[5]-bbox[4]; 00213 R= (double) sqrt(dx*dx + dy*dy + dz*dz)/2; 00214 xo= (double) (xbox[0]+xbox[6])/2 ; 00215 yo= (double) (ybox[0]+ybox[6])/2 ; 00216 zo= (double) (zbox[0]+zbox[6])/2 ; 00217 xmmin= (double) xo - R ; 00218 xmmax= (double) xo + R ; 00219 ymmax= (double) -yo + R ; 00220 ymmin= (double) -yo - R ; 00221 } 00222 if (flag==2 || flag==3) 00223 { 00224 /* adjust limits (code adapted from Plo2d.c & Stephane's patch) */ 00225 hx=xmmax-xmmin; 00226 hy=ymmax-ymmin; 00227 if ( hx/(double)wmax < hy/(double)hmax ) 00228 { 00229 hx1=wmax*hy/hmax; 00230 xmmin=xmmin-(hx1-hx)/2.0; 00231 xmmax=xmmax+(hx1-hx)/2.0; 00232 } 00233 else 00234 { 00235 hy1=hmax*hx/wmax; 00236 ymmin=ymmin-(hy1-hy)/2.0; 00237 ymmax=ymmax+(hy1-hy)/2.0; 00238 } 00239 } 00240 if (flag !=0 ) 00241 { 00242 FRect[0]=xmmin;FRect[1]= -ymmax;FRect[2]=xmmax;FRect[3]= -ymmin; 00243 set_scale("tftttf",NULL,FRect,aaint,"nn",NULL); 00244 Cscale.metric3d=flag; /* the metric mode is stored into the 00245 * List of Scales */ 00246 } 00247 /* end of code added by es */ 00248 }
Here is the call graph for this function:
| void updateScale3d | ( | sciPointObj * | pobj, | |
| double | dbox[6], | |||
| double | xbox[8], | |||
| double | ybox[8], | |||
| double | zbox[8] | |||
| ) |
Definition at line 179 of file DrawObjects.c.
References wcscalelist::alpha, sciSubWindow::alpha, sciSubWindow::axes, wcscalelist::bbox1, C2F, Cscale, sciSubWindow::cube_scaling, dr(), dx, dy, AXES::flag, sciSubWindow::FRect, getscale2d(), hmax, i, L, linint, Maxi(), wcscalelist::metric3d, Mini(), NULL, PD0, PI0, pSUBWIN_FEATURE, R, sci_update_frame_bounds_3d(), sciGetAxisBox(), sciUpdateScaleAngles(), set_scale(), wcscalelist::theta, and sciSubWindow::theta.
Referenced by axis_3ddraw(), and updateSubWinScale().
00184 { 00185 int flag ; 00186 int i ; 00187 double xmmin ; 00188 double xmmax ; 00189 double ymmin ; 00190 double ymmax ; 00191 double wmax ; 00192 double hmax ; 00193 integer aaint[] = {2,10,2,10} ; 00194 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (pobj); 00195 00196 sci_update_frame_bounds_3d( pobj ) ; 00197 00198 dbox[0] = ppsubwin->FRect[0] ; /*xmin*/ 00199 dbox[1] = ppsubwin->FRect[2] ; /*xmax*/ 00200 dbox[2] = ppsubwin->FRect[1] ; /*ymin*/ 00201 dbox[3] = ppsubwin->FRect[3] ; /*ymax*/ 00202 dbox[4] = ppsubwin->FRect[4] ; /*zmin*/ 00203 dbox[5] = ppsubwin->FRect[5] ; /*zmax*/ 00204 00205 if( ppsubwin->cube_scaling ) 00206 { 00207 dbox[0] = 0.; 00208 dbox[1] = 1.; 00209 dbox[2] = 0.; 00210 dbox[3] = 1.; 00211 dbox[4] = 0.; 00212 dbox[5] = 1.; 00213 } 00214 00215 00217 flag = ( ppsubwin->axes.flag[1] + 1 ) / 2 ; /* F.Leray Adding HERE 19.04.04 */ 00218 00219 Cscale.alpha = ppsubwin->alpha ; 00220 Cscale.theta = ppsubwin->theta ; 00221 00222 /* update Cscale.m from the new viewing angles */ 00223 sciUpdateScaleAngles( ppsubwin->theta, ppsubwin->alpha ) ; 00224 00225 for ( i = 0 ; i < 6 ; i++ ) 00226 { 00227 if ( flag == 0 ) 00228 { 00229 dbox[i] = Cscale.bbox1[i]; 00230 } 00231 else 00232 { 00233 Cscale.bbox1[i] = dbox[i]; 00234 } 00235 } 00236 00237 /* get the vertices of the axes box */ 00238 sciGetAxisBox( dbox, xbox, ybox, zbox ) ; 00239 00241 if ( flag == 1 || flag == 3 ) /* ALL the expanded cases : flag[1] = 1 or 2 or 5 or 6 */ 00242 { 00243 xmmin = Mini(xbox,8L) ; 00244 xmmax = Maxi(xbox,8L) ; /* search for x Min/Max on all the edges (there are 8 edges that compose the box) F.Leray 13.10.04 */ 00245 ymmax = -Mini(ybox,8L) ; /* same thing on ybox vector ( 1) why - (minus) ? see 2) )*/ 00246 ymmin = -Maxi(ybox,8L); 00247 } 00248 00249 if ( flag == 2 || flag == 3 ) /* ALL the isometric cases : flag[1] = 3 or 4 or 5 or 6 */ 00250 { 00251 int verbose = 0 ; 00252 int narg ; 00253 int wdim[2] ; 00254 double FRect[4] ; 00255 double WRect[4] ; 00256 double ARect[4] ; 00257 char logf_[2] ; 00258 /* get current window size */ 00259 C2F(dr)("xget","wdim",&verbose,wdim,&narg, PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00260 getscale2d(WRect,FRect,logf_,ARect); 00261 wmax=linint((double)wdim[0] * WRect[2]); 00262 hmax=linint((double)wdim[1] * WRect[3]); 00263 } 00264 00265 if ( flag == 2 ) /* the "NON expanded isometric" cases : flag[1] = 3 or 4 */ 00266 { 00267 double R ; 00268 double xo ; 00269 double yo ; 00270 double zo ; 00271 double dx ; 00272 double dy ; 00273 double dz ; 00274 00275 /* radius and center of the sphere circumscribing the box */ 00276 dx = dbox[1] - dbox[0] ; 00277 dy = dbox[3] - dbox[2] ; 00278 dz = dbox[5] - dbox[4] ; 00279 00280 R = sqrt( dx*dx + dy*dy + dz*dz)/2; 00281 xo = ( xbox[0] + xbox[6] ) / 2.0 ; 00282 yo = ( ybox[0] + ybox[6] ) / 2.0 ; 00283 zo = ( zbox[0] + zbox[6] ) / 2.0 ; 00284 00285 xmmin= xo - R ; 00286 xmmax= xo + R ; 00287 ymmax= -yo + R ; 00288 ymmin= -yo - R ; 00289 } 00290 00291 if (flag==2 || flag==3) 00292 { 00293 double hx ; 00294 double hy ; 00295 hx=xmmax-xmmin; 00296 hy=ymmax-ymmin; 00297 if ( hx/(double)wmax < hy/(double)hmax ) 00298 { 00299 double hx1 ; 00300 hx1 = wmax * hy / hmax ; 00301 xmmin = xmmin - ( hx1 - hx ) / 2.0 ; 00302 xmmax = xmmax + ( hx1 - hx ) / 2.0 ; 00303 } 00304 else 00305 { 00306 double hy1 ; 00307 hy1 = hmax * hx / wmax ; 00308 ymmin = ymmin - ( hy1 - hy ) / 2.0 ; 00309 ymmax = ymmax + ( hy1 - hy ) / 2.0 ; 00310 } 00311 } 00312 00313 if (flag != 0 ) /* != using current 3D scale */ 00314 { 00315 double FRect[4] ; 00316 /* FRect = [Xmin,Ymin,Xmax,Ymax] */ 00317 FRect[0] = xmmin ; 00318 FRect[1] = -ymmax ; 00319 FRect[2] = xmmax ; 00320 FRect[3] = -ymmin ; /* 2) ... (why - (minus) ? )*/ 00321 set_scale("tftttf",NULL,FRect,aaint,"nn",NULL); 00322 Cscale.metric3d = flag; 00323 } 00324 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void UpdateSubwinScale | ( | sciPointObj * | pobj | ) |
Definition at line 1046 of file DrawObjects.c.
References sciSubWindow::axes, axis_3ddraw(), FALSE, AXES::flag, sciSubWindow::is3d, sciSubWindow::isoview, long, NULL, pSUBWIN_FEATURE, sci_update_frame_bounds_2d(), sciGetCurrentSubWin(), sciGetVisibility(), sciSetSelectedSubWin(), sciSetVisibility(), and TRUE.
Referenced by plot2dn(), and sciInitIs3d().
01047 { 01048 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (pobj); 01049 sciPointObj * currentsubwin = NULL; 01050 BOOL vis_save = FALSE; 01051 double xbox[8],ybox[8],zbox[8]; 01052 static integer InsideU[4],InsideD[4]; 01053 01054 currentsubwin = sciGetCurrentSubWin(); 01055 01056 sciSetSelectedSubWin(pobj); 01057 01058 /* set_scale ("tttftt", pSUBWIN_FEATURE (pobj)->WRect, pSUBWIN_FEATURE (pobj)->FRect, */ 01059 /* NULL, pSUBWIN_FEATURE (pobj)->logflags, */ 01060 /* pSUBWIN_FEATURE (pobj)->ARect); */ 01061 01062 if (ppsubwin->is3d) 01063 { /* 3D Coordinates */ /* verifier si c'est encore utile SS */ 01064 /*To have directly all the possible ISOVIEW Modes*/ 01065 long isoflag = (long)(ppsubwin->axes.flag[1]+1)/2; 01066 01067 if(ppsubwin->isoview == TRUE) { 01068 if(isoflag ==2 || isoflag == 3){ } 01069 else { 01070 if((ppsubwin->axes.flag[1] == 0) 01071 || (ppsubwin->axes.flag[1] == 2)) 01072 /* The default isoview mode is type=4 3d isometric bounds 01073 derived from the data, to similarily type=2 */ 01074 ppsubwin->axes.flag[1] = 4; 01075 else if(ppsubwin->axes.flag[1] == 1) 01076 ppsubwin->axes.flag[1] = 3; 01077 } 01078 } 01079 else { 01080 if((ppsubwin->axes.flag[1] == 3) 01081 || (ppsubwin->axes.flag[1] == 5)) 01082 ppsubwin->axes.flag[1] = 1; /* computed from ebox*/ 01083 else if((ppsubwin->axes.flag[1] == 4) 01084 || (ppsubwin->axes.flag[1] == 6)) 01085 /* The default NON-isoview mode is 2 computed from data*/ 01086 ppsubwin->axes.flag[1] = 2; 01087 } 01088 01089 01090 vis_save = sciGetVisibility(pobj); 01091 01092 sciSetVisibility(pobj,FALSE); 01093 axis_3ddraw(pobj,xbox,ybox,zbox,InsideU,InsideD); /* TEST on sciGetVisibility inside */ 01094 /* because axis_3ddraw displays 3d axes BUT ALSO compute + reset the 3d scale BEFORE !! */ 01095 sciSetVisibility(pobj,vis_save); 01096 } 01097 else /* we are in 2D mode...*/ 01098 { 01099 sci_update_frame_bounds_2d(pobj); 01100 } 01101 01102 sciSetSelectedSubWin(currentsubwin); 01103 01104 }
Here is the call graph for this function:
Here is the caller graph for this function:
Referenced by get_cf_type(), and set_cf_type().
1.5.1
