#include "ObjectStructure.h"Include dependency graph for Axes.h:
This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Functions | |
| BOOL | CheckDisplay (double fact_h, double fact_w, char logflag, char *foo, int *posi, int *fontid, int *old_rect) |
| BOOL | IsInsideRectangle (int *rect, int *point) |
| void | getTicksLabelBox (double fact_h, double fact_w, char *label, int pos[2], int fontId[2], char logflag, int bbox[4], BOOL changeFont) |
| BOOL | checkXAxes2dTics (sciPointObj *psubwin, char side, double y, char *cFormat, int fontId[2], int smallersize) |
| BOOL | checkYAxes2dTics (sciPointObj *psubwin, char side, double x, char *cFormat, int fontId[2], int smallersize) |
| void | updateXaxesTics (sciPointObj *psubwin, char side, double y, int fontId[2], int smallersize) |
| void | updateYaxesTics (sciPointObj *psubwin, char side, double x, int fontId[2], int smallersize) |
| void | removeBadTicks (double *ticks, BOOL *removedTicks, int *nbTicks) |
| void | removeIndex (double *changedArray, int size, int ind) |
| void | findFormat (sciPointObj *pSubWin, char formatX[5], char formatY[5]) |
| void | clearSubWin (sciPointObj *pSubWin) |
| void | reinitSubWin (sciPointObj *pSubWin) |
| void | initSubWinAngles (sciPointObj *pSubWin) |
| void | initSubWinSize (sciPointObj *pSubWin) |
| void | initSubWinBounds (sciPointObj *pSubWin) |
| BOOL | checkRedrawing (void) |
| void | updateSubWinScale (sciPointObj *pSubWin) |
| void | updateScaleIfRequired (sciPointObj *pSubWin) |
| void | drawAxesGrid (sciPointObj *psubwin) |
| void | axis_3ddraw (sciPointObj *pobj, double *xbox, double *ybox, double *zbox, integer *InsideU, integer *InsideD) |
| void | triedre (sciPointObj *pobj, double *xbox, double *ybox, double *zbox, integer *InsideU, integer *InsideD) |
| void | DrawAxesBackground (void) |
| int | labels2D_draw (sciPointObj *psubwin) |
| void | rebuild_strflag (sciPointObj *psubwin, char *STRFLAG) |
| void | axis_draw2 (char strflag[]) |
| void | Sci_Axis (char pos, char xy_type, double *x, int *nx, double *y, int *ny, char *str[], int subtics, char *format, int fontsize, int textcolor, int fontstyle, int ticscolor, char logflag, int seg_flag, int axisbuild_flag) |
| void | DrawAxis (double xbox[8], double ybox[8], integer Indices[4], integer style) |
| int | Axes3dStrings2 (integer *ixbox, integer *iybox, integer *xind) |
le cot\'e gauche ( c'est tjrs un axe des Z
bottom right side
bottom left side
Definition at line 3202 of file Axes.c.
Referenced by axis_3ddraw().
03203 { 03204 integer verbose=0,narg,xz[2],fontid[2],fontsize_kp,color_kp,size; 03205 integer iof,barlengthx = 0,barlengthy = 0, posi[2]; 03206 integer rect[4],flag=0,x=0,y=0; 03207 double ang=0.0, bbox[6]; 03208 int fontsize=-1,textcolor=-1,ticscolor=-1; 03209 int fontstyle=0; /* F.Leray 08.04.04 */ 03210 sciPointObj *psubwin = NULL; 03211 sciSubWindow * ppsubwin = NULL; 03212 int ns=2,iflag=0,gstyle,gridStyle=2,dash[6]; 03213 double xx[4],yy[4],zz[4],vxx1,vyy1,vzz1; 03214 integer i,xm,ym,vx[2],vy[2],xg[2],yg[2],j; 03215 integer fontid_old[2], textcolor_old; 03216 03217 int lastzindex = 0, lastxindex = 0, lastyindex = 0; 03218 double xminval, yminval, zminval, xmaxval, ymaxval, zmaxval; 03219 int nbtics = 0; 03220 int nbsubtics = 0; 03221 03222 int logrect[4], XX = 0, YY = 0; /* see below */ /* ah ouais ou ca ? */ 03223 double angle=0.0; 03224 03225 int constOffset[2] ; /* displacment of labels from the axes segments. */ 03226 int maxTicksLabelSize[2] ; /* for each axis the maximum size of ticks label */ 03227 03228 03229 psubwin= sciGetCurrentSubWin(); 03230 ppsubwin = pSUBWIN_FEATURE (psubwin); 03231 03233 xz[0] = Cscale.WIRect1[2] ; 03234 xz[1] = Cscale.WIRect1[2] ; 03235 iof = (xz[0]+xz[1])/50; 03236 03237 ticscolor = sciGetForeground(psubwin); 03238 textcolor=sciGetFontForeground(psubwin); 03239 03240 fontsize=sciGetFontDeciWidth(psubwin)/100; 03241 fontstyle=sciGetFontStyle(psubwin); 03242 03243 if(sciGetEntityType (psubwin) != SCI_SUBWIN) { 03244 sciprint("Impossible case\n"); 03245 return 0; 03246 } 03247 03248 03249 bbox[0] = xminval = pSUBWIN_FEATURE (psubwin)->FRect[0]; /*xmin*/ 03250 bbox[1] = xmaxval = pSUBWIN_FEATURE (psubwin)->FRect[2]; /*xmax*/ 03251 bbox[2] = yminval = pSUBWIN_FEATURE (psubwin)->FRect[1]; /*ymin*/ 03252 bbox[3] = ymaxval = pSUBWIN_FEATURE (psubwin)->FRect[3]; /*ymax*/ 03253 bbox[4] = zminval = pSUBWIN_FEATURE (psubwin)->FRect[4]; /*zmin*/ 03254 bbox[5] = zmaxval = pSUBWIN_FEATURE (psubwin)->FRect[5]; /*zmax*/ 03255 03256 C2F(dr)("xget","font",&verbose,fontid,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03257 03258 fontid[0]= fontstyle; 03259 fontsize_kp = fontid[1] ; 03260 if( fontsize == -1 ){ 03261 fontid[1]= 1; 03262 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03263 } 03264 else { 03265 fontid[1] = fontsize ; 03266 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03267 } 03268 if ( textcolor != -1 || ticscolor != -1 ) 03269 C2F(dr)("xget","pattern",&verbose,&color_kp,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03270 03271 for (i=0; i<3 ; i++) { 03272 xx[i]=pSUBWIN_FEATURE (psubwin)->axes.xlim[i]; 03273 yy[i]=pSUBWIN_FEATURE (psubwin)->axes.ylim[i]; 03274 zz[i]=pSUBWIN_FEATURE (psubwin)->axes.zlim[i]; 03275 } 03276 03277 /* main title */ /* We fix the title always at the top */ 03278 rect[0]= Cscale.WIRect1[0] ; 03279 rect[1]= Cscale.WIRect1[1] ; 03280 rect[2]= Cscale.WIRect1[2] ; 03281 rect[3]= Cscale.WIRect1[3]/6 ; 03282 textcolor_old = textcolor; 03283 fontid_old[0] = fontid[0]; 03284 fontid_old[1] = fontid[1]; 03285 03286 constOffset[0] = Cscale.WIRect1[2] / 50 + 1 ; 03287 constOffset[1] = Cscale.WIRect1[3] / 25 + 1 ; 03288 03289 if( sciGetVisibility(ppsubwin->mon_title) ) 03290 { 03291 /* get the pointer on the title */ 03292 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_title ) ; 03293 03294 /* get position and orientation of the title */ 03295 if ( ppLabel->auto_rotation ) 03296 { 03297 sciSetFontOrientation( ppsubwin->mon_title, 0 ) ; 03298 } 03299 03300 if ( ppLabel->auto_position ) 03301 { 03302 /* same as in 2d */ 03303 int segmentStart[2] = { rect[0] + rect[2], rect[1] } ; 03304 int segmentEnd[2] = { rect[0] , rect[1] } ; 03305 computeLabelAutoPos( ppsubwin->mon_title, segmentStart, segmentEnd, constOffset ) ; 03306 } 03307 /* draw the label */ 03308 drawTextEntity( ppLabel->text ) ; 03309 } 03310 03311 textcolor = textcolor_old; 03312 fontid[0] = fontid_old[0]; 03313 fontid[1] = fontid_old[1]; 03314 03315 size = xz[0]>=xz[1] ? (integer) (xz[1]/50.0) : (integer) (xz[0]/50.0); 03316 03317 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 03318 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03319 03320 /********************************************/ 03321 /* draw the axis line if axes_visible is on */ 03322 /********************************************/ 03323 { 03324 int x2[5] ; 03325 int two = 2 ; 03326 int one = 1 ; 03327 int verbose2 = 0 ; 03328 int dash2[6] ; 03329 int pat ; 03330 int narg2 ; 03331 x2[0] = sciGetForeground (psubwin); 03332 x2[2] = sciGetLineWidth (psubwin) ; 03333 x2[3] = sciGetLineStyle (psubwin); 03334 x2[4] = 0; 03335 C2F(dr)("xget","line style",&verbose2,dash2,&narg2,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03336 C2F(dr)("xget","pattern",&verbose2,&pat,&narg2,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03337 C2F (dr) ("xset", "dashes", x2, x2, x2+4, x2+4, x2+4,PI0,PD0,PD0,PD0,PD0, 5L, 6L); 03338 C2F (dr) ("xset","foreground",x2,x2,x2+4,x2+4,x2+4,PI0,PD0,PD0,PD0,PD0,5L,4096); /* F.Leray 05.03.04 Useless too*/ 03339 C2F (dr) ("xset","thickness",x2+2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03340 C2F (dr) ("xset", "line style", x2+3,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03341 if ( ppsubwin->axes.axes_visible[2] ) 03342 { 03343 /* draw the line of the axis like in 2d */ 03344 /* the two bounds are (ixbox[2],iybox[2]) and (ixbox[2],iybox[2]) */ 03345 C2F(dr)("xpolys","v",&(ixbox[2]),&(iybox[2]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03346 } 03347 if ( ( xind[4]+xind[5] == 3) || ( xind[4]+xind[5] == 11 ) ) 03348 { 03349 /* i copy this test but I don't know what it mean... jb Silvy 03/2006 */ 03350 if ( ppsubwin->axes.axes_visible[1] ) 03351 { 03352 /* draw the line of the axis like in 2d */ 03353 /* the two bounds are (ixbox[3],iybox[3]) and (ixbox[3],iybox[3]) */ 03354 C2F(dr)("xpolys","v",&(ixbox[3]),&(iybox[3]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03355 } 03356 if ( ppsubwin->axes.axes_visible[0] ) 03357 { 03358 /* draw the line of the axis like in 2d */ 03359 /* the two bounds are (ixbox[4],iybox[4]) and (ixbox[4],iybox[4]) */ 03360 C2F(dr)("xpolys","v",&(ixbox[4]),&(iybox[4]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03361 } 03362 } 03363 else 03364 { 03365 if ( ppsubwin->axes.axes_visible[1] ) 03366 { 03367 /* draw the line of the axis like in 2d */ 03368 /* the two bounds are (ixbox[3],iybox[3]) and (ixbox[3],iybox[3]) */ 03369 C2F(dr)("xpolys","v",&(ixbox[4]),&(iybox[4]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03370 } 03371 if ( ppsubwin->axes.axes_visible[0] ) 03372 { 03373 /* draw the line of the axis like in 2d */ 03374 /* the two bounds are (ixbox[4],iybox[4]) and (ixbox[4],iybox[4]) */ 03375 C2F(dr)("xpolys","v",&(ixbox[3]),&(iybox[3]),x2,&one,&two, PI0,PD0,PD0,PD0,PD0,0L,0L); 03376 } 03377 } 03378 C2F(dr)("xset","pattern",&pat,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03379 C2F(dr)("xset","line style",dash2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03380 } 03381 03382 /********************/ 03383 /*** le z scaling ***/ /* DISPLAY Z graduations */ 03384 /********************/ 03385 03386 03387 if (pSUBWIN_FEATURE (psubwin)->project[2]==1) 03388 { 03389 double fx,fy,fz; 03390 char c_format[5] ; 03391 03392 integer Ticsdir[2]; 03393 Ticsdir[0]=ixbox[3]-ixbox[4]; /* <=> en pixel direction/vecteur non norme(e)s des tics en x */ 03394 Ticsdir[1]=iybox[3]-iybox[4]; /* <=> idem pour y */ 03395 /* NB: for a default plot3d (simply calling plot3d in siclab console) */ 03396 /* Ticsdir[0] & Ticsdir[1] are negative : we do min - max here... */ 03397 03398 BBoxToval(&fx,&fy,&fz,xind[3],bbox); /* xind[3] <=> en bas a gauche <=> zmin */ 03399 x=ixbox[2]-(xz[0]+xz[1])/20; 03400 y=(iybox[3]+iybox[2])/2; 03401 03402 /* NumberFormat(str,((integer) zz[0]),((integer) zz[2])); */ 03403 03404 03405 if( !ppsubwin->axes.auto_ticks[2] ) 03406 { 03407 /* we display the z tics specified by the user*/ 03408 nbtics = ppsubwin->axes.u_nzgrads; 03409 nbsubtics = ppsubwin->axes.nbsubtics[2]; 03410 03411 maxTicksLabelSize[0] = 0 ; 03412 maxTicksLabelSize[1] = 0 ; 03413 03414 for(i=0;i<nbtics;i++) 03415 { 03416 char *foo = ppsubwin->axes.u_zlabels[i]; 03417 double ztmp = ppsubwin->axes.u_zgrads[i]; 03418 03419 if(ztmp<zminval || ztmp>zmaxval) 03420 { 03421 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 03422 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 03423 /* donc autant ne pas aller plus loin dans l'algo... */ 03424 } 03425 03426 03427 /***************************************************************/ 03428 /************************* COMMON PART *************************/ 03429 /***************************************************************/ 03430 03431 if( ppsubwin->axes.reverse[2] ) 03432 { 03433 ztmp = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],ztmp); 03434 } 03435 03436 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&ztmp); 03437 03438 03439 vx[0]=xm;vy[0]=ym; 03440 03441 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03442 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03443 vx[1]=vx[0]+barlengthx; 03444 vy[1]=vy[0]+barlengthy; 03445 03446 /* foo is set above with sprintf(foo,c_format,xtmp); */ 03447 03448 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 03449 03450 /* get the size of ticks label */ 03451 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03452 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 03453 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 03454 03455 03456 posi[0] = inint( xm+2*barlengthx - rect[2]); 03457 posi[1]=inint( ym + 2*barlengthy + rect[3]/2); 03458 03459 03460 if(ppsubwin->axes.axes_visible[2] == TRUE){ 03461 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03462 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03463 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03464 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03465 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03466 } 03467 /* grid to put here */ 03468 if ( ppsubwin->grid[2] > -1 && ppsubwin->axes.axes_visible[2] ) 03469 { 03470 gstyle = pSUBWIN_FEATURE (psubwin)->grid[2]; 03471 03472 if((ppsubwin->logflags[2] =='l') && (i != nbtics-1)) 03473 { 03474 double tmp[2]; 03475 double pas=0; 03476 double * tmp_log_grads = (double *) NULL; 03477 03478 03479 double * grads = ppsubwin->axes.u_zgrads; 03480 03481 tmp[0] = exp10(grads[i]); 03482 tmp[1] = exp10(grads[i+1]); 03483 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03484 03485 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03486 sciprint("Error allocating tmp_log_grads\n"); 03487 return -1; 03488 } 03489 03490 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03491 03492 for(j=0;j<nbsubtics;j++) 03493 { 03494 vzz1 = tmp_log_grads[j]; 03495 03496 if(vzz1<=zminval || vzz1>=zmaxval) continue; 03497 03498 if(ppsubwin->axes.reverse[2] == TRUE) 03499 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03500 03501 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03502 03503 /* if ((ym != iybox[3]) && (ym != iybox[2])) */ 03504 /* { */ 03505 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03506 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03507 xg[0]= ixbox[3];yg[0]= ym; 03508 if (Ishidden(psubwin)) 03509 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03510 else 03511 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03512 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03513 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03514 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03515 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03516 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03517 /* } */ 03518 } 03519 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03520 } 03521 else 03522 { 03523 if(ztmp>zminval && ztmp<zmaxval) 03524 { 03525 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03526 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03527 xg[0]= ixbox[3];yg[0]= ym; 03528 if (Ishidden(psubwin)) 03529 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03530 else 03531 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03532 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03533 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03534 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03535 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03536 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03537 } 03538 } 03539 } 03540 03541 /* and subtics */ 03542 if(i != nbtics-1) 03543 { 03544 if(ppsubwin->logflags[2] =='l') 03545 { 03546 double tmp[2]; 03547 double pas=0; 03548 double * tmp_log_grads = (double *) NULL; 03549 03550 03551 double * grads = ppsubwin->axes.u_zgrads; 03552 03553 tmp[0] = exp10(grads[i]); 03554 tmp[1] = exp10(grads[i+1]); 03555 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03556 03557 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03558 sciprint("Error allocating tmp_log_grads\n"); 03559 return -1; 03560 } 03561 03562 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03563 03564 for(j=0;j<nbsubtics;j++) 03565 { 03566 vzz1 = tmp_log_grads[j]; 03567 03568 if(vzz1<zminval || vzz1>zmaxval) continue; 03569 03570 if(ppsubwin->axes.reverse[2] == TRUE) 03571 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03572 03573 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03574 03575 vx[0]=xm;vy[0]=ym; 03576 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03577 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03578 03579 if(ppsubwin->axes.axes_visible[2] == TRUE) 03580 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03581 } 03582 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03583 } /* end NEW */ 03584 else 03585 { 03586 double xtmp = ppsubwin->axes.u_zgrads[i]; 03587 double dx = (ppsubwin->axes.u_zgrads[i+1] - ppsubwin->axes.u_zgrads[i]) / nbsubtics; 03588 for(j=0;j<nbsubtics;j++) 03589 { 03590 vzz1=xtmp+dx*j; 03591 03592 if(vzz1<zminval || vzz1>zmaxval) continue; 03593 03594 if(ppsubwin->axes.reverse[2] == TRUE) 03595 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03596 03597 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03598 /* trans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); */ 03599 03600 03601 vx[0]=xm;vy[0]=ym; 03602 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03603 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03604 03605 if(ppsubwin->axes.axes_visible[2] == TRUE) 03606 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03607 } 03608 } 03609 } 03610 03611 /***************************************************************/ 03612 /************************* END OF COMMON PART ******************/ 03613 /***************************************************************/ 03614 } 03615 } 03616 else /* we display the computed tics */ 03617 { 03618 AdaptGraduationsOnZ(x,y,size,Ticsdir,fontid,psubwin,zminval,zmaxval,fx,fy,0.); 03619 03620 lastzindex = ppsubwin->axes.nzgrads - 1; 03621 03622 if(lastzindex == 0) 03623 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.zgrads[0])); 03624 else 03625 ChoixFormatE(c_format, 03626 ppsubwin->axes.zgrads[0], 03627 ppsubwin->axes.zgrads[lastzindex], 03628 ((ppsubwin->axes.zgrads[lastzindex])-(ppsubwin->axes.zgrads[0]))/(lastzindex)); 03629 03630 nbtics = ppsubwin->axes.nzgrads; 03631 nbsubtics = ppsubwin->axes.nbsubtics[2]; 03632 03633 maxTicksLabelSize[0] = 0 ; 03634 maxTicksLabelSize[1] = 0 ; 03635 03636 for(i=0;i<nbtics;i++) 03637 { 03638 char foo[256]; 03639 double ztmp = ppsubwin->axes.zgrads[i]; 03640 03641 if(ztmp<zminval || ztmp>zmaxval) 03642 { 03643 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 03644 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 03645 /* donc autant ne pas aller plus loin dans l'algo... */ 03646 } 03647 03648 sprintf(foo,c_format,ztmp); 03649 03650 /***************************************************************/ 03651 /************************* COMMON PART *************************/ 03652 /***************************************************************/ 03653 if(ppsubwin->axes.reverse[2] == TRUE) 03654 ztmp = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],ztmp); 03655 03656 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&ztmp); 03657 03658 /* trans3d(psubwin,1,&xm,&ym,&fx,&fy,&ztmp); */ 03659 03660 03661 vx[0]=xm;vy[0]=ym; 03662 03663 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03664 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03665 vx[1]=vx[0]+barlengthx; 03666 vy[1]=vy[0]+barlengthy; 03667 03668 /* foo is set above with sprintf(foo,c_format,xtmp); */ 03669 03670 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 03671 03672 /* get the size of ticks label */ 03673 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03674 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 03675 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 03676 03677 posi[0] = inint( xm+2*barlengthx - rect[2]); 03678 posi[1]=inint( ym + 2*barlengthy + rect[3]/2); 03679 03680 if(ppsubwin->axes.axes_visible[2] == TRUE){ 03681 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03682 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03683 if ( ppsubwin->logflags[2] == 'l' ) 03684 { 03685 int smallersize = fontid[1]-2; 03686 int old_rect10[4]; 03687 /* char str[2] = "xv"; */ 03688 int posi10[2]; 03689 03690 posi10[0] = posi[0] - logrect[2]; 03691 posi10[1] = posi[1] + logrect[3]; 03692 03693 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03694 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 03695 03696 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03697 03698 posi[0] = old_rect10[0] + old_rect10[2]; 03699 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 03700 03701 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03702 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03703 03704 /* put back the current fontid */ 03705 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03706 } 03707 else{ 03708 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03709 } 03710 03711 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03712 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03713 } 03714 /* grid to put here */ 03715 if ( ppsubwin->grid[2] > -1 && ppsubwin->axes.axes_visible[2] ) 03716 { 03717 gstyle = pSUBWIN_FEATURE (psubwin)->grid[2]; 03718 03719 if((ppsubwin->logflags[2] =='l') && (i != nbtics-1)) 03720 { 03721 double tmp[2]; 03722 double pas=0; 03723 double * tmp_log_grads = (double *) NULL; 03724 03725 03726 double * grads = ppsubwin->axes.zgrads; 03727 03728 tmp[0] = exp10(grads[i]); 03729 tmp[1] = exp10(grads[i+1]); 03730 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03731 03732 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03733 sciprint("Error allocating tmp_log_grads\n"); 03734 return -1; 03735 } 03736 03737 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03738 03739 for(j=0;j<nbsubtics;j++) 03740 { 03741 vzz1 = tmp_log_grads[j]; 03742 03743 if(vzz1<=zminval || vzz1>=zmaxval) continue; 03744 03745 if(ppsubwin->axes.reverse[2] == TRUE) 03746 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03747 03748 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03749 03750 /* if ((ym != iybox[3]) && (ym != iybox[2])) */ 03751 /* { */ 03752 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03753 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03754 xg[0]= ixbox[3];yg[0]= ym; 03755 if (Ishidden(psubwin)) 03756 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03757 else 03758 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03759 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03760 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03761 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03762 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03763 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03764 /* } */ 03765 } 03766 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03767 } 03768 else 03769 { 03770 if(ztmp>zminval && ztmp<zmaxval) 03771 { 03772 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03773 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03774 xg[0]= ixbox[3];yg[0]= ym; 03775 if (Ishidden(psubwin)) 03776 { xg[1]=ixbox[4]; yg[1]= iybox[4]- iybox[3]+ym;} 03777 else 03778 {xg[1]=ixbox[1]; yg[1]= iybox[1]- iybox[2]+ym;} 03779 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03780 xg[0]=xg[1]; ; xg[1] =ixbox[0]; 03781 yg[0]=yg[1]; yg[1]= ym- iybox[3]+ iybox[5]; 03782 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03783 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03784 } 03785 } 03786 } 03787 03788 /* and subtics */ 03789 if(i != nbtics-1) 03790 { 03791 if(ppsubwin->logflags[2] =='l') 03792 { 03793 double tmp[2]; 03794 double pas=0; 03795 double * tmp_log_grads = (double *) NULL; 03796 03797 03798 double * grads = ppsubwin->axes.zgrads; 03799 03800 tmp[0] = exp10(grads[i]); 03801 tmp[1] = exp10(grads[i+1]); 03802 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03803 03804 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03805 sciprint("Error allocating tmp_log_grads\n"); 03806 return -1; 03807 } 03808 03809 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 03810 03811 for(j=0;j<nbsubtics;j++) 03812 { 03813 vzz1 = tmp_log_grads[j]; 03814 03815 if(vzz1<zminval || vzz1>zmaxval) continue; 03816 03817 if(ppsubwin->axes.reverse[2] == TRUE) 03818 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03819 03820 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03821 03822 vx[0]=xm;vy[0]=ym; 03823 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03824 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03825 03826 if(ppsubwin->axes.axes_visible[2] == TRUE) 03827 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03828 } 03829 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 03830 } /* end NEW */ 03831 else 03832 { 03833 double ztmp2 = ppsubwin->axes.zgrads[i]; 03834 double dz = (ppsubwin->axes.zgrads[i+1] - ppsubwin->axes.zgrads[i]) / nbsubtics; 03835 for(j=0;j<nbsubtics;j++) 03836 { 03837 vzz1=ztmp2+dz*j; 03838 03839 if(vzz1<zminval || vzz1>zmaxval) continue; 03840 03841 if(ppsubwin->axes.reverse[2] == TRUE) 03842 vzz1 = InvAxis(ppsubwin->FRect[4],ppsubwin->FRect[5],vzz1); 03843 03844 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); 03845 /* trans3d(psubwin,1,&xm,&ym,&fx,&fy,&vzz1); */ 03846 03847 03848 vx[0]=xm;vy[0]=ym; 03849 vx[1]= (integer) (vx[0]+barlengthx/2.0); 03850 vy[1]= (integer) (vy[0]+barlengthy/2.0); 03851 03852 if(ppsubwin->axes.axes_visible[2] == TRUE) 03853 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03854 } 03855 } 03856 } 03857 /***************************************************************/ 03858 /************************* END OF COMMON PART ******************/ 03859 /***************************************************************/ 03860 03861 } 03862 } 03863 } 03864 03865 if ( sciGetVisibility(ppsubwin->mon_z_label) ) 03866 { 03867 /* draw z label */ 03868 sciLabel * ppLabel = pLABEL_FEATURE(ppsubwin->mon_z_label) ; 03869 03870 if ( ppLabel->auto_rotation ) 03871 { 03872 /* mult by 10 because */ 03873 sciSetFontOrientation(ppsubwin->mon_z_label, 270 * 10 ) ; 03874 } 03875 03876 if( ppLabel->auto_position ) 03877 { 03878 03879 int segmentStart[2] = { ixbox[2], iybox[2] } ; 03880 int segmentEnd[2] = { ixbox[3], iybox[3] } ; 03881 03882 /* add the bar size and ticks label size to the offset */ 03883 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 03884 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 03885 computeLabelAutoPos( ppsubwin->mon_z_label, segmentStart, segmentEnd, offset ) ; 03886 } 03887 /* a trick to force the display with 2d scale */ 03888 drawTextEntity( ppLabel->text ) ; 03889 03890 } 03891 03892 03893 /***********************/ 03894 /*** le x-y scaling ***/ /* DISPLAY x or y graduations */ 03895 /***********************/ 03896 03897 03898 if (( xind[4]+xind[5] == 3) || ( xind[4]+xind[5] == 11)) 03899 { 03900 if (pSUBWIN_FEATURE (psubwin)->project[0]==1) /* x HERE */ 03901 { 03902 double fx,fy,fz; 03903 char c_format[5]; 03904 03905 integer Ticsdir[2]; 03906 Ticsdir[0]=ixbox[4]-ixbox[3]; 03907 Ticsdir[1]=iybox[4]-iybox[3]; 03908 BBoxToval(&fx,&fy,&fz,xind[4],bbox); 03909 x=inint((ixbox[4]+ixbox[5])/2+1.5*rect[2] +iof); 03910 y=inint(((2/3.0)*iybox[4]+(1/3.0)*iybox[5])+1.5*rect[3]+iof); 03911 03912 if( !ppsubwin->axes.auto_ticks[0] ) 03913 { 03914 /* we display the x tics specified by the user*/ 03915 nbtics = ppsubwin->axes.u_nxgrads; 03916 nbsubtics = ppsubwin->axes.nbsubtics[0]; 03917 03918 maxTicksLabelSize[0] = 0 ; 03919 maxTicksLabelSize[1] = 0 ; 03920 03921 for(i=0;i<nbtics;i++) 03922 { 03923 char *foo = ppsubwin->axes.u_xlabels[i]; 03924 double xtmp = ppsubwin->axes.u_xgrads[i]; 03925 03926 if(xtmp<xminval || xtmp>xmaxval) 03927 { 03928 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 03929 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 03930 /* donc autant ne pas aller plus loin dans l'algo... */ 03931 } 03932 03933 /***************************************************************/ 03934 /************************* COMMON PART *************************/ 03935 /***************************************************************/ 03936 03937 if(ppsubwin->axes.reverse[0] == TRUE) 03938 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 03939 03940 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 03941 /* trans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); */ 03942 03943 03944 vx[0]=xm;vy[0]=ym; 03945 03946 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03947 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 03948 03949 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 03950 03951 /* get the size of the icks label */ 03952 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03953 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 03954 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 03955 03956 03957 if (IsDownAxes(psubwin)){ 03958 vx[1]=vx[0]; 03959 vy[1]=vy[0]+iof/2; 03960 posi[0] = inint(xm-rect[2]/2); 03961 posi[1]=inint( vy[0] + iof + rect[3]);} 03962 else{ 03963 vx[1]=vx[0]+barlengthx; 03964 vy[1]=vy[0]+barlengthy; 03965 posi[0] = inint( xm+2*barlengthx); 03966 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 03967 03968 if( ppsubwin->axes.axes_visible[0] ) 03969 { 03970 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03971 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03972 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 03973 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03974 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03975 } 03976 /* grid to put here */ 03977 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 03978 { 03979 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 03980 03981 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 03982 { 03983 double tmp[2]; 03984 double pas=0; 03985 double * tmp_log_grads = (double *) NULL; 03986 03987 03988 double * grads = ppsubwin->axes.u_xgrads; 03989 03990 tmp[0] = exp10(grads[i]); 03991 tmp[1] = exp10(grads[i+1]); 03992 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 03993 03994 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 03995 sciprint("Error allocating tmp_log_grads\n"); 03996 return -1; 03997 } 03998 03999 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04000 04001 for(j=0;j<nbsubtics;j++) 04002 { 04003 vxx1 = tmp_log_grads[j]; 04004 04005 if(vxx1<=xminval || vxx1>=xmaxval) continue; 04006 04007 if(ppsubwin->axes.reverse[0] == TRUE) 04008 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04009 04010 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04011 04012 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04013 /* { */ 04014 xg[0]= xm; yg[0]= ym; 04015 if (Ishidden(psubwin)) 04016 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04017 else 04018 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04019 04020 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04021 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04022 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04023 xg[0]= xg[1]; yg[0]= yg[1]; 04024 xg[1] = ixbox[3] - ixbox[4] +xm; 04025 yg[1]= iybox[2] - iybox[4] +ym; 04026 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04027 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04028 /* } */ 04029 } 04030 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04031 } 04032 else 04033 { 04034 if(xtmp>xminval && xtmp<xmaxval) 04035 { 04036 xg[0]= xm; yg[0]= ym; 04037 if (Ishidden(psubwin)) 04038 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04039 else 04040 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04041 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04042 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04043 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04044 xg[0]= xg[1]; yg[0]= yg[1]; 04045 xg[1] = ixbox[3] - ixbox[4] +xm; 04046 yg[1]= iybox[2] - iybox[4] +ym; 04047 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04048 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04049 } 04050 } 04051 } 04052 04053 /* and subtics */ 04054 if(i != nbtics-1) 04055 { 04056 if(ppsubwin->logflags[0] =='l') 04057 { 04058 double tmp[2]; 04059 double pas=0; 04060 double * tmp_log_grads = (double *) NULL; 04061 04062 04063 double * grads = ppsubwin->axes.u_xgrads; 04064 04065 tmp[0] = exp10(grads[i]); 04066 tmp[1] = exp10(grads[i+1]); 04067 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04068 04069 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04070 sciprint("Error allocating tmp_log_grads\n"); 04071 return -1; 04072 } 04073 04074 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04075 04076 for(j=0;j<nbsubtics;j++) 04077 { 04078 vxx1 = tmp_log_grads[j]; 04079 04080 if(vxx1<xminval || vxx1>xmaxval) continue; 04081 04082 if(ppsubwin->axes.reverse[0] == TRUE) 04083 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04084 04085 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04086 04087 if (IsDownAxes(psubwin)) 04088 { 04089 vx[1]=vx[0]=xm; 04090 vy[0]=ym; 04091 vy[1]=vy[0]+iof/4; 04092 } 04093 else 04094 { 04095 vx[0]=xm;vy[0]=ym; 04096 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04097 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04098 } 04099 04100 if(ppsubwin->axes.axes_visible[0] == TRUE) 04101 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04102 } 04103 04104 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04105 } /* end NEW */ 04106 else 04107 { 04108 double xtmp2 = ppsubwin->axes.u_xgrads[i]; 04109 double dx = (ppsubwin->axes.u_xgrads[i+1] - ppsubwin->axes.u_xgrads[i]) / nbsubtics; 04110 04111 for (j=1;j<nbsubtics;j++) 04112 { 04113 vxx1=xtmp2+dx*j; 04114 04115 if(vxx1<xminval || vxx1>xmaxval) continue; 04116 04117 if(ppsubwin->axes.reverse[0] == TRUE) 04118 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04119 04120 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04121 /* trans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); */ 04122 04123 04124 if (IsDownAxes(psubwin)) 04125 { 04126 vx[1]=vx[0]=xm; 04127 vy[0]=ym; 04128 vy[1]=vy[0]+iof/4; 04129 } 04130 else 04131 { 04132 vx[0]=xm;vy[0]=ym; 04133 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04134 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04135 } 04136 04137 if(ppsubwin->axes.axes_visible[0] == TRUE) 04138 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04139 } 04140 } 04141 } 04142 /***************************************************************/ 04143 /************************* END OF COMMON PART ******************/ 04144 /***************************************************************/ 04145 04146 } 04147 } 04148 else /* we display the computed tics */ 04149 { 04150 AdaptGraduationsOnXBottomRight(iof,x,y,size,Ticsdir,fontid,psubwin,xminval,xmaxval,0.,fy,fz); 04151 04152 lastxindex = ppsubwin->axes.nxgrads - 1; 04153 04154 if(lastxindex == 0) 04155 { 04156 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.xgrads[0])); 04157 } 04158 else 04159 { 04160 ChoixFormatE(c_format, 04161 ppsubwin->axes.xgrads[0], 04162 ppsubwin->axes.xgrads[lastxindex], 04163 ((ppsubwin->axes.xgrads[lastxindex])-(ppsubwin->axes.xgrads[0]))/(lastxindex)); 04164 } 04165 04166 nbtics = ppsubwin->axes.nxgrads; 04167 nbsubtics = ppsubwin->axes.nbsubtics[0]; 04168 04169 maxTicksLabelSize[0] = 0 ; 04170 maxTicksLabelSize[1] = 0 ; 04171 04172 for(i=0;i<nbtics;i++) 04173 { 04174 char foo[256]; 04175 double xtmp = ppsubwin->axes.xgrads[i]; 04176 04177 if(xtmp<xminval || xtmp>xmaxval) 04178 { 04179 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 04180 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 04181 /* donc autant ne pas aller plus loin dans l'algo... */ 04182 } 04183 04184 sprintf(foo,c_format,xtmp); 04185 04186 /***************************************************************/ 04187 /************************* COMMON PART *************************/ 04188 /***************************************************************/ 04189 04190 04191 /* F.Leray 03.11.04 Test if log scale to perform a : exp10(x) because trans3d will */ 04192 /* re-do a log10() (that is needed for data computations) */ 04193 04194 if( ppsubwin->axes.reverse[0] ) 04195 { 04196 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 04197 } 04198 04199 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 04200 04201 vx[0]=xm;vy[0]=ym; 04202 04203 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04204 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04205 04206 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 04207 04208 /* get the size of ticks label */ 04209 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04210 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 04211 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 04212 04213 if (IsDownAxes(psubwin)){ 04214 vx[1]=vx[0]; 04215 vy[1]=vy[0]+iof/2; 04216 posi[0] = inint(xm-rect[2]/2); 04217 posi[1]=inint( vy[0] + iof + rect[3]);} 04218 else{ 04219 vx[1]=vx[0]+barlengthx; 04220 vy[1]=vy[0]+barlengthy; 04221 posi[0] = inint( xm+2*barlengthx); 04222 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 04223 04224 if( ppsubwin->axes.axes_visible[0] ) 04225 { 04226 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04227 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04228 if ( ppsubwin->logflags[0] == 'l' ) 04229 { 04230 int smallersize = fontid[1]-2; 04231 int old_rect10[4]; 04232 int posi10[2]; 04233 04234 posi10[0] = posi[0] - logrect[2]; 04235 posi10[1] = posi[1] + logrect[3]; 04236 04237 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04238 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 04239 04240 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04241 04242 posi[0] = old_rect10[0] + old_rect10[2]; 04243 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 04244 04245 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04246 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04247 04248 /* put back the current fontid */ 04249 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04250 } 04251 else 04252 { 04253 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04254 } 04255 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04256 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04257 } 04258 /* grid to put here */ 04259 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 04260 { 04261 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 04262 04263 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 04264 { 04265 double tmp[2]; 04266 double pas=0; 04267 double * tmp_log_grads = (double *) NULL; 04268 04269 04270 double * grads = ppsubwin->axes.xgrads; 04271 04272 tmp[0] = exp10(grads[i]); 04273 tmp[1] = exp10(grads[i+1]); 04274 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04275 04276 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04277 sciprint("Error allocating tmp_log_grads\n"); 04278 return -1; 04279 } 04280 04281 for(j=0;j<nbsubtics;j++) 04282 { 04283 tmp_log_grads[j] = log10( tmp[0] + (j) * pas ) ; 04284 } 04285 04286 for(j=0;j<nbsubtics;j++) 04287 { 04288 vxx1 = tmp_log_grads[j]; 04289 04290 if(vxx1<=xminval || vxx1>=xmaxval) continue; 04291 04292 if(ppsubwin->axes.reverse[0] == TRUE) 04293 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04294 04295 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04296 04297 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04298 /* { */ 04299 xg[0]= xm; yg[0]= ym; 04300 if (Ishidden(psubwin)) 04301 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04302 else 04303 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04304 04305 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04306 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04307 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04308 xg[0]= xg[1]; yg[0]= yg[1]; 04309 xg[1] = ixbox[3] - ixbox[4] +xm; 04310 yg[1]= iybox[2] - iybox[4] +ym; 04311 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04312 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04313 /* } */ 04314 } 04315 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04316 } 04317 else 04318 { 04319 if(xtmp>xminval && xtmp<xmaxval) 04320 { 04321 xg[0]= xm; yg[0]= ym; 04322 if (Ishidden(psubwin)) 04323 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04324 else 04325 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04326 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04327 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04328 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04329 xg[0]= xg[1]; yg[0]= yg[1]; 04330 xg[1] = ixbox[3] - ixbox[4] +xm; 04331 yg[1]= iybox[2] - iybox[4] +ym; 04332 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04333 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04334 } 04335 } 04336 } 04337 04338 /* and subtics */ 04339 if(i != nbtics-1) /* F.Leray NEW 03.11.04 */ 04340 { 04341 04342 if(ppsubwin->logflags[0] =='l') 04343 { 04344 double tmp[2]; 04345 double pas=0; 04346 double * tmp_log_grads = (double *) NULL; 04347 04348 04349 double * grads = ppsubwin->axes.xgrads; 04350 04351 tmp[0] = exp10(grads[i]); 04352 tmp[1] = exp10(grads[i+1]); 04353 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04354 04355 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04356 sciprint("Error allocating tmp_log_grads\n"); 04357 return -1; 04358 } 04359 04360 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04361 04362 for(j=0;j<nbsubtics;j++) 04363 { 04364 vxx1 = tmp_log_grads[j]; 04365 04366 if(vxx1<xminval || vxx1>xmaxval) continue; 04367 04368 if(ppsubwin->axes.reverse[0] == TRUE) 04369 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04370 04371 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04372 04373 if (IsDownAxes(psubwin)) 04374 { 04375 vx[1]=vx[0]=xm; 04376 vy[0]=ym; 04377 vy[1]=vy[0]+iof/4; 04378 } 04379 else 04380 { 04381 vx[0]=xm;vy[0]=ym; 04382 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04383 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04384 } 04385 04386 if( ppsubwin->axes.axes_visible[0] ) 04387 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04388 } 04389 04390 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04391 } /* end NEW */ 04392 else 04393 { 04394 double xtmp2 = ppsubwin->axes.xgrads[i]; 04395 double dx = (ppsubwin->axes.xgrads[i+1] - ppsubwin->axes.xgrads[i]) / nbsubtics; 04396 04397 for (j=1;j<nbsubtics;j++) 04398 { 04399 vxx1=xtmp2+dx*j; 04400 04401 if(vxx1<xminval || vxx1>xmaxval) continue; 04402 04403 if(ppsubwin->axes.reverse[0] == TRUE) 04404 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 04405 04406 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 04407 04408 if (IsDownAxes(psubwin)) 04409 { 04410 vx[1]=vx[0]=xm; 04411 vy[0]=ym; 04412 vy[1]=vy[0]+iof/4; 04413 } 04414 else 04415 { 04416 vx[0]=xm;vy[0]=ym; 04417 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04418 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04419 } 04420 04421 if(ppsubwin->axes.axes_visible[0] == TRUE) 04422 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04423 } 04424 } 04425 } 04426 04427 /***************************************************************/ 04428 /************************* END OF COMMON PART ******************/ 04429 /***************************************************************/ 04430 04431 } 04432 } 04433 } 04434 if ( sciGetVisibility(ppsubwin->mon_x_label) ) 04435 { 04436 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_x_label ) ; 04437 if( ppLabel->auto_rotation ) 04438 { 04439 sciSetFontOrientation(ppsubwin->mon_x_label, 0) ; 04440 } 04441 04442 04443 if( ppLabel->auto_position ) 04444 { 04445 04446 int segmentStart[2] = { ixbox[4], iybox[4] } ; 04447 int segmentEnd[2] = { ixbox[5], iybox[5] } ; 04448 04449 /* add the bar size and ticks label size to the offset */ 04450 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 04451 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 04452 computeLabelAutoPos( ppsubwin->mon_x_label, segmentStart, segmentEnd, offset ) ; 04453 } 04454 /* a trick to force the display with 2d scale */ 04455 drawTextEntity( ppLabel->text ) ; 04456 04457 } 04458 } 04459 else 04460 { 04461 04462 if ( pSUBWIN_FEATURE (psubwin)->project[1]==1) /* y is HERE */ 04463 { 04464 double fx,fy,fz; 04465 char c_format[5]; 04466 04467 integer Ticsdir[2]; 04468 Ticsdir[0]=ixbox[4]-ixbox[3]; 04469 Ticsdir[1]=iybox[4]-iybox[3]; 04470 BBoxToval(&fx,&fy,&fz,xind[4],bbox); 04471 04472 x=inint((ixbox[4]+ixbox[5])/2+1.5*rect[2] +iof); 04473 y=inint(((2/3.0)*iybox[4]+(1/3.0)*iybox[5])+1.5*rect[3]+iof); 04474 04475 if(ppsubwin->axes.auto_ticks[1] == FALSE) 04476 { 04477 /* we display the y tics specified by the user*/ 04478 nbtics = ppsubwin->axes.u_nygrads; 04479 nbsubtics = ppsubwin->axes.nbsubtics[1]; 04480 04481 maxTicksLabelSize[0] = 0 ; 04482 maxTicksLabelSize[1] = 0 ; 04483 04484 for(i=0;i<nbtics;i++) 04485 { 04486 char *foo = ppsubwin->axes.u_ylabels[i]; 04487 double ytmp = ppsubwin->axes.u_ygrads[i]; 04488 04489 if(ytmp<yminval || ytmp>ymaxval) 04490 { 04491 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 04492 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 04493 /* donc autant ne pas aller plus loin dans l'algo... */ 04494 } 04495 04496 04497 /***************************************************************/ 04498 /************************* COMMON PART *************************/ 04499 /***************************************************************/ 04500 04501 if(ppsubwin->axes.reverse[1] == TRUE) 04502 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 04503 04504 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 04505 /* trans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); */ 04506 04507 04508 04509 vx[0]=xm;vy[0]=ym; 04510 04511 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04512 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04513 /* NumberFormat(foo,((integer) (yy[0] + i*ceil((yy[1]-yy[0])/yy[3]))), */ 04514 /* ((integer) yy[2])); */ 04515 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 04516 04517 /* get the size of the ticks */ 04518 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04519 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 04520 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 04521 04522 04523 if (IsDownAxes(psubwin)){ 04524 vx[1]=vx[0]; 04525 vy[1]=vy[0]+iof/2; 04526 posi[0] = inint(xm-rect[2]/2); 04527 posi[1]=inint( vy[0] + iof + rect[3]);} 04528 else{ 04529 vx[1]=vx[0]+barlengthx; 04530 vy[1]=vy[0]+barlengthy; 04531 /* posi[0] = inint( xm+2*barlengthx - rect[2]/2); */ 04532 /* posi[0] = inint( xm+2*barlengthx - rect[2]); */ 04533 posi[0] = inint( xm+2*barlengthx); 04534 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 04535 04536 if(ppsubwin->axes.axes_visible[1] == TRUE){ 04537 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04538 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04539 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04540 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04541 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04542 } 04543 /* grid to put here */ 04544 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 04545 { 04546 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 04547 04548 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 04549 { 04550 double tmp[2]; 04551 double pas=0; 04552 double * tmp_log_grads = (double *) NULL; 04553 04554 04555 double * grads = ppsubwin->axes.u_ygrads; 04556 04557 tmp[0] = exp10(grads[i]); 04558 tmp[1] = exp10(grads[i+1]); 04559 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04560 04561 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04562 sciprint("Error allocating tmp_log_grads\n"); 04563 return -1; 04564 } 04565 04566 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04567 04568 for(j=0;j<nbsubtics;j++) 04569 { 04570 vyy1 = tmp_log_grads[j]; 04571 04572 if(vyy1<=yminval || vyy1>=ymaxval) continue; 04573 04574 if(ppsubwin->axes.reverse[1] == TRUE) 04575 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04576 04577 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04578 04579 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04580 /* { */ 04581 xg[0]= xm; yg[0]= ym; 04582 if (Ishidden(psubwin)) 04583 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04584 else 04585 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04586 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04587 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04588 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04589 xg[0]= xg[1]; yg[0]= yg[1]; 04590 xg[1] = ixbox[3] - ixbox[4] +xm; 04591 yg[1]= iybox[2] - iybox[4] +ym; 04592 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04593 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04594 /* } */ 04595 } 04596 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04597 } 04598 else 04599 { 04600 if(ytmp>yminval && ytmp<ymaxval) 04601 { 04602 xg[0]= xm; yg[0]= ym; 04603 if (Ishidden(psubwin)) 04604 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04605 else 04606 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04607 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04608 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04609 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04610 xg[0]= xg[1]; yg[0]= yg[1]; 04611 xg[1] = ixbox[3] - ixbox[4] +xm; 04612 yg[1]= iybox[2] - iybox[4] +ym; 04613 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04614 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04615 } 04616 } 04617 } 04618 04619 /* and subtics */ 04620 if(i != nbtics-1) 04621 { 04622 if(ppsubwin->logflags[1] =='l') 04623 { 04624 double tmp[2]; 04625 double pas=0; 04626 double * tmp_log_grads = (double *) NULL; 04627 04628 04629 double * grads = ppsubwin->axes.u_ygrads; 04630 04631 tmp[0] = exp10(grads[i]); 04632 tmp[1] = exp10(grads[i+1]); 04633 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04634 04635 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04636 sciprint("Error allocating tmp_log_grads\n"); 04637 return -1; 04638 } 04639 04640 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04641 04642 for(j=0;j<nbsubtics;j++) 04643 { 04644 vyy1 = tmp_log_grads[j]; 04645 04646 if(vyy1<yminval || vyy1>ymaxval) continue; 04647 04648 if(ppsubwin->axes.reverse[1] == TRUE) 04649 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04650 04651 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04652 04653 if (IsDownAxes(psubwin)) 04654 { 04655 vx[1]=vx[0]=xm; 04656 vy[0]=ym; 04657 vy[1]=vy[0]+iof/4; 04658 } 04659 else 04660 { 04661 vx[0]=xm;vy[0]=ym; 04662 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04663 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04664 } 04665 04666 if(ppsubwin->axes.axes_visible[1] == TRUE) 04667 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04668 } 04669 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04670 04671 } /* end NEW */ 04672 else 04673 { 04674 double ytmp2 = ppsubwin->axes.u_ygrads[i]; 04675 double dy = (ppsubwin->axes.u_ygrads[i+1] - ppsubwin->axes.u_ygrads[i]) / nbsubtics; 04676 for(j=0;j<nbsubtics;j++) 04677 { 04678 vyy1=ytmp2+dy*j; 04679 04680 if(vyy1<yminval || vyy1>ymaxval) continue; 04681 04682 if(ppsubwin->axes.reverse[1] == TRUE) 04683 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04684 04685 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04686 04687 if (IsDownAxes(psubwin)) 04688 { 04689 vx[1]=vx[0]=xm; 04690 vy[0]=ym; 04691 vy[1]=vy[0]+iof/4; 04692 } 04693 else 04694 { 04695 vx[0]=xm;vy[0]=ym; 04696 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04697 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04698 } 04699 04700 if(ppsubwin->axes.axes_visible[1] == TRUE) 04701 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04702 } 04703 } 04704 } 04705 04706 /***************************************************************/ 04707 /************************* END OF COMMON PART ******************/ 04708 /***************************************************************/ 04709 } 04710 } 04711 else /* we display the computed tics */ 04712 { 04713 AdaptGraduationsOnYBottomRight(iof,x,y,size,Ticsdir,fontid,psubwin,yminval,ymaxval,fx,0.,fz); 04714 04715 lastyindex = ppsubwin->axes.nygrads - 1; 04716 04717 if(lastyindex == 0) 04718 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.ygrads[0])); 04719 else 04720 ChoixFormatE(c_format, 04721 ppsubwin->axes.ygrads[0], 04722 ppsubwin->axes.ygrads[lastyindex], 04723 ((ppsubwin->axes.ygrads[lastyindex])-(ppsubwin->axes.ygrads[0]))/(lastyindex)); 04724 04725 nbtics = ppsubwin->axes.nygrads; 04726 nbsubtics = ppsubwin->axes.nbsubtics[1]; 04727 04728 maxTicksLabelSize[0] = 0 ; 04729 maxTicksLabelSize[1] = 0 ; 04730 04731 for(i=0;i<nbtics;i++) 04732 { 04733 char foo[256]; 04734 double ytmp2 = ppsubwin->axes.ygrads[i]; 04735 04736 if(ytmp2<yminval || ytmp2>ymaxval) 04737 { 04738 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 04739 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 04740 /* donc autant ne pas aller plus loin dans l'algo... */ 04741 } 04742 04743 sprintf(foo,c_format,ytmp2); 04744 04745 /***************************************************************/ 04746 /************************* COMMON PART *************************/ 04747 /***************************************************************/ 04748 04749 /* F.Leray 03.11.04 Test if log scale to perform a : exp10(x) because trans3d will */ 04750 /* re-do a log10() (that is needed for data computations) */ 04751 04752 04753 if(ppsubwin->axes.reverse[1] == TRUE) 04754 ytmp2 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp2); 04755 04756 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp2,&fz); 04757 04758 04759 vx[0]=xm;vy[0]=ym; 04760 04761 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04762 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 04763 04764 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 04765 04766 04767 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04768 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 04769 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 04770 04771 if (IsDownAxes(psubwin)){ 04772 vx[1]=vx[0]; 04773 vy[1]=vy[0]+iof/2; 04774 posi[0] = inint(xm-rect[2]/2); 04775 posi[1]=inint( vy[0] + iof + rect[3]);} 04776 else{ 04777 vx[1]=vx[0]+barlengthx; 04778 vy[1]=vy[0]+barlengthy; 04779 /* posi[0] = inint( xm+2*barlengthx - rect[2]/2); */ 04780 /* posi[0] = inint( xm+2*barlengthx - rect[2]); */ 04781 posi[0] = inint( xm+2*barlengthx); 04782 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 04783 04784 if(ppsubwin->axes.axes_visible[1] == TRUE){ 04785 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04786 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04787 if ( ppsubwin->logflags[1] == 'l' ) 04788 { 04789 int smallersize = fontid[1]-2; 04790 int old_rect10[4]; 04791 /* char str[2] = "xv"; */ 04792 int posi10[2]; 04793 04794 posi10[0] = posi[0] - logrect[2]; 04795 posi10[1] = posi[1] + logrect[3]; 04796 04797 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04798 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 04799 04800 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04801 04802 posi[0] = old_rect10[0] + old_rect10[2]; 04803 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 04804 04805 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04806 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04807 04808 /* put back the current fontid */ 04809 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04810 } 04811 else 04812 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 04813 04814 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04815 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04816 } 04817 04818 /* grid to put here */ 04819 04820 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 04821 { 04822 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 04823 04824 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 04825 { 04826 double tmp[2]; 04827 double pas=0; 04828 double * tmp_log_grads = (double *) NULL; 04829 04830 04831 double * grads = ppsubwin->axes.ygrads; 04832 04833 tmp[0] = exp10(grads[i]); 04834 tmp[1] = exp10(grads[i+1]); 04835 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04836 04837 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04838 sciprint("Error allocating tmp_log_grads\n"); 04839 return -1; 04840 } 04841 04842 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04843 04844 for(j=0;j<nbsubtics;j++) 04845 { 04846 vyy1 = tmp_log_grads[j]; 04847 04848 if(vyy1<=yminval || vyy1>=ymaxval) continue; 04849 04850 if(ppsubwin->axes.reverse[1] == TRUE) 04851 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04852 04853 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04854 04855 /* if ((xm != ixbox[5]) && (xm != ixbox[4])) */ 04856 /* { */ 04857 xg[0]= xm; yg[0]= ym; 04858 if (Ishidden(psubwin)) 04859 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04860 else 04861 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04862 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04863 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04864 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04865 xg[0]= xg[1]; yg[0]= yg[1]; 04866 xg[1] = ixbox[3] - ixbox[4] +xm; 04867 yg[1]= iybox[2] - iybox[4] +ym; 04868 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04869 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04870 /* } */ 04871 } 04872 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04873 } 04874 else 04875 { 04876 if(ytmp2>yminval && ytmp2<ymaxval) 04877 { 04878 xg[0]= xm; yg[0]= ym; 04879 if (Ishidden(psubwin)) 04880 { xg[1]= xm; yg[1]= iybox[2] -iybox[3]+ym; } 04881 else 04882 {xg[1]= ixbox[3] - ixbox[4] +xm; yg[1]= iybox[3] - iybox[4] +ym; } 04883 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04884 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04885 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04886 xg[0]= xg[1]; yg[0]= yg[1]; 04887 xg[1] = ixbox[3] - ixbox[4] +xm; 04888 yg[1]= iybox[2] - iybox[4] +ym; 04889 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04890 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 04891 } 04892 } 04893 } 04894 04895 /* and subtics */ 04896 if(i != nbtics-1) 04897 { 04898 if(ppsubwin->logflags[1] =='l') 04899 { 04900 double tmp[2]; 04901 double pas=0; 04902 double * tmp_log_grads = (double *) NULL; 04903 04904 04905 double * grads = ppsubwin->axes.ygrads; 04906 04907 tmp[0] = exp10(grads[i]); 04908 tmp[1] = exp10(grads[i+1]); 04909 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 04910 04911 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 04912 sciprint("Error allocating tmp_log_grads\n"); 04913 return -1; 04914 } 04915 04916 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 04917 04918 for(j=0;j<nbsubtics;j++) 04919 { 04920 vyy1 = tmp_log_grads[j]; 04921 04922 if(vyy1<yminval || vyy1>ymaxval) continue; 04923 04924 if(ppsubwin->axes.reverse[1] == TRUE) 04925 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04926 04927 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04928 04929 if (IsDownAxes(psubwin)) 04930 { 04931 vx[1]=vx[0]=xm; 04932 vy[0]=ym; 04933 vy[1]=vy[0]+iof/4; 04934 } 04935 else 04936 { 04937 vx[0]=xm;vy[0]=ym; 04938 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04939 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04940 } 04941 04942 if(ppsubwin->axes.axes_visible[1] == TRUE) 04943 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04944 } 04945 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 04946 04947 } /* end NEW */ 04948 else 04949 { 04950 double ytmp3 = ppsubwin->axes.ygrads[i]; 04951 double dy = (ppsubwin->axes.ygrads[i+1] - ppsubwin->axes.ygrads[i]) / nbsubtics; 04952 for(j=0;j<nbsubtics;j++) 04953 { 04954 vyy1=ytmp3+dy*j; 04955 04956 if(vyy1<yminval || vyy1>ymaxval) continue; 04957 04958 if(ppsubwin->axes.reverse[1] == TRUE) 04959 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 04960 04961 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 04962 /* trans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); */ 04963 04964 if (IsDownAxes(psubwin)) 04965 { 04966 vx[1]=vx[0]=xm; 04967 vy[0]=ym; 04968 vy[1]=vy[0]+iof/4; 04969 } 04970 else 04971 { 04972 vx[0]=xm;vy[0]=ym; 04973 vx[1]= (integer) (vx[0]+barlengthx/2.0); 04974 vy[1]= (integer) (vy[0]+barlengthy/2.0); 04975 } 04976 04977 if(ppsubwin->axes.axes_visible[1] == TRUE) 04978 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 04979 } 04980 } 04981 } 04982 /***************************************************************/ 04983 /************************* END OF COMMON PART ******************/ 04984 /***************************************************************/ 04985 04986 } 04987 } 04988 } 04989 if ( sciGetVisibility(ppsubwin->mon_y_label) ) 04990 { 04991 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_y_label ) ; 04992 if( ppLabel->auto_rotation ) 04993 { 04994 sciSetFontOrientation( ppsubwin->mon_y_label, 0 ) ; 04995 } 04996 04997 if( ppLabel->auto_position ) 04998 { 04999 05000 int segmentStart[2] = { ixbox[4], iybox[4] } ; 05001 int segmentEnd[2] = { ixbox[5], iybox[5] } ; 05002 05003 /* add the bar size and ticks label size to the offset */ 05004 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 05005 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 05006 computeLabelAutoPos( ppsubwin->mon_y_label, segmentStart, segmentEnd, offset ) ; 05007 } 05008 /* a trick to force the display with 2d scale */ 05009 drawTextEntity( ppLabel->text ) ; 05010 05011 } 05012 } 05013 05014 05015 05016 /***********************/ 05017 /*** le x-y scaling ***/ /* DISPLAY x or y graduations */ 05018 /***********************/ 05019 05020 if (( xind[3]+xind[4] == 3) || ( xind[3]+xind[4] == 11)) 05021 { 05022 if (pSUBWIN_FEATURE (psubwin)->project[0]==1) /* x HERE */ 05023 { 05024 double fx,fy,fz; 05025 char c_format[5]; 05026 05027 05028 integer Ticsdir[2]; 05029 Ticsdir[0]=ixbox[4]-ixbox[5]; 05030 Ticsdir[1]=iybox[4]-iybox[5]; 05031 BBoxToval(&fx,&fy,&fz,xind[3],bbox); 05032 05033 x=inint((ixbox[3]+ixbox[4])/2.0 -rect[2] -iof); 05034 y=inint((1/3.0)*iybox[3]+(2/3.0)*iybox[4]+ iof+ 1.5*rect[3]); 05035 05036 if(ppsubwin->axes.auto_ticks[0] == FALSE) 05037 { 05038 /* we display the x tics specified by the user*/ 05039 nbtics = ppsubwin->axes.u_nxgrads; 05040 nbsubtics = ppsubwin->axes.nbsubtics[0]; 05041 05042 maxTicksLabelSize[0] = 0 ; 05043 maxTicksLabelSize[1] = 0 ; 05044 05045 for(i=0;i<nbtics;i++) 05046 { 05047 char *foo = ppsubwin->axes.u_xlabels[i]; 05048 double xtmp = ppsubwin->axes.u_xgrads[i]; 05049 05050 if(xtmp<xminval || xtmp>xmaxval) 05051 { 05052 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05053 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05054 /* donc autant ne pas aller plus loin dans l'algo... */ 05055 } 05056 05057 /***************************************************************/ 05058 /************************* COMMON PART *************************/ 05059 /***************************************************************/ 05060 05061 if(ppsubwin->axes.reverse[0] == TRUE) 05062 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 05063 05064 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 05065 /* trans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); */ 05066 05067 05068 vx[0]=xm;vy[0]=ym; 05069 05070 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05071 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05072 05073 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05074 05075 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05076 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05077 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05078 05079 05080 if (IsDownAxes(psubwin)){ 05081 vx[1]=vx[0]; 05082 vy[1]=vy[0]+iof/2; 05083 posi[0] = inint(xm-rect[2]/2); 05084 posi[1]=inint( vy[0] + iof + rect[3]);} 05085 else{ 05086 vx[1]=vx[0]+barlengthx; 05087 vy[1]=vy[0]+barlengthy; 05088 posi[0] = inint( xm+2*barlengthx-rect[2]); 05089 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05090 05091 if(ppsubwin->axes.axes_visible[0] == TRUE){ 05092 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05093 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05094 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05095 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05096 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05097 } 05098 /* grid to put here */ 05099 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 05100 { 05101 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 05102 05103 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 05104 { 05105 double tmp[2]; 05106 double pas=0; 05107 double * tmp_log_grads = (double *) NULL; 05108 05109 05110 double * grads = ppsubwin->axes.u_xgrads; 05111 05112 tmp[0] = exp10(grads[i]); 05113 tmp[1] = exp10(grads[i+1]); 05114 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05115 05116 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05117 sciprint("Error allocating tmp_log_grads\n"); 05118 return -1; 05119 } 05120 05121 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05122 05123 for(j=0;j<nbsubtics;j++) 05124 { 05125 vxx1 = tmp_log_grads[j]; 05126 05127 if(vxx1<=xminval || vxx1>=xmaxval) continue; 05128 05129 if(ppsubwin->axes.reverse[0] == TRUE) 05130 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05131 05132 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05133 05134 /* if ((xm != ixbox[3]) && (xm != ixbox[4])) */ 05135 /* { */ 05136 xg[0]= xm; yg[0]= ym; 05137 if (Ishidden(psubwin)) 05138 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05139 else 05140 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05141 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05142 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05143 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05144 xg[0]= xg[1]; yg[0]= yg[1]; 05145 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05146 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05147 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05148 /* } */ 05149 } 05150 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05151 } 05152 else 05153 { 05154 if(xtmp>xminval && xtmp<xmaxval) 05155 { 05156 xg[0]= xm; yg[0]= ym; 05157 if (Ishidden(psubwin)) 05158 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05159 else 05160 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05161 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05162 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05163 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05164 xg[0]= xg[1]; yg[0]= yg[1]; 05165 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05166 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05167 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05168 } 05169 } 05170 } 05171 05172 /* and subtics */ 05173 if(i != nbtics-1) 05174 { 05175 if(ppsubwin->logflags[0] =='l') 05176 { 05177 double tmp[2]; 05178 double pas=0; 05179 double * tmp_log_grads = (double *) NULL; 05180 05181 05182 double * grads = ppsubwin->axes.u_xgrads; 05183 05184 tmp[0] = exp10(grads[i]); 05185 tmp[1] = exp10(grads[i+1]); 05186 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05187 05188 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05189 sciprint("Error allocating tmp_log_grads\n"); 05190 return -1; 05191 } 05192 05193 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05194 05195 for(j=0;j<nbsubtics;j++) 05196 { 05197 vxx1 = tmp_log_grads[j]; 05198 05199 if(vxx1<xminval || vxx1>xmaxval) continue; 05200 05201 if(ppsubwin->axes.reverse[0] == TRUE) 05202 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05203 05204 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05205 05206 if (IsDownAxes(psubwin)) 05207 { 05208 vx[1]=vx[0]=xm; 05209 vy[0]=ym; 05210 vy[1]=vy[0]+iof/4; 05211 } 05212 else 05213 { 05214 vx[0]=xm;vy[0]=ym; 05215 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05216 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05217 } 05218 05219 if(ppsubwin->axes.axes_visible[0] == TRUE) 05220 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05221 } 05222 05223 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05224 } /* end NEW */ 05225 else 05226 { 05227 double xtmp2 = ppsubwin->axes.u_xgrads[i]; 05228 double dx = (ppsubwin->axes.u_xgrads[i+1] - ppsubwin->axes.u_xgrads[i]) / nbsubtics; 05229 05230 for (j=1;j<nbsubtics;j++) 05231 { 05232 vxx1=xtmp2+dx*j; 05233 05234 if(vxx1<xminval || vxx1>xmaxval) continue; 05235 05236 if(ppsubwin->axes.reverse[0] == TRUE) 05237 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05238 05239 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05240 /* trans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); */ 05241 05242 05243 if (IsDownAxes(psubwin)) 05244 { 05245 vx[1]=vx[0]=xm; 05246 vy[0]=ym; 05247 vy[1]=vy[0]+iof/4; 05248 } 05249 else 05250 { 05251 vx[0]=xm;vy[0]=ym; 05252 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05253 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05254 } 05255 05256 if(ppsubwin->axes.axes_visible[0] == TRUE) 05257 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05258 } 05259 } 05260 } 05261 /***************************************************************/ 05262 /************************* COMMON PART *************************/ 05263 /***************************************************************/ 05264 05265 05266 } 05267 05268 } 05269 else /* we display the computed tics */ 05270 { 05271 AdaptGraduationsOnXBottomLeft(iof,x,y,size,Ticsdir,fontid,psubwin,xminval,xmaxval,0.,fy,fz); 05272 05273 lastxindex = ppsubwin->axes.nxgrads - 1; 05274 05275 if(lastxindex == 0) 05276 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.xgrads[0])); 05277 else 05278 ChoixFormatE(c_format, 05279 ppsubwin->axes.xgrads[0], 05280 ppsubwin->axes.xgrads[lastxindex], 05281 ((ppsubwin->axes.xgrads[lastxindex])-(ppsubwin->axes.xgrads[0]))/(lastxindex)); 05282 05283 nbtics = ppsubwin->axes.nxgrads; 05284 nbsubtics = ppsubwin->axes.nbsubtics[0]; 05285 05286 maxTicksLabelSize[0] = 0 ; 05287 maxTicksLabelSize[1] = 0 ; 05288 05289 for(i=0;i<nbtics;i++) 05290 { 05291 char foo[256]; 05292 double xtmp = ppsubwin->axes.xgrads[i]; 05293 05294 if(xtmp<xminval || xtmp>xmaxval) 05295 { 05296 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05297 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05298 /* donc autant ne pas aller plus loin dans l'algo... */ 05299 } 05300 05301 sprintf(foo,c_format,xtmp); 05302 05303 /***************************************************************/ 05304 /************************* COMMON PART *************************/ 05305 /***************************************************************/ 05306 05307 if(ppsubwin->axes.reverse[0] == TRUE) 05308 xtmp = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],xtmp); 05309 05310 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&xtmp,&fy,&fz); 05311 05312 vx[0]=xm;vy[0]=ym; 05313 05314 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05315 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05316 05317 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05318 05319 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05320 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05321 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05322 05323 if (IsDownAxes(psubwin)){ 05324 vx[1]=vx[0]; 05325 vy[1]=vy[0]+iof/2; 05326 posi[0] = inint(xm-rect[2]/2); 05327 posi[1]=inint( vy[0] + iof + rect[3]);} 05328 else{ 05329 vx[1]=vx[0]+barlengthx; 05330 vy[1]=vy[0]+barlengthy; 05331 posi[0] = inint( xm+2*barlengthx-rect[2]); 05332 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05333 05334 if(ppsubwin->axes.axes_visible[0] == TRUE){ 05335 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05336 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05337 if ( ppsubwin->logflags[0] == 'l' ) 05338 { 05339 int smallersize = fontid[1]-2; 05340 int old_rect10[4]; 05341 int posi10[2]; 05342 05343 posi10[0] = posi[0] - logrect[2]; 05344 posi10[1] = posi[1] + logrect[3]; 05345 05346 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05347 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 05348 05349 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05350 05351 posi[0] = old_rect10[0] + old_rect10[2]; 05352 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 05353 05354 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05355 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05356 05357 /* put back the current fontid */ 05358 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05359 } 05360 else 05361 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05362 05363 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05364 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05365 } 05366 /* grid to put here */ 05367 if ( ppsubwin->grid[0] > -1 && ppsubwin->axes.axes_visible[0] ) 05368 { 05369 gstyle = pSUBWIN_FEATURE (psubwin)->grid[0]; 05370 05371 if((ppsubwin->logflags[0] =='l') && (i != nbtics-1)) 05372 { 05373 double tmp[2]; 05374 double pas=0; 05375 double * tmp_log_grads = (double *) NULL; 05376 05377 05378 double * grads = ppsubwin->axes.xgrads; 05379 05380 tmp[0] = exp10(grads[i]); 05381 tmp[1] = exp10(grads[i+1]); 05382 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05383 05384 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05385 sciprint("Error allocating tmp_log_grads\n"); 05386 return -1; 05387 } 05388 05389 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05390 05391 for(j=0;j<nbsubtics;j++) 05392 { 05393 vxx1 = tmp_log_grads[j]; 05394 05395 if(vxx1<=xminval || vxx1>=xmaxval) continue; 05396 05397 if(ppsubwin->axes.reverse[0] == TRUE) 05398 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05399 05400 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05401 05402 05403 xg[0]= xm; yg[0]= ym; 05404 if (Ishidden(psubwin)) 05405 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05406 else 05407 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05408 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05409 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05410 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05411 xg[0]= xg[1]; yg[0]= yg[1]; 05412 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05413 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05414 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05415 05416 } 05417 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05418 } 05419 else 05420 { 05421 if(xtmp>xminval && xtmp<xmaxval) 05422 { 05423 xg[0]= xm; yg[0]= ym; 05424 if (Ishidden(psubwin)) 05425 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05426 else 05427 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05428 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05429 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05430 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05431 xg[0]= xg[1]; yg[0]= yg[1]; 05432 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05433 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05434 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05435 } 05436 } 05437 } 05438 05439 /* and subtics */ 05440 if(i != nbtics-1) 05441 { 05442 if(ppsubwin->logflags[0] =='l') 05443 { 05444 double tmp[2]; 05445 double pas=0; 05446 double * tmp_log_grads = (double *) NULL; 05447 05448 05449 double * grads = ppsubwin->axes.xgrads; 05450 05451 tmp[0] = exp10(grads[i]); 05452 tmp[1] = exp10(grads[i+1]); 05453 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05454 05455 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05456 sciprint("Error allocating tmp_log_grads\n"); 05457 return -1; 05458 } 05459 05460 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05461 05462 for(j=0;j<nbsubtics;j++) 05463 { 05464 vxx1 = tmp_log_grads[j]; 05465 05466 if(vxx1<xminval || vxx1>xmaxval) continue; 05467 05468 if(ppsubwin->axes.reverse[0] == TRUE) 05469 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05470 05471 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05472 05473 if (IsDownAxes(psubwin)) 05474 { 05475 vx[1]=vx[0]=xm; 05476 vy[0]=ym; 05477 vy[1]=vy[0]+iof/4; 05478 } 05479 else 05480 { 05481 vx[0]=xm;vy[0]=ym; 05482 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05483 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05484 } 05485 05486 if(ppsubwin->axes.axes_visible[0] == TRUE) 05487 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05488 } 05489 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05490 } /* end NEW */ 05491 else 05492 { 05493 double xtmp2 = ppsubwin->axes.xgrads[i]; 05494 double dx = (ppsubwin->axes.xgrads[i+1] - ppsubwin->axes.xgrads[i]) / nbsubtics; 05495 05496 for (j=1;j<nbsubtics;j++) 05497 { 05498 vxx1=xtmp2+dx*j; 05499 05500 if(vxx1<xminval || vxx1>xmaxval) continue; 05501 05502 if(ppsubwin->axes.reverse[0] == TRUE) 05503 vxx1 = InvAxis(ppsubwin->FRect[0],ppsubwin->FRect[2],vxx1); 05504 05505 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); 05506 /* trans3d(psubwin,1,&xm,&ym,&vxx1,&fy,&fz); */ 05507 05508 05509 if (IsDownAxes(psubwin)) 05510 { 05511 vx[1]=vx[0]=xm; 05512 vy[0]=ym; 05513 vy[1]=vy[0]+iof/4; 05514 } 05515 else 05516 { 05517 vx[0]=xm;vy[0]=ym; 05518 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05519 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05520 } 05521 05522 if(ppsubwin->axes.axes_visible[0] == TRUE) 05523 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05524 } 05525 } 05526 } 05527 /***************************************************************/ 05528 /************************* COMMON PART *************************/ 05529 /***************************************************************/ 05530 05531 } 05532 } 05533 } 05534 05535 if ( sciGetVisibility(ppsubwin->mon_x_label) ) 05536 { 05537 05538 sciLabel * ppLabel = pLABEL_FEATURE(ppsubwin->mon_x_label) ; 05539 if( ppLabel->auto_rotation ) 05540 { 05541 sciSetFontOrientation(ppsubwin->mon_x_label, 0 ) ; 05542 } 05543 05544 05545 if( ppLabel->auto_position ) 05546 { 05547 05548 int segmentStart[2] = { ixbox[3], iybox[3] } ; 05549 int segmentEnd[2] = { ixbox[4], iybox[4] } ; 05550 05551 /* add the bar size and ticks label size to the offset */ 05552 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 05553 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 05554 computeLabelAutoPos( ppsubwin->mon_x_label, segmentStart, segmentEnd, offset ) ; 05555 } 05556 /* a trick to force the display with 2d scale */ 05557 drawTextEntity( ppLabel->text ) ; 05558 05559 } 05560 } 05561 else 05562 { 05563 if (pSUBWIN_FEATURE (psubwin)->project[1]==1) /* y is HERE */ 05564 { 05565 double fx,fy,fz; 05566 char c_format[5]; 05567 05568 integer Ticsdir[2]; 05569 Ticsdir[0]=ixbox[4]-ixbox[5]; 05570 Ticsdir[1]=iybox[4]-iybox[5]; 05571 BBoxToval(&fx,&fy,&fz,xind[3],bbox); 05572 05573 x=inint((ixbox[3]+ixbox[4])/2.0 -rect[2] -iof); 05574 y=inint((1/3.0)*iybox[3]+(2/3.0)*iybox[4]+ iof + 1.5*rect[3]); 05575 05576 if(ppsubwin->axes.auto_ticks[1] == FALSE) 05577 { 05578 /* we display the y tics specified by the user*/ 05579 nbtics = ppsubwin->axes.u_nygrads; 05580 nbsubtics = ppsubwin->axes.nbsubtics[1]; 05581 05582 maxTicksLabelSize[0] = 0 ; 05583 maxTicksLabelSize[1] = 0 ; 05584 05585 for(i=0;i<nbtics;i++) 05586 { 05587 char *foo = ppsubwin->axes.u_ylabels[i]; 05588 double ytmp = ppsubwin->axes.u_ygrads[i]; 05589 05590 if(ytmp<yminval || ytmp>ymaxval) 05591 { 05592 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05593 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05594 /* donc autant ne pas aller plus loin dans l'algo... */ 05595 } 05596 05597 /***************************************************************/ 05598 /************************* COMMON PART *************************/ 05599 /***************************************************************/ 05600 05601 if(ppsubwin->axes.reverse[1] == TRUE) 05602 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 05603 05604 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 05605 /* trans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); */ 05606 05607 05608 vx[0]=xm;vy[0]=ym; 05609 05610 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05611 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05612 05613 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05614 05615 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05616 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05617 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05618 05619 if (IsDownAxes(psubwin)){ 05620 vx[1]=vx[0]; 05621 vy[1]=vy[0]+iof/2; 05622 posi[0] = inint(xm-rect[2]/2); 05623 posi[1]=inint( vy[0] + iof + rect[3]);} 05624 else{ 05625 vx[1]=vx[0]+barlengthx; 05626 vy[1]=vy[0]+barlengthy; 05627 /* posi[0] = inint( xm+2*barlengthx-rect[2]/2); */ 05628 posi[0] = inint( xm+2*barlengthx-rect[2]); 05629 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05630 05631 05632 if(ppsubwin->axes.axes_visible[1] == TRUE){ 05633 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05634 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05635 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05636 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05637 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05638 } 05639 /* grid to put here */ 05640 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 05641 { 05642 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 05643 05644 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 05645 { 05646 double tmp[2]; 05647 double pas=0; 05648 double * tmp_log_grads = (double *) NULL; 05649 05650 05651 double * grads = ppsubwin->axes.u_ygrads; 05652 05653 tmp[0] = exp10(grads[i]); 05654 tmp[1] = exp10(grads[i+1]); 05655 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05656 05657 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05658 sciprint("Error allocating tmp_log_grads\n"); 05659 return -1; 05660 } 05661 05662 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05663 05664 for(j=0;j<nbsubtics;j++) 05665 { 05666 vyy1 = tmp_log_grads[j]; 05667 05668 if(vyy1<=yminval || vyy1>=ymaxval) continue; 05669 05670 if(ppsubwin->axes.reverse[1] == TRUE) 05671 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05672 05673 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05674 05675 /* if ((xm != ixbox[3]) && (xm != ixbox[4])) */ 05676 /* { */ 05677 xg[0]= xm; yg[0]= ym; 05678 if (Ishidden(psubwin)) 05679 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05680 else 05681 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05682 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05683 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05684 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05685 xg[0]= xg[1]; yg[0]= yg[1]; 05686 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05687 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05688 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05689 /* } */ 05690 } 05691 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05692 } 05693 else 05694 { 05695 if(ytmp>yminval && ytmp<ymaxval) 05696 { 05697 xg[0]= xm; yg[0]= ym; 05698 if (Ishidden(psubwin)) 05699 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05700 else 05701 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05702 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05703 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05704 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05705 xg[0]= xg[1]; yg[0]= yg[1]; 05706 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05707 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05708 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05709 } 05710 } 05711 } 05712 05713 /* and subtics */ 05714 if(i != nbtics-1) 05715 { 05716 if(ppsubwin->logflags[1] =='l') 05717 { 05718 double tmp[2]; 05719 double pas=0; 05720 double * tmp_log_grads = (double *) NULL; 05721 05722 05723 double * grads = ppsubwin->axes.u_ygrads; 05724 05725 tmp[0] = exp10(grads[i]); 05726 tmp[1] = exp10(grads[i+1]); 05727 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05728 05729 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05730 sciprint("Error allocating tmp_log_grads\n"); 05731 return -1; 05732 } 05733 05734 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05735 05736 for(j=0;j<nbsubtics;j++) 05737 { 05738 vyy1 = tmp_log_grads[j]; 05739 05740 if(vyy1<yminval || vyy1>ymaxval) continue; 05741 05742 if(ppsubwin->axes.reverse[1] == TRUE) 05743 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05744 05745 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05746 05747 if (IsDownAxes(psubwin)) 05748 { 05749 vx[1]=vx[0]=xm; 05750 vy[0]=ym; 05751 vy[1]=vy[0]+iof/4; 05752 } 05753 else 05754 { 05755 vx[0]=xm;vy[0]=ym; 05756 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05757 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05758 } 05759 05760 if(ppsubwin->axes.axes_visible[1] == TRUE) 05761 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05762 } 05763 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05764 05765 } /* end NEW */ 05766 else 05767 { 05768 05769 double ytmp2 = ppsubwin->axes.u_ygrads[i]; 05770 double dy = (ppsubwin->axes.u_ygrads[i+1] - ppsubwin->axes.u_ygrads[i]) / nbsubtics; 05771 for(j=0;j<nbsubtics;j++) 05772 { 05773 vyy1=ytmp2+dy*j; 05774 05775 if(vyy1<yminval || vyy1>ymaxval) continue; 05776 05777 if(ppsubwin->axes.reverse[1] == TRUE) 05778 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05779 05780 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05781 /* trans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); */ 05782 05783 05784 if (IsDownAxes(psubwin)) 05785 { 05786 vx[1]=vx[0]=xm; 05787 vy[0]=ym; 05788 vy[1]=vy[0]+iof/4; 05789 } 05790 else 05791 { 05792 vx[0]=xm;vy[0]=ym; 05793 vx[1]= (integer) (vx[0]+barlengthx/2.0); 05794 vy[1]= (integer) (vy[0]+barlengthy/2.0); 05795 } 05796 05797 if(ppsubwin->axes.axes_visible[1] == TRUE) 05798 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05799 } 05800 } 05801 } 05802 /***************************************************************/ 05803 /************************* COMMON PART *************************/ 05804 /***************************************************************/ 05805 05806 } 05807 } 05808 else /* we display the computed tics */ 05809 { 05810 AdaptGraduationsOnYBottomLeft(iof,x,y,size,Ticsdir,fontid,psubwin,yminval,ymaxval,fx,0.,fz); 05811 05812 lastyindex = ppsubwin->axes.nygrads - 1; 05813 05814 if(lastyindex == 0) 05815 ChooseFormatForOneGrad(c_format,&(ppsubwin->axes.ygrads[0])); 05816 else 05817 ChoixFormatE(c_format, 05818 ppsubwin->axes.ygrads[0], 05819 ppsubwin->axes.ygrads[lastyindex], 05820 ((ppsubwin->axes.ygrads[lastyindex])-(ppsubwin->axes.ygrads[0]))/(lastyindex)); 05821 05822 nbtics = ppsubwin->axes.nygrads; 05823 nbsubtics = ppsubwin->axes.nbsubtics[1]; 05824 05825 maxTicksLabelSize[0] = 0 ; 05826 maxTicksLabelSize[1] = 0 ; 05827 05828 for(i=0;i<nbtics;i++) 05829 { 05830 char foo[256]; 05831 double ytmp = ppsubwin->axes.ygrads[i]; 05832 05833 if(ytmp<yminval || ytmp>ymaxval) 05834 { 05835 /* sciprint("je rejete la valeur: %lf\n\n",xtmp); */ 05836 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichees de tte facon */ 05837 /* donc autant ne pas aller plus loin dans l'algo... */ 05838 } 05839 05840 sprintf(foo,c_format,ytmp); 05841 05842 /***************************************************************/ 05843 /************************* COMMON PART *************************/ 05844 /***************************************************************/ 05845 05846 if(ppsubwin->axes.reverse[1] == TRUE) 05847 ytmp = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],ytmp); 05848 05849 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); 05850 /* trans3d(psubwin,1,&xm,&ym,&fx,&ytmp,&fz); */ 05851 05852 05853 vx[0]=xm;vy[0]=ym; 05854 05855 barlengthx= (integer) (( Ticsdir[0])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05856 barlengthy= (integer) (( Ticsdir[1])/sqrt((double) Ticsdir[0]*Ticsdir[0]+Ticsdir[1]*Ticsdir[1])*size); 05857 05858 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 05859 05860 C2F(dr)("xstringl",foo,&x,&y,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05861 maxTicksLabelSize[0] = Max( maxTicksLabelSize[0], rect[2] ) ; 05862 maxTicksLabelSize[1] = Max( maxTicksLabelSize[1], rect[3] ) ; 05863 05864 if (IsDownAxes(psubwin)){ 05865 vx[1]=vx[0]; 05866 vy[1]=vy[0]+iof/2; 05867 posi[0] = inint(xm-rect[2]/2); 05868 posi[1]=inint( vy[0] + iof + rect[3]);} 05869 else{ 05870 vx[1]=vx[0]+barlengthx; 05871 vy[1]=vy[0]+barlengthy; 05872 /* posi[0] = inint( xm+2*barlengthx-rect[2]/2); */ 05873 posi[0] = inint( xm+2*barlengthx-rect[2]); 05874 posi[1]=inint( ym + 2*barlengthy + rect[3]);} 05875 05876 if(ppsubwin->axes.axes_visible[1] == TRUE){ 05877 C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05878 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05879 if ( ppsubwin->logflags[1] == 'l' ) 05880 { 05881 int smallersize = fontid[1]-2; 05882 int old_rect10[4]; 05883 /* char str[2] = "xv"; */ 05884 int posi10[2]; 05885 05886 posi10[0] = posi[0] - logrect[2]; 05887 posi10[1] = posi[1] + logrect[3]; 05888 05889 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05890 C2F(dr)("xstring","10",(&posi10[0]),(&posi10[1]),PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 05891 05892 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),old_rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05893 05894 posi[0] = old_rect10[0] + old_rect10[2]; 05895 posi[1] = (int) (old_rect10[1] - old_rect10[3]*.1); 05896 05897 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05898 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05899 05900 /* put back the current fontid */ 05901 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05902 } 05903 else 05904 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&ang, PD0,PD0,PD0,0L,0L); 05905 05906 C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05907 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05908 } 05909 /* grid to put here */ 05910 if ( ppsubwin->grid[1] > -1 && ppsubwin->axes.axes_visible[1] ) 05911 { 05912 gstyle = pSUBWIN_FEATURE (psubwin)->grid[1]; 05913 05914 if((ppsubwin->logflags[1] =='l') && (i != nbtics-1)) 05915 { 05916 double tmp[2]; 05917 double pas=0; 05918 double * tmp_log_grads = (double *) NULL; 05919 05920 05921 double * grads = ppsubwin->axes.ygrads; 05922 05923 tmp[0] = exp10(grads[i]); 05924 tmp[1] = exp10(grads[i+1]); 05925 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05926 05927 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 05928 sciprint("Error allocating tmp_log_grads\n"); 05929 return -1; 05930 } 05931 05932 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 05933 05934 for(j=0;j<nbsubtics;j++) 05935 { 05936 vyy1 = tmp_log_grads[j]; 05937 05938 if(vyy1<=yminval || vyy1>=ymaxval) continue; 05939 05940 if(ppsubwin->axes.reverse[1] == TRUE) 05941 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 05942 05943 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 05944 05945 /* if ((xm != ixbox[3]) && (xm != ixbox[4])) */ 05946 /* { */ 05947 xg[0]= xm; yg[0]= ym; 05948 if (Ishidden(psubwin)) 05949 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05950 else 05951 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05952 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05953 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05954 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05955 xg[0]= xg[1]; yg[0]= yg[1]; 05956 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05957 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05958 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05959 /* } */ 05960 } 05961 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 05962 } 05963 else 05964 { 05965 if(ytmp>yminval && ytmp<ymaxval) 05966 { 05967 xg[0]= xm; yg[0]= ym; 05968 if (Ishidden(psubwin)) 05969 { xg[1]= xm; yg[1]= iybox[0] -iybox[5]+ym; } 05970 else 05971 {xg[1]= ixbox[1] - ixbox[3] +xm; yg[1]= iybox[5] - iybox[4] +ym; } 05972 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05973 C2F (dr) ("xset", "line style",&gridStyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05974 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05975 xg[0]= xg[1]; yg[0]= yg[1]; 05976 xg[1] = ixbox[1] - ixbox[3] +xm; yg[1]= iybox[0] - iybox[4] +ym; 05977 C2F(dr)("xsegs","v", xg, yg, &ns,&gstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 05978 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 05979 } 05980 } 05981 } 05982 05983 /* and subtics */ 05984 if(i != nbtics-1) 05985 { 05986 if(ppsubwin->logflags[1] =='l') 05987 { 05988 double tmp[2]; 05989 double pas=0; 05990 double * tmp_log_grads = (double *) NULL; 05991 05992 05993 double * grads = ppsubwin->axes.ygrads; 05994 05995 tmp[0] = exp10(grads[i]); 05996 tmp[1] = exp10(grads[i+1]); 05997 pas = (exp10(grads[i+1]) - exp10(grads[i])) / (nbsubtics ); 05998 05999 if((tmp_log_grads = (double *)MALLOC(nbsubtics*sizeof(double)))==NULL){ 06000 sciprint("Error allocating tmp_log_grads\n"); 06001 return -1; 06002 } 06003 06004 for(j=0;j<nbsubtics;j++) tmp_log_grads[j] = log10(tmp[0]+(j)*pas); 06005 06006 for(j=0;j<nbsubtics;j++) 06007 { 06008 vyy1 = tmp_log_grads[j]; 06009 06010 if(vyy1<yminval || vyy1>ymaxval) continue; 06011 06012 if(ppsubwin->axes.reverse[1] == TRUE) 06013 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 06014 06015 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 06016 06017 if (IsDownAxes(psubwin)) 06018 { 06019 vx[1]=vx[0]=xm; 06020 vy[0]=ym; 06021 vy[1]=vy[0]+iof/4; 06022 } 06023 else 06024 { 06025 vx[0]=xm;vy[0]=ym; 06026 vx[1]= (integer) (vx[0]+barlengthx/2.0); 06027 vy[1]= (integer) (vy[0]+barlengthy/2.0); 06028 } 06029 06030 if(ppsubwin->axes.axes_visible[1] == TRUE) 06031 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 06032 } 06033 FREE(tmp_log_grads); tmp_log_grads = (double *) NULL; 06034 06035 } /* end NEW */ 06036 else 06037 { 06038 06039 double ytmp2 = ppsubwin->axes.ygrads[i]; 06040 double dy = (ppsubwin->axes.ygrads[i+1] - ppsubwin->axes.ygrads[i]) / nbsubtics; 06041 for(j=0;j<nbsubtics;j++) 06042 { 06043 vyy1=ytmp2+dy*j; 06044 06045 if(vyy1<yminval || vyy1>ymaxval) continue; 06046 06047 if(ppsubwin->axes.reverse[1] == TRUE) 06048 vyy1 = InvAxis(ppsubwin->FRect[1],ppsubwin->FRect[3],vyy1); 06049 06050 ComputeGoodTrans3d(psubwin,1,&xm,&ym,&fx,&vyy1,&fz); 06051 06052 if (IsDownAxes(psubwin)) 06053 { 06054 vx[1]=vx[0]=xm; 06055 vy[0]=ym; 06056 vy[1]=vy[0]+iof/4; 06057 } 06058 else 06059 { 06060 vx[0]=xm;vy[0]=ym; 06061 vx[1]= (integer) (vx[0]+barlengthx/2.0); 06062 vy[1]= (integer) (vy[0]+barlengthy/2.0); 06063 } 06064 06065 if(ppsubwin->axes.axes_visible[1] == TRUE) 06066 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 06067 } 06068 } 06069 } 06070 06071 /***************************************************************/ 06072 /************************* COMMON PART *************************/ 06073 /***************************************************************/ 06074 } 06075 } 06076 } 06077 06078 if ( sciGetVisibility(ppsubwin->mon_y_label) ) 06079 { 06080 sciLabel * ppLabel = pLABEL_FEATURE(ppsubwin->mon_y_label) ; 06081 if( ppLabel->auto_rotation ) 06082 { 06083 sciSetFontOrientation(ppsubwin->mon_y_label, 0 ) ; 06084 } 06085 06086 if( ppLabel->auto_position ) 06087 { 06088 06089 int segmentStart[2] = { ixbox[3], iybox[3] } ; 06090 int segmentEnd[2] = { ixbox[4], iybox[4] } ; 06091 06092 /* add the bar size and ticks label size to the offset */ 06093 int offset[2] = { constOffset[0] + maxTicksLabelSize[0] + abs( barlengthx ), 06094 constOffset[1] + maxTicksLabelSize[1] + abs( barlengthy ) } ; 06095 computeLabelAutoPos( ppsubwin->mon_y_label, segmentStart, segmentEnd, offset ) ; 06096 } 06097 /* a trick to force the display with 2d scale */ 06098 drawTextEntity( ppLabel->text ) ; 06099 06100 } 06101 } 06102 /* reset font to its current size & to current color*/ 06103 if ( fontsize != -1 ){ 06104 fontid[1] = fontsize_kp; 06105 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 06106 } 06107 if ( textcolor != -1 || ticscolor != -1 ) 06108 C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 06109 /***/ 06110 /* FREE(loc); */ 06111 06112 06113 return 0; 06114 }
Here is the caller graph for this function:
| void axis_3ddraw | ( | sciPointObj * | pobj, | |
| double * | xbox, | |||
| double * | ybox, | |||
| double * | zbox, | |||
| integer * | InsideU, | |||
| integer * | InsideD | |||
| ) |
axis_3ddraw 10/2003
l'enveloppe cvxe
Definition at line 2825 of file Axes.c.
References Abs, Alpha, sciSubWindow::alpha, sciSubWindow::axes, Axes3dStrings2(), BT_BACK_HALF, BT_OFF, BT_ON, C2F, ComputeCorrectXindAndInsideUD(), dbox(), dr(), DrawAxis(), AXES::flag, AXES::hiddenAxisColor, sciSubWindow::hiddenstate, i, Ishidden(), L, n, p, PD0, PI0, pSUBWIN_FEATURE, SCI_SUBWIN, sciAxesVerticesIndices(), sciGetBackground(), sciGetBoxType(), sciGetEntityType(), sciGetForeground(), sciGetLineStyle(), sciGetLineWidth(), sciSetGoodIndex(), sciSubWindow::theta, updateScale3d(), x, XScale(), and YScale().
Referenced by drawSubWinEntity(), and UpdateSubwinScale().
02826 { 02827 double dbox[6]; 02828 integer flag,i,p,n,pat,hiddencolor, x[5]; /* F. Leray : redimmensionnment (+1) du tableau x[4];*/ 02829 static double Alpha, Teta; 02830 int verbose=0,narg; 02831 integer ixbox[8],iybox[8],xind[8],dash[6]; 02832 integer background,zero=0, color_old; /* Adding color_old 04.03.04*/ 02833 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (pobj); 02834 EAxesBoxType subWinBoxType = sciGetBoxType( pobj ) ; 02835 02836 /* Initialisation phase for x (to detect bug): x set to -1000 F.Leray 05.03.04*/ 02837 for(i=0;i<5;i++) { x[i] = -1000 ; } 02838 02839 if(sciGetEntityType (pobj) == SCI_SUBWIN) 02840 { 02841 02842 updateScale3d( pobj, dbox, xbox, ybox, zbox ) ; 02843 /* Until here we have computed + reset the 3d scale*/ 02844 Teta = ppsubwin->theta ; 02845 Alpha = ppsubwin->alpha ; 02846 if( Abs( Teta ) < 0.1 ) 02847 { 02848 /* to avoid bug at limit when theta == 0 */ 02849 /* I recompute temp value xyzbox with theta == 0.1 */ 02850 /* to have a correct xind, InsideU et InsideD */ 02851 ComputeCorrectXindAndInsideUD( Teta, Alpha, dbox, xind, InsideU, InsideD ) ; 02852 } 02853 else 02854 { 02855 sciAxesVerticesIndices( InsideU, InsideD, xbox, ybox, xind ) ; 02856 } 02857 02858 /* F.Leray Rajout 02.04.04 :*/ 02859 background = sciGetBackground(pobj) ; 02860 02861 for ( i = 0 ; i < 6 ; i++ ) 02862 { 02863 ixbox[i]=XScale(xbox[xind[i]]); 02864 iybox[i]=YScale(ybox[xind[i]]); 02865 } 02866 ixbox[6] = ixbox[0] ; 02867 iybox[6] = iybox[0] ; 02868 p = 7 ; 02869 n = 1 ; 02870 02871 C2F(dr)("xget","pattern",&verbose,&color_old,&zero,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02872 C2F(dr)("xset","pattern",&background,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02873 C2F (dr) ("xarea", "v", &p, ixbox, iybox, &n, PI0, PI0, PD0, PD0, PD0, PD0, 5L,0L); 02874 C2F(dr)("xset","pattern",&color_old,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02875 /***********/ 02876 /*** hidden axis */ 02877 02878 flag = ppsubwin->axes.flag[2]; /* box drawing */ 02879 02880 if ( subWinBoxType != BT_OFF ) 02881 { 02882 x[2] = sciGetLineWidth (pobj); 02883 x[3] = sciGetLineStyle (pobj); 02884 C2F (dr) ("xset","thickness",x+2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02885 02886 hiddencolor = sciSetGoodIndex( pobj, ppsubwin->axes.hiddenAxisColor ) ; 02887 02888 if (zbox[InsideU[0]] > zbox[InsideD[0]]) 02889 { 02890 DrawAxis(xbox,ybox,InsideD,hiddencolor); 02891 } 02892 else 02893 { 02894 DrawAxis(xbox,ybox,InsideU,hiddencolor); 02895 } 02896 if (Ishidden(pobj)) 02897 { 02898 ppsubwin->hiddenstate=(InsideU[0] % 4); 02899 } 02900 else 02901 { 02902 ppsubwin->hiddenstate=(InsideD[0] % 4); 02903 } 02904 } 02906 x[0] = sciGetForeground (pobj); /* F.Leray 05.03.04 Useless or not?? because we used set pattern instead of set foreground (because Windows uses BRUSH and PEN...)*/ 02907 /* Wrong explanation: We use sciGetForeground in NG mode and used set foreground in old graphic mode*/ 02908 x[2] = sciGetLineWidth (pobj); /* Adding this line 05.03.04*/ 02909 x[3] = sciGetLineStyle (pobj); 02910 x[4] = 0; 02911 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02912 C2F(dr)("xget","pattern",&verbose,&pat,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02913 /* We are in axis_3ddraw() and sciGetEntityType (pobj) == SCI_SUBWIN*/ 02914 C2F (dr) ("xset", "dashes", x, x, x+4, x+4, x+4,PI0,PD0,PD0,PD0,PD0, 5L, 6L); 02915 C2F (dr) ("xset","foreground",x,x,x+4,x+4,x+4,PI0,PD0,PD0,PD0,PD0,5L,4096); /* F.Leray 05.03.04 Useless too*/ 02916 C2F (dr) ("xset","thickness",x+2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02917 C2F (dr) ("xset", "line style", x+3,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02918 02919 p = 7 ; 02920 n = 1 ; 02921 for ( i = 0 ; i < p ; i++ ) 02922 { 02923 ixbox[i] = XScale( xbox[ xind[i] ] ) ; 02924 iybox[i] = YScale( ybox[ xind[i] ] ) ; 02925 } 02926 ixbox[p-1]=ixbox[0];iybox[p-1]=iybox[0]; 02927 02928 if ( subWinBoxType == BT_BACK_HALF || subWinBoxType == BT_ON ) 02929 { 02930 C2F(dr)("xpolys","v",ixbox,iybox,x,&n,&p,PI0,PD0,PD0,PD0,PD0,0L,0L); 02931 02932 } 02933 Axes3dStrings2(ixbox,iybox,xind) ; 02934 02935 C2F(dr)("xset","pattern",&pat,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02936 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02937 } 02938 }

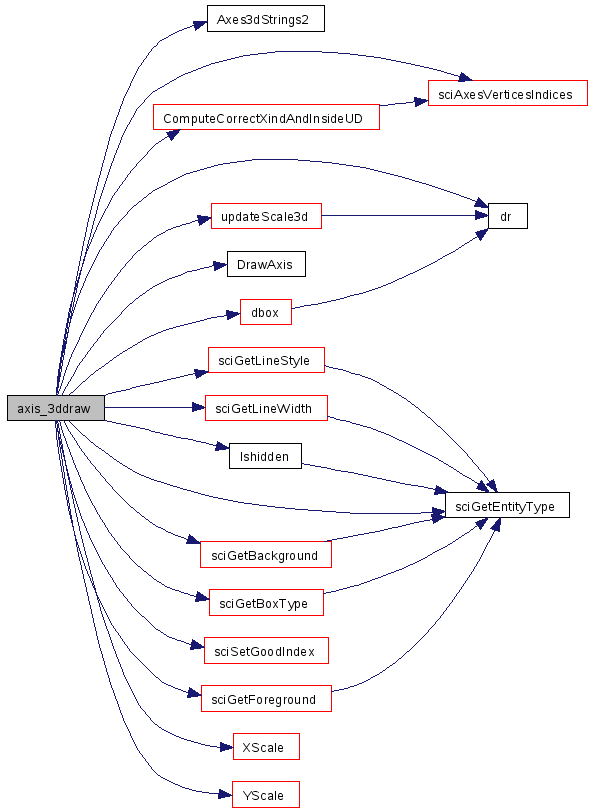

Here is the call graph for this function:
Here is the caller graph for this function:
| void axis_draw2 | ( | char | strflag[] | ) |
Definition at line 116 of file Axes.c.
References axesplot(), BT_ON, C2F, Cscale, dr(), i, L, PD0, PI0, pSUBWIN_FEATURE, sciGetBackground(), sciGetCurrentSubWin(), and wcscalelist::WIRect1.
Referenced by DrawAxes(), and drawSubWinEntity().
00117 { 00118 static sciPointObj * psubwin; 00119 /* using foreground to draw axis */ 00120 integer verbose=0,narg,xz[10],fg,i,color; 00121 /* int isoflag = -1; */ 00122 char c = (strlen(strflag) >= 3) ? strflag[2] : '1'; 00123 C2F(dr)("xget","foreground",&verbose,&fg,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00124 C2F(dr)("xget","line style",&verbose,xz,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00125 C2F(dr)("xset","line style",(i=1,&i),PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00126 C2F(dr)("xget","color",&verbose,xz+1,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00127 C2F(dr)("xset","color",&fg,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00128 00129 psubwin = sciGetCurrentSubWin(); 00130 00131 /* F.Leray test on color here*/ 00132 color=sciGetBackground(psubwin); 00133 00134 switch ( c) 00135 { 00136 /*case '0' : 00137 break ;*/ 00138 case '2' : 00139 pSUBWIN_FEATURE (psubwin)->axes.rect = BT_ON; 00140 00141 C2F(dr)("xrect","xv",&Cscale.WIRect1[0],&Cscale.WIRect1[1],&Cscale.WIRect1[2],&Cscale.WIRect1[3] 00142 ,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00143 break; 00144 default : 00145 axesplot(strflag,psubwin); 00146 break; 00147 } 00148 00149 C2F(dr)("xset","line style",xz,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00150 C2F(dr)("xset","color",xz+1,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00151 }
Here is the call graph for this function:
Here is the caller graph for this function:
| BOOL CheckDisplay | ( | double | fact_h, | |
| double | fact_w, | |||
| char | logflag, | |||
| char * | foo, | |||
| int * | posi, | |||
| int * | fontid, | |||
| int * | old_rect | |||
| ) |
Definition at line 2266 of file Axes.c.
Referenced by AdaptGraduationsOnXBottomLeft(), AdaptGraduationsOnXBottomRight(), AdaptGraduationsOnYBottomLeft(), AdaptGraduationsOnYBottomRight(), AdaptGraduationsOnZ(), checkXAxes2dTics(), and checkYAxes2dTics().
02267 { 02268 int rect[4],i; 02269 int point[4][2]; 02270 int logrect[4] ; 02271 int XX = 0 ; 02272 int YY = 0 ; 02273 02274 if(old_rect[0] == 0 && old_rect[1] == 0 && old_rect[2] == 0 && old_rect[3] == 0) 02275 { 02276 return TRUE ; 02277 } 02278 02279 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 02280 02281 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 02282 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02283 02284 getTicksLabelBox( 1.0, 1.0, foo, posi, fontid, logflag, rect, TRUE ) ; 02285 02286 point[0][0] = rect[0]; /* upper left point */ 02287 point[0][1] = rect[1]; 02288 02289 point[1][0] = rect[0]; /* lower left point */ 02290 point[1][1] = rect[1]+rect[3]; 02291 02292 point[2][0] = rect[0]+rect[2]; /* lower right point */ 02293 point[2][1] = rect[1]+rect[3]; 02294 02295 point[3][0] = rect[0]+rect[2]; /* upper right point */ 02296 point[3][1] = rect[1]; 02297 02298 for(i=0;i<4;i++) 02299 { 02300 if( !IsInsideRectangle(old_rect,point[i]) ) 02301 { 02302 return FALSE; /* If one inside the old_rect, DO NOT display the graduation ! */ 02303 } 02304 } 02305 02306 return TRUE; 02307 }
Here is the caller graph for this function:
| BOOL checkRedrawing | ( | void | ) |
Definition at line 2243 of file Axes.c.
References FALSE, reinitSubWin(), sciGetAddPlot(), sciGetCurrentSubWin(), and TRUE.
Referenced by champg(), fec(), Objarc(), Objdrawaxis(), Objfpoly(), Objplot3d(), Objpoly(), Objrect(), Objsegs(), Objstring(), Objtitle(), plot2dn(), xgray(), xgray1(), and xgray2().
02244 { 02245 02246 sciPointObj * pSubWin = sciGetCurrentSubWin() ; 02247 if ( !sciGetAddPlot( pSubWin ) ) 02248 { 02249 /* redraw the axis */ 02250 reinitSubWin( pSubWin ) ; 02251 return TRUE ; 02252 } 02253 return FALSE ; 02254 }
Here is the call graph for this function:
Here is the caller graph for this function:
| BOOL checkXAxes2dTics | ( | sciPointObj * | psubwin, | |
| char | side, | |||
| double | y, | |||
| char * | cFormat, | |||
| int | fontId[2], | |||
| int | smallersize | |||
| ) |
Definition at line 2399 of file Axes.c.
References sciSubWindow::axes, C2F, CheckDisplay(), Cscale, dr(), FALSE, FindXYMinMaxAccordingTL(), sciSubWindow::firsttime_x, foo(), getTicksLabelBox(), i, inint, L, sciSubWindow::logflags, Max, AXES::nxgrads, PD0, PI0, pSUBWIN_FEATURE, TRUE, wcscalelist::WIRect1, XGradPosition(), AXES::xgrads, XScale(), and YScale().
Referenced by updateXaxesTics().
02405 { 02406 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin) ; 02407 double xminval, yminval, xmaxval, ymaxval ; 02408 int /* flag=0, */xx=0,yy=0,rect[4] ; 02409 int xm[2],ym[2]; 02410 int barlength = 0; 02411 int posi[2]; 02412 int prevFontId[2] ; 02413 int verbose = 0 ; 02414 int narg ; 02415 02416 double factX = 1.2 ; 02417 double factY = 1.2 ; 02418 int nbtics = 0,i ; 02419 int prevRect[4] = { 0, 0, 0, 0 } ; 02420 02421 /*--------*/ 02422 /* x axis */ 02423 /*--------*/ 02424 02425 ym[0] = YScale(y) ; 02426 02427 barlength = Max( (integer) (Cscale.WIRect1[3]/50.0), 2 ) ; 02428 02429 ppsubwin->firsttime_x = TRUE ; 02430 02431 /* suppose auto_ticks is off */ 02432 /* here i only need x data (ymin ymax are computed but not used after) */ 02433 FindXYMinMaxAccordingTL( psubwin, &xminval, &yminval, &xmaxval, &ymaxval ) ; 02434 nbtics = ppsubwin->axes.nxgrads ; 02435 02436 C2F(dr)("xget","font",&verbose,prevFontId,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02437 C2F(dr)("xset","font",fontId,fontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 02438 02439 for( i = 0 ; i < nbtics; i++ ) 02440 { 02441 02442 char foo[256]; 02443 double xtmp = ppsubwin->axes.xgrads[i] ; 02444 02445 if( xtmp < xminval || xtmp > xmaxval ) 02446 { 02447 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichées de tte facon */ 02448 /* donc autant ne pas aller plus loin dans l'algo... */ 02449 } 02450 02451 sprintf(foo, cFormat,xtmp); 02452 02453 /* compute the bounding box of the label */ 02454 02455 C2F(dr)("xstringl",foo,&xx,&yy,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02456 02457 xm[0] = XScale(xtmp); 02458 posi[0] = inint( xm[0] - rect[2]/2.0 ) ; 02459 02460 if ( side == 'd') 02461 { 02462 /* ticks are drawn under the axis */ 02463 posi[1] = inint( ym[0] + 1.2 * barlength + rect[3] ) ; 02464 } 02465 else /* side = 'u' */ 02466 { 02467 /* ticks are drawn above the axis */ 02468 posi[1] = inint( ym[0] - 1.2 * barlength ) ; 02469 } 02470 02471 /* check that the new display doesnot concealed the previous */ 02472 if ( !CheckDisplay( factX, factY, 02473 ppsubwin->logflags[0], 02474 foo, posi, 02475 fontId, prevRect ) ) 02476 { 02477 /* put the font back */ 02478 C2F(dr)("xset","font",prevFontId,prevFontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02479 return FALSE ; 02480 } 02481 02482 /* get the boundig rectangle of the new label */ 02483 getTicksLabelBox( factX, factY, foo, posi, fontId, ppsubwin->logflags[0], prevRect, FALSE ) ; 02484 02485 XGradPosition(psubwin,posi[1],rect[3]) ; 02486 02487 } 02488 02489 02490 /* put the font back */ 02491 C2F(dr)("xset","font",prevFontId,prevFontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02492 02493 return TRUE ; 02494 }
Here is the call graph for this function:
Here is the caller graph for this function:
| BOOL checkYAxes2dTics | ( | sciPointObj * | psubwin, | |
| char | side, | |||
| double | x, | |||
| char * | cFormat, | |||
| int | fontId[2], | |||
| int | smallersize | |||
| ) |
Definition at line 2499 of file Axes.c.
References sciSubWindow::axes, C2F, CheckDisplay(), Cscale, dr(), FALSE, FindXYMinMaxAccordingTL(), sciSubWindow::firsttime_y, foo(), getTicksLabelBox(), i, inint, L, sciSubWindow::logflags, Max, AXES::nygrads, PD0, PI0, pSUBWIN_FEATURE, TRUE, wcscalelist::WIRect1, XScale(), YGradPosition(), AXES::ygrads, and YScale().
Referenced by updateYaxesTics().
02505 { 02506 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin) ; 02507 double xminval, yminval, xmaxval, ymaxval ; 02508 int /* flag=0, */xx=0,yy=0,rect[4] ; 02509 int xm[2],ym[2]; 02510 int barlength = 0; 02511 int posi[2]; 02512 int prevFontId[2] ; 02513 int verbose = 0 ; 02514 int narg ; 02515 double factX = 1.5 ; 02516 double factY = 1.5 ; 02517 int nbtics = 0,i ; 02518 int prevRect[4] = { 0, 0, 0, 0 } ; 02519 02520 /*--------*/ 02521 /* y axis */ 02522 /*--------*/ 02523 02524 xm[0] = XScale(x) ; 02525 02526 barlength = Max( (integer) (Cscale.WIRect1[2]/75.0), 2 ) ; 02527 02528 ppsubwin->firsttime_y = TRUE ; 02529 02530 /* suppose auto_ticks is off */ 02531 /* here i only need x data (ymin ymax are computed but not used after) */ 02532 FindXYMinMaxAccordingTL( psubwin, &xminval, &yminval, &xmaxval, &ymaxval ) ; 02533 nbtics = ppsubwin->axes.nygrads ; 02534 02535 C2F(dr)("xget","font",&verbose,prevFontId,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02536 C2F(dr)("xset","font",fontId,fontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /* fix bug noticed by R.N. */ 02537 02538 for( i = 0 ; i < nbtics; i++ ) 02539 { 02540 02541 char foo[256]; 02542 double ytmp = ppsubwin->axes.ygrads[i] ; 02543 02544 if( ytmp < yminval || ytmp > ymaxval ) 02545 { 02546 continue; /* cas ou TL est ON et on a des graduations qui ne seront pas affichées de tte facon */ 02547 /* donc autant ne pas aller plus loin dans l'algo... */ 02548 } 02549 02550 sprintf(foo, cFormat,ytmp); 02551 02552 /* compute the bounding box of the label */ 02553 02554 C2F(dr)("xstringl",foo,&xx,&yy,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02555 02556 ym[0] = YScale(ytmp); 02557 posi[1] = inint( ym[0] + rect[2]/2.0 ) ; 02558 02559 if ( side == 'r') 02560 { 02561 /* ticks are drawn under the axis */ 02562 posi[0] = inint( xm[0] + 1.2 * barlength ) ; 02563 } 02564 else /* side = 'l' */ 02565 { 02566 /* ticks are drawn above the axis */ 02567 posi[0] = inint( xm[0] - 1.2 * barlength - rect[2] ) ; 02568 } 02569 02570 /* check that the new display doesnot concealed the previous */ 02571 if ( !CheckDisplay( factX, factY, 02572 ppsubwin->logflags[1], 02573 foo, posi, 02574 fontId, prevRect ) ) 02575 { 02576 /* put the font back */ 02577 C2F(dr)("xset","font",prevFontId,prevFontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02578 return FALSE ; 02579 } 02580 02581 /* get the boundig rectangle of the new label */ 02582 getTicksLabelBox( factX, factY, foo, posi, fontId, ppsubwin->logflags[1], prevRect, FALSE ) ; 02583 02584 YGradPosition(psubwin,posi[0],rect[2]) ; 02585 02586 } 02587 02588 02589 /* put the font back */ 02590 C2F(dr)("xset","font",prevFontId,prevFontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02591 02592 return TRUE ; 02593 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void clearSubWin | ( | sciPointObj * | pSubWin | ) |
Definition at line 2155 of file Axes.c.
References DestroyAllGraphicsSons(), sciPointObj::entitytype, NULL, tagSons::pnext, tagSons::pointobj, SCI_LABEL, and sciGetSons().
Referenced by reinitSubWin().
02156 { 02157 sciSons * curSon = sciGetSons (pSubWin); 02158 02159 while ( curSon != NULL && curSon->pointobj != NULL ) 02160 { 02161 if ( curSon->pointobj->entitytype != SCI_LABEL ) 02162 { 02163 DestroyAllGraphicsSons (curSon->pointobj) ; 02164 curSon = sciGetSons ( pSubWin ) ; 02165 } 02166 else 02167 { 02168 curSon = curSon->pnext ; 02169 } 02170 02171 } 02172 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void DrawAxesBackground | ( | void | ) |
Definition at line 155 of file Axes.c.
References C2F, Cscale, dr(), i, L, n, p, PD0, PI0, sciGetBackground(), sciGetCurrentSubWin(), and wcscalelist::WIRect1.
Referenced by drawSubWinEntity().
00156 { 00157 static sciPointObj * psubwin; 00158 /* using foreground to draw axis */ 00159 integer verbose=0,narg,xz[10],fg,i,ixbox[5],iybox[5],p=5,n=1,color,color_kp; 00160 /* int isoflag = -1; */ 00161 C2F(dr)("xget","foreground",&verbose,&fg,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00162 C2F(dr)("xget","line style",&verbose,xz,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00163 C2F(dr)("xset","line style",(i=1,&i),PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00164 C2F(dr)("xget","color",&verbose,xz+1,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00165 C2F(dr)("xset","color",&fg,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00166 00167 psubwin = sciGetCurrentSubWin(); 00168 00169 /* F.Leray test on color here*/ 00170 color=sciGetBackground(psubwin); 00171 00172 ixbox[0]=ixbox[4]=Cscale.WIRect1[0];iybox[0]=iybox[4]=Cscale.WIRect1[1]; 00173 ixbox[1]=ixbox[0];iybox[1]=Cscale.WIRect1[1]+Cscale.WIRect1[3]; 00174 ixbox[2]=Cscale.WIRect1[0]+Cscale.WIRect1[2];iybox[2]=iybox[1]; 00175 ixbox[3]=ixbox[2];iybox[3]=iybox[0]; 00176 C2F(dr)("xget","pattern",&verbose,&color_kp,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00177 C2F(dr)("xset","pattern",&color,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00178 C2F(dr)("xarea", "v", &p, ixbox, iybox, &n, PI0, PI0, PD0, PD0, PD0, PD0, 5L,0L); 00179 C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00180 00181 C2F(dr)("xset","line style",xz,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00182 C2F(dr)("xset","color",xz+1,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00183 00184 00185 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void drawAxesGrid | ( | sciPointObj * | psubwin | ) |
Draw the grid of an axes object if needed.
Definition at line 2808 of file Axes.c.
References DrawXGrid(), DrawYGrid(), and pSUBWIN_FEATURE.
Referenced by drawSubWinEntity().
02809 { 02810 if( pSUBWIN_FEATURE(psubwin)->grid[0] > -1 ) 02811 { 02812 DrawXGrid(psubwin); 02813 } 02814 02815 if( pSUBWIN_FEATURE(psubwin)->grid[1] > -1 ) 02816 { 02817 DrawYGrid(psubwin); 02818 } 02819 }
Here is the call graph for this function:
Here is the caller graph for this function:
Trace un triedre : Indices[4] donne les indices des points qui constituent le triedre dans les tableaux xbox et ybox
DJ.Abdemouche 2003
Definition at line 3177 of file Axes.c.
Referenced by axis_3ddraw(), box3d(), and triedre().
03178 { 03179 integer ixbox[6],iybox[6],npoly=6,lstyle[6],verbose=0,narg_,hiddencolor; 03180 integer i, iflag=0, j=1; 03181 sciPointObj *psubwin; 03182 for ( i = 0 ; i <= 4 ; i=i+2) 03183 { 03184 ixbox[i]=XScale(xbox[Indices[0]]);iybox[i]=YScale(ybox[Indices[0]]); 03185 } 03186 ixbox[1]=XScale(xbox[Indices[1]]);iybox[1]=YScale(ybox[Indices[1]]); 03187 ixbox[3]=XScale(xbox[Indices[2]]);iybox[3]=YScale(ybox[Indices[2]]); 03188 ixbox[5]=XScale(xbox[Indices[3]]);iybox[5]=YScale(ybox[Indices[3]]); 03189 C2F(dr)("xget","line style",&verbose,lstyle,&narg_,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03192 psubwin = sciGetCurrentSubWin(); 03193 hiddencolor = pSUBWIN_FEATURE (psubwin)->hiddencolor; 03194 j = sciGetLineStyle (psubwin) ; 03195 03196 C2F(dr)("xset","line style",&j,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03197 C2F(dr)("xsegs","v",ixbox,iybox,&npoly,&style,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 03198 C2F(dr)("xset","line style",lstyle,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 03199 03200 }
Here is the caller graph for this function:
| void findFormat | ( | sciPointObj * | pSubWin, | |
| char | formatX[5], | |||
| char | formatY[5] | |||
| ) |
Definition at line 2752 of file Axes.c.
References sciSubWindow::axes, ChoixFormatE(), Max, AXES::nxgrads, AXES::nygrads, pSUBWIN_FEATURE, AXES::xgrads, and AXES::ygrads.
Referenced by SciAxisNew(), updateXaxesTics(), and updateYaxesTics().
02753 { 02754 sciSubWindow * ppSubWin = pSUBWIN_FEATURE( pSubWin ) ; 02755 int lastIndex ; 02756 02757 /* x axis */ 02758 lastIndex = Max( ppSubWin->axes.nxgrads - 1, 0 ) ; 02759 02760 ChoixFormatE( formatX, 02761 ppSubWin->axes.xgrads[0], 02762 ppSubWin->axes.xgrads[lastIndex], 02763 ( (ppSubWin->axes.xgrads[lastIndex])-(ppSubWin->axes.xgrads[0]))/(lastIndex)); /* Adding F.Leray 06.05.04 */ 02764 02765 /* y-axis */ 02766 lastIndex = Max( ppSubWin->axes.nygrads - 1, 0 ) ; 02767 02768 ChoixFormatE( formatY, 02769 ppSubWin->axes.ygrads[0], 02770 ppSubWin->axes.ygrads[lastIndex], 02771 ((ppSubWin->axes.ygrads[lastIndex])-(ppSubWin->axes.ygrads[0]))/(lastIndex)); /* Adding F.Leray 06.05.04 */ 02772 02773 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void getTicksLabelBox | ( | double | fact_h, | |
| double | fact_w, | |||
| char * | label, | |||
| int | pos[2], | |||
| int | fontId[2], | |||
| char | logflag, | |||
| int | bbox[4], | |||
| BOOL | changeFont | |||
| ) |
Definition at line 2332 of file Axes.c.
References C2F, dr(), int, L, PD0, and PI0.
Referenced by CheckDisplay(), checkXAxes2dTics(), and checkYAxes2dTics().
02340 { 02341 int prevFontId[2] ; 02342 02343 if ( changeFont ) 02344 { 02345 int verbose = 0 ; 02346 int narg ; 02347 C2F(dr)("xget","font",&verbose,prevFontId,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02348 C2F(dr)("xset","font",fontId,fontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02349 } 02350 02351 if ( logflag == 'n' ) 02352 { 02353 C2F(dr)("xstringl",label,&pos[0],&pos[1],bbox,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02354 bbox[3] = (int)(fact_h * bbox[3]); 02355 bbox[2] = (int)(fact_w * bbox[2]); 02356 } 02357 else 02358 { 02359 int smallersize = fontId[1]-2; 02360 int rect10[4]; 02361 int posi10[2]; 02362 int logrect[4] ; 02363 int XX = 1 ; 02364 int YY = 1 ; 02365 /* compute bounding of "10" string used for log scale ON and auto_ticks ON */ 02366 C2F(dr)("xstringl","10",&XX,&YY,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02367 02368 posi10[0] = pos[0] - logrect[2]; 02369 posi10[1] = pos[1] + logrect[3]; 02370 02371 /* get the bbox of the 10 */ 02372 C2F(dr)("xstringl","10",(&posi10[0]),(&posi10[1]),rect10,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02373 02374 pos[0] = rect10[0] + rect10[2]; 02375 pos[1] = (int) (rect10[1] - rect10[3]*.1); 02376 02377 C2F(dr)("xset","font",fontId,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02378 02379 /* get the bbox of the exponent */ 02380 C2F(dr)("xstringl",label,(&pos[0]),(&pos[1]),bbox,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02381 02382 bbox[2] = (integer)(fact_w*(bbox[2] + rect10[2])); 02383 bbox[3] = (integer)(fact_h*(bbox[3] + rect10[3] + (int) (rect10[3]*.1))); /* added the 01.06.05 */ 02384 bbox[0] = rect10[0]; 02385 /* bbox[1] = bbox[1]; */ 02386 02387 C2F(dr)("xset","font",fontId,fontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02388 } 02389 02390 if ( changeFont ) 02391 { 02392 C2F(dr)("xset","font",prevFontId,prevFontId+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 02393 } 02394 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void initSubWinAngles | ( | sciPointObj * | pSubWin | ) |
Definition at line 2197 of file Axes.c.
References sciSubWindow::alpha, sciSubWindow::alpha_kp, getAxesModel(), sciSubWindow::is3d, pSUBWIN_FEATURE, sciSubWindow::theta, and sciSubWindow::theta_kp.
Referenced by reinitSubWin().
02198 { 02199 sciSubWindow * ppSubWin = pSUBWIN_FEATURE (pSubWin ) ; 02200 sciSubWindow * ppAxesMdl = pSUBWIN_FEATURE (getAxesModel()) ; 02201 ppSubWin->is3d = ppAxesMdl->is3d ; 02202 ppSubWin->alpha_kp = ppAxesMdl->alpha_kp ; 02203 ppSubWin->theta_kp = ppAxesMdl->theta_kp ; 02204 ppSubWin->alpha = ppAxesMdl->alpha ; 02205 ppSubWin->theta = ppAxesMdl->theta ; 02206 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void initSubWinBounds | ( | sciPointObj * | pSubWin | ) |
Definition at line 2222 of file Axes.c.
References sciSubWindow::FRect, getAxesModel(), pSUBWIN_FEATURE, and sciSubWindow::SRect.
Referenced by reinitSubWin().
02223 { 02224 sciSubWindow * ppSubWin = pSUBWIN_FEATURE (pSubWin ) ; 02225 sciSubWindow * ppAxesMdl = pSUBWIN_FEATURE (getAxesModel()) ; 02226 ppSubWin->FRect[0] = ppAxesMdl->FRect[0] ; 02227 ppSubWin->FRect[1] = ppAxesMdl->FRect[1] ; 02228 ppSubWin->FRect[2] = ppAxesMdl->FRect[2] ; 02229 ppSubWin->FRect[3] = ppAxesMdl->FRect[3] ; 02230 ppSubWin->FRect[4] = ppAxesMdl->FRect[4] ; 02231 ppSubWin->FRect[5] = ppAxesMdl->FRect[5] ; 02232 02233 ppSubWin->SRect[0] = ppAxesMdl->SRect[0] ; 02234 ppSubWin->SRect[1] = ppAxesMdl->SRect[1] ; 02235 ppSubWin->SRect[2] = ppAxesMdl->SRect[2] ; 02236 ppSubWin->SRect[3] = ppAxesMdl->SRect[3] ; 02237 ppSubWin->SRect[4] = ppAxesMdl->SRect[4] ; 02238 ppSubWin->SRect[5] = ppAxesMdl->SRect[5] ; 02239 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void initSubWinSize | ( | sciPointObj * | pSubWin | ) |
Definition at line 2210 of file Axes.c.
References getAxesModel(), pSUBWIN_FEATURE, and sciSubWindow::WRect.
Referenced by initsubwin().
02211 { 02212 sciSubWindow * ppSubWin = pSUBWIN_FEATURE (pSubWin ) ; 02213 sciSubWindow * ppAxesMdl = pSUBWIN_FEATURE (getAxesModel()) ; 02214 ppSubWin->WRect[0] = ppAxesMdl->WRect[0] ; 02215 ppSubWin->WRect[1] = ppAxesMdl->WRect[1] ; 02216 ppSubWin->WRect[2] = ppAxesMdl->WRect[2] ; 02217 ppSubWin->WRect[3] = ppAxesMdl->WRect[3] ; 02218 02219 }
Here is the call graph for this function:
Here is the caller graph for this function:
Definition at line 2318 of file Axes.c.
Referenced by CheckDisplay().
02319 { 02320 02321 if((point[0] >= rect[0] && point[0] <= rect[0]+rect[2]) && 02322 (point[1] >= rect[1] && point[1] <= rect[1]+rect[3])) 02323 return FALSE; 02324 02325 return TRUE; 02326 }
Here is the caller graph for this function:
| int labels2D_draw | ( | sciPointObj * | psubwin | ) |
Definition at line 3036 of file Axes.c.
References sciLabel::auto_position, sciLabel::auto_rotation, sciSubWindow::axes, computeLabelAutoPos(), Cscale, drawTextEntity(), sciSubWindow::mon_title, sciSubWindow::mon_x_label, sciSubWindow::mon_y_label, offset, pLABEL_FEATURE, pSUBWIN_FEATURE, sciGetVisibility(), sciInitFontOrientation(), sciSetFontOrientation(), sciLabel::text, wcscalelist::WIRect1, AXES::xdir, sciSubWindow::XGradMostOnBottom, sciSubWindow::XGradMostOnTop, AXES::ydir, sciSubWindow::YGradMostOnLeft, and sciSubWindow::YGradMostOnRight.
Referenced by drawSubWinEntity().
03037 { 03038 /* Rewritten by jb Silvy 06/2006 */ 03039 03040 integer rect1[4] ; 03041 sciSubWindow * ppsubwin = pSUBWIN_FEATURE (psubwin); 03042 int offset[2] ; /* vertical and horizontal offsets to move labels a little from axes */ 03043 03044 if ( !sciGetVisibility(psubwin) ) 03045 { 03046 return 0 ; 03047 } 03048 03049 /* get the size of the current subwin in pixels */ 03050 rect1[0]= Cscale.WIRect1[0] ; /* upper left point of the axes x coordinate. */ 03051 rect1[1]= Cscale.WIRect1[1] ; /* upper left point of the axes y coordinate. */ 03052 rect1[2]= Cscale.WIRect1[2] ; /* width of the axes */ 03053 rect1[3]= Cscale.WIRect1[3] ; /* height of the axes */ 03054 03055 /* the little displacment of the labels from the axes box */ 03056 offset[0] = rect1[2] / 50 + 1 ; 03057 offset[1] = rect1[3] / 25 + 1 ; 03058 03059 03060 /*********/ 03061 /* TITLE */ 03062 /*********/ 03063 03064 if ( sciGetVisibility(ppsubwin->mon_title) ) 03065 { 03066 /* get the pointer on the title */ 03067 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_title ) ; 03068 03069 /* get position and orientation of the title */ 03070 if ( ppLabel->auto_rotation ) 03071 { 03072 sciSetFontOrientation( ppsubwin->mon_title, 0 ) ; 03073 } 03074 03075 03076 if ( ppLabel->auto_position ) 03077 { 03078 int segmentStart[2] = { rect1[0] + rect1[2], rect1[1] } ; 03079 int segmentEnd[2] = { rect1[0] , rect1[1] } ; 03080 computeLabelAutoPos( ppsubwin->mon_title, segmentStart, segmentEnd, offset ) ; 03081 } 03082 /* draw the label */ 03083 drawTextEntity( ppLabel->text ) ; 03084 03085 } 03086 03087 /***********/ 03088 /* x label */ 03089 /***********/ 03090 03091 if( sciGetVisibility(ppsubwin->mon_x_label) ) 03092 { 03093 /* get the pointer on the title */ 03094 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_x_label ) ; 03095 03096 if( ppLabel->auto_rotation ) 03097 { 03098 sciSetFontOrientation(ppsubwin->mon_x_label, 0 ) ; 03099 } 03100 03101 03102 if( ppLabel->auto_position ) 03103 { 03104 int segmentStart[2] ; 03105 int segmentEnd[2] ; 03106 03107 if(ppsubwin->axes.xdir == 'u') 03108 { 03109 segmentStart[0] = rect1[0] + rect1[2] ; 03110 segmentEnd[0] = rect1[0] ; 03111 03112 /* we add the size of the numbers to the height */ 03113 segmentStart[1] = ppsubwin->XGradMostOnTop ; 03114 segmentEnd[1] = ppsubwin->XGradMostOnTop ; 03115 } 03116 else 03117 { 03118 segmentStart[0] = rect1[0] ; 03119 segmentEnd[0] = rect1[0] + rect1[2] ; 03120 03121 segmentStart[1] = ppsubwin->XGradMostOnBottom ; 03122 segmentEnd[1] = ppsubwin->XGradMostOnBottom ; 03123 } 03124 computeLabelAutoPos( ppsubwin->mon_x_label, segmentStart, segmentEnd, offset ) ; 03125 } 03126 03127 drawTextEntity( ppLabel->text ) ; 03128 03129 } 03130 03131 03132 /***********/ 03133 /* y label */ 03134 /***********/ 03135 03136 03137 if ( sciGetVisibility(ppsubwin->mon_y_label) ) 03138 { 03139 sciLabel * ppLabel = pLABEL_FEATURE( ppsubwin->mon_y_label ) ; 03140 03141 if( ppLabel->auto_rotation ) 03142 { 03143 sciInitFontOrientation( ppsubwin->mon_y_label, 270 * 10 ) ; 03144 } 03145 03146 if( ppLabel->auto_position ) 03147 { 03148 int segmentStart[2] ; 03149 int segmentEnd[2] ; 03150 03151 if(ppsubwin->axes.ydir == 'r') 03152 { 03153 03154 /* we add the size of the numbers to the height */ 03155 segmentStart[0] = ppsubwin->YGradMostOnRight ; 03156 segmentEnd[0] = ppsubwin->YGradMostOnRight ; 03157 03158 segmentStart[1] = rect1[1] + rect1[3] ; 03159 segmentEnd[1] = rect1[1] ; 03160 } 03161 else 03162 { 03163 segmentStart[0] = ppsubwin->YGradMostOnLeft ; 03164 segmentEnd[0] = ppsubwin->YGradMostOnLeft ; 03165 03166 segmentStart[1] = rect1[1] ; 03167 segmentEnd[1] = rect1[1] + rect1[3] ; 03168 } 03169 computeLabelAutoPos( ppsubwin->mon_y_label, segmentStart, segmentEnd, offset ) ; 03170 } 03171 drawTextEntity( ppLabel->text ) ; 03172 } 03173 03174 return 0; 03175 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void rebuild_strflag | ( | sciPointObj * | psubwin, | |
| char * | STRFLAG | |||
| ) |
Definition at line 2985 of file Axes.c.
References sciSubWindow::axes, BT_ON, GetIsAxes2D(), pSUBWIN_FEATURE, AXES::rect, sciSubWindow::tight_limits, TRUE, AXES::xdir, and AXES::ydir.
Referenced by DrawAxes(), and drawSubWinEntity().
02986 { 02987 02988 sciSubWindow * ppsubwin = pSUBWIN_FEATURE(psubwin); 02989 BOOL isaxes = GetIsAxes2D(psubwin); 02990 02991 /* strflag[0]*/ 02992 STRFLAG[0] = '0'; /* flag for caption display unused here so set to NULL by default */ 02993 if( pSUBWIN_FEATURE (psubwin)->with_leg == 1) 02994 STRFLAG[0] = '0'; 02995 else 02996 STRFLAG[0] = '1'; 02997 02998 /* strflag[1]*/ 02999 /* Here isoview mode test is not needed because axis_draw do not use it */ 03000 STRFLAG[1] = '0'; /* Init. to NULL <=> use the previous scale */ 03001 if(ppsubwin->tight_limits == TRUE) 03002 { 03003 STRFLAG[1] = '8'; 03004 } 03005 else /* using auto rescale : enlarged for pretty axes*/ 03006 { 03007 STRFLAG[1] = '6'; 03008 } 03009 03010 /* strflag[2]*/ 03011 STRFLAG[2] = '1'; /* Init with y-axis on the left AND axes is on*/ 03012 if(isaxes == TRUE) 03013 { 03014 if(ppsubwin->axes.ydir =='l') 03015 STRFLAG[2] = '1'; 03016 else if(ppsubwin->axes.ydir =='r') 03017 STRFLAG[2] = '3'; 03018 else if((ppsubwin->axes.xdir =='c') && (ppsubwin->axes.ydir =='c')) 03019 STRFLAG[2] = '5'; 03020 } 03021 else 03022 { 03023 if(ppsubwin->axes.rect == BT_ON) 03024 STRFLAG[2] = '2'; 03025 else 03026 STRFLAG[2] = '0'; 03027 } 03028 03029 STRFLAG[3] = '\0'; 03030 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void reinitSubWin | ( | sciPointObj * | pSubWin | ) |
Definition at line 2175 of file Axes.c.
References sciSubWindow::axes, clearSubWin(), sciSubWindow::FirstPlot, initSubWinAngles(), initSubWinBounds(), pSUBWIN_FEATURE, sciSubWindow::surfcounter, TRUE, sciSubWindow::visible, AXES::xdir, and AXES::ydir.
Referenced by checkRedrawing(), and initsubwin().
02176 { 02177 sciSubWindow * ppSubWin = pSUBWIN_FEATURE (pSubWin) ; 02178 02179 clearSubWin( pSubWin ) ; 02180 02181 initSubWinBounds( pSubWin ) ; 02182 ppSubWin->axes.xdir = 'd' ; 02183 ppSubWin->axes.ydir = 'l' ; 02184 02185 ppSubWin->visible = TRUE; 02186 02187 initSubWinAngles( pSubWin ) ; 02188 02189 ppSubWin->surfcounter = 0 ; 02190 02191 ppSubWin->FirstPlot = TRUE; 02192 02193 02194 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void removeBadTicks | ( | double * | ticks, | |
| BOOL * | removedTicks, | |||
| int * | nbTicks | |||
| ) |
Definition at line 2723 of file Axes.c.
References i, and removeIndex().
Referenced by GradFixedlog().
02724 { 02725 int i ; 02726 for ( i = *nbTicks - 1 ; i >= 0 ; i-- ) 02727 { 02728 if ( removedTicks[i] ) 02729 { 02730 removeIndex( ticks, *nbTicks, i ) ; 02731 *nbTicks = *nbTicks - 1 ; 02732 } 02733 } 02734 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void Sci_Axis | ( | char | pos, | |
| char | xy_type, | |||
| double * | x, | |||
| int * | nx, | |||
| double * | y, | |||
| int * | ny, | |||
| char * | str[], | |||
| int | subtics, | |||
| char * | format, | |||
| int | fontsize, | |||
| int | textcolor, | |||
| int | fontstyle, | |||
| int | ticscolor, | |||
| char | logflag, | |||
| int | seg_flag, | |||
| int | axisbuild_flag | |||
| ) |
Definition at line 224 of file Axes.c.
References C2F, ChoixFormatE(), ChoixFormatE1(), Cscale, dr(), dx, dy, foo(), wcscalelist::frect, i, iflag, inint, int, j, L, NULL, pas, PD0, PI0, pSUBWIN_FEATURE, sciGetCurrentSubWin(), sciprint(), TRUE, wcscalelist::Waaint1, wcscalelist::WIRect1, x_convert(), XScale(), wcscalelist::xtics, y_convert(), YScale(), and wcscalelist::ytics.
Referenced by drawAxesEntity().
00227 { 00228 int Nx,Ny,j; 00229 double angle=0.0,vxx,vxx1; 00230 int vx[2],vy[2],xm[2],ym[2]; 00231 char c_format[5]; 00232 integer flag=0,xx=0,yy=0,posi[2],rect[4],dash[6],trois=3; 00233 integer i,barlength; 00234 int ns=2,iflag=0; 00235 integer fontid[2],fontsize_kp, narg,verbose=0,logrect[4],smallersize,color_kp; 00236 integer pstyle; 00237 int x3, y3, xpassed = 0, ypassed = 0; /* for log. case management */ 00238 /*** 01/07/2002 -> 11.05.04 ***/ /* F.Leray : Re-put the Djalel modif. for a better display 00239 using tight_limits='on' and/or isoview='on' */ 00240 double xmin,xmax,ymin, ymax; 00241 sciPointObj * psubwin = NULL; 00242 double pas; /* used for logarithmic grid */ 00243 00244 fontid[0]= fontstyle; 00245 00246 psubwin = sciGetCurrentSubWin(); 00247 00248 C2F(dr)("xget","font",&verbose,fontid,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00249 fontsize_kp = fontid[1] ; 00250 if ( fontsize == -1 ) 00251 { 00252 fontid[0]= 0; fontid[1]= 1; fontsize_kp = fontid[1] ; 00253 fontid[0]= fontstyle; 00254 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00255 } 00256 00257 if ( fontsize != -1 ) 00258 { 00259 fontid[1] = fontsize ; 00260 fontid[0]= fontstyle; 00261 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00262 } 00263 if ( textcolor != -1 || ticscolor != -1 ) 00264 { 00265 C2F(dr)("xget","pattern",&verbose,&color_kp,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00266 } 00267 00268 if (logflag == 'l' ) 00269 { 00270 C2F(dr)("xstringl","10",&xx,&yy,logrect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00271 smallersize=fontid[1]-2; 00272 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00273 } 00274 00275 00276 /* Pb here, dim of x and y can be lesser than 4 (ie in example_eng.tst : nx = 6 and ny = 1) F.Leray 25.02.04 00277 x and y are either double x[3] (resp. y[3]) or simply a double ! F.Leray 05.03.04 00278 So a test on x[3] (resp. y[3]) is ALWAYS bad!! 00279 NO!! It depends on the xy_type as follow */ 00280 /* 00281 * xy_type = 'v' (for vector) or 'r' (for range) 00282 * 'v' means that tics position are given by a vector 00283 * 'r' means that tics position are in a range i.e given by a vector of size 3 00284 * [min,max,number_of_intervals] 00285 * 'i' means that tics positions are in a range given by four number (integers) 00286 * [k1,k2,e,number_of intervals] -> [k1*10^e,k2*10^e] */ 00287 00288 if(xy_type == 'i') 00289 { /* Adding F.Leray 05.03.04*/ 00290 /*F.Leray Modification on 09.03.04*/ 00291 switch ( pos ) { 00292 case 'u' : case 'd' : 00293 if(pSUBWIN_FEATURE(psubwin)->logflags[0] == 'n') 00294 while (x[3]>10) x[3]=floor(x[3]/2); 00295 else{ 00296 if(x[3] > 12){ /* F.Leray arbitrary value=12 for the moment */ 00297 x3=(int)x[3]; /* if x[3]>12 algo is triggered to search a divisor */ 00298 for(j=x3-1;j>1;j--) 00299 { 00300 if(x3%j == 0){ 00301 x[3]=j; 00302 xpassed = 1; 00303 } 00304 } 00305 if(xpassed != 1) { x[3] = 1; } 00306 } 00307 } 00308 00309 break; 00310 case 'r' : case 'l' : 00311 if(pSUBWIN_FEATURE(psubwin)->logflags[1] == 'n') 00312 while (y[3]>10) y[3]=floor(y[3]/2); 00313 else{ 00314 if(y[3] > 12){ 00315 y3=(int)y[3]; 00316 for(j=y3-1;j>1;j--) 00317 if(y3%j == 0){ 00318 y[3]=j; 00319 ypassed = 1; 00320 } 00321 if(ypassed != 1) y[3] = 1; 00322 } 00323 00324 break; 00325 } 00326 } 00327 00328 00329 } 00330 00331 00333 switch ( xy_type ) 00334 { 00335 case 'v' : Nx= *nx; Ny= *ny; break; 00336 case 'r' : 00337 switch ( pos ) { 00338 case 'u' : case 'd' : Nx = (int) x[2]+1; break; 00339 case 'r' : case 'l' : Ny = (int) y[2]+1; break; 00340 } 00341 break; 00342 case 'i' : 00343 switch ( pos ) { 00344 case 'u' : case 'd' : Nx = (int) x[3]+1; break; 00345 case 'r' : case 'l' : Ny = (int) y[3]+1; break; 00346 } 00347 break; 00348 default: 00349 sciprint("Sci_Axis: wrong type argument xy_type\r\n"); 00350 } 00351 switch (pos ) 00352 { 00353 case 'u' : 00354 case 'd' : 00356 barlength = (integer) (Cscale.WIRect1[3]/50.0); 00358 if (str == NULL && format == NULL ) 00359 switch (xy_type ) { 00360 case 'v' : ChoixFormatE1(c_format,x,Nx);break; 00361 case 'r' : ChoixFormatE (c_format,x[0],x[1],(x[1]-x[0])/x[2]);break; 00362 case 'i' : 00363 ChoixFormatE (c_format, 00364 (x[0] * exp10(x[2])), 00365 (x[1] * exp10(x[2])), 00366 ((x[1] * exp10(x[2])) - (x[0] * exp10(x[2])))/x[3]); break; /* Adding F.Leray 06.05.04 */ 00367 } 00370 vx[0] = XScale(x_convert(xy_type, x , 0)); /* C EST LA que se calcule les positions initiales et finales (en x et y) de la barre support de l'axe des abscisses */ 00371 vx[1] = XScale(x_convert(xy_type, x , Nx-1)); 00372 vy[0]= vy[1] = ym[0] = YScale(y[0]); 00373 if ( seg_flag == 1) 00374 { 00375 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00376 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00377 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00378 } 00379 /******* 01/07/2002 -> 11.05.04 **********/ 00380 psubwin = sciGetCurrentSubWin(); 00381 if ((pSUBWIN_FEATURE (psubwin)->tight_limits == TRUE || pSUBWIN_FEATURE (psubwin)->isoview == TRUE ) 00382 && axisbuild_flag == 0){{ 00383 xmax=Cscale.frect[2]; 00384 xmin=Cscale.frect[0]; 00385 00386 if(xy_type == 'i') 00387 { 00388 00389 00390 x[1] = floor( Cscale.xtics[1] ); 00391 x[0] = ceil( Cscale.xtics[0] ); 00392 x[3]=inint(x[1]-x[0]); 00393 while (x[3]>10) x[3]=floor(x[3]/2); 00394 Nx=(int)(x[3]+1); 00395 00396 /* re-compute a format when tight_limits or isoview == ON */ 00397 ChoixFormatE (c_format, 00398 (x[0] * exp10(x[2])), 00399 (x[1] * exp10(x[2])), 00400 ((x[1] * exp10(x[2])) - (x[0] * exp10(x[2])))/x[3]); /* Adding F.Leray 15.05.04 */ 00401 } 00402 /* THESE 2 last cases are unreachable because we use the condition : */ 00403 /* axisbuild_flag == 0 */ 00404 else if (xy_type == 'r') /* normally unreachable */ 00405 { 00406 sciprint(" Normally, unreachable case \n"); 00407 } 00408 else if(xy_type == 'v') /* normally unreachable */ 00409 { 00410 sciprint(" Normally, unavailable case AAA \n"); 00411 } 00412 } 00413 00414 00415 pas = ((double) Cscale.WIRect1[2]) / ((double) Cscale.Waaint1[1]); 00416 00417 /**********************/ 00419 if (Nx==1) break; 00420 for (i=0 ; i < Nx ; i++) 00421 { 00422 char foo[100]; 00423 vxx = x_convert(xy_type,x,i); 00424 if ( str != NULL) 00425 sprintf(foo,"%s",str[i]); 00426 else if ( format == NULL) 00427 { 00428 /* defaults format */ 00429 /*F.Leray 19.05.04 */ 00430 /* When Sci_Axis is called by aplotv1, format is NULL : it can not be something else...*/ 00431 /* format can also be NULL if non specified and coming from ConstructAxes method called in Objdrawaxis (see matdes.c) */ 00432 sprintf(foo,c_format,vxx); 00433 } 00434 else { 00435 sprintf(foo,format,vxx); 00436 } 00437 00438 00439 C2F(dr)("xstringl",foo,&xx,&yy,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00440 00441 /* tick is computed in vx,vy and string is displayed at posi[0],posi[1] position */ 00442 00443 vx[0] = vx[1] = xm[0] = XScale(vxx); 00444 posi[0] = inint( xm[0] -rect[2]/2.0); 00445 00446 if ( pos == 'd' ) 00447 { 00448 posi[1]=inint( ym[0] + 1.2*barlength + rect[3]); 00449 vy[0]= ym[0];vy[1]= ym[0] + barlength ; 00450 } 00451 else 00452 { 00453 posi[1]=inint( ym[0] - 1.2*barlength); 00454 vy[0]= ym[0];vy[1]= ym[0] - barlength; 00455 } 00456 if ( textcolor != -1 ) C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00457 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&angle, PD0,PD0,PD0,0L,0L); 00458 if ( logflag == 'l' ) 00459 { 00460 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00461 C2F(dr)("xstring","10",(posi[0] -= logrect[2],&posi[0]), 00462 (posi[1] += logrect[3],&posi[1]), 00463 PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 00464 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00465 } 00466 if ( textcolor != -1 ) C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00467 00468 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00469 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00470 00471 /*** MAJ Djalel.A 21/01/2003 ***/ 00472 if (pSUBWIN_FEATURE (psubwin)->grid[0] > -1) 00473 { 00474 if(pSUBWIN_FEATURE (psubwin)->logflags[0] == 'l') 00475 { 00476 if ((vx[0] != Cscale.WIRect1[0]) && (vx[0] != (Cscale.WIRect1[0]+ Cscale.WIRect1[2]))) 00477 { 00478 pstyle=pSUBWIN_FEATURE (psubwin)->grid[0] ; 00479 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00480 C2F (dr) ("xset", "line style",&trois,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00481 vy[0]=Cscale.WIRect1[1]; 00482 vy[1]=Cscale.WIRect1[1]+Cscale.WIRect1[3]; 00483 C2F(dr)("xsegs","v", vx, vy, &ns,&pstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00484 } 00485 00486 if(i < Nx -1 ) 00487 { 00488 int jinit=1; 00489 /* In case there is a log. scale, add. sub-grid taking account of this special scale F.Leray 07.05.04 */ 00490 pstyle=pSUBWIN_FEATURE (psubwin)->grid[0] ; 00491 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00492 C2F (dr) ("xset", "line style",&trois,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00493 vy[0]=Cscale.WIRect1[1]; 00494 vy[1]=Cscale.WIRect1[1]+Cscale.WIRect1[3]; 00495 00496 if ( i== 0 ) jinit=2; /* no grid on plot boundary */ 00497 for (j= jinit; j < 10 ; j++) 00498 { 00499 vx[0]=vx[1]= Cscale.WIRect1[0] + inint( ((double) i)*pas)+ inint(log10(((double)j))*pas); 00500 C2F(dr)("xsegs","v", vx, vy, &ns,&pstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00501 } 00502 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L) ; 00503 } 00504 } 00505 else if(pSUBWIN_FEATURE (psubwin)->logflags[0] == 'n') 00506 { 00507 if ((vx[0] != Cscale.WIRect1[0]) && (vx[0] != (Cscale.WIRect1[0]+ Cscale.WIRect1[2]))) 00508 { 00509 pstyle=pSUBWIN_FEATURE (psubwin)->grid[0] ; 00510 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00511 C2F (dr) ("xset", "line style",&trois,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00512 vy[0]=Cscale.WIRect1[1]; 00513 vy[1]=Cscale.WIRect1[1]+Cscale.WIRect1[3]; 00514 C2F(dr)("xsegs","v", vx, vy, &ns,&pstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00515 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00516 } 00517 } 00518 } 00519 /***/ 00520 /* subtics */ 00521 if ( i < Nx-1 ) 00522 { 00523 double dx ; 00524 vxx1= x_convert(xy_type,x,i+1); 00525 dx = (vxx1-vxx)/subtics; 00526 for ( j = 1 ; j < subtics; j++){ 00527 vx[0] = vx[1] = XScale(vxx+dx*j); 00528 if ( pos == 'd' ) 00529 { vy[0]= ym[0];vy[1]= (integer) (ym[0] + barlength/2.0) ; } 00530 else 00531 { vy[0]= ym[0];vy[1]= (integer) (ym[0] - barlength/2.0) ; } 00532 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00533 } 00534 } 00535 /*** 01/07/2002 -> 11.05.04 ****/ 00536 psubwin = sciGetCurrentSubWin(); 00537 if ( (pSUBWIN_FEATURE (psubwin)->tight_limits || pSUBWIN_FEATURE (psubwin)->isoview ) 00538 && axisbuild_flag == 0) 00539 { 00540 if ( i == 0 ) 00541 { 00542 double dx ; 00543 vxx1= x_convert(xy_type,x,i+1); 00544 dx = (vxx1-vxx)/subtics; 00545 for ( j = 1 ; j < subtics; j++) { 00546 if ( vxx-dx*j > xmin){ 00547 vx[0] = vx[1] = XScale(vxx-dx*j); 00548 if ( pos == 'd' ) 00549 { vy[0]= ym[0];vy[1]=(int) (ym[0] + barlength/2.0) ; } 00550 else 00551 { vy[0]= ym[0];vy[1]= (int)(ym[0] - barlength/2.0); } 00552 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00553 }} 00554 } 00555 if ( i == Nx-1 ) 00556 { 00557 double dx ; 00558 vxx1= x_convert(xy_type,x,i+1); 00559 dx = (vxx1-vxx)/subtics; 00560 for ( j = 1 ; j < subtics; j++) { 00561 if ( vxx+dx*j < xmax){ 00562 vx[0] = vx[1] = XScale(vxx+dx*j); 00563 if ( pos == 'd' ) 00564 { vy[0]= ym[0];vy[1]= (int)(ym[0] + barlength/2.0) ; } 00565 else 00566 { vy[0]= ym[0];vy[1]= (int)(ym[0] - barlength/2.0); } 00567 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00568 }} 00569 } 00570 } 00571 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00572 } 00573 break; 00574 case 'r' : 00575 case 'l' : 00576 00578 barlength = (integer) (Cscale.WIRect1[2]/75.0); 00579 if (str == NULL && format == NULL ) 00580 switch (xy_type ) { 00581 case 'v' : ChoixFormatE1(c_format,y,Ny);break; 00582 case 'r' : ChoixFormatE(c_format,y[0],y[1],(y[1]-y[0])/y[2]);break; 00583 case 'i' : 00584 ChoixFormatE (c_format, 00585 (y[0] * exp10(y[2])), 00586 (y[1] * exp10(y[2])), 00587 ((y[1] * exp10(y[2])) - (y[0] * exp10(y[2])))/y[3]); break; /* Adding F.Leray 06.05.04 */ 00588 } 00590 vy[0] = YScale(y_convert(xy_type, y , 0)); 00591 vy[1] = YScale(y_convert(xy_type, y , Ny-1)); 00592 vx[0]= vx[1] = xm[0]= XScale(x[0]); 00593 if ( seg_flag == 1) 00594 { 00595 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00596 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00597 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00598 } 00599 00600 /*** 01/07/2002 -> 11 and 12.05.04 ****/ 00601 psubwin = sciGetCurrentSubWin(); 00602 if ((pSUBWIN_FEATURE (psubwin)->tight_limits == TRUE || pSUBWIN_FEATURE (psubwin)->isoview == TRUE ) 00603 && axisbuild_flag == 0){ 00604 ymax=Cscale.frect[3]; 00605 ymin=Cscale.frect[1]; 00606 00607 if(xy_type == 'i') 00608 { 00609 /* y[1] = floor(Cscale.frect[3] / (exp10( y[2]))) ; */ 00610 /* y[0] = ceil(Cscale.frect[1] / (exp10( y[2]))) ; */ 00611 00612 y[1] = floor( Cscale.ytics[1] ); 00613 y[0] = ceil( Cscale.ytics[0] ); 00614 00615 y[3]=inint(y[1]-y[0]); 00616 while (y[3]>10) y[3]=floor(y[3]/2); 00617 Ny=(int)(y[3]+1); 00618 00619 /* re-compute a format when tight_limits or isoview == ON */ 00620 ChoixFormatE (c_format, 00621 (y[0] * exp10(y[2])), 00622 (y[1] * exp10(y[2])), 00623 ((y[1] * exp10(y[2])) - (y[0] * exp10(y[2])))/y[3]); 00624 } 00625 /* THESE 2 last cases are unreachable because we use the condition : */ 00626 /* axisbuild_flag == 0 */ 00627 else if (xy_type == 'r') /* normally unreachable */ 00628 { 00629 sciprint(" Normally, unreachable case \n"); 00630 } 00631 else if(xy_type == 'v') /* normally unreachable */ 00632 { 00633 sciprint(" Normally, unreachable case \n"); 00634 } 00635 } 00636 00637 00638 00639 pas = ((double) Cscale.WIRect1[3]) / ((double) Cscale.Waaint1[3]); 00641 if (Ny==1) break; /*D.Abdemouche 16/12/2003*/ 00642 for (i=0 ; i < Ny ; i++) 00643 { 00644 char foo[100]; 00645 vxx = y_convert(xy_type,y,i); 00646 if ( str != NULL) 00647 sprintf(foo,"%s",str[i]); 00648 else if ( format == NULL) 00649 { 00650 /* defaults format */ 00651 /*F.Leray 19.05.04 */ 00652 /* When Sci_Axis is called by aplotv1, format is NULL : it can not be something else...*/ 00653 /* format can also be NULL if non specified and coming from ConstructAxes method called in Objdrawaxis (see matdes.c) */ 00654 sprintf(foo,c_format,vxx); 00655 } 00656 else{ 00657 sprintf(foo,format,vxx); 00658 } 00659 00660 00661 C2F(dr)("xstringl",foo,&xx,&yy,rect,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00662 00663 /* tick is computed in vx,vy and string is displayed at posi[0],posi[1] position */ 00664 00665 vy[0]= vy[1] = ym[0] = YScale(vxx); 00666 posi[1]=inint( ym[0] +rect[3]/2.0); 00667 if ( pos == 'r' ) 00668 { 00669 posi[0]=inint( xm[0] + 1.2*barlength); 00670 vx[0]= xm[0];vx[1]= xm[0]+barlength; 00671 } 00672 else 00673 { 00674 posi[0]=inint(xm[0] - 1.2*barlength - rect[2]); 00675 vx[0]= xm[0];vx[1]= xm[0] - barlength; 00676 } 00677 if ( textcolor != -1 ) C2F(dr)("xset","pattern",&textcolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00678 C2F(dr)("xstring",foo,&(posi[0]),&(posi[1]),PI0,&flag,PI0,PI0,&angle, PD0,PD0,PD0,0L,0L); 00679 if ( logflag == 'l' ) 00680 { 00681 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00682 C2F(dr)("xstring","10",(posi[0] -= logrect[2],&posi[0]), 00683 (posi[1] += logrect[3],&posi[1]), 00684 PI0,&flag,PI0,PI0,&angle,PD0,PD0,PD0,0L,0L); 00685 C2F(dr)("xset","font",fontid,&smallersize,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00686 } 00687 if ( textcolor != -1 ) C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00688 00689 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&ticscolor,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00690 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00691 /*** MAJ Djalel.A 21/01/2003 ***/ 00692 if (pSUBWIN_FEATURE (psubwin)->grid[1] > -1 ) 00693 { 00694 if(pSUBWIN_FEATURE (psubwin)->logflags[1] == 'l') 00695 { 00696 if ((vy[0] != Cscale.WIRect1[1]) && (vy[0] != (Cscale.WIRect1[1]+ Cscale.WIRect1[3]))) 00697 { 00698 pstyle=pSUBWIN_FEATURE (psubwin)->grid[1] ; 00699 vx[0]=Cscale.WIRect1[0]; 00700 vx[1]=Cscale.WIRect1[0]+Cscale.WIRect1[2]; 00701 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00702 C2F (dr) ("xset", "line style",&trois,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00703 C2F(dr)("xsegs","v", vx, vy, &ns,&pstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00704 } 00705 00706 if(i < Ny -1 ){ 00707 int jinit=1; 00708 /* In case there is a log. scale, add. sub-grid taking account of this special scale F.Leray 07.05.04 */ 00709 pstyle=pSUBWIN_FEATURE (psubwin)->grid[1] ; 00710 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00711 C2F (dr) ("xset", "line style",&trois,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00712 vx[0]=Cscale.WIRect1[0]; 00713 vx[1]=Cscale.WIRect1[0]+Cscale.WIRect1[2]; 00714 00715 if ( i== Cscale.Waaint1[3]-1 ) jinit=2; /* no grid on plot boundary */ 00716 for (j= jinit; j < 10 ; j++) 00717 { 00718 vy[0]=vy[1]= Cscale.WIRect1[1] + inint( ((double) i+1)*pas)- inint(log10(((double)j))*pas); 00719 C2F(dr)("xsegs","v", vx, vy, &ns,&pstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00720 } 00721 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00722 } 00723 } 00724 else if(pSUBWIN_FEATURE (psubwin)->logflags[1] == 'n'){ 00725 if ((vy[0] != Cscale.WIRect1[1]) && (vy[0] != (Cscale.WIRect1[1]+ Cscale.WIRect1[3]))) 00726 { 00727 pstyle=pSUBWIN_FEATURE (psubwin)->grid[1] ; 00728 vx[0]=Cscale.WIRect1[0]; 00729 vx[1]=Cscale.WIRect1[0]+Cscale.WIRect1[2]; 00730 C2F(dr)("xget","line style",&verbose,dash,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00731 C2F (dr) ("xset", "line style",&trois,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00732 C2F(dr)("xsegs","v", vx, vy, &ns,&pstyle,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00733 C2F(dr)("xset","line style",dash,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00734 } 00735 } 00736 } 00737 /* subtics */ 00738 if ( i < Ny-1 ) 00739 { 00740 double dy ; 00741 vxx1= y_convert(xy_type,y,i+1); 00742 dy = (vxx1-vxx)/subtics; 00743 for ( j = 1 ; j < subtics; j++) 00744 { 00745 vy[0] = vy[1] = YScale(vxx+dy*j); 00746 if ( pos == 'r' ) 00747 { vx[0]= xm[0];vx[1]= (integer) (xm[0] + barlength/2.0) ; } 00748 else 00749 { vx[0]= xm[0];vx[1]= (integer) (xm[0] - barlength/2.0) ; } 00750 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00751 } 00752 } 00753 /*** 01/07/2002 -> 12.05.04 ****/ 00754 psubwin = sciGetCurrentSubWin(); 00755 if ( (pSUBWIN_FEATURE (psubwin)->tight_limits == TRUE || pSUBWIN_FEATURE (psubwin)->isoview == TRUE ) 00756 && axisbuild_flag == 0){ 00757 if ( i == 0 ) 00758 { 00759 double dy ; 00760 vxx1= y_convert(xy_type,y,i+1); 00761 dy = (vxx1-vxx)/subtics; 00762 for ( j = 1 ; j < subtics; j++) { 00763 if ( vxx-dy*j > ymin){ 00764 vy[0] = vy[1] = YScale(vxx-dy*j); 00765 if ( pos == 'r' ) 00766 { vx[0]= xm[0];vx[1]= (int)(xm[0] + barlength/2.0) ; } 00767 else 00768 { vx[0]= xm[0];vx[1]= (int) (xm[0] - barlength/2.0); } 00769 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00770 }} 00771 } 00772 if ( i == Ny-1 ) 00773 { 00774 double dy ; 00775 vxx1= y_convert(xy_type,y,i+1); 00776 dy = (vxx1-vxx)/subtics; 00777 for ( j = 1 ; j < subtics; j++) { 00778 if ( vxx+dy*j < ymax){ 00779 vy[0] = vy[1] = YScale(vxx+dy*j); 00780 if ( pos == 'r' ) 00781 { vx[0]= xm[0];vx[1]= (int)(xm[0] + barlength/2.0) ; } 00782 else 00783 { vx[0]= xm[0];vx[1]= (int)(xm[0] - barlength/2.0); } 00784 C2F(dr)("xsegs","v", vx, vy, &ns,&ticscolor,&iflag,PI0,PD0,PD0,PD0,PD0,0L,0L); 00785 }} 00786 } 00787 } 00788 if ( ticscolor != -1 ) C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00789 } 00790 break; 00791 } 00792 /* reset font to its current size */ 00793 if ( fontsize != -1 || logflag == 'l' ) 00794 { 00795 fontid[1] = fontsize_kp; 00796 C2F(dr)("xset","font",fontid,fontid+1,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00797 } 00798 /* reset to current color */ 00799 if ( textcolor != -1 || ticscolor != -1 ) 00800 { 00801 C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 00802 } 00803 00804 } 00805 00806 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void triedre | ( | sciPointObj * | pobj, | |
| double * | xbox, | |||
| double * | ybox, | |||
| double * | zbox, | |||
| integer * | InsideU, | |||
| integer * | InsideD | |||
| ) |
Definition at line 2940 of file Axes.c.
References BT_ON, C2F, dr(), DrawAxis(), L, PD0, PI0, pSUBWIN_FEATURE, SCI_SUBWIN, sciGetEntityType(), sciGetForeground(), sciGetLineStyle(), sciGetLineWidth(), and x.
Referenced by drawSubWinEntity().
02941 { 02942 integer x[5],narg = 0; 02943 integer color_kp,verbose = 0,thick_kp ; 02944 integer style_kp[3] ; 02945 02946 C2F(dr)("xget","pattern",&verbose,&color_kp,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /*F.Leray Replacement*/ 02947 C2F(dr)("xget","thickness",&verbose,&thick_kp,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /*F.Leray addings here*/ 02948 C2F(dr)("xget","line style",&verbose,style_kp,&narg,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /*F.Leray addings here*/ 02949 02950 if(sciGetEntityType (pobj) == SCI_SUBWIN) 02951 { 02952 if(pSUBWIN_FEATURE (pobj)->axes.rect == BT_ON) 02953 { 02954 x[0] = sciGetForeground (pobj); 02955 x[2] = sciGetLineWidth (pobj); 02956 x[3] = sciGetLineStyle (pobj); 02957 x[4] = 0; 02958 02959 /* C2F (dr) ("xset","foreground",x,x,x+4,x+4,x+4,PI0,PD0,PD0,PD0,PD0,5L,4096);*/ 02960 C2F(dr)("xset","pattern",x,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02961 C2F(dr)("xset","thickness",x+2,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02962 C2F(dr)("xset", "line style", x+3,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); 02963 02964 if (zbox[InsideU[0]] > zbox[InsideD[0]]) 02965 { 02966 DrawAxis(xbox,ybox,InsideU,x[0]); 02967 } 02968 else 02969 { 02970 DrawAxis(xbox,ybox,InsideD,x[0]); 02971 } 02972 } 02973 } 02974 C2F(dr)("xset", "line style",&(style_kp[0]),PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L);/*F.Leray addings here*/ 02975 C2F(dr)("xset","thickness",&thick_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L);/*F.Leray addings here*/ 02976 C2F(dr)("xset","pattern",&color_kp,PI0,PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L); /*F.Leray addings here*/ 02977 02978 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void updateScaleIfRequired | ( | sciPointObj * | pSubWin | ) |
update the scale factors only if the SubWindow won't be automatically redrawn. Should be called before dr("xstringl") for example.
Definition at line 2800 of file Axes.c.
References sciGetIsAutoDrawable(), and updateSubWinScale().
Referenced by callXstringL(), getTextBoundingBox(), Objstring(), and sci_xstringl().
02801 { 02802 if ( !sciGetIsAutoDrawable( pSubWin ) ) 02803 { 02804 updateSubWinScale( pSubWin ) ; 02805 } 02806 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void updateSubWinScale | ( | sciPointObj * | pSubWin | ) |
Update the current scale factors from a modified SubWindow. This is sometimes required when the redraw is disable.
Definition at line 2776 of file Axes.c.
References NULL, pSUBWIN_FEATURE, sci_update_frame_bounds_2d(), set_scale(), and updateScale3d().
Referenced by updateScaleIfRequired().
02777 { 02778 double xBox[8] ; 02779 double yBox[8] ; 02780 double zBox[8] ; 02781 double dBox[6] ; 02782 02783 02784 set_scale ("tttftt", pSUBWIN_FEATURE(pSubWin)->WRect, 02785 pSUBWIN_FEATURE(pSubWin)->FRect, 02786 NULL, pSUBWIN_FEATURE(pSubWin)->logflags, 02787 pSUBWIN_FEATURE(pSubWin)->ARect); 02788 02789 /* Scales are not be updated with an automatic drawing */ 02790 if ( pSUBWIN_FEATURE(pSubWin)->is3d ) 02791 { 02792 updateScale3d( pSubWin, dBox, xBox, yBox, zBox ) ; 02793 } 02794 else 02795 { 02796 sci_update_frame_bounds_2d( pSubWin ) ; 02797 } 02798 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void updateXaxesTics | ( | sciPointObj * | psubwin, | |
| char | side, | |||
| double | y, | |||
| int | fontId[2], | |||
| int | smallersize | |||
| ) |
Definition at line 2599 of file Axes.c.
References sciSubWindow::axes, checkXAxes2dTics(), findFormat(), GradLog(), sciSubWindow::logflags, AXES::nxgrads, pSUBWIN_FEATURE, sciGetDisplayedBounds(), TheTicks(), TRUE, and AXES::xgrads.
Referenced by SciAxisNew().
02604 { 02605 sciSubWindow * ppSubWin = pSUBWIN_FEATURE( psubwin ) ; 02606 char labelXFormat[5] ; 02607 char labelYFormat[5] ; 02608 findFormat( psubwin, labelXFormat, labelYFormat ) ; 02609 02610 /* check if the ticks are concealing or not */ 02611 if ( !checkXAxes2dTics( psubwin, side, y, labelXFormat, fontId, smallersize ) ) 02612 { 02613 double xMin ; 02614 double xMax ; 02615 double yMin ; 02616 double yMax ; 02617 double zMin ; 02618 double zMax ; 02619 int ticksStatus = 0 ; 02620 02621 sciGetDisplayedBounds( psubwin, &xMin, &xMax, &yMin, &yMax, &zMin, &zMax ) ; 02622 02623 ppSubWin->axes.nxgrads = ( ppSubWin->axes.nxgrads + 1 ) / 2 ; 02624 02625 /* recompute the ticks */ 02626 if ( ppSubWin->logflags[0] == 'n' ) 02627 { 02628 TheTicks( &xMin, &xMax, ppSubWin->axes.xgrads, &ppSubWin->axes.nxgrads, TRUE ) ; 02629 } 02630 else 02631 { 02632 GradLog( xMin, xMax, ppSubWin->axes.xgrads, &ppSubWin->axes.nxgrads, TRUE ) ; 02633 } 02634 02635 findFormat( psubwin, labelXFormat, labelYFormat ) ; 02636 02637 while( ticksStatus == 0 && !checkXAxes2dTics( psubwin, side, y, labelXFormat, fontId, smallersize ) ) 02638 { 02639 ppSubWin->axes.nxgrads = ( ppSubWin->axes.nxgrads + 1 ) / 2 ; 02640 if ( ppSubWin->logflags[0] == 'n' ) 02641 { 02642 ticksStatus = TheTicks( &xMin, &xMax, ppSubWin->axes.xgrads, &ppSubWin->axes.nxgrads, TRUE ) ; 02643 } 02644 else 02645 { 02646 GradLog( xMin, xMax, ppSubWin->axes.xgrads, &ppSubWin->axes.nxgrads, TRUE ) ; 02647 } 02648 02649 findFormat( psubwin, labelXFormat, labelYFormat ) ; 02650 02651 } 02652 02653 } 02654 /* else everything ok */ 02655 }
Here is the call graph for this function:
Here is the caller graph for this function:
| void updateYaxesTics | ( | sciPointObj * | psubwin, | |
| char | side, | |||
| double | x, | |||
| int | fontId[2], | |||
| int | smallersize | |||
| ) |
Definition at line 2661 of file Axes.c.
References sciSubWindow::axes, checkYAxes2dTics(), findFormat(), GradLog(), sciSubWindow::logflags, AXES::nygrads, pSUBWIN_FEATURE, sciGetDisplayedBounds(), TheTicks(), TRUE, and AXES::ygrads.
Referenced by SciAxisNew().
02666 { 02667 sciSubWindow * ppSubWin = pSUBWIN_FEATURE( psubwin ) ; 02668 char labelXFormat[5] ; 02669 char labelYFormat[5] ; 02670 findFormat( psubwin, labelXFormat, labelYFormat ) ; 02671 02672 /* check if the ticks are concealing or not */ 02673 if ( !checkYAxes2dTics( psubwin, side, x, labelYFormat, fontId, smallersize ) ) 02674 { 02675 double xMin ; 02676 double xMax ; 02677 double yMin ; 02678 double yMax ; 02679 double zMin ; 02680 double zMax ; 02681 int ticksStatus = 0 ; 02682 02683 sciGetDisplayedBounds( psubwin, &xMin, &xMax, &yMin, &yMax, &zMin, &zMax ) ; 02684 02685 ppSubWin->axes.nygrads = ( ppSubWin->axes.nygrads + 1 ) / 2 ; 02686 02687 /* recompute the ticks */ 02688 if ( ppSubWin->logflags[1] == 'n' ) 02689 { 02690 TheTicks( &yMin, &yMax, ppSubWin->axes.ygrads, &ppSubWin->axes.nygrads, TRUE ) ; 02691 } 02692 else 02693 { 02694 GradLog( yMin, yMax, ppSubWin->axes.ygrads, &ppSubWin->axes.nygrads, TRUE ) ; 02695 } 02696 02697 findFormat( psubwin, labelXFormat, labelYFormat ) ; 02698 02699 while( ticksStatus == 0 && !checkYAxes2dTics( psubwin, side, x, labelYFormat, fontId, smallersize ) ) 02700 { 02701 ppSubWin->axes.nygrads = ( ppSubWin->axes.nygrads + 1 ) / 2 ; 02702 if ( ppSubWin->logflags[1] == 'n' ) 02703 { 02704 ticksStatus = TheTicks( &yMin, &yMax, ppSubWin->axes.ygrads, &ppSubWin->axes.nygrads, TRUE ) ; 02705 } 02706 else 02707 { 02708 GradLog( yMin, yMax, ppSubWin->axes.ygrads, &ppSubWin->axes.nygrads, TRUE ) ; 02709 } 02710 02711 findFormat( psubwin, labelXFormat, labelYFormat ) ; 02712 02713 } 02714 02715 } 02716 /* else everything ok */ 02717 }
Here is the call graph for this function:
Here is the caller graph for this function:
1.5.1
