drawTextEntity.c File Reference

#include "drawTextEntity.h"
#include "Vect2Matrix.h"
#include "GetProperty.h"
#include "periScreen.h"
#include "DrawObjects.h"
#include "Xcall1.h"
#include "Axes.h"
#include "StringBox.h"
#include "math_graphics.h"
#include "sciprint.h"
#include "clipping.h"

Include dependency graph for drawTextEntity.c:

Go to the source code of this file.

Functions
int	drawTextEntity (sciPointObj *pObj)
void	drawStringsInPosition (StringMatrix *strings, Vect2iMatrix *cellsArray, int center[2], double angle, sciTextAlignment align)
void	drawStringInCell (char *string, int blCorner[2], int urCorner[2], int rotCenter[2], double angle, sciTextAlignment align)
void	getStringMargins (int stringSize[2], int blCorner[2], int urCorner[2], sciTextAlignment align, int *lMargin, int *bMargin)

---

Function Documentation

void drawStringInCell	(	char *	string,
		int	blCorner[2],
		int	urCorner[2],
		int	rotCenter[2],
		double	angle,
		sciTextAlignment	align
	)

Draw a string inside a box. The box can be rotated.

Parameters:

	string	displayed string
	blCorner	Bottom left corner of the string.
	urCorner	Upper right corner of the string.
	rotCenter	Rotation center.
	angle	Rotation angle in radian.
	align	Position of the string inside the box.

Definition at line 224 of file drawTextEntity.c.

References Abs, C2F, dr(), EPSILON, getStringBbox(), getStringMargins(), iRotate2D(), L, PD0, PI0, pos, and RAD2DEG.

Referenced by drawStringsInPosition().

{
  int rect[4] ;
  int leftMargin ;
  int bottomMargin ;
  int pos[2] ;
  int flag = 0 ;
  double angleStr = RAD2DEG( angle ) ;
  /* get the size of the string */
  getStringBbox( string, blCorner, rect ) ;

  getStringMargins( &(rect[2]), blCorner, urCorner, align, &leftMargin, &bottomMargin ) ;

  /* get the position unturned */
  pos[0] = blCorner[0] + leftMargin   ;
  pos[1] = blCorner[1] + bottomMargin + rect[3] ;

  /* then turn it around the center */
  if ( Abs( angle ) > EPSILON )
  {
    iRotate2D( pos, rotCenter, angle, pos ) ;
  }
  /* then display it */
  C2F(dr)("xstring",string,&(pos[0]),&(pos[1]),PI0,&flag,PI0,PI0,&angleStr, PD0,PD0,PD0,0L,0L);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void drawStringsInPosition	(	StringMatrix *	strings,
		Vect2iMatrix *	cellsArray,
		int	center[2],
		double	angle,
		sciTextAlignment	align
	)

Given a matrix of strings and an array of cells positions, draw each strings in the corresponding cell. The array of cells must not been turned, this function manage the rotation itself. The alignment is also respected.

Parameters:

	strings	set of strings to display.
	cellsArray	position of the cells in which the strings are dispalyed.
	center	position of the center of the string array around which the rotation is done.
	angle	rotation angle in radian of the displayed matrix around its lower left point.
	align	position of strings inside their cells.

Definition at line 200 of file drawTextEntity.c.

References drawStringInCell(), getMatNbCol(), getMatNbRow(), getStrMatElement(), getVect2iMatElement(), i, j, and string.

Referenced by drawTextEntity().

{
  int nbRow = getMatNbRow( strings ) ;
  int nbCol = getMatNbCol( strings ) ;
  int i ;
  int j ;

  for ( i = 0 ; i < nbRow ; i++ )
  {
    for ( j = 0 ; j < nbCol ; j++ )
    {
      /* get the two extreme corners of the cell in which the text will be drawn */
      int  * blCorner = getVect2iMatElement( cellsArray, i    , j     ) ;
      int  * urCorner = getVect2iMatElement( cellsArray, i + 1, j + 1 ) ;
      char * string   = getStrMatElement( strings, i, j ) ;
      drawStringInCell( string, blCorner, urCorner, center, angle, align ) ;
    }
  }
}

Here is the call graph for this function:

Here is the caller graph for this function:

int drawTextEntity

(

sciPointObj *

pObj

)

Routine which draw a text object

Parameters:

pObj

the pointer on the text object

Definition at line 21 of file drawTextEntity.c.

References C2F, close(), DEG2RAD, deleteMatrix(), dr(), drawStringsInPosition(), getPixelCoordinates(), getStringsPositions(), sciText::isclip, L, MaybeSetWinhdc(), n, newMatrix(), PD0, PI0, PixelHeight2d(), PixelWidth2d(), pTEXT_FEATURE, ReleaseWinHdc(), rotateBoundingBox(), sciClip(), sciGetAlignment(), sciGetAutoSize(), sciGetBackground(), sciGetCenterPos(), sciGetFontDeciWidth(), sciGetFontForeground(), sciGetFontOrientation(), sciGetFontStyle(), sciGetForeground(), sciGetIs3d(), sciGetIsBoxed(), sciGetIsFilled(), sciGetIsLine(), sciGetParentSubwin(), sciGetText(), sciGetTextSize(), sciGetUserSize(), sciGetVisibility(), sciUnClip(), v, sciText::x, XDouble2Pixel, sciText::y, YDouble2Pixel, and sciText::z.

Referenced by labels2D_draw(), and sciDrawObj().

{
  int    v  = 0  ;
  double dv = 0. ;
  double anglestr = 0. ;
  int textProperties[6] ;
  int verb=0;
  int font_[2], cur_font_[2] ;
  int position[2] ;
  int textDim[2] ;
  double userSize[2] ;
  int    textSize[2] ;
  double textPos[3] ;
  Vect2iMatrix * bboxes ;
  int globalBbox[4][2] ;
  sciText * ppText =  pTEXT_FEATURE( pObj ) ;
  sciPointObj * parentSW = sciGetParentSubwin(pObj) ;

  if (!sciGetVisibility(pObj))
  {
    return 0 ;
  }



#ifdef _MSC_VER
  flag_DO = MaybeSetWinhdc ();
#endif
  if ( ppText->isclip )
  {
    sciClip(pObj);
  }

  /* transform the position in pixels */
  /* we don't take the axes reverse into account. This has obviously no meaning for text.*/
  textPos[0] = ppText->x ;
  textPos[1] = ppText->y ;
  textPos[2] = ppText->z ;

  if ( sciGetIs3d( pObj ) )
  {
    /* normal case */
    getPixelCoordinates( parentSW, textPos, position ) ;
  }
  else
  {
    /* for labels, the text is displayed using 2d scale. */
    position[0] = XDouble2Pixel( textPos[0] ) ;
    position[1] = YDouble2Pixel( textPos[1] ) ;
  }


  sciGetUserSize( pObj, &(userSize[0]), &(userSize[1]) ) ;


  /* We take the size in 2d. */
  textSize[0] = PixelWidth2d(  parentSW, ppText->x, userSize[0] ) ;
  textSize[1] = PixelHeight2d( parentSW, ppText->y, userSize[1] ) ;

  /* *10 parce que l'angle est conserve en 1/10eme de degre*/
  /* si c'est pas nimp tout ca.... */
  anglestr = (sciGetFontOrientation (pObj)/10);

  /* set the font */
  C2F(dr)("xget","font",&verb,cur_font_,&v,&v,&v,&v,&dv,&dv,&dv,&dv,5L,5L);

  font_[0] = sciGetFontStyle (pObj);
  font_[1] = sciGetFontDeciWidth (pObj)/100;

  C2F(dr)("xset","font",&font_[0],&font_[1],PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L);

  /* get the bounding box of the text matrix */
  /* the matrix with the bounding box of each strings in the text object */
  sciGetTextSize( pObj, &(textDim[0]), &(textDim[1]) ) ;
  bboxes = newMatrix( textDim[0] + 1, textDim[1] + 1 ) ;


  /* we get the array not turned because the display will turn everything by itself */
  /* However, the bounding box needs to be turned after */
  getStringsPositions( sciGetText( pObj )     ,
    &font_[0]              ,
    &font_[1]              ,
    position               ,
    sciGetAutoSize( pObj ) ,
    textSize               ,
    sciGetCenterPos( pObj ),
    0.0                    ,
    bboxes                 ,
    globalBbox              ) ;

  /* font might have changed */
  C2F(dr)("xset","font",&font_[0],&font_[1],PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L);

  /* wether or not we draw and/or fill the box */
  /* no need to compute anything if both line_mode */
  /* and fill mode are false */
  /* Of course, the background should be drawn first */
  if(    sciGetIsBoxed (pObj)
    && ( sciGetIsFilled( pObj ) || sciGetIsLine( pObj ) ) )
  {
    int xm[4], ym[4],n=4;
    int close=1;

    /* we need to rotate the bounding box */
    rotateBoundingBox( globalBbox, position,  DEG2RAD(anglestr) ) ;

    xm[0] = globalBbox[0][0] ;
    xm[1] = globalBbox[1][0] ;
    xm[2] = globalBbox[2][0] ;
    xm[3] = globalBbox[3][0] ;

    ym[0] = globalBbox[0][1] ;
    ym[1] = globalBbox[1][1] ;
    ym[2] = globalBbox[2][1] ;
    ym[3] = globalBbox[3][1] ;



    /* draw the background */
    if ( sciGetIsFilled( pObj ) )
    {
      textProperties[0] = sciGetBackground( pObj ) ;
      C2F (dr) ("xset", "dashes", textProperties, textProperties, textProperties+3, textProperties+3, textProperties+3, &v, &dv,&dv, &dv, &dv, 5L, 6L);
      C2F (dr) ("xset", "foreground", textProperties, textProperties, textProperties+3, textProperties+3, textProperties+3, &v,&dv, &dv, &dv, &dv, 5L, 10L);

      C2F (dr) ("xarea", "xv", &n, xm, ym, &close, PI0, PI0, PD0, PD0, PD0, PD0, 5L,strlen("xv"));
    }

    /* draw the line around the box */
    if ( sciGetIsLine( pObj ) )
    {
      textProperties[0] = sciGetForeground( pObj ) ;
      /* draw a rectangle around the text */
      C2F (dr) ("xset", "dashes", textProperties, textProperties, textProperties+3, textProperties+3, textProperties+3, &v, &dv,&dv, &dv, &dv, 5L, 6L);
      C2F (dr) ("xset", "foreground", textProperties, textProperties, textProperties+3, textProperties+3, textProperties+3, &v,&dv, &dv, &dv, &dv, 5L, 10L);

      C2F (dr) ("xlines", "xv", &n, xm, ym, &close, PI0, PI0, PD0, PD0, PD0, PD0,6L,2L);
    }
  }

#ifdef _MSC_VER
  flag_DO = MaybeSetWinhdc ();
#endif
  /* load the object foreground and dashes color */
  textProperties[0] = sciGetFontForeground (pObj);/*la dash est de la meme couleur que le foreground*/
  textProperties[2] = sciGetFontDeciWidth (pObj)/100;
  textProperties[3] = 0 ;
  textProperties[4] = sciGetFontStyle(pObj);
  textProperties[5] = 0 ;

  C2F (dr) ("xset", "dashes", textProperties, textProperties, textProperties+3, textProperties+3, textProperties+3, &v, &dv,&dv, &dv, &dv, 5L, 6L);
  C2F (dr) ("xset", "foreground", textProperties, textProperties, textProperties+3, textProperties+3, textProperties+3, &v,&dv, &dv, &dv, &dv, 5L, 10L);
  /* C2F(dr)("xset","font",x+4,x+2,&v, &v, &v, &v,&dv, &dv, &dv, &dv, 5L, 4L); */

#ifdef _MSC_VER
  if ( flag_DO == 1) ReleaseWinHdc ();
#endif

  drawStringsInPosition( sciGetText( pObj ), bboxes,position, DEG2RAD(anglestr), sciGetAlignment( pObj ) ) ;
  /* C2F(dr)("xstring",getStrMatElement(sciGetText(pObj),0,0),&x1,&yy1,PI0,&flagx,PI0,PI0,&anglestr, PD0,PD0,PD0,0L,0L); */


  C2F(dr)("xset","font",&cur_font_[0],&cur_font_[1],PI0,PI0,PI0,PI0,PD0,PD0,PD0,PD0,0L,0L);

  deleteMatrix( bboxes ) ;

  if ( ppText->isclip )
  {
    sciUnClip(pObj);
  }

#ifdef _MSC_VER
  if ( flag_DO == 1) ReleaseWinHdc ();
#endif

  return 0 ;

}

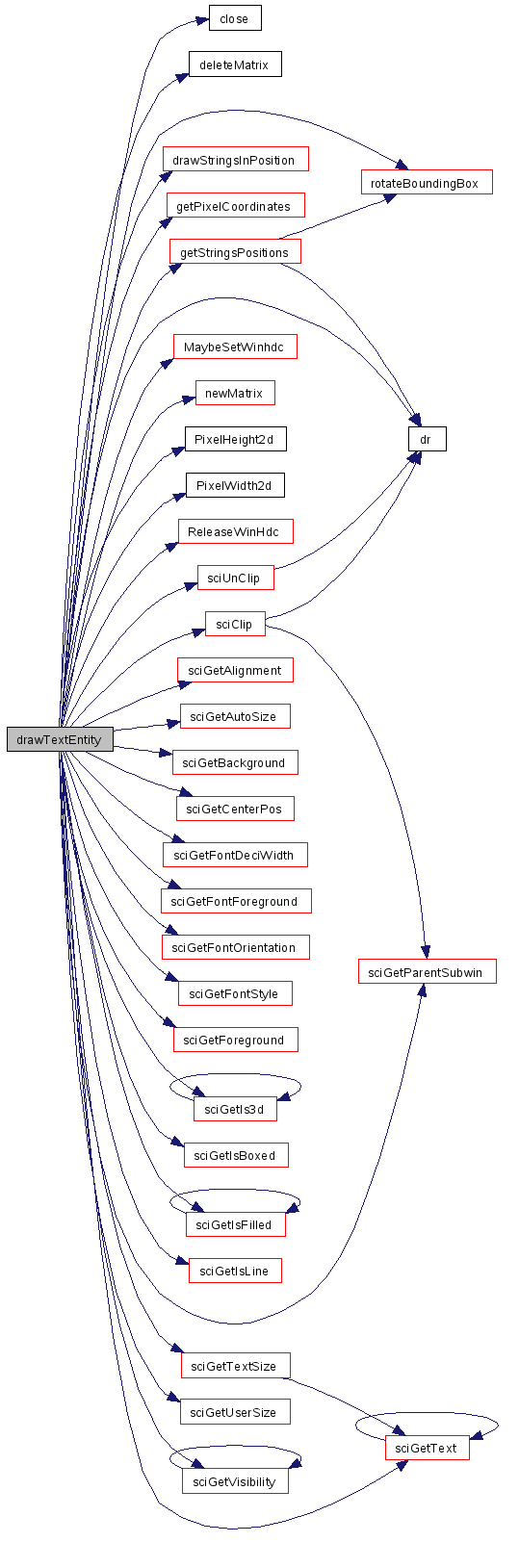

Here is the call graph for this function:

Here is the caller graph for this function:

void getStringMargins	(	int	stringSize[2],
		int	blCorner[2],
		int	urCorner[2],
		sciTextAlignment	align,
		int *	lMargin,
		int *	bMargin
	)

Inside a cell, return the margin to be used for the display of a string inside a cell.

Parameters:

	stringSize	width and height of the string wich will be displayed.
	blCorner	the bottom left corner of the cell. The cell must not be turned (ie axes aligned).
	urCorner	the upper right corner of the cell.
	align	specify the position of the string inside the cell.
	lMargin	left margin (horizontal).
	bMargin	bottom margin (vertical).

Definition at line 255 of file drawTextEntity.c.

References ALIGN_CENTER, ALIGN_LEFT, ALIGN_RIGHT, and sciprint().

Referenced by drawStringInCell().

{
  int cellWidth  = urCorner[0] - blCorner[0] ;
  int cellHeight = urCorner[1] - blCorner[1] ;

  switch( align )
  {
  case ALIGN_LEFT:
    *lMargin = 0 ;
    break ;
  case ALIGN_RIGHT:
    *lMargin = cellWidth - stringSize[0] ;
    break ;
  case ALIGN_CENTER:
    /* same margin for each side */
    *lMargin = ( cellWidth - stringSize[0] ) / 2 ;
    break ;
  default:
    sciprint("error unhandled alignment\n");
    *lMargin = -1 ;
    *bMargin = -1 ;
    break ;
  }
  *bMargin = ( cellHeight - stringSize[1] ) / 2 ;

}

Here is the call graph for this function:

Here is the caller graph for this function:

---
