sciLegend Struct Reference

#include <scilab/modules/graphics/includes/ObjectStructure.h>

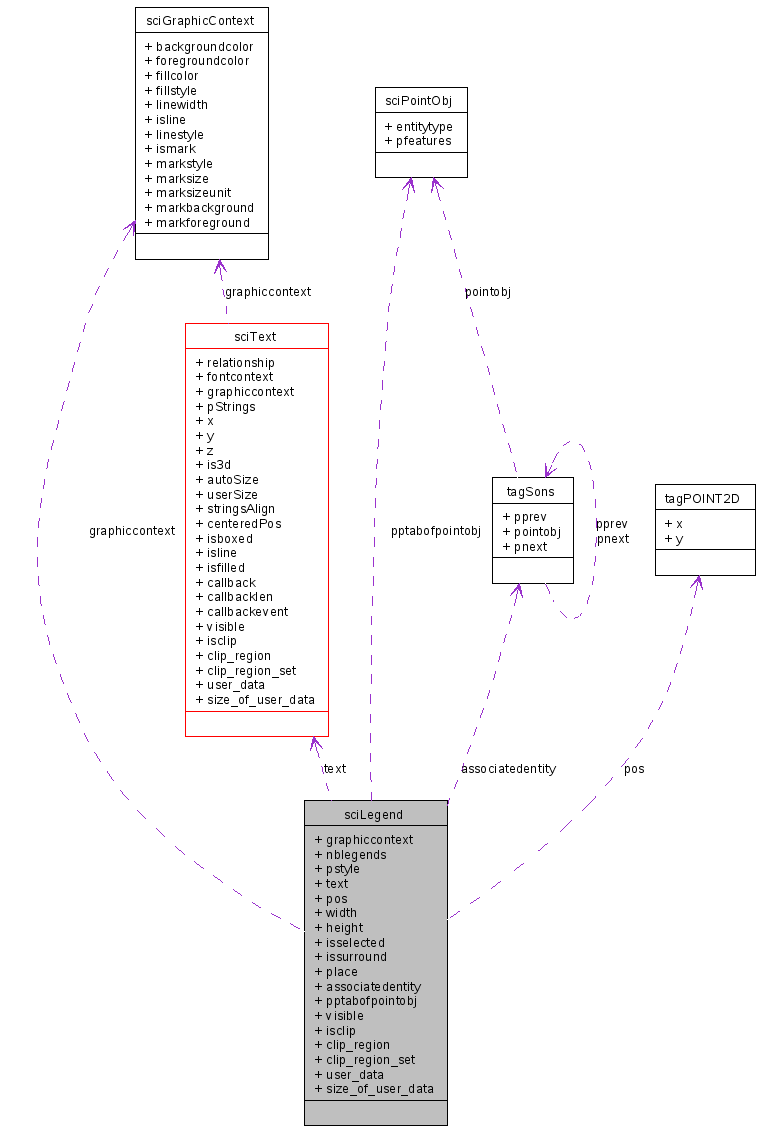

Collaboration diagram for sciLegend:

[legend]

Data Fields
sciGraphicContext	graphiccontext
int	nblegends
int *	pstyle
sciText	text
POINT2D	pos
int	width
int	height
BOOL	isselected
BOOL	issurround
sciLegendPlace	place
sciSons *	associatedentity
sciPointObj **	pptabofpointobj
BOOL	visible
int	isclip
double	clip_region [4]
int	clip_region_set
int *	user_data
int	size_of_user_data

---

Detailed Description

Definition at line 561 of file ObjectStructure.h.

---

Field Documentation

sciGraphicContext sciLegend::graphiccontext

Definition at line 563 of file ObjectStructure.h.

int sciLegend::nblegends

Definition at line 565 of file ObjectStructure.h.

Referenced by ConstructLegend(), and drawLegendEntity().

int* sciLegend::pstyle

Definition at line 567 of file ObjectStructure.h.

Referenced by ConstructLegend(), DestroyLegend(), and drawLegendEntity().

sciText sciLegend::text

Definition at line 569 of file ObjectStructure.h.

Referenced by ConstructLegend(), and DestroyLegend().

POINT2D sciLegend::pos

Definition at line 571 of file ObjectStructure.h.

Referenced by ConstructLegend().

int sciLegend::width

specifies the frame's width

Definition at line 573 of file ObjectStructure.h.

Referenced by ConstructLegend().

int sciLegend::height

specifies the frame's height

Definition at line 575 of file ObjectStructure.h.

Referenced by ConstructLegend().

BOOL sciLegend::isselected

Definition at line 577 of file ObjectStructure.h.

Referenced by ConstructLegend().

BOOL sciLegend::issurround

specifies if the legend is surrounded

Definition at line 579 of file ObjectStructure.h.

Referenced by ConstructLegend().

sciLegendPlace sciLegend::place

Definition at line 582 of file ObjectStructure.h.

Referenced by ConstructLegend().

sciSons* sciLegend::associatedentity

Definition at line 584 of file ObjectStructure.h.

sciPointObj** sciLegend::pptabofpointobj

pointer on the labelled objects

Definition at line 586 of file ObjectStructure.h.

Referenced by ConstructLegend(), DestroyLegend(), and drawLegendEntity().

BOOL sciLegend::visible

specifies if this object is visble

Definition at line 588 of file ObjectStructure.h.

Referenced by ConstructLegend().

int sciLegend::isclip

Definition at line 589 of file ObjectStructure.h.

double sciLegend::clip_region[4]

Definition at line 590 of file ObjectStructure.h.

int sciLegend::clip_region_set

Definition at line 591 of file ObjectStructure.h.

int* sciLegend::user_data

Definition at line 592 of file ObjectStructure.h.

int sciLegend::size_of_user_data

Definition at line 593 of file ObjectStructure.h.

---

The documentation for this struct was generated from the following file:

• scilab/modules/graphics/includes/ObjectStructure.h

---
