Scilab [trunk]: scilab/modules/gui/src/c/X11/Xaw3d/Paned.c File Reference

#define DrawInternalBorders ( pw ) _DrawInternalBorders((pw), (pw)->paned.normgc);

Definition at line 804 of file Paned.c.

Referenced by CommitGripAdjustment(), and Redisplay().

#define DrawTrackLines ( pw ) _DrawTrackLines((pw), FALSE);

Definition at line 854 of file Paned.c.

Referenced by MoveGripAdjustment().

#define EraseInternalBorders ( pw ) _DrawInternalBorders((pw), (pw)->paned.invgc);

Definition at line 805 of file Paned.c.

Referenced by StartGripAdjustment().

#define EraseTrackLines ( pw ) _DrawTrackLines((pw), TRUE);

Definition at line 855 of file Paned.c.

Referenced by CommitGripAdjustment().

#define ForAllChildren	(	pw,
		childP		)

Value:

for ( (childP) = (pw)->composite.children ; \
        (childP) < (pw)->composite.children + (pw)->composite.num_children ; \
        (childP)++ )

Definition at line 96 of file Paned.c.

#define ForAllPanes	(	pw,
		childP		)

Value:

for ( (childP) = (pw)->composite.children ; \
        (childP) < (pw)->composite.children + (pw)->paned.num_panes ; \
        (childP)++ )

Definition at line 91 of file Paned.c.

Referenced by _DrawInternalBorders(), _DrawTrackLines(), AdjustPanedSize(), ChangeAllGripCursors(), CommitNewLocations(), Realize(), RefigureLocations(), SetChildrenPrefSizes(), and StartGripAdjustment().

#define HasGrip ( w ) (PaneInfo(w)->grip != NULL)

Definition at line 86 of file Paned.c.

Referenced by ChangeAllGripCursors(), ChangeManaged(), CommitNewLocations(), DeleteChild(), ManageAndUnmanageGrips(), PaneSetValues(), and Realize().

#define IS_GRIP NULL

Definition at line 83 of file Paned.c.

#define IsPane ( w ) ((w)->core.widget_class != gripWidgetClass)

Definition at line 87 of file Paned.c.

Referenced by ChangeManaged(), DeleteChild(), InsertChild(), ManageAndUnmanageGrips(), and ResortChildren().

#define IsVert ( w ) ( (w)->paned.orientation == XtorientVertical )

Definition at line 89 of file Paned.c.

Referenced by _DrawInternalBorders(), _DrawRect(), _DrawTrackLines(), AdjustPanedSize(), ChangeAllGripCursors(), ChangeManaged(), CommitNewLocations(), CreateGrip(), GeometryManager(), GetEventLocation(), InsertChild(), LoopAndRefigureChildren(), MoveGripAdjustment(), RefigureLocations(), Resize(), SetChildrenPrefSizes(), SetValues(), and StartGripAdjustment().

#define NO_INDEX -100

Definition at line 82 of file Paned.c.

Referenced by ChoosePaneToResize(), RefigureLocations(), and RefigureLocationsAndCommit().

#define offset ( field ) XtOffsetOf(PanedConstraintsRec, paned.field)

Definition at line 164 of file Paned.c.

#define offset ( field ) XtOffsetOf(PanedRec, paned.field)

Definition at line 164 of file Paned.c.

#define PaneIndex ( w ) (PaneInfo(w)->position)

Definition at line 88 of file Paned.c.

Referenced by ChoosePaneToResize(), GeometryManager(), MoveGripAdjustment(), and StartGripAdjustment().

#define PaneInfo ( w ) ((Pane)(w)->core.constraints)

#define SuperClass ((ConstraintWidgetClass)&constraintClassRec)

Definition at line 207 of file Paned.c.

enum Direction

Enumerator:

UpLeftPane
LowRightPane
ThisBorderOnly
AnyPane

Definition at line 79 of file Paned.c.

00079              {UpLeftPane = 'U', LowRightPane = 'L',
00080               ThisBorderOnly = 'T', AnyPane = 'A' } Direction;

static void _DrawInternalBorders	(	PanedWidget	pw,
		GC	gc
	)			`[static]`

Definition at line 772 of file Paned.c.

References _DrawRect(), ForAllPanes, IsVert, and PaneSize().

00775 {
00776     Widget *childP;
00777     int on_loc, off_loc;
00778     unsigned int on_size, off_size;
00779
00780 /*
00781  * This is an optimization.  Do not paint the internal borders if
00782  * they are the same color as the background.
00783  */
00784
00785     if (pw->core.background_pixel == pw->paned.internal_bp)
00786         return;
00787
00788     off_loc = 0;
00789     off_size = (unsigned int) PaneSize( (Widget) pw, !IsVert(pw) );
00790     on_size = (unsigned int) pw->paned.internal_bw;
00791
00792     ForAllPanes(pw, childP) {
00793         on_loc = IsVert(pw) ? (*childP)->core.y : (*childP)->core.x;
00794         on_loc -= (int) on_size;
00795
00796         _DrawRect( pw, gc, on_loc, off_loc, on_size, off_size);
00797     }
00798 }

Here is the call graph for this function:

static void _DrawRect	(	PanedWidget	pw,
		GC	gc,
		int	on_loc,
		int	off_loc,
		unsigned int	on_size,
		unsigned int	off_size
	)			`[static]`

Definition at line 750 of file Paned.c.

References IsVert.

Referenced by _DrawInternalBorders(), and _DrawTrackLines().

00755 {
00756   if (IsVert(pw))
00757     XFillRectangle(XtDisplay(pw), XtWindow(pw), gc,
00758                    off_loc, on_loc, off_size, on_size);
00759   else
00760     XFillRectangle(XtDisplay(pw), XtWindow(pw), gc,
00761                    on_loc, off_loc, on_size, off_size);
00762 }

Here is the caller graph for this function:

static void _DrawTrackLines	(	PanedWidget	pw,
		Boolean	erase
	)			`[static]`

Definition at line 817 of file Paned.c.

References _DrawRect(), _PanedConstraintsPart::delta, ForAllPanes, IsVert, _PanedConstraintsPart::olddelta, PaneInfo, and PaneSize().

00820 {
00821     Widget *childP;
00822     Pane pane;
00823     int on_loc, off_loc;
00824     unsigned int on_size, off_size;
00825
00826     off_loc = 0;
00827     off_size = PaneSize( (Widget) pw, !IsVert(pw));
00828
00829     ForAllPanes(pw, childP) {
00830         pane = PaneInfo(*childP);
00831         if ( erase || (pane->olddelta != pane->delta) ) {
00832             on_size = pw->paned.internal_bw;
00833             if (!erase) {
00834                 on_loc = PaneInfo(*childP)->olddelta - (int) on_size;
00835
00836                 _DrawRect( pw, pw->paned.flipgc,
00837                           on_loc, off_loc, on_size, off_size);
00838             }
00839
00840             on_loc = PaneInfo(*childP)->delta - (int) on_size;
00841
00842             _DrawRect(pw, pw->paned.flipgc,
00843                       on_loc, off_loc, on_size, off_size);
00844
00845             pane->olddelta = pane->delta;
00846         }
00847     }
00848 }

Here is the call graph for this function:

static void AdjustPanedSize	(	PanedWidget	pw,
		Dimension	off_size,
		XtGeometryResult *	result_ret,
		Dimension *	on_size_ret,
		Dimension *	off_size_ret
	)			`[static]`

Definition at line 285 of file Paned.c.

References _XawImCallVendorShellExtResize(), AssignMin, ForAllPanes, GetRequestInfo(), IsVert, Max, PaneInfo, PaneSize(), and size.

Referenced by ChangeManaged(), GeometryManager(), and SetValues().

00290 {
00291     Dimension old_size = PaneSize( (Widget) pw, IsVert(pw));
00292     Dimension newsize = 0;
00293     Widget * childP;
00294     XtWidgetGeometry request, reply;
00295     request.request_mode = CWWidth | CWHeight;
00296
00297     ForAllPanes(pw, childP) {
00298         int size = Max(PaneInfo(*childP)->size, (int)PaneInfo(*childP)->min);
00299         AssignMin(size, (int) PaneInfo(*childP)->max);
00300         newsize += size + pw->paned.internal_bw;
00301     }
00302     newsize -= pw->paned.internal_bw;
00303
00304     if (newsize < 1) newsize = 1;
00305
00306     if ( IsVert(pw) ) {
00307         request.width = off_size;
00308         request.height = newsize;
00309     }
00310     else {
00311         request.width = newsize;
00312         request.height = off_size;
00313     }
00314
00315     if (result_ret != NULL) {
00316       request.request_mode |= XtCWQueryOnly;
00317
00318       *result_ret = XtMakeGeometryRequest( (Widget) pw, &request, &reply );
00319       _XawImCallVendorShellExtResize( (Widget) pw );
00320
00321       if ( (newsize == old_size) || (*result_ret == XtGeometryNo) ) {
00322           *on_size_ret = old_size;
00323           *off_size_ret = off_size;
00324           return;
00325       }
00326       if (*result_ret != XtGeometryAlmost) {
00327           *on_size_ret = GetRequestInfo( &request, IsVert(pw) );
00328           *off_size_ret = GetRequestInfo( &request, !IsVert(pw) );
00329           return;
00330       }
00331       *on_size_ret = GetRequestInfo( &reply, IsVert(pw) );
00332       *off_size_ret = GetRequestInfo( &reply, !IsVert(pw) );
00333       return;
00334     }
00335
00336     if (newsize == old_size) return;
00337
00338     if (XtMakeGeometryRequest( (Widget) pw,
00339                               &request, &reply) == XtGeometryAlmost)
00340         XtMakeGeometryRequest( (Widget) pw, &reply, &request);
00341 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void ChangeAllGripCursors ( PanedWidget pw ) [static]

Definition at line 1302 of file Paned.c.

References ForAllPanes, HasGrip, IsVert, PaneInfo, and XtNcursor.

Referenced by SetValues().

01304 {
01305     Widget * childP;
01306
01307     ForAllPanes(pw, childP) {
01308         Arg arglist[1];
01309         Cursor cursor;
01310
01311         if ( (cursor = pw->paned.grip_cursor) == None )
01312             if ( IsVert(pw) )
01313                 cursor = pw->paned.v_grip_cursor;
01314             else
01315                 cursor = pw->paned.h_grip_cursor;
01316
01317         if (HasGrip (*childP)) {
01318             XtSetArg(arglist[0], XtNcursor, cursor);
01319             XtSetValues(PaneInfo(*childP)->grip, arglist, (Cardinal) 1);
01320         }
01321     }
01322 }

Here is the caller graph for this function:

static void ChangeManaged ( Widget w ) [static]

Definition at line 1648 of file Paned.c.

References AdjustPanedSize(), ForAllChildren, _PanedConstraintsPart::grip, HasGrip, IsPane, IsVert, ManageAndUnmanageGrips(), _PanedRec::paned, PaneInfo, PaneSize(), _PanedConstraintsPart::position, PanedPart::recursively_called, RefigureLocationsAndCommit(), ResortChildren(), SetChildrenPrefSizes(), and size.

01650 {
01651    PanedWidget pw = (PanedWidget)w;
01652    Boolean vert = IsVert(pw);
01653    Dimension size;
01654    Widget *childP;
01655
01656    if (pw->paned.recursively_called++) return;
01657
01658 /*
01659  * If the size is zero then set it to the size of the widest or tallest pane.
01660  */
01661
01662    if ( (size = PaneSize( (Widget) pw, !vert )) == 0) {
01663        size = 1;
01664        ForAllChildren(pw, childP)
01665            if ( XtIsManaged(*childP) && (PaneSize( *childP, !vert ) > size) )
01666                size = PaneSize( *childP, !vert );
01667    }
01668
01669    ManageAndUnmanageGrips(pw);
01670    pw->paned.recursively_called = False;
01671    ResortChildren(pw);
01672
01673    pw->paned.num_panes = 0;
01674    ForAllChildren(pw, childP)
01675        if ( IsPane(*childP) )
01676            if ( XtIsManaged(*childP) ) {
01677                Pane pane = PaneInfo(*childP);
01678                if (HasGrip(*childP))
01679                    PaneInfo(pane->grip)->position = pw->paned.num_panes;
01680                pane->position = pw->paned.num_panes; /*TEMPORY -CDP 3/89 */
01681                pw->paned.num_panes++;
01682            }
01683            else
01684                break;           /* This list is already sorted. */
01685
01686    SetChildrenPrefSizes( (PanedWidget) w, size);
01687
01688 /*
01689  * ForAllPanes can now be used.
01690  */
01691
01692    if ( PaneSize((Widget) pw, vert) == 0 )
01693        AdjustPanedSize(pw, size, (XtGeometryResult *)NULL,
01694                         (Dimension *)NULL, (Dimension *)NULL);
01695
01696    if (XtIsRealized( (Widget) pw))
01697        RefigureLocationsAndCommit( (Widget) pw);
01698
01699 } /* ChangeManaged */

Here is the call graph for this function:

static void ChangeManaged ( ) [static]

static Pane ChoosePaneToResize	(	PanedWidget	pw,
		int	paneindex,
		Direction	dir,
		Boolean	shrink
	)			`[static]`

Definition at line 404 of file Paned.c.

References AnyPane, LowRightPane, NO_INDEX, PaneIndex, PaneInfo, SatisfiesRule1(), SatisfiesRule2(), SatisfiesRule3(), and TRUE.

Referenced by LoopAndRefigureChildren().

00409 {
00410     Widget *childP;
00411     int rules = 3;
00412     Direction _dir = dir;
00413     int _index = paneindex;
00414
00415     if ( (paneindex == NO_INDEX) || (dir == AnyPane) ) {  /* Use defaults. */
00416       _dir = LowRightPane;              /* Go up. - really. */
00417       _index = pw->paned.num_panes - 1; /* Start the last pane, and work
00418                                            backwards. */
00419     }
00420     childP = pw->composite.children + _index;
00421
00422     /* CONSTCOND */
00423     while(TRUE) {
00424         Pane pane = PaneInfo(*childP);
00425
00426         if ( (rules < 3 || SatisfiesRule3(pane, shrink)) &&
00427              (rules < 2 || SatisfiesRule2(pane))         &&
00428              (SatisfiesRule1(pane, shrink))              &&
00429              ((paneindex != PaneIndex(*childP)) || (dir == AnyPane)) )
00430             return(pane);
00431
00432 /*
00433  * This is counter-intuitive, but if we are resizing the pane
00434  * above the grip we want to choose a pane below the grip to lose,
00435  * and visa-versa.
00436  */
00437
00438         if (_dir == LowRightPane) --childP; else ++childP;
00439
00440 /*
00441  * If we have come to and edge then reduce the rule set, and try again.
00442  * If we are reduced the rules to none, then return NULL.
00443  */
00444
00445         if ( (childP - pw->composite.children < 0) ||
00446              (childP - pw->composite.children >= pw->paned.num_panes) ) {
00447             if (--rules < 1)  /* less strict rules. */
00448               return(NULL);
00449             childP = pw->composite.children + _index;
00450         }
00451     }
00452 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void ClassInitialize ( ) [static]

Definition at line 1426 of file Paned.c.

References XawInitializeWidgetSet(), and XmuCvtStringToOrientation().

01427 {
01428     XawInitializeWidgetSet();
01429     XtAddConverter( XtRString, XtROrientation, XmuCvtStringToOrientation,
01430                     (XtConvertArgList)NULL, (Cardinal)0 );
01431 }

Here is the call graph for this function:

static void ClearPaneStack ( PanedWidget pw ) [static]

Definition at line 1407 of file Paned.c.

References PopPaneStack().

01409 {
01410   while(PopPaneStack(pw));
01411 }

Here is the call graph for this function:

static void ClearPaneStack ( ) [static]

Referenced by CommitNewLocations().

Here is the caller graph for this function:

static void CommitGripAdjustment ( PanedWidget pw ) [static]

Definition at line 1018 of file Paned.c.

References CommitNewLocations(), DrawInternalBorders, EraseTrackLines, PaneInfo, _PanedConstraintsPart::size, and _PanedConstraintsPart::wp_size.

Referenced by HandleGrip().

01020 {
01021     EraseTrackLines(pw);
01022     CommitNewLocations(pw);
01023     DrawInternalBorders(pw);
01024
01025 /*
01026  * Since the user selected this size then use it as the preferred size.
01027  */
01028
01029     if (pw->paned.whichadd) {
01030         Pane pane = PaneInfo(pw->paned.whichadd);
01031         pane->wp_size = pane->size;
01032     }
01033     if (pw->paned.whichsub) {
01034         Pane pane = PaneInfo(pw->paned.whichsub);
01035         pane->wp_size = pane->size;
01036     }
01037 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void CommitNewLocations ( PanedWidget pw ) [static]

Definition at line 657 of file Paned.c.

References ClearPaneStack(), _PanedConstraintsPart::delta, ForAllPanes, _PanedConstraintsPart::grip, HasGrip, IsVert, PaneInfo, and _PanedConstraintsPart::size.

Referenced by CommitGripAdjustment(), GeometryManager(), PaneSetValues(), RefigureLocationsAndCommit(), and SetValues().

00659 {
00660     Widget *childP;
00661     XWindowChanges changes;
00662
00663     changes.stack_mode = Above;
00664
00665     ForAllPanes(pw, childP) {
00666         Pane pane = PaneInfo(*childP);
00667         Widget grip = pane->grip; /* may be NULL. */
00668
00669         if (IsVert(pw)) {
00670             XtMoveWidget(*childP, (Position) 0, pane->delta);
00671             XtResizeWidget(*childP, pw->core.width, (Dimension) pane->size,
00672                            (Dimension) 0);
00673
00674             if (HasGrip(*childP)) {         /* Move and Display the Grip */
00675                 changes.x = pw->core.width - pw->paned.grip_indent -
00676                             grip->core.width - grip->core.border_width*2;
00677                 changes.y = (*childP)->core.y + (*childP)->core.height -
00678                             grip->core.height/2 - grip->core.border_width +
00679                             pw->paned.internal_bw/2;
00680             }
00681         }
00682         else {
00683             XtMoveWidget(*childP, pane->delta, (Position) 0);
00684             XtResizeWidget(*childP, (Dimension) pane->size, pw->core.height,
00685                            (Dimension) 0);
00686
00687
00688             if (HasGrip(*childP)) {         /* Move and Display the Grip */
00689                 changes.x = (*childP)->core.x + (*childP)->core.width -
00690                             grip->core.width/2 - grip->core.border_width +
00691                             pw->paned.internal_bw/2;
00692                 changes.y = pw->core.height - pw->paned.grip_indent -
00693                             grip->core.height - grip->core.border_width*2;
00694             }
00695         }
00696
00697 /*
00698  * This should match XtMoveWidget, except that we're also insuring the
00699  * grip is Raised in the same request.
00700  */
00701
00702         if (HasGrip(*childP)) {
00703             grip->core.x = changes.x;
00704             grip->core.y = changes.y;
00705
00706             if (XtIsRealized(pane->grip))
00707                 XConfigureWindow( XtDisplay(pane->grip), XtWindow(pane->grip),
00708                                   CWX | CWY | CWStackMode, &changes );
00709         }
00710     }
00711     ClearPaneStack(pw);
00712 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void CreateGrip ( Widget child ) [static]

Definition at line 1185 of file Paned.c.

References PanedPart::grip_cursor, PanedPart::grip_translations, gripWidgetClass, HandleGrip(), IsVert, _PanedRec::paned, PaneInfo, and XtNcursor.

Referenced by InsertChild(), and PaneSetValues().

01187 {
01188     PanedWidget pw = (PanedWidget) XtParent(child);
01189     Arg arglist[2];
01190     Cardinal num_args = 0;
01191     Cursor cursor;
01192
01193     XtSetArg(arglist[num_args], XtNtranslations, pw->paned.grip_translations);
01194     num_args++;
01195     if ( (cursor = pw->paned.grip_cursor) == None )
01196         if (IsVert(pw))
01197             cursor = pw->paned.v_grip_cursor;
01198         else
01199             cursor = pw->paned.h_grip_cursor;
01200
01201     XtSetArg(arglist[num_args], XtNcursor, cursor);
01202     num_args++;
01203     PaneInfo(child)->grip = XtCreateWidget("grip", gripWidgetClass, (Widget)pw,
01204                                            arglist, num_args);
01205
01206     XtAddCallback(PaneInfo(child)->grip, XtNcallback,
01207                   HandleGrip, (XtPointer) child);
01208 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void DeleteChild ( Widget w ) [static]

Definition at line 1635 of file Paned.c.

References HasGrip, IsPane, PaneInfo, and SuperClass.

01637 {
01638     /* remove the subwidget info and destroy the grip */
01639
01640     if ( IsPane(w) && HasGrip(w) ) XtDestroyWidget(PaneInfo(w)->grip);
01641
01642     /* delete the child widget in the composite children list with the */
01643     /* superclass delete_child routine.                                */
01644     (*SuperClass->composite_class.delete_child) (w);
01645
01646 } /* DeleteChild */

static void DeleteChild ( ) [static]

static XtGeometryResult GeometryManager	(	Widget	w,
		XtWidgetGeometry *	request,
		XtWidgetGeometry *	reply
	)			`[static]`

Definition at line 1447 of file Paned.c.

References AdjustPanedSize(), _PanedConstraintsPart::allow_resize, AnyPane, CommitNewLocations(), FALSE, GetRequestInfo(), IsVert, PaneIndex, PaneInfo, PaneSize(), RefigureLocations(), result, _PanedConstraintsPart::size, and _PanedConstraintsPart::wp_size.

01450 {
01451     PanedWidget pw = (PanedWidget) XtParent(w);
01452     XtGeometryMask mask = request->request_mode;
01453     Dimension old_size, old_wpsize, old_paned_size;
01454     Pane pane = PaneInfo(w);
01455     Boolean vert = IsVert(pw);
01456     Dimension on_size, off_size;
01457     XtGeometryResult result;
01458     Boolean almost = FALSE;
01459
01460 /*
01461  * If any of the following is true, disallow the geometry change.
01462  *
01463  * o The paned widget is realized and allow_resize is false for the pane.
01464  * o The child did not ask to change the on_size.
01465  * o The request is not a width or height request.
01466  * o The requested size is the same as the current size.
01467  */
01468
01469     if ( (XtIsRealized((Widget)pw) && !pane->allow_resize)        ||
01470          !(mask & ((vert) ? CWHeight : CWWidth))                  ||
01471          (mask & ~(CWWidth | CWHeight))                           ||
01472          (GetRequestInfo(request, vert) ==  PaneSize(w, vert)) ) {
01473         return XtGeometryNo;
01474     }
01475
01476     old_paned_size = PaneSize( (Widget) pw, vert);
01477     old_wpsize = pane->wp_size;
01478     old_size = pane->size;
01479
01480     pane->wp_size = pane->size = GetRequestInfo(request, vert);
01481
01482     AdjustPanedSize(pw, PaneSize((Widget) pw, !vert), &result, &on_size,
01483                     &off_size);
01484
01485 /*
01486  * Fool the Refigure Locations proc to thinking that we are
01487  * a different on_size;
01488  */
01489
01490     if (result != XtGeometryNo)
01491         if (vert)
01492             pw->core.height = on_size;
01493         else
01494             pw->core.width = on_size;
01495
01496     RefigureLocations(pw, PaneIndex(w), AnyPane);
01497
01498 /*
01499  * Set up reply struct and reset core on_size.
01500  */
01501
01502     if (vert) {
01503         pw->core.height = old_paned_size;
01504         reply->height = pane->size;
01505         reply->width = off_size;
01506     }
01507     else {
01508         pw->core.width = old_paned_size;
01509         reply->height = off_size;
01510         reply->width = pane->size;
01511     }
01512
01513 /*
01514  * IF either of the following is true.
01515  *
01516  * o There was a "off_size" request and the new "off_size" is different
01517  *   from that requested.
01518  * o There was no "off_size" request and the new "off_size" is different
01519  *
01520  * o The "on_size" we will allow is different from that requested.
01521  *
01522  * THEN: set almost
01523  */
01524
01525     if ( !((vert ? CWWidth : CWHeight) & mask))
01526         if (vert)
01527             request->width = w->core.width;
01528         else
01529             request->height = w->core.height;
01530
01531     almost = GetRequestInfo(request, !vert) != GetRequestInfo(reply, !vert);
01532     almost |= (GetRequestInfo(request, vert) != GetRequestInfo(reply, vert));
01533
01534     if ( (mask & XtCWQueryOnly) || almost ) {
01535         pane->wp_size = old_wpsize;
01536         pane->size = old_size;
01537         RefigureLocations(pw, PaneIndex(w), AnyPane);
01538         reply->request_mode = CWWidth | CWHeight;
01539         if (almost) return XtGeometryAlmost;
01540     }
01541     else {
01542         AdjustPanedSize(pw, PaneSize((Widget) pw, !vert),
01543                         (XtGeometryResult *)NULL,
01544                         (Dimension *)NULL, (Dimension *)NULL);
01545         CommitNewLocations( pw );       /* layout already refigured. */
01546     }
01547     return XtGeometryDone;
01548 }

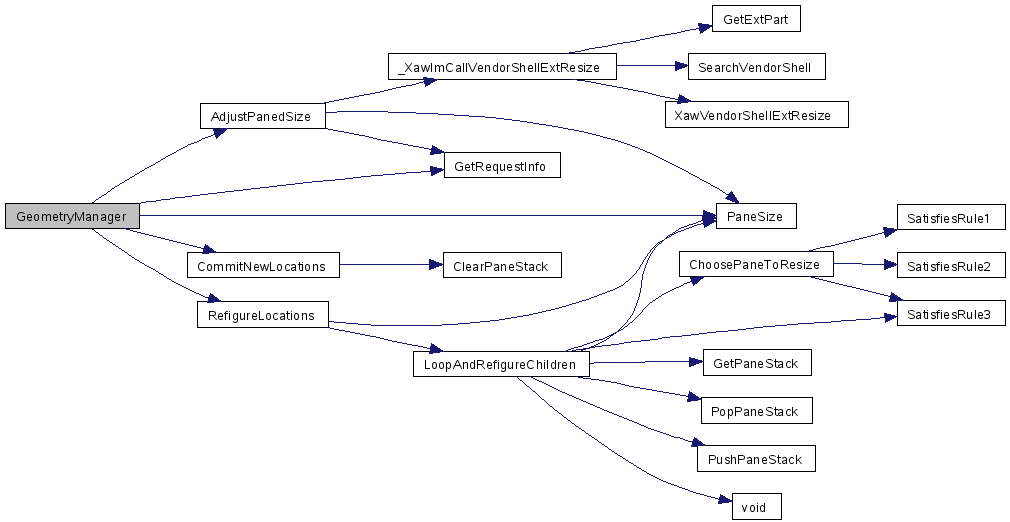

Here is the call graph for this function:

static XtGeometryResult GeometryManager ( ) [static]

static int GetEventLocation	(	PanedWidget	pw,
		XEvent *	event
	)			`[static]`

Definition at line 865 of file Paned.c.

References IsVert, x, and y.

Referenced by HandleGrip().

00868 {
00869     int x, y;
00870
00871     switch (event->xany.type) {
00872         case ButtonPress:
00873         case ButtonRelease:
00874             x = event->xbutton.x_root;
00875             y = event->xbutton.y_root;
00876             break;
00877         case KeyPress:
00878         case KeyRelease:
00879             x = event->xkey.x_root;
00880             y = event->xkey.y_root;
00881             break;
00882         case MotionNotify:
00883             x = event->xmotion.x_root;
00884             y = event->xmotion.y_root;
00885             break;
00886         default:
00887             x = pw->paned.start_loc;
00888             y = pw->paned.start_loc;
00889     }
00890     if (IsVert(pw))
00891         return(y);
00892     return(x);
00893 }

Here is the caller graph for this function:

static void GetGCs ( Widget w ) [static]

Definition at line 1217 of file Paned.c.

References _PanedRec::core, PanedPart::flipgc, GXinvert, PanedPart::internal_bp, PanedPart::invgc, PanedPart::normgc, and _PanedRec::paned.

01219 {
01220     PanedWidget pw = (PanedWidget) w;
01221     XtGCMask valuemask;
01222     XGCValues values;
01223
01224 /*
01225  * Draw pane borders in internal border color.
01226  */
01227
01228     values.foreground = pw->paned.internal_bp;
01229     valuemask = GCForeground;
01230     pw->paned.normgc = XtGetGC(w, valuemask, &values);
01231
01232 /*
01233  * Erase pane borders with background color.
01234  */
01235
01236     values.foreground = pw->core.background_pixel;
01237     valuemask = GCForeground;
01238     pw->paned.invgc = XtGetGC(w, valuemask, &values);
01239
01240 /*
01241  * Draw Track lines (animate pane borders) in internal border color ^ bg color.
01242  */
01243
01244     values.function = GXinvert;
01245     values.plane_mask = pw->paned.internal_bp ^ pw->core.background_pixel;
01246     values.subwindow_mode = IncludeInferiors;
01247     valuemask = GCPlaneMask | GCFunction | GCSubwindowMode;
01248     pw->paned.flipgc = XtGetGC(w, valuemask, &values);
01249 }

static void GetGCs ( ) [static]

static void GetPaneStack	(	PanedWidget	pw,
		Boolean	shrink,
		Pane *	pane,
		int *	start_size
	)			`[static]`

Definition at line 1362 of file Paned.c.

01367 {
01368   if (pw->paned.stack == NULL) {
01369     *pane = NULL;
01370     return;
01371   }
01372
01373   *pane = pw->paned.stack->pane;
01374   *start_size = pw->paned.stack->start_size;
01375
01376   if (shrink != ((*pane)->size > *start_size)) *pane = NULL;
01377 }

static void GetPaneStack ( ) [static]

Referenced by LoopAndRefigureChildren().

Here is the caller graph for this function:

static Dimension GetRequestInfo	(	XtWidgetGeometry *	geo_struct,
		Boolean	vert
	)			`[static]`

Definition at line 371 of file Paned.c.

00374 {
00375     if ( vert ) return ( (Dimension) geo_struct->height);
00376     return ( (Dimension) geo_struct->width);
00377 }

static Dimension GetRequestInfo ( )

Referenced by AdjustPanedSize(), and GeometryManager().

Here is the caller graph for this function:

static void HandleGrip	(	Widget	grip,
		XtPointer	junk,
		XtPointer	callData
	)			`[static]`

Definition at line 1049 of file Paned.c.

References CommitGripAdjustment(), _XawGripCallData::event, FALSE, GetEventLocation(), MoveGripAdjustment(), _XawGripCallData::num_params, _PanedRec::paned, _XawGripCallData::params, PanedPart::resize_children_to_pref, PanedPart::start_loc, StartGripAdjustment(), and XtNcursor.

Referenced by CreateGrip().

01052 {
01053     XawGripCallData call_data = (XawGripCallData)callData;
01054     PanedWidget pw = (PanedWidget) XtParent(grip);
01055     int loc;
01056     char action_type;
01057     Cursor cursor;
01058     Direction direction = 0;
01059     Arg arglist[1];
01060
01061     action_type = *call_data->params[0];
01062
01063     if (call_data->num_params == 0                             ||
01064         (action_type == 'C' && call_data->num_params != 1)      ||
01065         (action_type != 'C' && call_data->num_params != 2))
01066         XtError( "Paned GripAction has been passed incorrect parameters." );
01067
01068     if (islower(action_type)) action_type = toupper(action_type);
01069
01070     loc = GetEventLocation(pw, (XEvent *) (call_data->event));
01071
01072     if (action_type != 'C') {
01073         if ( isupper(*call_data->params[1]) )
01074           direction = (Direction) *call_data->params[1];
01075         else
01076           direction = (Direction) toupper(*call_data->params[1]);
01077     }
01078
01079     switch (action_type) {
01080         case 'S':               /* Start adjustment */
01081             pw->paned.resize_children_to_pref = FALSE;
01082             StartGripAdjustment(pw, grip, direction);
01083             pw->paned.start_loc = loc;
01084             break;
01085
01086         case 'M':
01087             MoveGripAdjustment(pw, grip, direction, loc);
01088             break;
01089
01090         case 'C':
01091             XtSetArg(arglist[0], XtNcursor, &cursor);
01092             XtGetValues(grip, arglist, (Cardinal) 1);
01093             XDefineCursor(XtDisplay(grip), XtWindow(grip), cursor);
01094             CommitGripAdjustment(pw);
01095             break;
01096
01097         default:
01098             XtError( "Paned GripAction(); 1st parameter invalid" );
01099      }
01100 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void Initialize	(	Widget	request,
		Widget	new,
		ArgList	args,
		Cardinal *	num_args
	)			`[static]`

Definition at line 1551 of file Paned.c.

References GetGCs(), and TRUE.

01555 {
01556     PanedWidget pw = (PanedWidget)new;
01557
01558     GetGCs( (Widget) pw);
01559
01560     pw->paned.recursively_called = False;
01561     pw->paned.stack = NULL;
01562     pw->paned.resize_children_to_pref = TRUE;
01563     pw->paned.num_panes = 0;
01564 }

Here is the call graph for this function:

static void Initialize ( )

Definition at line 26 of file javasci_globals.c.

00027 {
00028   static char env[1024];
00029   static char initstr[]="exec(\"SCI/etc/scilab.start\",-1);quit;";
00030   static int iflag=-1, stacksize = 1000000, ierr=0;
00031
00032   #ifdef _MSC_VER
00033     static char JavaSciInterf[]="javasci";
00034     static char nw[]="-nw";
00035     static char nb[]="-nb";
00036   #endif
00037
00038
00039   char *p1 = (char*)getenv ("SCI");
00040
00041
00042   #ifdef _MSC_VER
00043   /* Supprime le mode windows et la baniere */
00044     add_sci_argv(JavaSciInterf);
00045     add_sci_argv(nb);
00046   #endif
00047
00048   #ifdef _MSC_VER
00049     if ( p1== NULL )
00050     {
00051                 /* Detection Scilab path */
00052                 char modname[MAX_PATH+1];
00053                 if (!GetModuleFileName (GetModuleHandle("javasci.dll"), modname, MAX_PATH))
00054                 {
00055                         MessageBox(NULL,"javasci.dll not found","Warning",MB_ICONWARNING);
00056                 }
00057                 else
00058                 {
00059                         char *p;
00060                         if ((p = strrchr (modname, '\\')) == NULL) exit(1); /* remove \javasci.dll from modname */
00061                         else
00062                         {
00063                                 *p='\0';
00064                                 if ((p = strrchr (modname, '\\')) == NULL) exit(1); /* remove \bin from modname */
00065                                 else
00066                                 {
00067                                         *p='\0';
00068                                         set_sci_env(modname);
00069                                 }
00070                         }
00071                 }
00072     }
00073     else
00074         {
00075                 char *pathSCI=(char*)MALLOC((strlen(p1)+1)*sizeof(char));
00076                 sprintf(pathSCI,"%s",p1);
00077                 set_sci_env(pathSCI);
00078                 if (pathSCI) {FREE(pathSCI);pathSCI=NULL;}
00079         }
00080   #else
00081    if (p1==NULL)
00082    {
00083         fprintf(stderr,"Please define SCI environment variable\n");
00084         sprintf (env, "%s=%s", "SCI",SCI);
00085         setSCIpath(SCI);
00086         putenv (env);
00087    }
00088   #endif
00089   /* set TMPDIR */
00090   C2F(settmpdir)();
00091   /* Scilab Initialization */
00092   C2F(inisci)(&iflag,&stacksize,&ierr);
00093   if ( ierr > 0 )
00094     {
00095       fprintf(stderr,"Scilab initialization failed !\n");
00096       exit(1);
00097     }
00098
00099
00100   /* Initialisation fenetre graphique */
00101   #ifdef _MSC_VER
00102     InitWindowGraphDll();
00103   #endif
00104
00105   /* pour initialisation de la primitive scilab : fromjava() */
00106   SetFromJavaToON();
00107
00108   /* Chargement de Scilab.start */
00109   C2F(scirun)(initstr,(int)strlen(initstr));
00110
00111 }

static void InsertChild ( Widget w ) [static]

Definition at line 1606 of file Paned.c.

References CreateGrip(), FALSE, _PanedConstraintsPart::grip, IsPane, IsVert, _PanedConstraintsPart::min, _PanedConstraintsPart::paned_adjusted_me, PANED_GRIP_SIZE, PaneInfo, PaneSize(), _PanedConstraintsPart::show_grip, _PanedConstraintsPart::size, SuperClass, and TRUE.

01608 {
01609    Pane pane = PaneInfo(w);
01610
01611    /* insert the child widget in the composite children list with the */
01612    /* superclass insert_child routine.                                */
01613    (*SuperClass->composite_class.insert_child)(w);
01614
01615    if (!IsPane(w)) return;
01616
01617    /* ||| Panes will be added in the order they are created, temporarily */
01618
01619    if ( pane->show_grip == TRUE ) {
01620        CreateGrip(w);
01621        if (pane->min == PANED_GRIP_SIZE)
01622            pane->min = PaneSize(pane->grip, IsVert((PanedWidget) XtParent(w)));
01623    }
01624    else {
01625        if (pane->min == PANED_GRIP_SIZE)
01626            pane->min = 1;
01627        pane->grip = NULL;
01628    }
01629
01630    pane->size = 0;
01631    pane->paned_adjusted_me = FALSE;
01632
01633 } /* InsertChild */

Here is the call graph for this function:

static void InsertChild ( ) [static]

static void LoopAndRefigureChildren	(	PanedWidget	pw,
		int	paneindex,
		Direction	dir,
		int *	sizeused
	)			`[static]`

Definition at line 513 of file Paned.c.

References AssignMax, AssignMin, ChoosePaneToResize(), FALSE, GetPaneStack(), IsVert, LowRightPane, _PanedConstraintsPart::max, _PanedConstraintsPart::min, _PanedConstraintsPart::paned_adjusted_me, PaneSize(), PopPaneStack(), PushPaneStack(), SatisfiesRule3(), _PanedConstraintsPart::size, TRUE, void(), and _PanedConstraintsPart::wp_size.

Referenced by RefigureLocations().

00517 {
00518     int pane_size = (int) PaneSize( (Widget) pw, IsVert(pw));
00519     Boolean shrink = (*sizeused > pane_size);
00520
00521     if (dir == LowRightPane) paneindex++;
00522
00523     while (*sizeused != pane_size) { /* While all panes do not fit properly. */
00524 /*
00525  * Choose a pane to resize.
00526  * First look on the Pane Stack, and then go hunting for another one.
00527  * If we fail to find a pane to resize then give up.
00528  */
00529         Pane pane;
00530         int start_size;
00531         Dimension old;
00532         Boolean rule3_ok = FALSE, from_stack = TRUE;
00533
00534         GetPaneStack(pw, shrink, &pane, &start_size);
00535         if (pane == NULL) {
00536             pane = ChoosePaneToResize(pw, paneindex, dir, shrink);
00537             if (pane == NULL)
00538                 return; /* no one to resize, give up. */
00539
00540             rule3_ok = SatisfiesRule3(pane, shrink);
00541             from_stack = FALSE;
00542             PushPaneStack(pw, pane);
00543         }
00544
00545
00546 /*
00547  * Try to resize this pane so that all panes will fit, take min and max
00548  * into account.
00549  */
00550         old = pane->size;
00551         pane->size += pane_size - *sizeused;
00552
00553         if (from_stack) {
00554             if (shrink) {
00555                 AssignMax(pane->size, start_size);
00556             }                   /* don't remove these braces. */
00557             else
00558                 AssignMin(pane->size, start_size);
00559
00560             if (pane->size == start_size) (void) PopPaneStack(pw);
00561         }
00562         else if (rule3_ok) {
00563             if (shrink) {
00564                 AssignMax(pane->size, (int) pane->wp_size);
00565             }                   /* don't remove these braces. */
00566             else
00567                 AssignMin(pane->size, (int) pane->wp_size);
00568         }
00569
00570         pane->paned_adjusted_me = (pane->size != pane->wp_size);
00571         AssignMax(pane->size, (int) pane->min);
00572         AssignMin(pane->size, (int) pane->max);
00573         *sizeused += (pane->size - old);
00574     }
00575 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void ManageAndUnmanageGrips ( PanedWidget pw ) [static]

Definition at line 1147 of file Paned.c.

References ForAllChildren, HasGrip, IsPane, and PaneInfo.

Referenced by ChangeManaged().

01149 {
01150    WidgetList managed_grips, unmanaged_grips;
01151    Widget *managedP, *unmanagedP, *childP;
01152    Cardinal alloc_size;
01153
01154    alloc_size = (Cardinal) sizeof(Widget) * pw->composite.num_children / 2;
01155    managedP = managed_grips = (WidgetList) XtMalloc(alloc_size);
01156    unmanagedP = unmanaged_grips = (WidgetList) XtMalloc(alloc_size);
01157
01158    ForAllChildren(pw, childP)
01159        if (IsPane(*childP) && HasGrip(*childP))
01160            if ( XtIsManaged(*childP) )
01161                *managedP++ = PaneInfo(*childP)->grip;
01162            else
01163                *unmanagedP++ = PaneInfo(*childP)->grip;
01164
01165    if (managedP != managed_grips) {
01166        *unmanagedP++ = *--managedP;   /* Last grip is never managed */
01167        XtManageChildren( managed_grips, (Cardinal)(managedP - managed_grips) );
01168    }
01169
01170    if (unmanagedP != unmanaged_grips)
01171        XtUnmanageChildren( unmanaged_grips,
01172                            (Cardinal)(unmanagedP - unmanaged_grips) );
01173
01174    XtFree((char *)managed_grips);
01175    XtFree((char *)unmanaged_grips);
01176 }

Here is the caller graph for this function:

static void MoveGripAdjustment	(	PanedWidget	pw,
		Widget	grip,
		Direction	dir,
		int	loc
	)			`[static]`

Definition at line 968 of file Paned.c.

References AssignMax, AssignMin, DrawTrackLines, IsVert, PaneIndex, PaneInfo, PaneSize(), RefigureLocations(), and ThisBorderOnly.

Referenced by HandleGrip().

00973 {
00974     int diff, add_size = 0, sub_size = 0;
00975
00976     diff = loc - pw->paned.start_loc;
00977
00978     if (pw->paned.whichadd)
00979         add_size = PaneSize(pw->paned.whichadd, IsVert(pw) ) + diff;
00980
00981     if (pw->paned.whichsub)
00982         sub_size = PaneSize(pw->paned.whichsub, IsVert(pw) ) - diff;
00983
00984 /*
00985  * If moving this border only then do not allow either of the borders
00986  * to go beyond the min or max size allowed.
00987  */
00988
00989     if ( (dir == ThisBorderOnly) ) {
00990       int old_add_size = add_size, old_sub_size;
00991
00992       AssignMax(add_size, (int) PaneInfo(pw->paned.whichadd)->min);
00993       AssignMin(add_size, (int) PaneInfo(pw->paned.whichadd)->max);
00994       if (add_size != old_add_size)
00995           sub_size += old_add_size - add_size;
00996
00997       old_sub_size = sub_size;
00998       AssignMax(sub_size, (int) PaneInfo(pw->paned.whichsub)->min);
00999       AssignMin(sub_size, (int) PaneInfo(pw->paned.whichsub)->max);
01000       if (sub_size != old_sub_size) return; /* Abort to current sizes. */
01001     }
01002
01003     if (add_size != 0)
01004         PaneInfo(pw->paned.whichadd)->size = add_size;
01005     if (sub_size != 0)
01006         PaneInfo(pw->paned.whichsub)->size = sub_size;
01007     RefigureLocations(pw, PaneIndex(grip), dir);
01008     DrawTrackLines(pw);
01009 }

Here is the call graph for this function:

Here is the caller graph for this function:

static Boolean PaneSetValues	(	Widget	old,
		Widget	request,
		Widget	new,
		ArgList	args,
		Cardinal *	num_args
	)			`[static]`

Definition at line 1791 of file Paned.c.

References CommitNewLocations(), CreateGrip(), FALSE, _PanedConstraintsPart::grip, HasGrip, _PanedConstraintsPart::max, _PanedConstraintsPart::min, PaneInfo, _PanedConstraintsPart::show_grip, TRUE, and XawPanedSetMinMax().

01795 {
01796     Pane old_pane = PaneInfo(old);
01797     Pane new_pane = PaneInfo(new);
01798     Boolean redisplay = FALSE;
01799
01800     /* Check for new min and max. */
01801
01802     if (old_pane->min != new_pane->min || old_pane->max != new_pane->max)
01803         XawPanedSetMinMax(new, (int)new_pane->min, (int)new_pane->max);
01804
01805     /* Check for change in XtNshowGrip. */
01806
01807     if (old_pane->show_grip != new_pane->show_grip)
01808         if (new_pane->show_grip == TRUE) {
01809             CreateGrip(new);
01810             if (XtIsRealized(XtParent(new))) {
01811                 if (XtIsManaged(new)) /* if paned is unrealized this will
01812                                        happen automatically at realize time.*/
01813                     XtManageChild(PaneInfo(new)->grip); /* manage the grip. */
01814                 XtRealizeWidget(PaneInfo(new)->grip); /* realize the grip. */
01815                 CommitNewLocations( (PanedWidget) XtParent(new) );
01816             }
01817         }
01818         else if ( HasGrip(old) ) {
01819             XtDestroyWidget( old_pane->grip );
01820             new_pane->grip = NULL;
01821             redisplay = TRUE;
01822         }
01823
01824   /* ||| need to look at position changes */
01825
01826     return(redisplay);
01827 }

Here is the call graph for this function:

static Boolean PaneSetValues ( ) [static]

static Dimension PaneSize	(	Widget	w,
		Boolean	vertical
	)			`[static]`

Definition at line 355 of file Paned.c.

00358 {
00359     if (vertical) return (w->core.height);
00360     return (w->core.width);
00361 }

static Dimension PaneSize ( ) [static]

Referenced by _DrawInternalBorders(), _DrawTrackLines(), AdjustPanedSize(), ChangeManaged(), GeometryManager(), InsertChild(), LoopAndRefigureChildren(), MoveGripAdjustment(), RefigureLocations(), Resize(), SetChildrenPrefSizes(), and SetValues().

Here is the caller graph for this function:

static Boolean PopPaneStack ( PanedWidget pw ) [static]

Definition at line 1386 of file Paned.c.

References FALSE, _PaneStack::next, and TRUE.

01388 {
01389   PaneStack * stack = pw->paned.stack;
01390
01391   if (stack == NULL) return(FALSE);
01392
01393   pw->paned.stack = stack->next;
01394   XtFree((char*)stack);
01395
01396   if (pw->paned.stack == NULL) return(FALSE);
01397   return(TRUE);
01398 }

static Boolean PopPaneStack ( ) [static]

Referenced by ClearPaneStack(), and LoopAndRefigureChildren().

Here is the caller graph for this function:

static void PushPaneStack	(	PanedWidget	pw,
		Pane	pane
	)			`[static]`

Definition at line 1338 of file Paned.c.

References _PaneStack::next, _PaneStack::pane, _PanedConstraintsPart::size, and _PaneStack::start_size.

01341 {
01342   PaneStack * stack = (PaneStack *) XtMalloc(sizeof(PaneStack));
01343
01344   stack->next = pw->paned.stack;
01345   stack->pane = pane;
01346   stack->start_size = pane->size;
01347
01348   pw->paned.stack = stack;
01349 }

static void PushPaneStack ( ) [static]

Referenced by LoopAndRefigureChildren().

Here is the caller graph for this function:

static void Realize	(	Widget	w,
		Mask *	valueMask,
		XSetWindowAttributes *	attributes
	)			`[static]`

Definition at line 1567 of file Paned.c.

References FALSE, ForAllPanes, HasGrip, _PanedRec::paned, PaneInfo, RefigureLocationsAndCommit(), PanedPart::resize_children_to_pref, and SuperClass.

01571 {
01572     PanedWidget pw = (PanedWidget) w;
01573     Widget * childP;
01574
01575     if ((attributes->cursor = (pw)->paned.cursor) != None)
01576         *valueMask |= CWCursor;
01577
01578     (*SuperClass->core_class.realize) (w, valueMask, attributes);
01579
01580 /*
01581  * Before we commit the new locations we need to realize all the panes and
01582  * their grips.
01583  */
01584
01585     ForAllPanes(pw, childP) {
01586         XtRealizeWidget( *childP );
01587         if (HasGrip (*childP))
01588             XtRealizeWidget( PaneInfo(*childP)->grip );
01589     }
01590
01591     RefigureLocationsAndCommit(w);
01592     pw->paned.resize_children_to_pref = FALSE;
01593 } /* Realize */

Here is the call graph for this function:

static void Realize ( ) [static]

static void Redisplay	(	Widget	w,
		XEvent *	event,
		Region	region
	)			`[static]`

Definition at line 1718 of file Paned.c.

References DrawInternalBorders.

01722 {
01723     DrawInternalBorders( (PanedWidget) w);
01724 }

static void Redisplay ( ) [static]

static void RefigureLocations	(	PanedWidget	pw,
		int	paneindex,
		Direction	dir
	)			`[static]`

Definition at line 594 of file Paned.c.

References AnyPane, AssignMax, AssignMin, ForAllPanes, IsVert, LoopAndRefigureChildren(), _PanedConstraintsPart::max, _PanedConstraintsPart::min, NO_INDEX, PaneInfo, PaneSize(), _PanedConstraintsPart::size, and ThisBorderOnly.

Referenced by GeometryManager(), MoveGripAdjustment(), and RefigureLocationsAndCommit().

00598 {
00599     Widget *childP;
00600     int pane_size = (int) PaneSize( (Widget) pw, IsVert(pw) );
00601     int sizeused = 0;
00602     Position loc = 0;
00603
00604     if (pw->paned.num_panes == 0 || !pw->paned.refiguremode) return;
00605
00606 /*
00607  * Get an initial estimate of the size we will use.
00608  */
00609
00610     ForAllPanes(pw, childP) {
00611         Pane pane = PaneInfo(*childP);
00612         AssignMax(pane->size, (int) pane->min);
00613         AssignMin(pane->size, (int) pane->max);
00614         sizeused += (int) pane->size + (int) pw->paned.internal_bw;
00615     }
00616     sizeused -= (int) pw->paned.internal_bw;
00617
00618     if ( (dir != ThisBorderOnly) && (sizeused != pane_size) )
00619       LoopAndRefigureChildren(pw, paneindex, dir, &sizeused);
00620
00621 /*
00622  * If we still are not the right size, then tell the pane that
00623  * wanted to resize that it can't.
00624  */
00625
00626
00627     if ( (paneindex != NO_INDEX) && (dir != AnyPane) ) {
00628         Pane pane = PaneInfo(*(pw->composite.children + paneindex));
00629         Dimension old = pane->size;
00630
00631         pane->size += pane_size - sizeused;
00632         AssignMax(pane->size, (int) pane->min);
00633         AssignMin(pane->size, (int) pane->max);
00634         sizeused += pane->size - old;
00635     }
00636
00637 /*
00638  * It is possible that the panes will not fit inside the vpaned widget, but
00639  * we have tried out best.
00640  *
00641  * Assign each pane a location.
00642  */
00643
00644     ForAllPanes(pw, childP) {
00645         PaneInfo(*childP)->delta = loc;
00646         loc += PaneInfo(*childP)->size + pw->paned.internal_bw;
00647     }
00648 }

Here is the call graph for this function:

Here is the caller graph for this function:

static void RefigureLocationsAndCommit ( Widget w ) [static]

Definition at line 729 of file Paned.c.

References AnyPane, CommitNewLocations(), NO_INDEX, _PanedRec::paned, RefigureLocations(), and PanedPart::refiguremode.

00731 {
00732     PanedWidget pw = (PanedWidget) w;
00733     if (pw->paned.refiguremode && XtIsRealized( (Widget) pw) &&
00734         pw->paned.num_panes > 0 ) {
00735         RefigureLocations(pw, NO_INDEX, AnyPane);
00736         CommitNewLocations(pw);
00737     }
00738 }

Here is the call graph for this function:

static void RefigureLocationsAndCommit ( ) [static]

Referenced by ChangeManaged(), Realize(), Resize(), SetValues(), XawPanedSetMinMax(), and XawPanedSetRefigureMode().

Here is the caller graph for this function:

static void ReleaseGCs ( Widget w ) [static]

Definition at line 1596 of file Paned.c.

References PanedPart::flipgc, PanedPart::invgc, PanedPart::normgc, and _PanedRec::paned.

01598 {
01599     PanedWidget pw = (PanedWidget)w;
01600
01601     XtReleaseGC( w, pw->paned.normgc );
01602     XtReleaseGC( w, pw->paned.invgc );
01603     XtReleaseGC( w, pw->paned.flipgc );
01604 }

static void ReleaseGCs ( )

Referenced by SetValues().

Here is the caller graph for this function:

static void Resize ( Widget w ) [static]

Definition at line 1708 of file Paned.c.

References IsVert, PaneSize(), RefigureLocationsAndCommit(), SetChildrenPrefSizes(), and w.

01710 {
01711     SetChildrenPrefSizes( (PanedWidget) w,
01712                           PaneSize(w, !IsVert((PanedWidget) w)) );
01713     RefigureLocationsAndCommit(w);
01714 }

Here is the call graph for this function:

static void Resize ( )

static void ResortChildren ( PanedWidget pw ) [static]

Definition at line 1110 of file Paned.c.

References ForAllChildren, and IsPane.

Referenced by ChangeManaged().

01112 {
01113     Widget * unmanagedP, * childP;
01114
01115     unmanagedP = NULL;
01116     ForAllChildren(pw, childP) {
01117        if (!IsPane(*childP) || !XtIsManaged(*childP)) {
01118            /*
01119             * We only keep track of the first unmanaged pane.
01120             */
01121            if (unmanagedP == NULL)
01122                unmanagedP = childP;
01123        }
01124        else {                        /* must be a managed pane */
01125            /*
01126             * If an earlier widget was not a managed pane, then swap
01127             */
01128            if (unmanagedP != NULL) {
01129                Widget child = *unmanagedP;
01130                *unmanagedP = *childP;
01131                *childP = child;
01132                childP = unmanagedP;  /* easiest to just back-track */
01133                unmanagedP = NULL;    /* in case there is another managed */
01134            }
01135        }
01136    }
01137 }

Here is the caller graph for this function:

static Boolean SatisfiesRule1	(	Pane	pane,
		Boolean	shrink
	)			`[static]`

Definition at line 462 of file Paned.c.

00465 {
00466   return( (shrink && (pane->size != pane->min)) ||
00467           (!shrink && (pane->size != pane->max)) );
00468 }

static Boolean SatisfiesRule1 ( ) [static]

Referenced by ChoosePaneToResize().

Here is the caller graph for this function:

static Boolean SatisfiesRule2 ( Pane pane ) [static]

Definition at line 477 of file Paned.c.

00479 {
00480   return(!pane->skip_adjust || pane->paned_adjusted_me);
00481 }

static Boolean SatisfiesRule2 ( )

Referenced by ChoosePaneToResize().

Here is the caller graph for this function:

static Boolean SatisfiesRule3	(	Pane	pane,
		Boolean	shrink
	)			`[static]`

Definition at line 491 of file Paned.c.

00494 {
00495   return ( pane->paned_adjusted_me &&
00496            ( (shrink && ((int)pane->wp_size <= pane->size)) ||
00497              (!shrink && ((int)pane->wp_size >= pane->size))) );
00498 }

static Boolean SatisfiesRule3 ( )

Referenced by ChoosePaneToResize(), and LoopAndRefigureChildren().

Here is the caller graph for this function:

static void SetChildrenPrefSizes	(	PanedWidget	pw,
		Dimension	off_size
	)			`[static]`

Definition at line 1258 of file Paned.c.

References ForAllPanes, IsVert, PANED_ASK_CHILD, PaneInfo, and PaneSize().

Referenced by ChangeManaged(), and Resize().

01261 {
01262     Widget * childP;
01263     Boolean vert = IsVert(pw);
01264     XtWidgetGeometry request, reply;
01265
01266     ForAllPanes(pw, childP)
01267         if ( pw->paned.resize_children_to_pref          ||
01268              (PaneInfo(*childP)->size == 0)             ||
01269              (PaneInfo(*childP)->resize_to_pref) ) {
01270
01271             if (PaneInfo(*childP)->preferred_size != PANED_ASK_CHILD)
01272                 PaneInfo(*childP)->wp_size=PaneInfo(*childP)->preferred_size;
01273             else {
01274                 if( vert ) {
01275                     request.request_mode = CWWidth;
01276                     request.width = off_size;
01277                 }
01278                 else {
01279                     request.request_mode = CWHeight;
01280                     request.height = off_size;
01281                 }
01282
01283                 if ((XtQueryGeometry( *childP, &request, &reply )
01284                                                  == XtGeometryAlmost) &&
01285                     (reply.request_mode = (vert ? CWHeight : CWWidth)))
01286                     PaneInfo(*childP)->wp_size = GetRequestInfo(&reply, vert);
01287                 else
01288                     PaneInfo(*childP)->wp_size = PaneSize(*childP, vert);
01289             }
01290
01291             PaneInfo(*childP)->size = PaneInfo(*childP)->wp_size;
01292           }
01293 }

Here is the call graph for this function:

Here is the caller graph for this function:

static Boolean SetValues	(	Widget	old,
		Widget	request,
		Widget	new,
		ArgList	args,
		Cardinal *	num_args
	)			`[static]`

Definition at line 1728 of file Paned.c.

References AdjustPanedSize(), ChangeAllGripCursors(), ChangeManaged(), CommitNewLocations(), _PanedRec::core, PanedPart::cursor, FALSE, GetGCs(), PanedPart::grip_cursor, PanedPart::grip_indent, PanedPart::h_grip_cursor, PanedPart::internal_bp, PanedPart::internal_bw, IsVert, _PanedRec::paned, PaneSize(), RefigureLocationsAndCommit(), ReleaseGCs(), TRUE, and PanedPart::v_grip_cursor.

01732 {
01733     PanedWidget old_pw = (PanedWidget) old;
01734     PanedWidget new_pw = (PanedWidget) new;
01735     Boolean redisplay = FALSE;
01736
01737     if ( (old_pw->paned.cursor != new_pw->paned.cursor) && XtIsRealized(new))
01738         XDefineCursor(XtDisplay(new), XtWindow(new), new_pw->paned.cursor);
01739
01740     if ( (old_pw->paned.internal_bp != new_pw->paned.internal_bp) ||
01741          (old_pw->core.background_pixel != new_pw->core.background_pixel) ) {
01742         ReleaseGCs(old);
01743         GetGCs(new);
01744         redisplay = TRUE;
01745     }
01746
01747     if ( (old_pw->paned.grip_cursor != new_pw->paned.grip_cursor)     ||
01748          (old_pw->paned.v_grip_cursor != new_pw->paned.v_grip_cursor) ||
01749          (old_pw->paned.h_grip_cursor != new_pw->paned.h_grip_cursor) ) {
01750         ChangeAllGripCursors(new_pw);
01751     }
01752
01753     if ( IsVert(old_pw) != IsVert(new_pw)) {
01754 /*
01755  * We are fooling the paned widget into thinking that is needs to
01756  * fully refigure everything, which is what we want.
01757  */
01758         if (IsVert(new_pw))
01759             new_pw->core.width = 0;
01760         else
01761             new_pw->core.height = 0;
01762
01763         new_pw->paned.resize_children_to_pref = TRUE;
01764         ChangeManaged(new);     /* Seems weird, but does the right thing. */
01765         new_pw->paned.resize_children_to_pref = FALSE;
01766         if (new_pw->paned.grip_cursor == None)
01767             ChangeAllGripCursors(new_pw);
01768         return(TRUE);
01769     }
01770
01771     if (old_pw->paned.internal_bw != new_pw->paned.internal_bw) {
01772         AdjustPanedSize( new_pw, PaneSize(new, !IsVert(old_pw)),
01773                          (XtGeometryResult *)NULL,
01774                          (Dimension *)NULL, (Dimension *)NULL);
01775         RefigureLocationsAndCommit(new);
01776         return(TRUE);           /* We have done a full configuration, return.*/
01777     }
01778
01779     if ( (old_pw->paned.grip_indent != new_pw->paned.grip_indent) &&
01780          (XtIsRealized(new)) ) {
01781         CommitNewLocations(new_pw);
01782         redisplay = TRUE;
01783     }
01784
01785     return (redisplay);
01786 } /* SetValues */

Here is the call graph for this function:

static Boolean SetValues ( ) [static]

static void StartGripAdjustment	(	PanedWidget	pw,
		Widget	grip,
		Direction	dir
	)			`[static]`

Definition at line 904 of file Paned.c.

References EraseInternalBorders, ForAllPanes, IsVert, LowRightPane, PaneIndex, PaneInfo, ThisBorderOnly, and UpLeftPane.

Referenced by HandleGrip().

00908 {
00909     Widget *childP;
00910     Cursor cursor;
00911
00912     pw->paned.whichadd = pw->paned.whichsub = (Widget) NULL;
00913
00914     if (dir == ThisBorderOnly || dir == UpLeftPane)
00915       pw->paned.whichadd = pw->composite.children[PaneIndex(grip)];
00916     if (dir == ThisBorderOnly || dir == LowRightPane)
00917       pw->paned.whichsub = pw->composite.children[PaneIndex(grip) + 1];
00918
00919 /*
00920  * Change the cursor.
00921  */
00922
00923     if (XtIsRealized(grip)) {
00924         if ( IsVert(pw) ) {
00925             if (dir == UpLeftPane)
00926                 cursor = pw->paned.adjust_upper_cursor;
00927             else if (dir == LowRightPane)
00928                 cursor = pw->paned.adjust_lower_cursor;
00929             else {
00930                 if ( pw->paned.adjust_this_cursor == None)
00931                     cursor = pw->paned.v_adjust_this_cursor;
00932                 else
00933                     cursor = pw->paned.adjust_this_cursor;
00934             }
00935         }
00936         else {
00937             if (dir == UpLeftPane)
00938                 cursor = pw->paned.adjust_left_cursor;
00939             else if (dir == LowRightPane)
00940                 cursor = pw->paned.adjust_right_cursor;
00941             else {
00942                 if (pw->paned.adjust_this_cursor == None)
00943                     cursor = pw->paned.h_adjust_this_cursor;
00944                 else
00945                     cursor = pw->paned.adjust_this_cursor;
00946             }
00947         }
00948
00949         XDefineCursor(XtDisplay(grip), XtWindow(grip), cursor);
00950     }
00951
00952     EraseInternalBorders(pw);
00953     ForAllPanes(pw, childP)
00954         PaneInfo(*childP)->olddelta = -99;
00955 }

Here is the caller graph for this function:

void XawPanedAllowResize	(	Widget	widget,
		Boolean	allow_resize
	)

Definition at line 1939 of file Paned.c.

References PaneInfo.

Referenced by DisableWindowResize().

01943 {
01944     PaneInfo(widget)->allow_resize = allow_resize;
01945 }

Here is the caller graph for this function:

void XawPanedGetMinMax	(	Widget	widget,
		int *	min,
		int *	max
	)

Definition at line 1869 of file Paned.c.

References _PanedConstraintsPart::max, _PanedConstraintsPart::min, and PaneInfo.

01873 {
01874     Pane pane = PaneInfo(widget);
01875
01876     *min = pane->min;
01877     *max = pane->max;
01878 }

int XawPanedGetNumSub ( Widget w )

Definition at line 1916 of file Paned.c.

01919 {
01920     return ((PanedWidget)w)->paned.num_panes;
01921 }

void XawPanedSetMinMax	(	Widget	widget,
		int	min,
		int	max
	)

Definition at line 1846 of file Paned.c.

References _PanedConstraintsPart::max, _PanedConstraintsPart::min, PaneInfo, and RefigureLocationsAndCommit().

Referenced by DisableWindowResize(), and PaneSetValues().

01850 {
01851     Pane pane = PaneInfo(widget);
01852
01853     pane->min = min;
01854     pane->max = max;
01855     RefigureLocationsAndCommit( widget->core.parent );
01856 }

Here is the call graph for this function:

Here is the caller graph for this function:

void XawPanedSetRefigureMode	(	Widget	w,
		Boolean	mode
	)

Definition at line 1897 of file Paned.c.

References mode, and RefigureLocationsAndCommit().

01901 {
01902     ((PanedWidget) w)->paned.refiguremode = mode;
01903     RefigureLocationsAndCommit( w );
01904 }

Here is the call graph for this function:

char defGripTranslations[] [static]

Initial value:

    "<Btn1Down>:                GripAction(Start, UpLeftPane) \n\
     <Btn2Down>:                GripAction(Start, ThisBorderOnly) \n\
     <Btn3Down>:                GripAction(Start, LowRightPane) \n\
     <Btn1Motion>:              GripAction(Move, UpLeft) \n\
     <Btn2Motion>:              GripAction(Move, ThisBorder) \n\
     <Btn3Motion>:              GripAction(Move, LowRight) \n\
     Any<BtnUp>:                GripAction(Commit)"

Definition at line 107 of file Paned.c.

PanedClassRec panedClassRec

Definition at line 209 of file Paned.c.

WidgetClass panedWidgetClass = (WidgetClass) &panedClassRec

Definition at line 263 of file Paned.c.

XtResource resources[] [static]

Definition at line 118 of file Paned.c.

XtResource subresources[] [static]

Initial value:

 {
    {XtNallowResize, XtCBoolean, XtRBoolean, sizeof(Boolean),
         offset(allow_resize), XtRImmediate, (XtPointer) FALSE},
    {XtNposition, XtCPosition, XtRInt, sizeof(int),
         offset(position), XtRImmediate, (XtPointer) 0},
    {XtNmin, XtCMin, XtRDimension, sizeof(Dimension),
         offset(min), XtRImmediate, (XtPointer) PANED_GRIP_SIZE},
    {XtNmax, XtCMax, XtRDimension, sizeof(Dimension),
         offset(max), XtRImmediate, (XtPointer) ~0},
    {XtNpreferredPaneSize, XtCPreferredPaneSize, XtRDimension,
         sizeof(Dimension), offset(preferred_size),
         XtRImmediate, (XtPointer) PANED_ASK_CHILD},
    {XtNresizeToPreferred, XtCBoolean, XtRBoolean, sizeof(Boolean),
         offset(resize_to_pref), XtRImmediate, (XtPointer) FALSE},
    {XtNskipAdjust, XtCBoolean, XtRBoolean, sizeof(Boolean),
         offset(skip_adjust), XtRImmediate, (XtPointer) FALSE},
    {XtNshowGrip, XtCShowGrip, XtRBoolean, sizeof(Boolean),
         offset(show_grip), XtRImmediate, (XtPointer) TRUE},
}

Definition at line 166 of file Paned.c.

WidgetClass vPanedWidgetClass = (WidgetClass) &panedClassRec

Definition at line 266 of file Paned.c.

Paned.c File Reference

Defines

Enumerations

Functions

Variables

Define Documentation

Enumeration Type Documentation

Function Documentation

Variable Documentation


Defines
#define	NO_INDEX -100
#define	IS_GRIP NULL
#define	PaneInfo(w) ((Pane)(w)->core.constraints)
#define	HasGrip(w) (PaneInfo(w)->grip != NULL)
#define	IsPane(w) ((w)->core.widget_class != gripWidgetClass)
#define	PaneIndex(w) (PaneInfo(w)->position)
#define	IsVert(w) ( (w)->paned.orientation == XtorientVertical )
#define	ForAllPanes(pw, childP)
#define	ForAllChildren(pw, childP)
#define	offset(field) XtOffsetOf(PanedRec, paned.field)
#define	offset(field) XtOffsetOf(PanedConstraintsRec, paned.field)
#define	SuperClass ((ConstraintWidgetClass)&constraintClassRec)
#define	DrawInternalBorders(pw) _DrawInternalBorders((pw), (pw)->paned.normgc);
#define	EraseInternalBorders(pw) _DrawInternalBorders((pw), (pw)->paned.invgc);
#define	DrawTrackLines(pw) _DrawTrackLines((pw), FALSE);
#define	EraseTrackLines(pw) _DrawTrackLines((pw), TRUE);
Enumerations
enum	Direction { UpLeftPane = 'U', LowRightPane = 'L', ThisBorderOnly = 'T', AnyPane = 'A' }
Functions
static void	ClassInitialize ()
static void	Initialize ()
static void	Realize ()
static void	Resize ()
static void	Redisplay ()
static void	GetGCs ()
static void	ReleaseGCs ()
static void	RefigureLocationsAndCommit ()
static Boolean	SetValues ()
static XtGeometryResult	GeometryManager ()
static void	ChangeManaged ()
static void	InsertChild ()
static void	DeleteChild ()
static Boolean	PaneSetValues ()
static Dimension	PaneSize ()
static Dimension	GetRequestInfo ()
static Boolean	SatisfiesRule1 ()
static Boolean	SatisfiesRule2 ()
static Boolean	SatisfiesRule3 ()
static void	PushPaneStack ()
static void	GetPaneStack ()
static Boolean	PopPaneStack ()
static void	ClearPaneStack ()
static void	AdjustPanedSize (PanedWidget pw, Dimension off_size, XtGeometryResult result_ret, Dimension on_size_ret, Dimension *off_size_ret)
static Dimension	PaneSize (Widget w, Boolean vertical)
static Dimension	GetRequestInfo (XtWidgetGeometry *geo_struct, Boolean vert)
static Pane	ChoosePaneToResize (PanedWidget pw, int paneindex, Direction dir, Boolean shrink)
static Boolean	SatisfiesRule1 (Pane pane, Boolean shrink)
static Boolean	SatisfiesRule2 (Pane pane)
static Boolean	SatisfiesRule3 (Pane pane, Boolean shrink)
static void	LoopAndRefigureChildren (PanedWidget pw, int paneindex, Direction dir, int *sizeused)
static void	RefigureLocations (PanedWidget pw, int paneindex, Direction dir)
static void	CommitNewLocations (PanedWidget pw)
static void	RefigureLocationsAndCommit (Widget w)
static void	_DrawRect (PanedWidget pw, GC gc, int on_loc, int off_loc, unsigned int on_size, unsigned int off_size)
static void	_DrawInternalBorders (PanedWidget pw, GC gc)
static void	_DrawTrackLines (PanedWidget pw, Boolean erase)
static int	GetEventLocation (PanedWidget pw, XEvent *event)
static void	StartGripAdjustment (PanedWidget pw, Widget grip, Direction dir)
static void	MoveGripAdjustment (PanedWidget pw, Widget grip, Direction dir, int loc)
static void	CommitGripAdjustment (PanedWidget pw)
static void	HandleGrip (Widget grip, XtPointer junk, XtPointer callData)
static void	ResortChildren (PanedWidget pw)
static void	ManageAndUnmanageGrips (PanedWidget pw)
static void	CreateGrip (Widget child)
static void	GetGCs (Widget w)
static void	SetChildrenPrefSizes (PanedWidget pw, Dimension off_size)
static void	ChangeAllGripCursors (PanedWidget pw)
static void	PushPaneStack (PanedWidget pw, Pane pane)
static void	GetPaneStack (PanedWidget pw, Boolean shrink, Pane pane, int start_size)
static Boolean	PopPaneStack (PanedWidget pw)
static void	ClearPaneStack (PanedWidget pw)
static XtGeometryResult	GeometryManager (Widget w, XtWidgetGeometry request, XtWidgetGeometry reply)
static void	Initialize (Widget request, Widget new, ArgList args, Cardinal *num_args)
static void	Realize (Widget w, Mask valueMask, XSetWindowAttributes attributes)
static void	ReleaseGCs (Widget w)
static void	InsertChild (Widget w)
static void	DeleteChild (Widget w)
static void	ChangeManaged (Widget w)
static void	Resize (Widget w)
static void	Redisplay (Widget w, XEvent *event, Region region)
static Boolean	SetValues (Widget old, Widget request, Widget new, ArgList args, Cardinal *num_args)
static Boolean	PaneSetValues (Widget old, Widget request, Widget new, ArgList args, Cardinal *num_args)
void	XawPanedSetMinMax (Widget widget, int min, int max)
void	XawPanedGetMinMax (Widget widget, int min, int max)
void	XawPanedSetRefigureMode (Widget w, Boolean mode)
int	XawPanedGetNumSub (Widget w)
void	XawPanedAllowResize (Widget widget, Boolean allow_resize)
Variables
static char	defGripTranslations []
static XtResource	resources []
static XtResource	subresources []
PanedClassRec	panedClassRec
WidgetClass	panedWidgetClass = (WidgetClass) &panedClassRec
WidgetClass	vPanedWidgetClass = (WidgetClass) &panedClassRec
