twfeivdecomp

Overview

twfeivdecomp is a package for decomposing the two-way fixed effects instrumental variable (TWFEIV) estimator under staggered instrumented difference-in-differences (DID-IV) designs.
The package decomposes the TWFEIV estimator into a weighted average of all possible Wald-DID estimators, providing a transparent view of how different 2x2 comparisons contribute to the overall estimate.

The decomposition can be performed both with and without time-varying controls.

Installation

You can install the development version of twfeivdecomp from GitHub:

library(devtools)
install_github("shomiyaji/twfeiv-decomp")

Functions

-twfeiv_decomp(): decomposes the TWFEIV estimator into all possible Wald-DID estimators, with or without time-varying controls.

Data

The package includes an example dataset simulation_data, which is a small simulated panel dataset.
It contains 72 observations (12 units observed over 6 time periods) with the following variables:

Example

This is a basic example which shows how to decompose the TWFEIV estimator into its Wald-DID components using the twfeivdecomp package.

library(twfeivdecomp)
decomposition_result <- twfeiv_decomp(outcome ~ treatment | instrument,
                                      data = simulation_data,
                                      id_var = "id",
                                      time_var = "time",
                                      summary_output = F)

# Decomposition result
head(decomposition_result)
#>   exposed_cohort unexposed_cohort                design_type Wald_DID_estimate
#> 1           2001             2002 Exposed vs Not Yet Exposed          6.666667
#> 2           2005             2002   Exposed vs Exposed Shift         10.000000
#> 3           2003             2002   Exposed vs Exposed Shift         10.000000
#> 4           2002             2001   Exposed vs Exposed Shift         10.000000
#> 5           2005             2001   Exposed vs Exposed Shift         10.000000
#> 6           2003             2001   Exposed vs Exposed Shift         10.000000
#>       weight
#> 1 0.02777778
#> 2 0.02777778
#> 3 0.02777778
#> 4 0.07407407
#> 5 0.07407407
#> 6 0.11111111

# Print the summary
print_summary(data = decomposition_result, return_df = FALSE)
#> # A tibble: 3 × 3
#>   design_type                weight_sum Weighted_average_Wald_DID
#>   <chr>                           <dbl>                     <dbl>
#> 1 Exposed vs Exposed Shift        0.333                     10
#> 2 Exposed vs Not Yet Exposed      0.324                      8
#> 3 Exposed vs Unexposed            0.343                      8.65

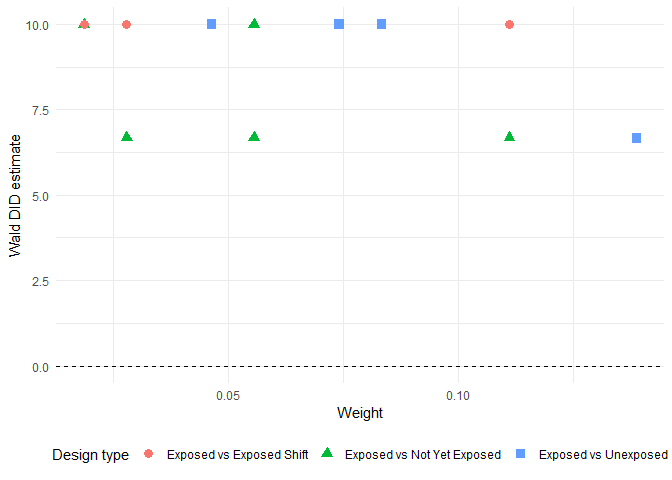

# Print the figure
library(ggplot2)

ggplot(decomposition_result) +
  aes(x = weight, y = Wald_DID_estimate,
      shape = factor(design_type),
      color = factor(design_type)) +
  geom_point(size = 3) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  theme_minimal() +
  labs(x = "Weight", y = "Wald DID estimate",
       shape = "Design type", color = "Design type") +
  theme(
    legend.position = "bottom",
    legend.box = "horizontal"
  )
